Electrical Diagrams




Automatic Transmission Controls Schematics

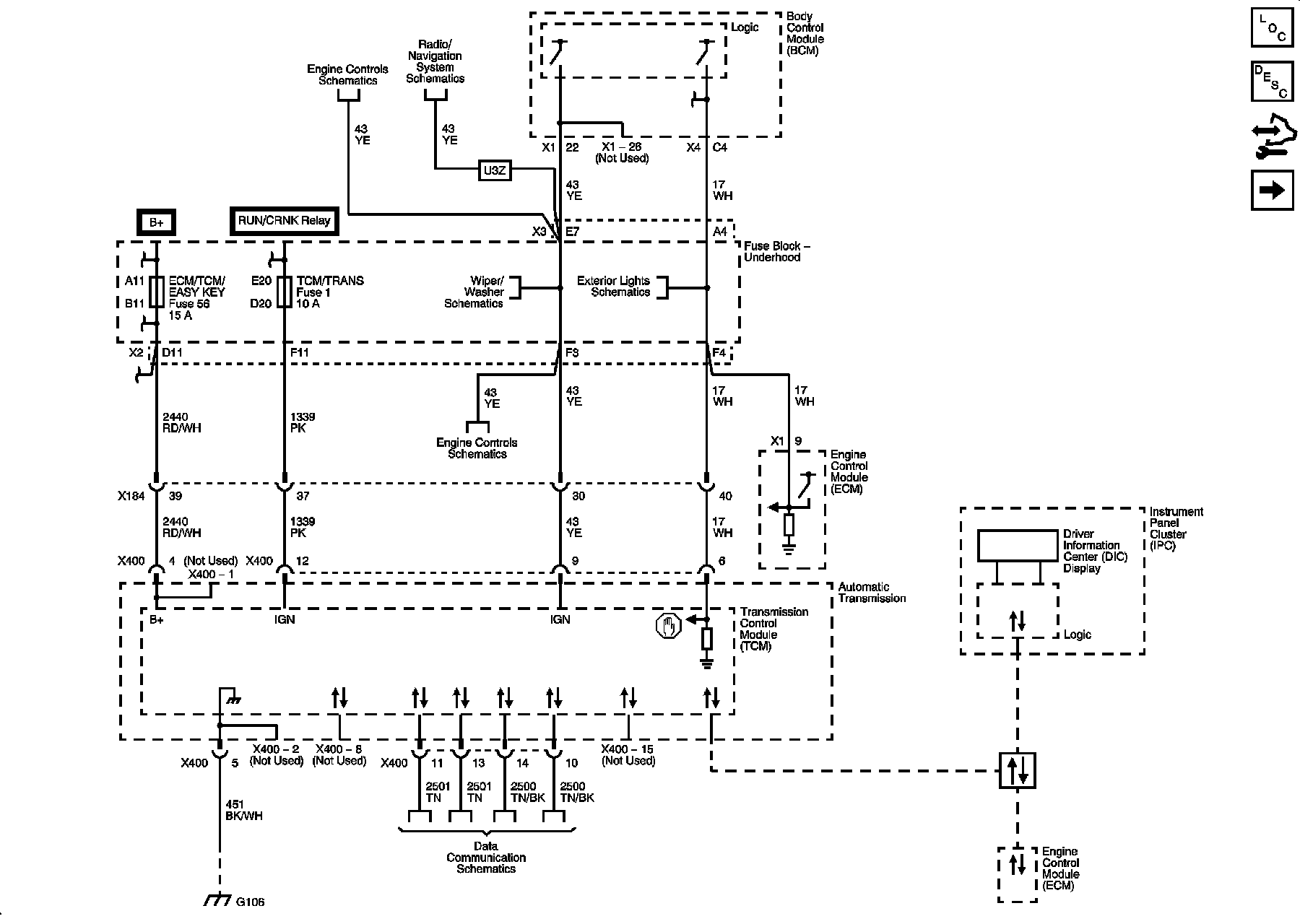

Power, Ground, Serial Data, and Stop Lamp Switch Signal

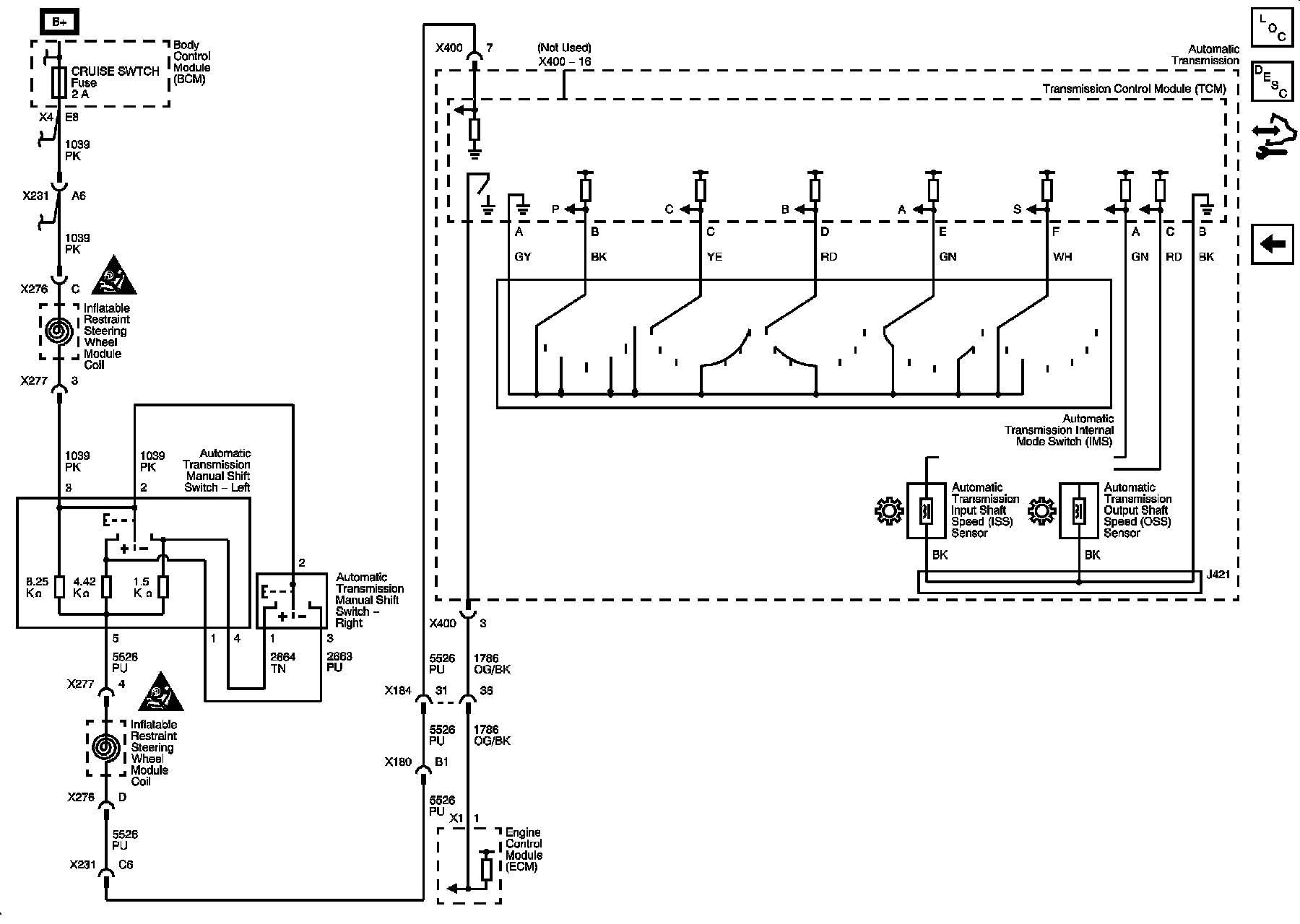

Input/Output Speed Sensors (ISS/OSS), Internal Mode Switch (IMS), and TAP Shift Switches
