Brake Fluid Level Sensor/Switch




Component Connector End Views

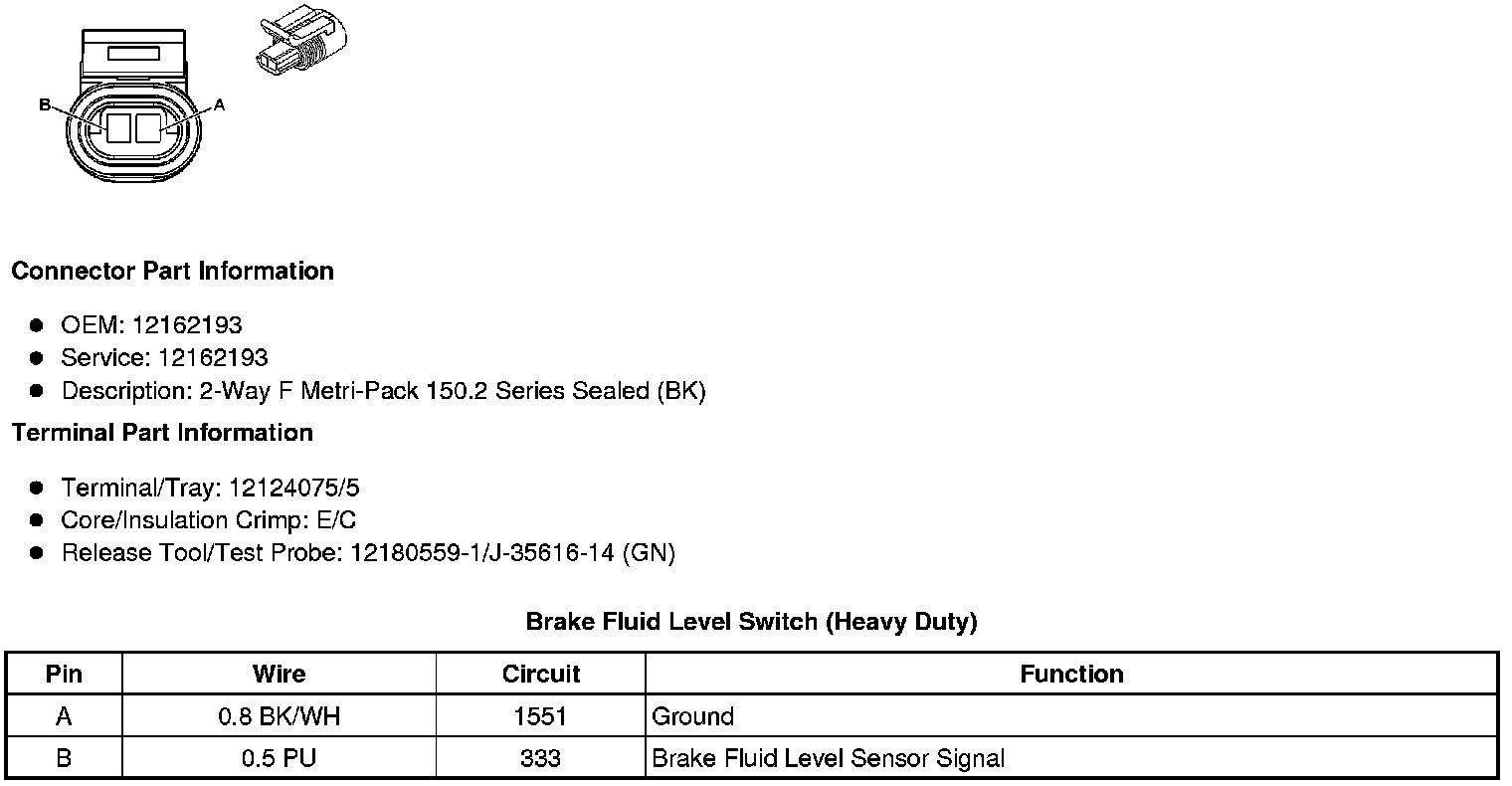

Brake Fluid Level Switch (Heavy Duty)

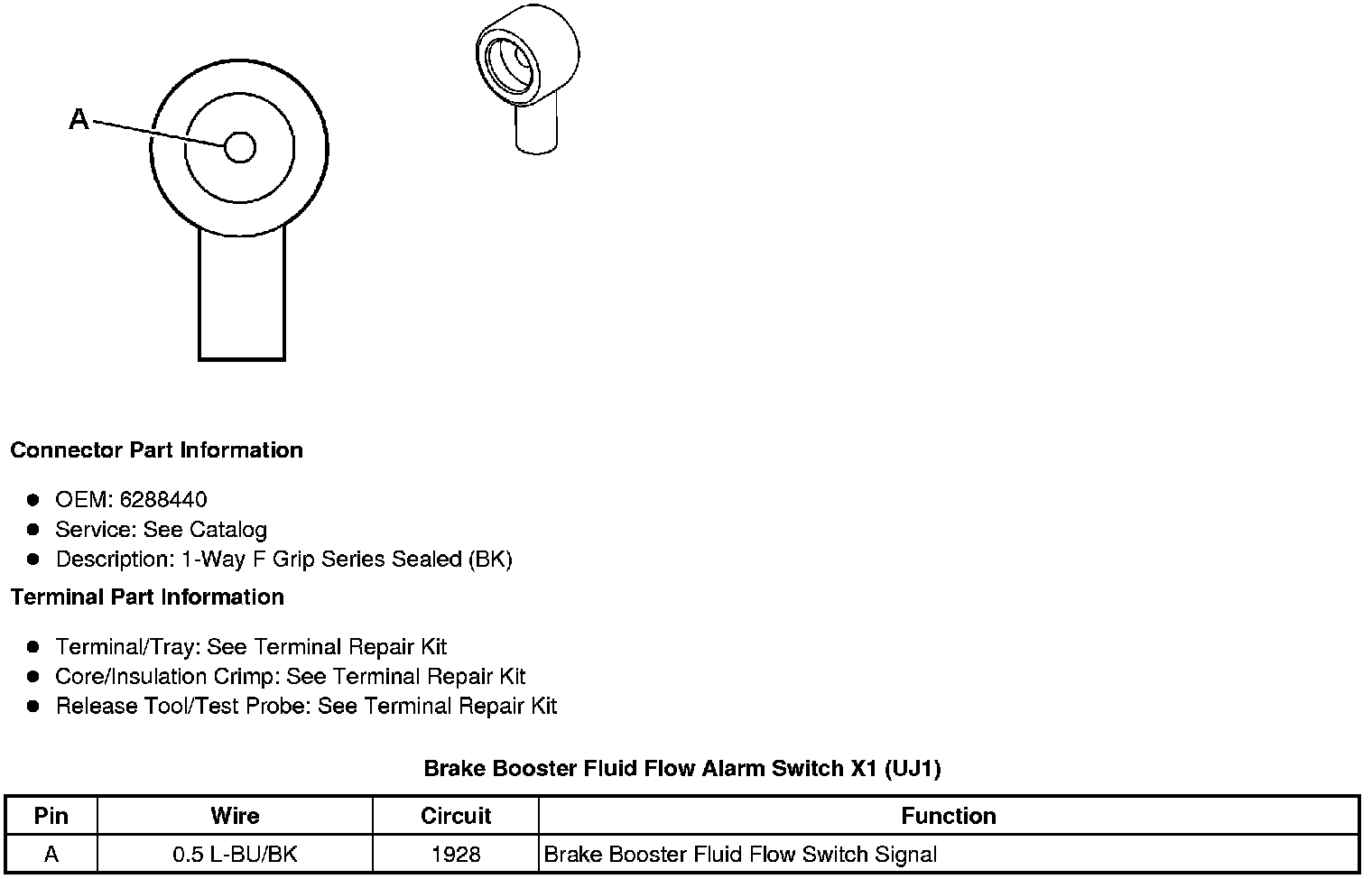

Brake Booster Fluid Flow Alarm Switch X1 (UJ1)

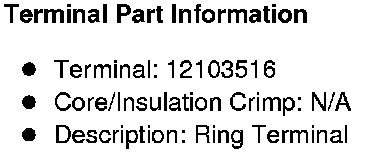

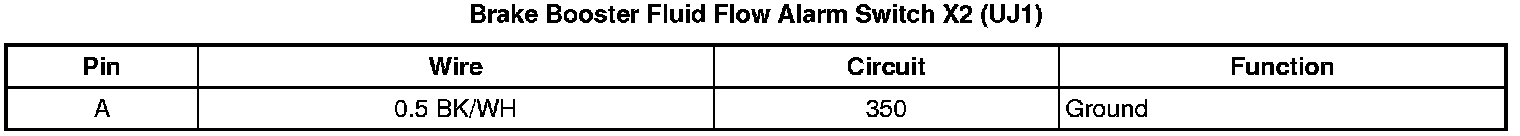

Brake Booster Fluid Flow Alarm Switch X2 (UJ1)
