Crankshaft Position Sensor

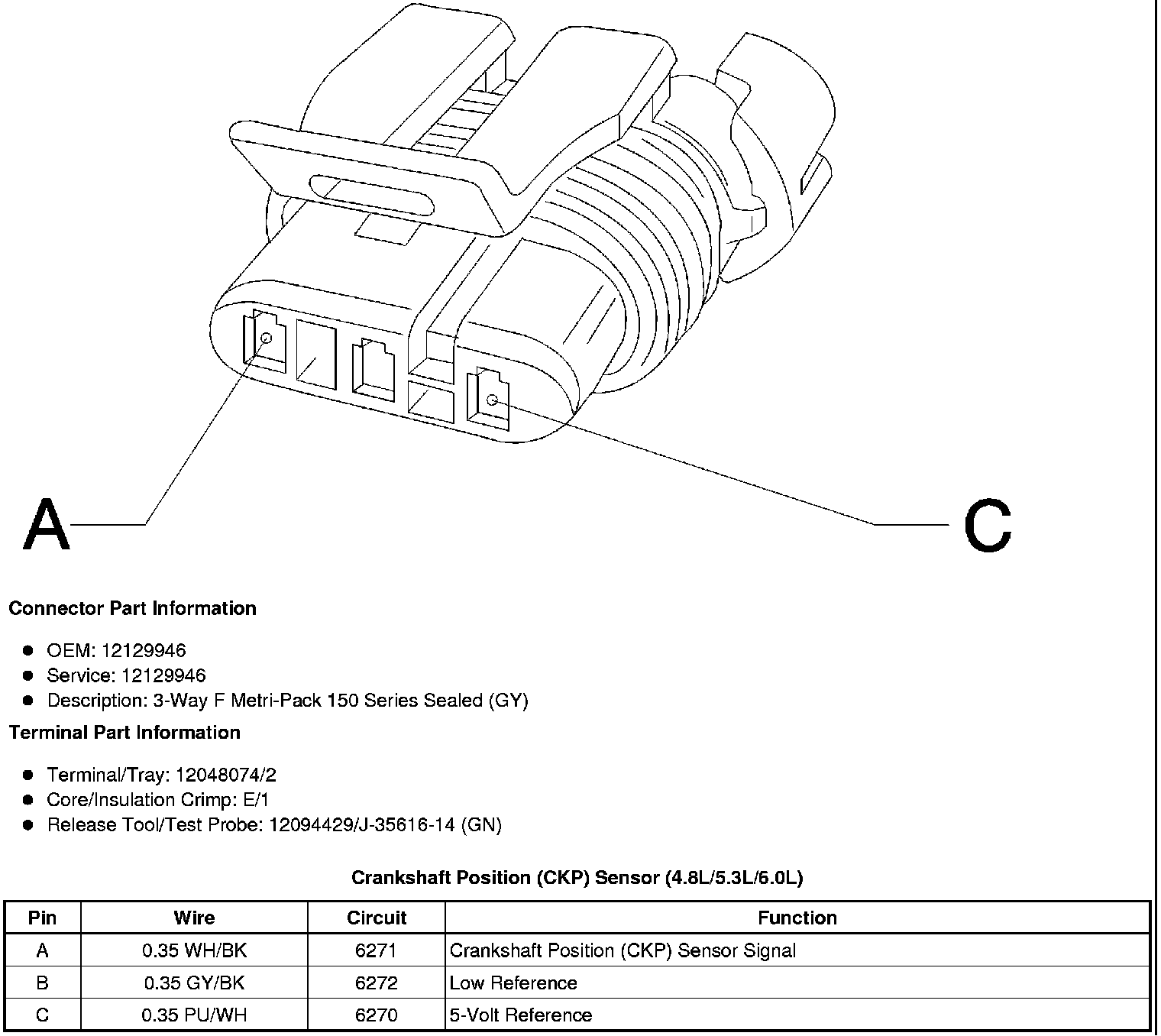

Component Connector End Views
Crankshaft Position (CKP) Sensor (4.8L/5.3L/6.0L)
