Engine - Coolant Temperature Sensor/Switch

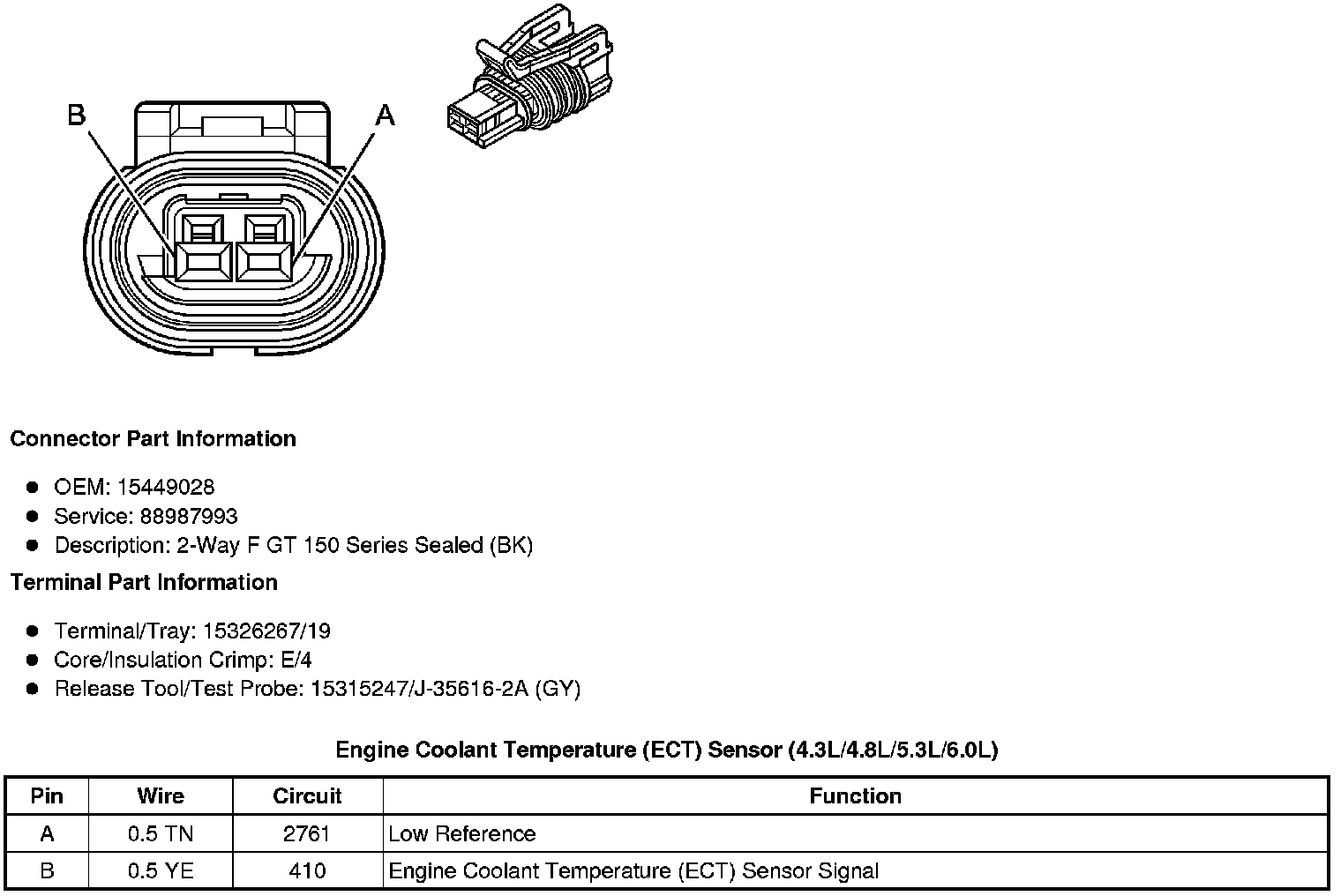

Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (4.3L/4.8L/5.3L/6.0L)
