Fuel Injector

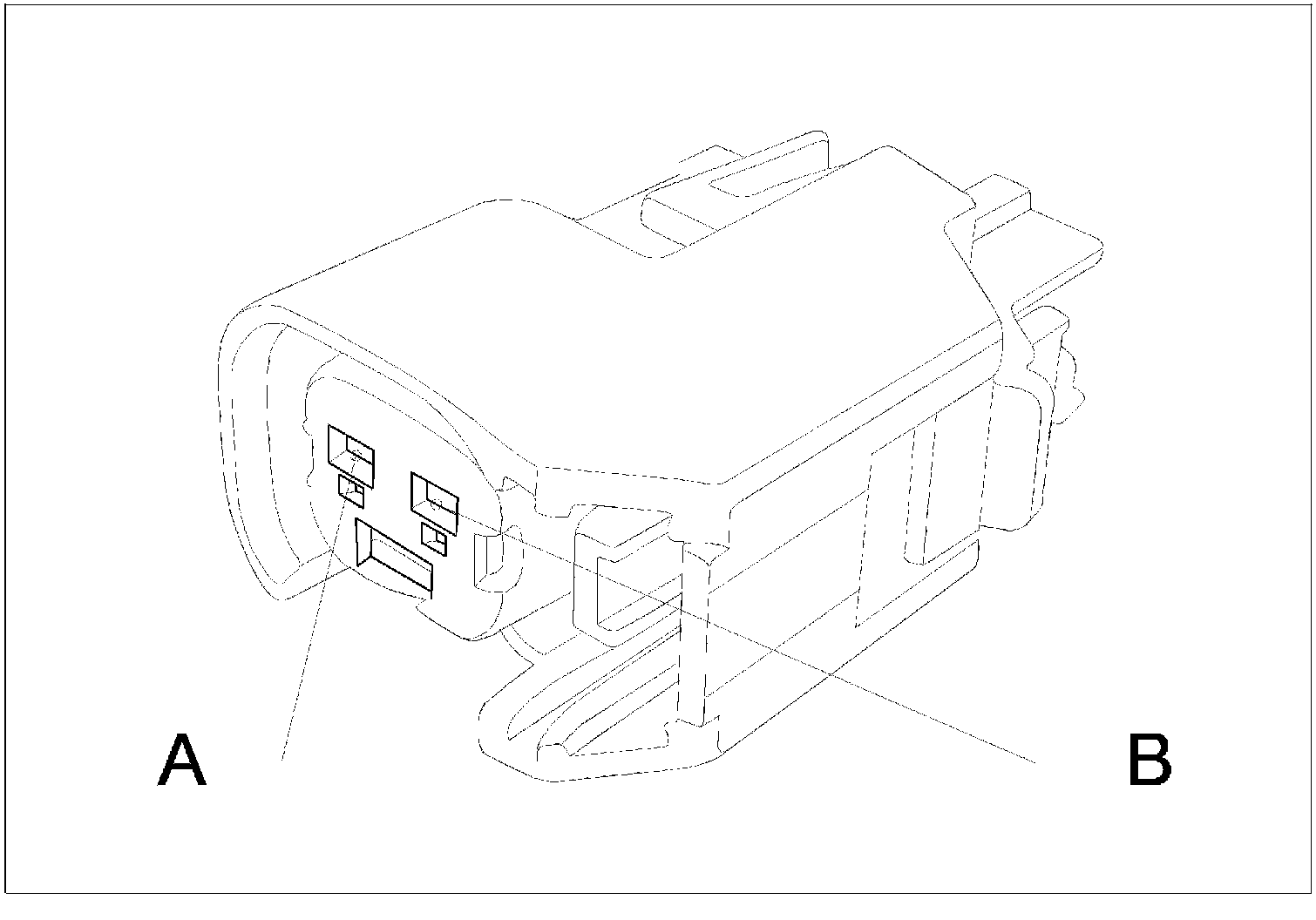

Component Connector End Views

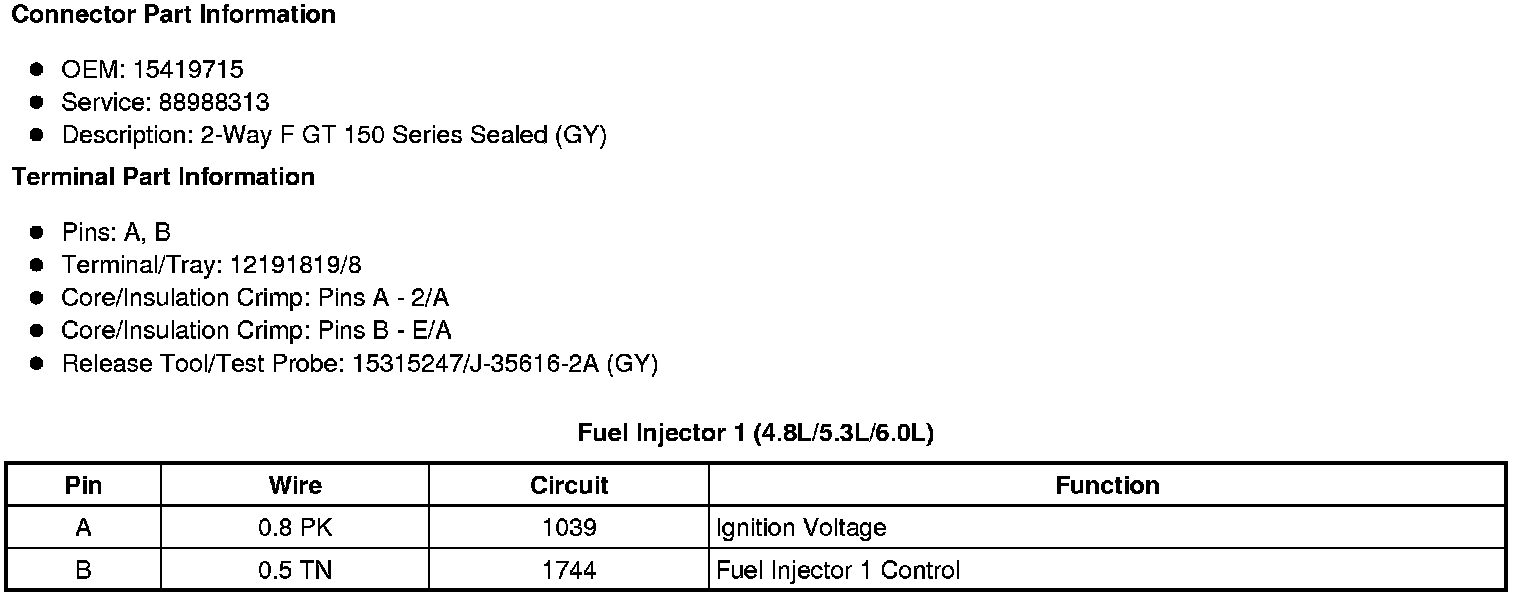

Fuel Injector 1 (4.8L/5.3L/6.0L)

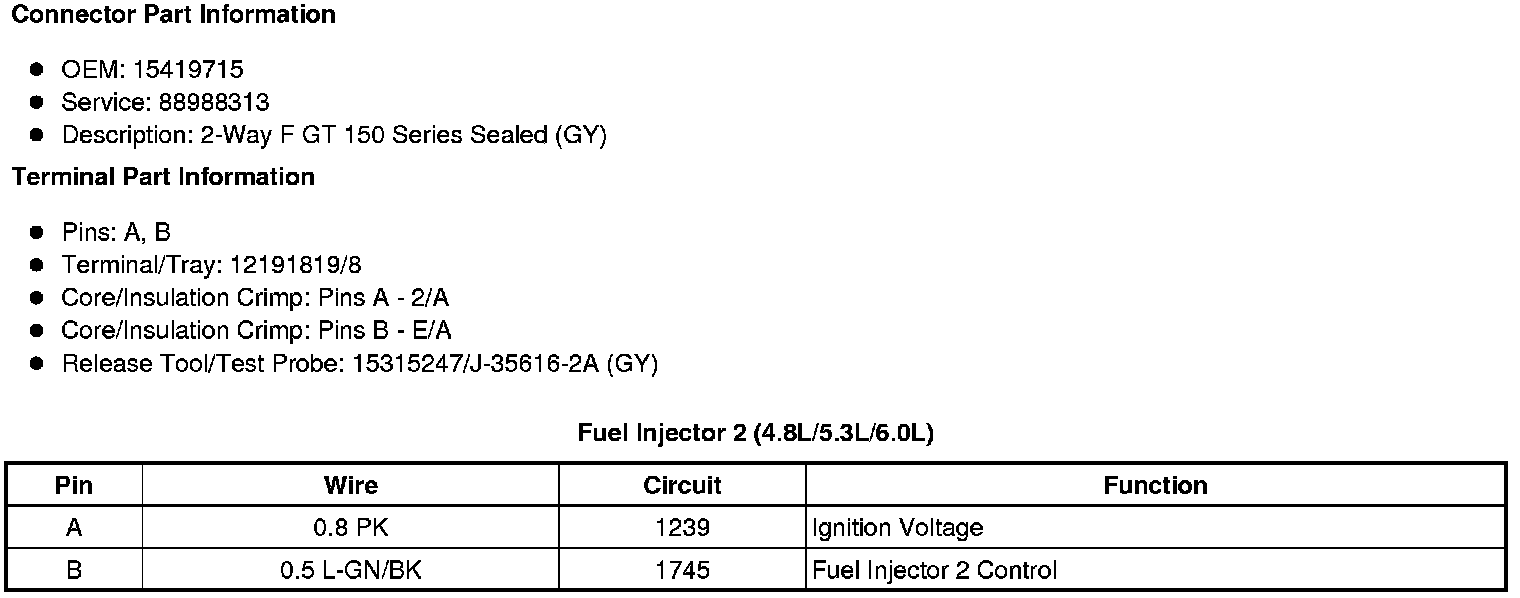

Fuel Injector 2 (4.8L/5.3L/6.0L)









Fuel Injector 3 (4.8L/5.3L/6.0L)









Fuel Injector 4 (4.8L/5.3L/6.0L)









Fuel Injector 5 (4.8L/5.3L/6.0L)

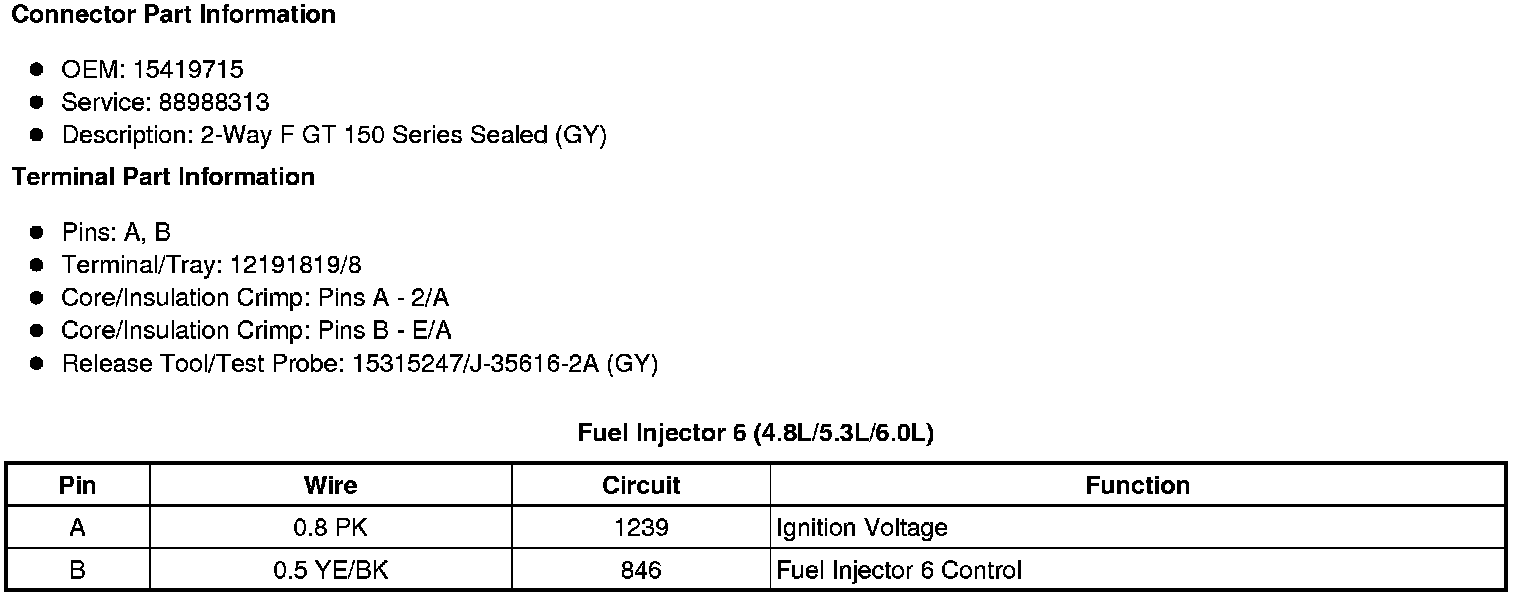

Fuel Injector 6 (4.8L/5.3L/6.0L)









Fuel Injector 7 (4.8L/5.3L/6.0L)









Fuel Injector 8 (4.8L/5.3L/6.0L)
