Headlamp




Component Connector End Views

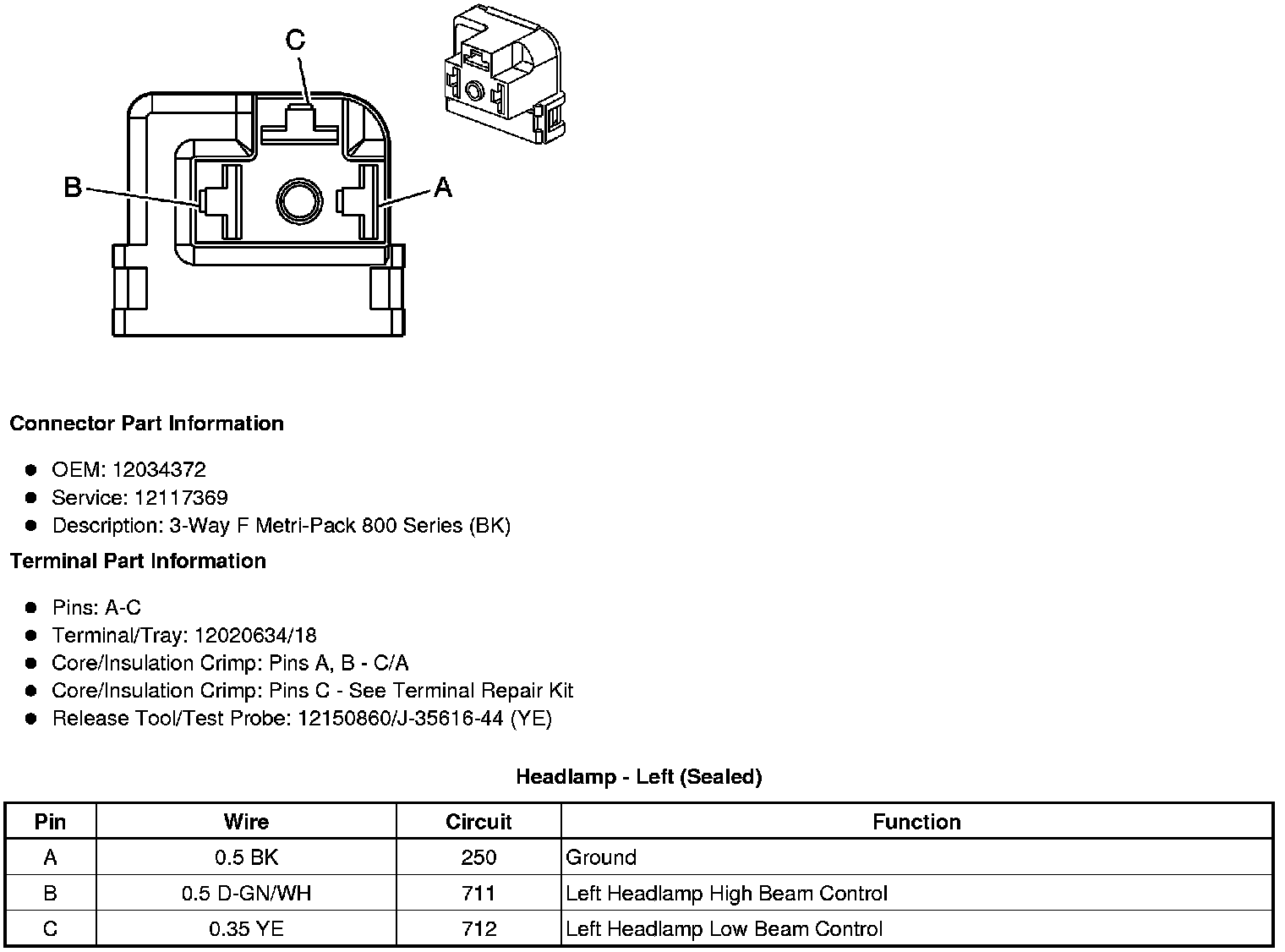

Headlamp - Left (Sealed)






Headlamp - Left High Beam (Composite)






Headlamp - Left Low Beam (Composite)

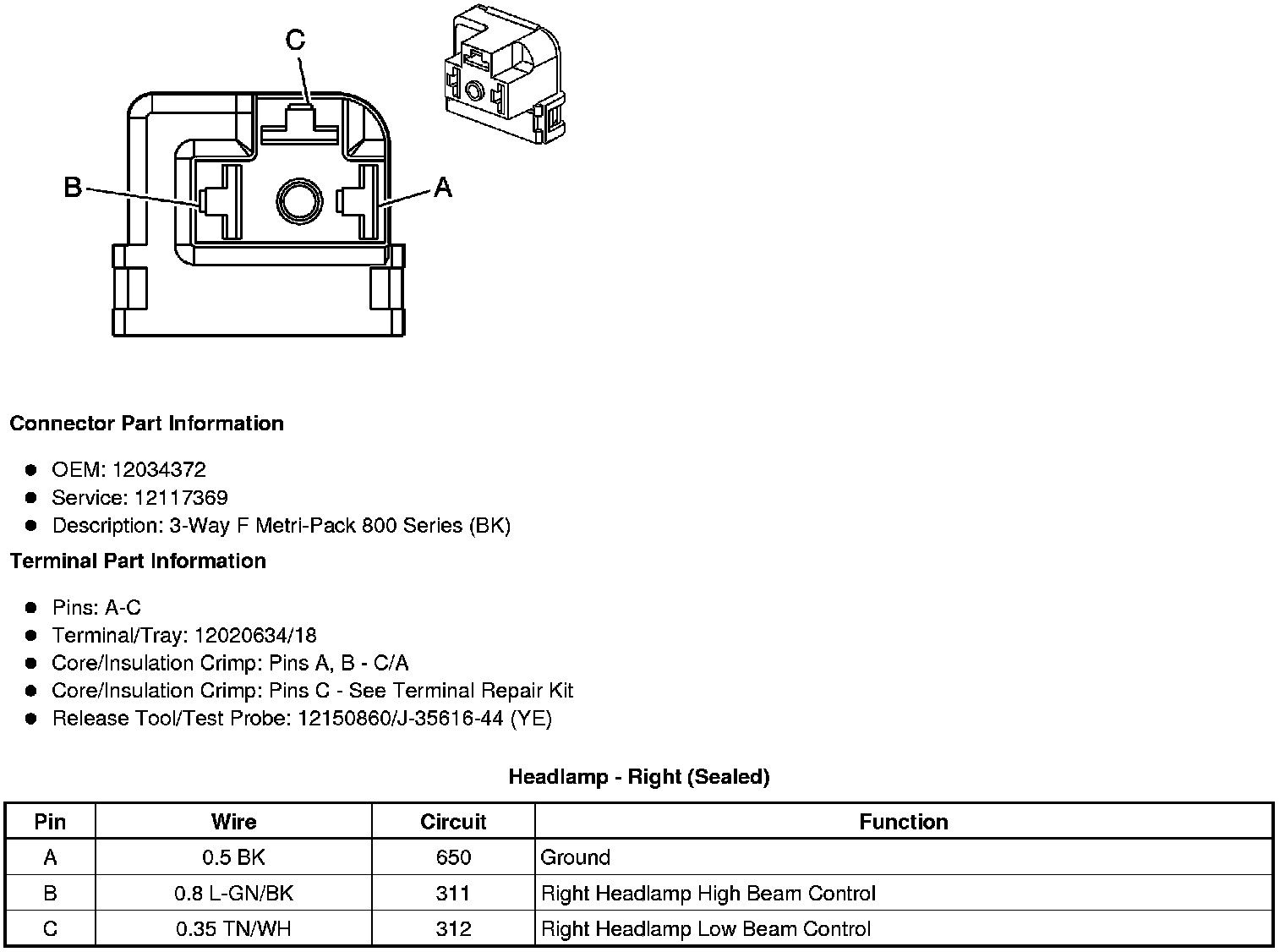

Headlamp - Right (Sealed)






Headlamp - Right High Beam (Composite)






Headlamp - Right Low Beam (Composite)
