Outside Temperature Display Sensor

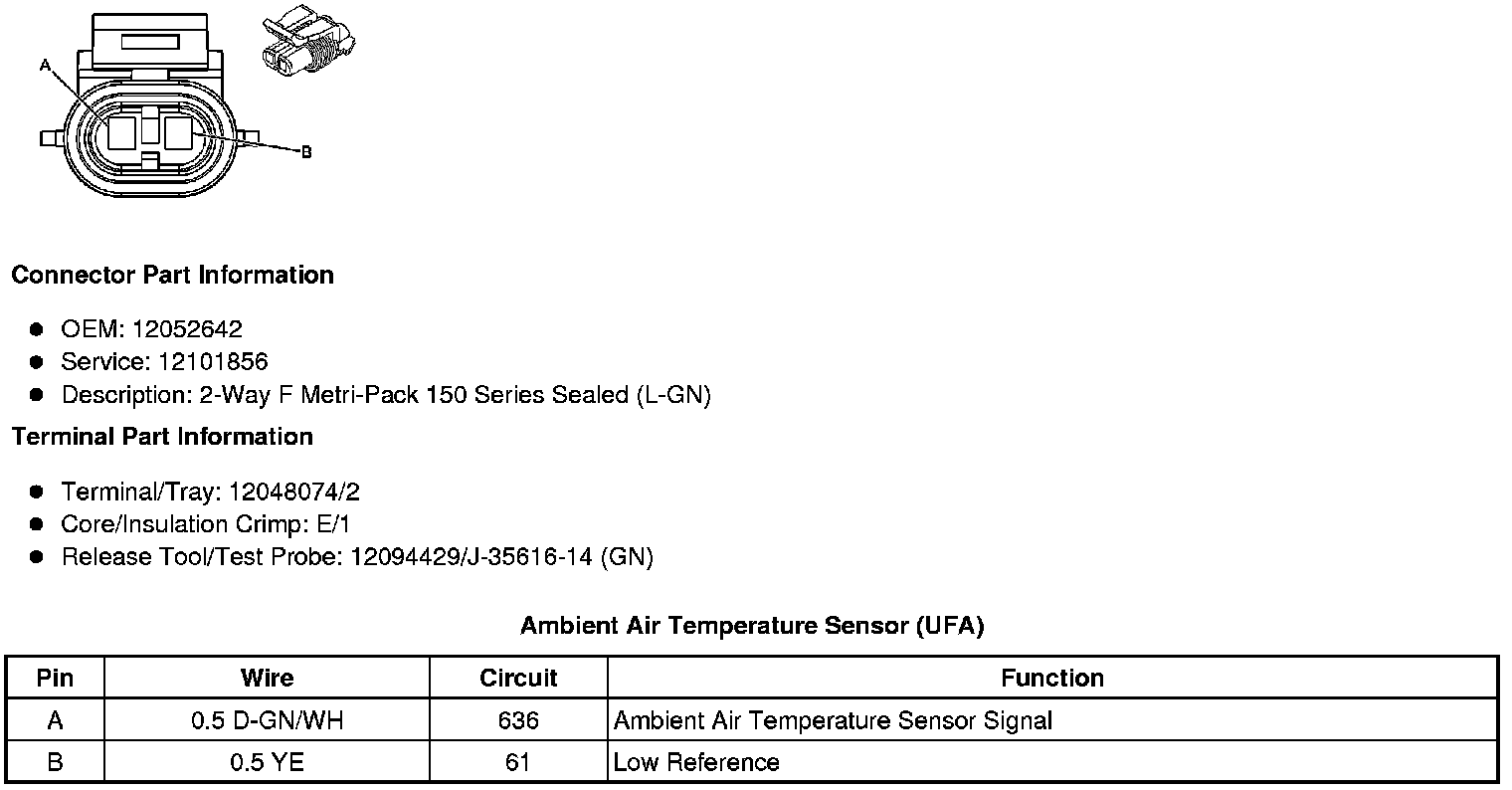

Component Connector End Views
Ambient Air Temperature Sensor (UFA)
