Wheel Speed Sensor




Component Connector End Views

Wheel Speed Sensor (WSS) - Left Front






Wheel Speed Sensor (WSS) - Left Rear (JL4)

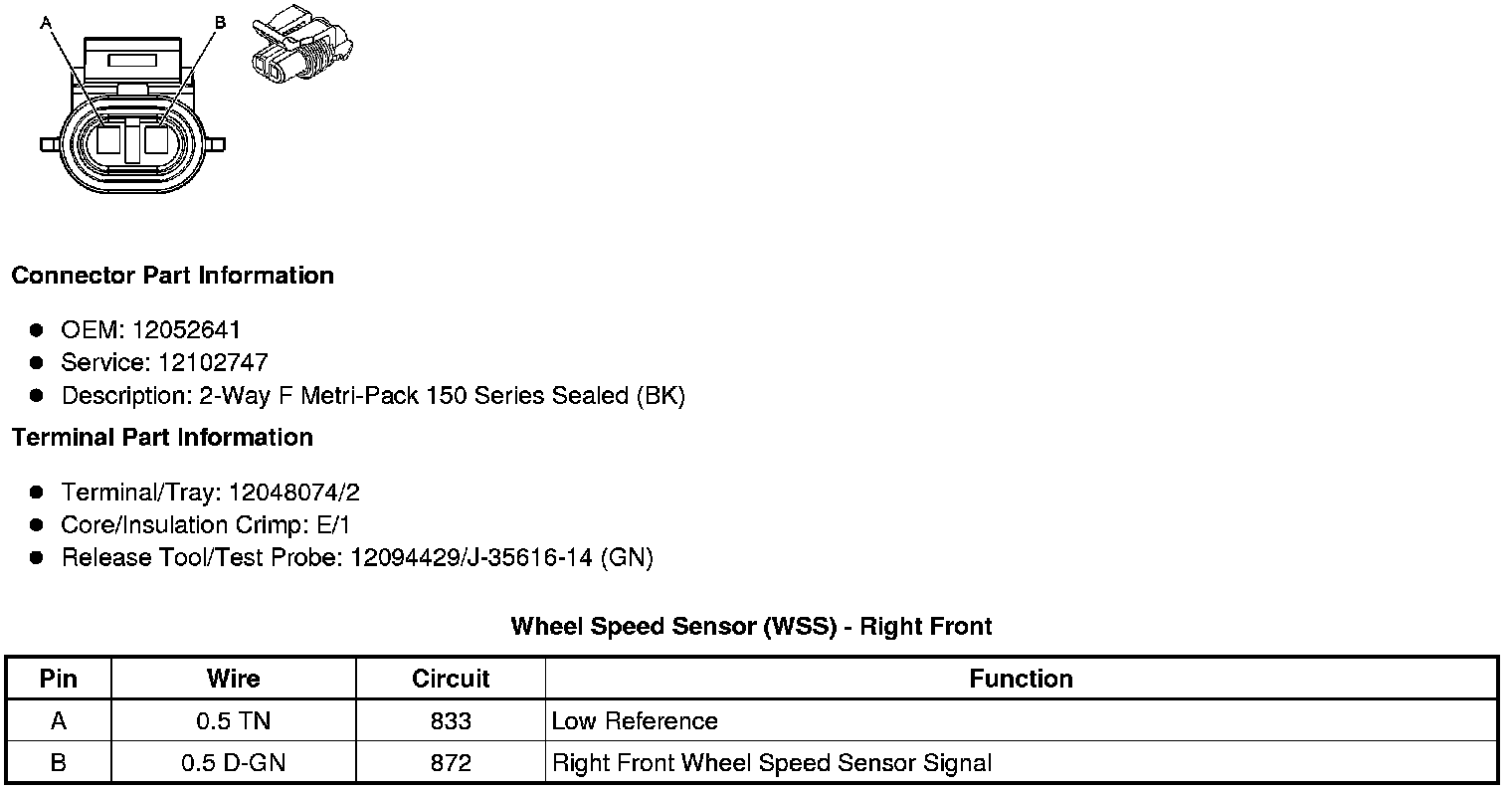

Wheel Speed Sensor (WSS) - Right Front

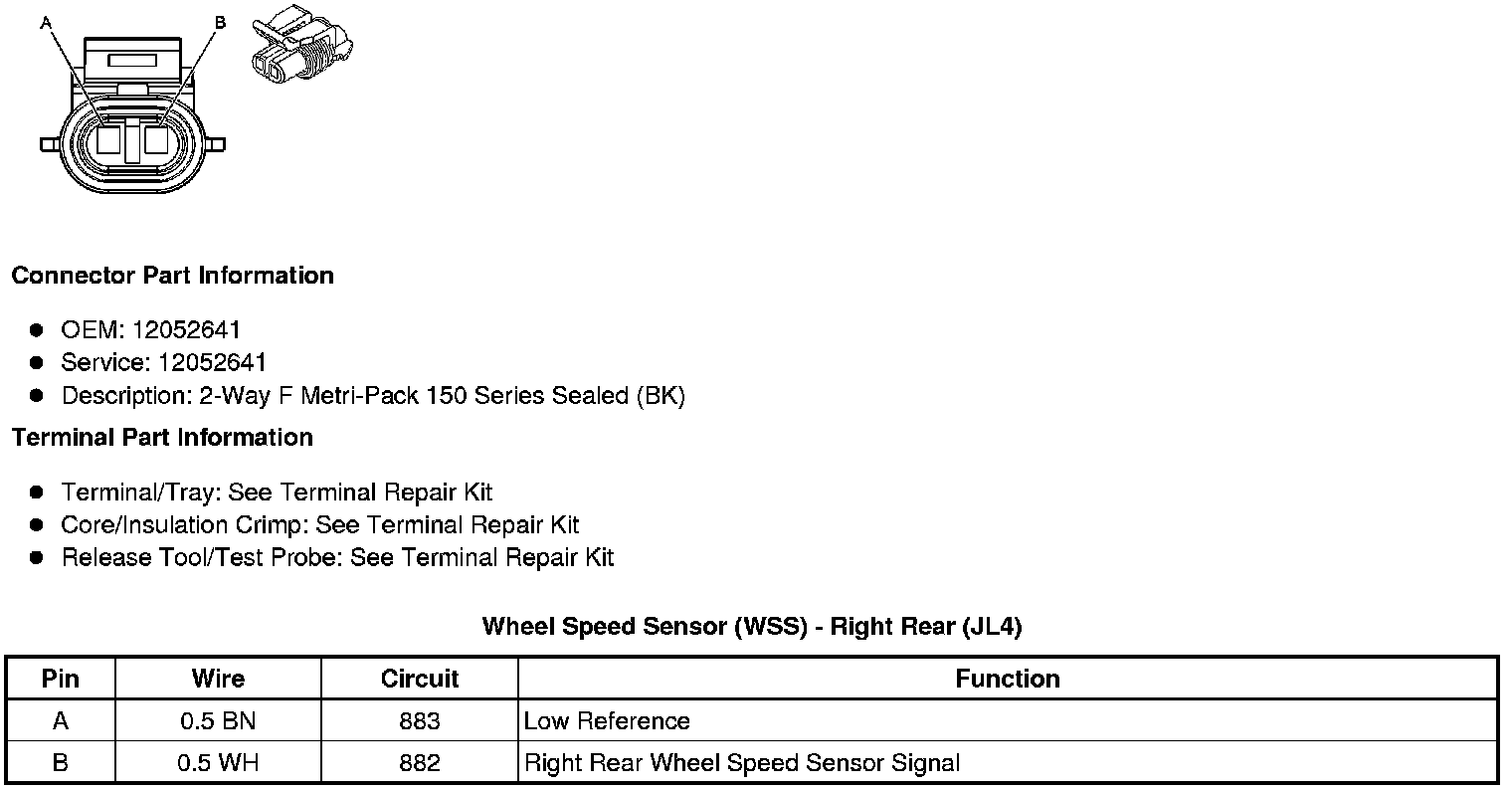

Wheel Speed Sensor (WSS) - Right Rear (JL4)
