Knock Sensor: Diagrams




Component Connector End Views

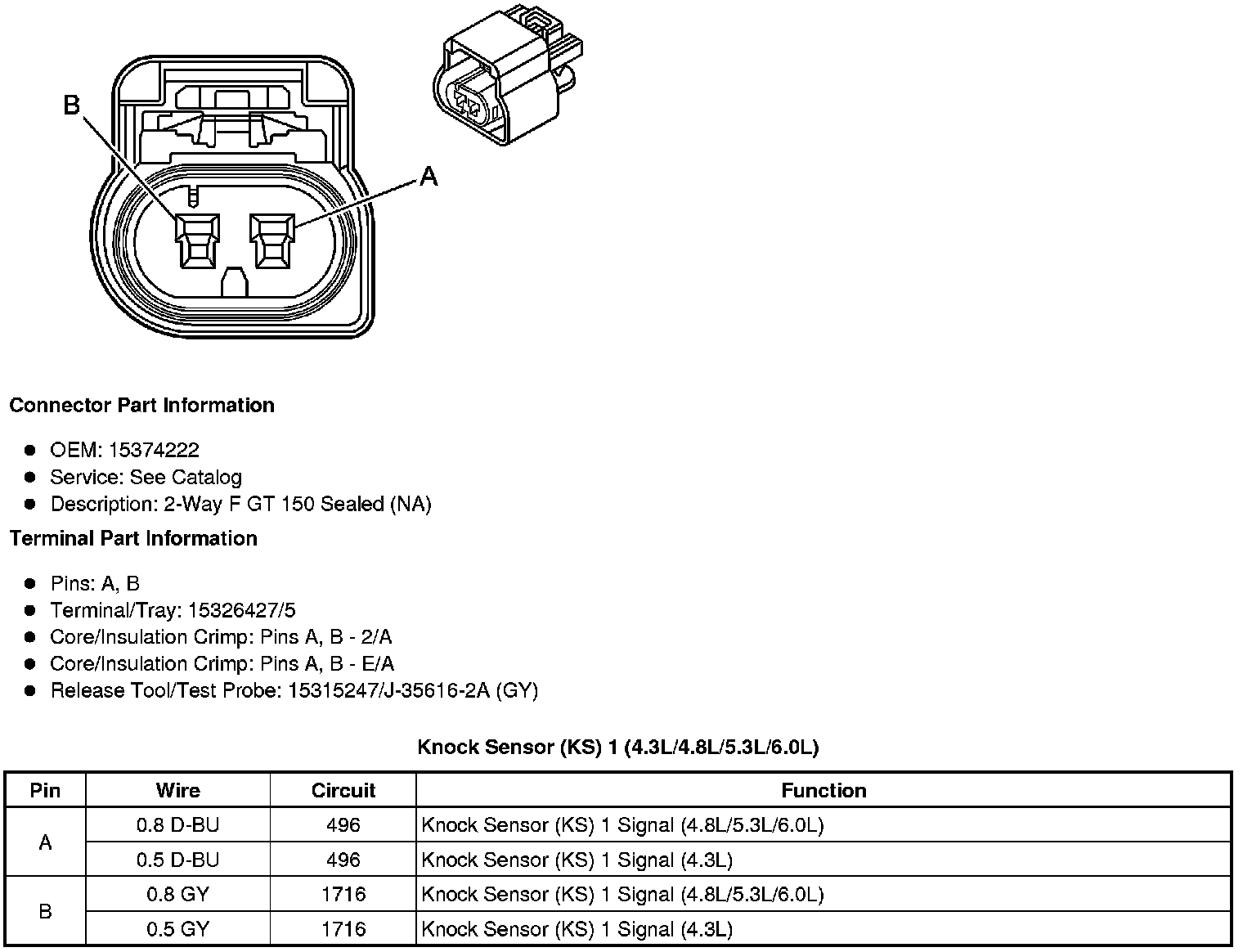

Knock Sensor (KS) 1 (4.3L/4.8L/5.3L/6.0L)






Knock Sensor (KS) 2 (4.3L/4.8L/5.3L/6.0L)
