Engine General Specifications & Service Limits

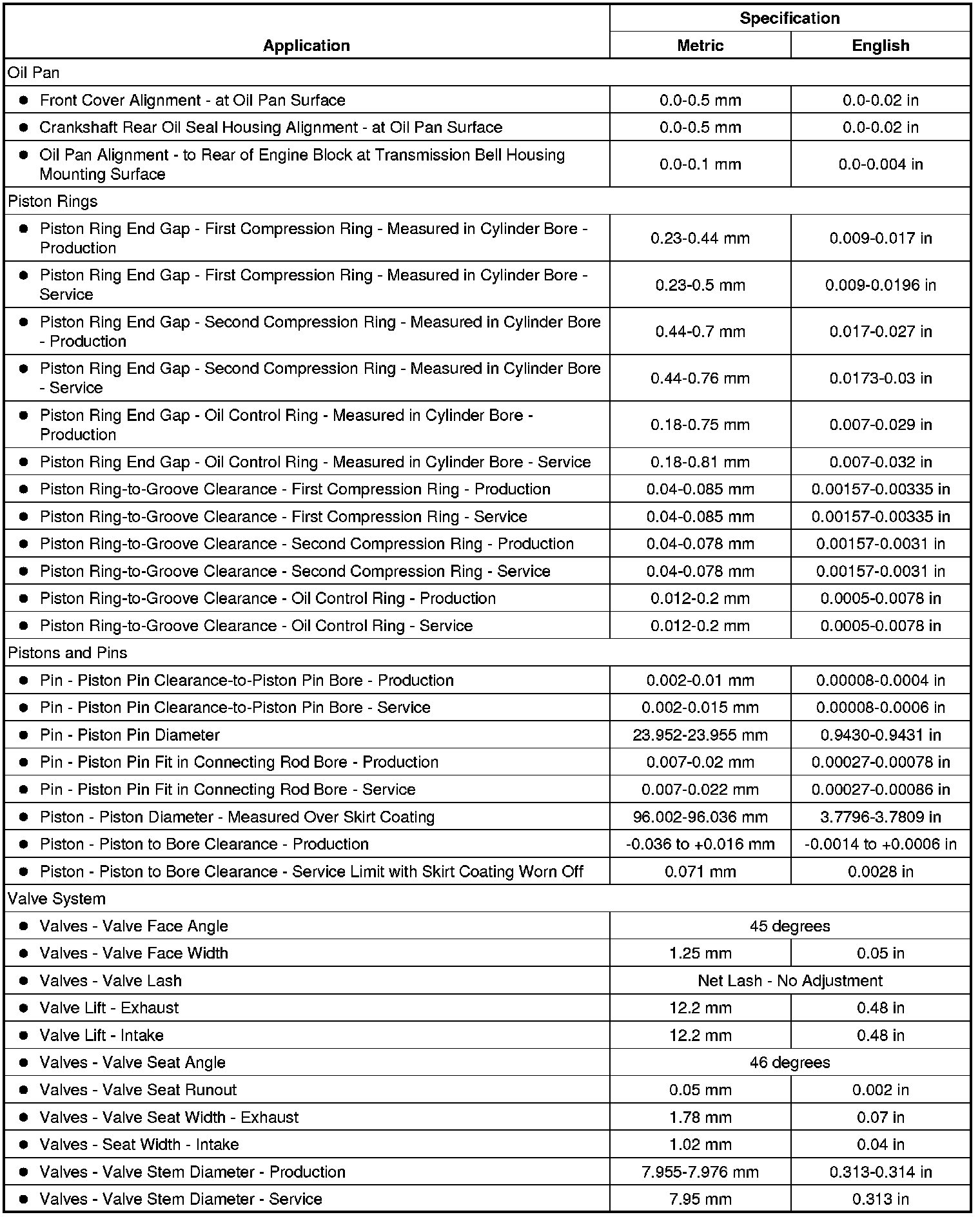

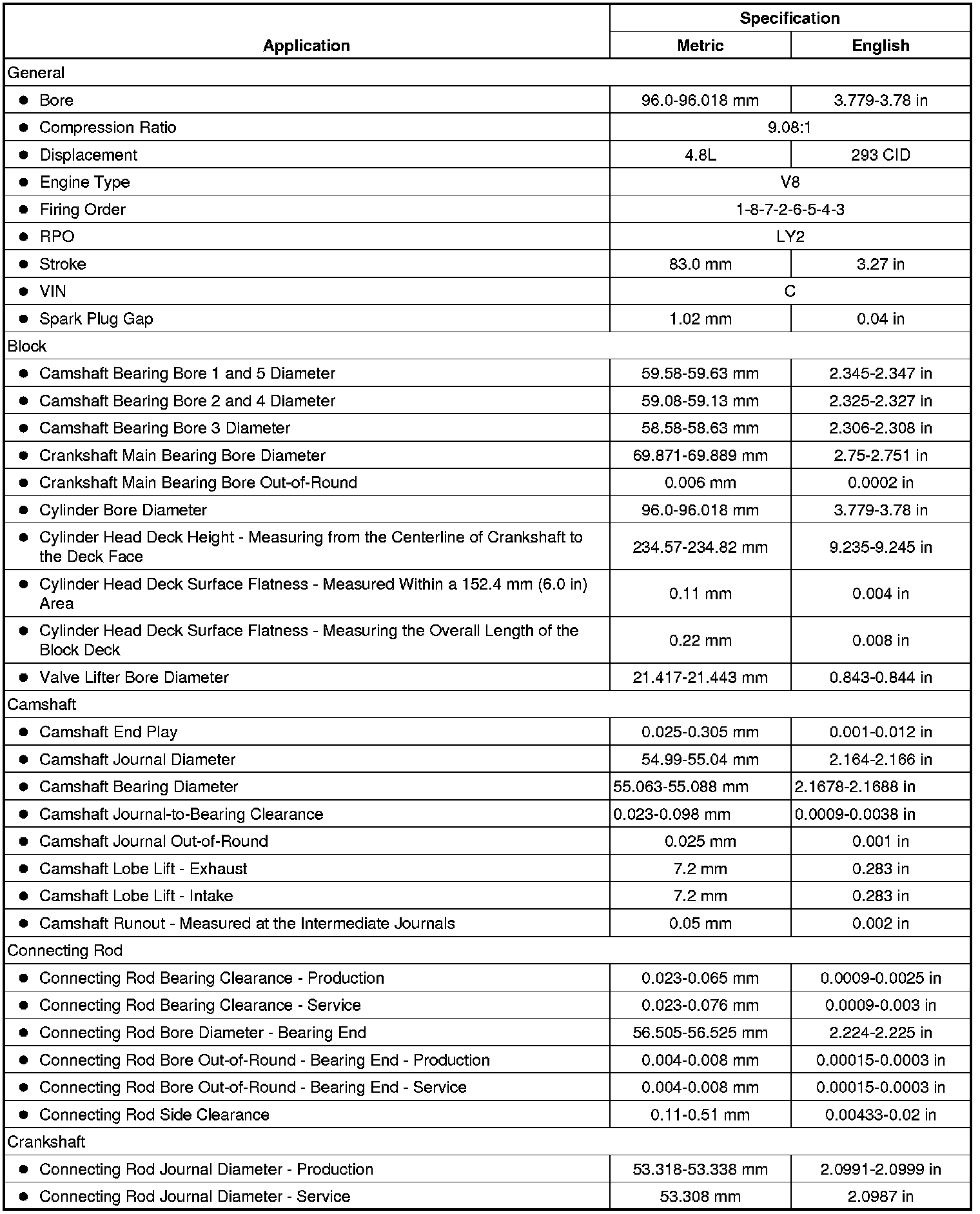

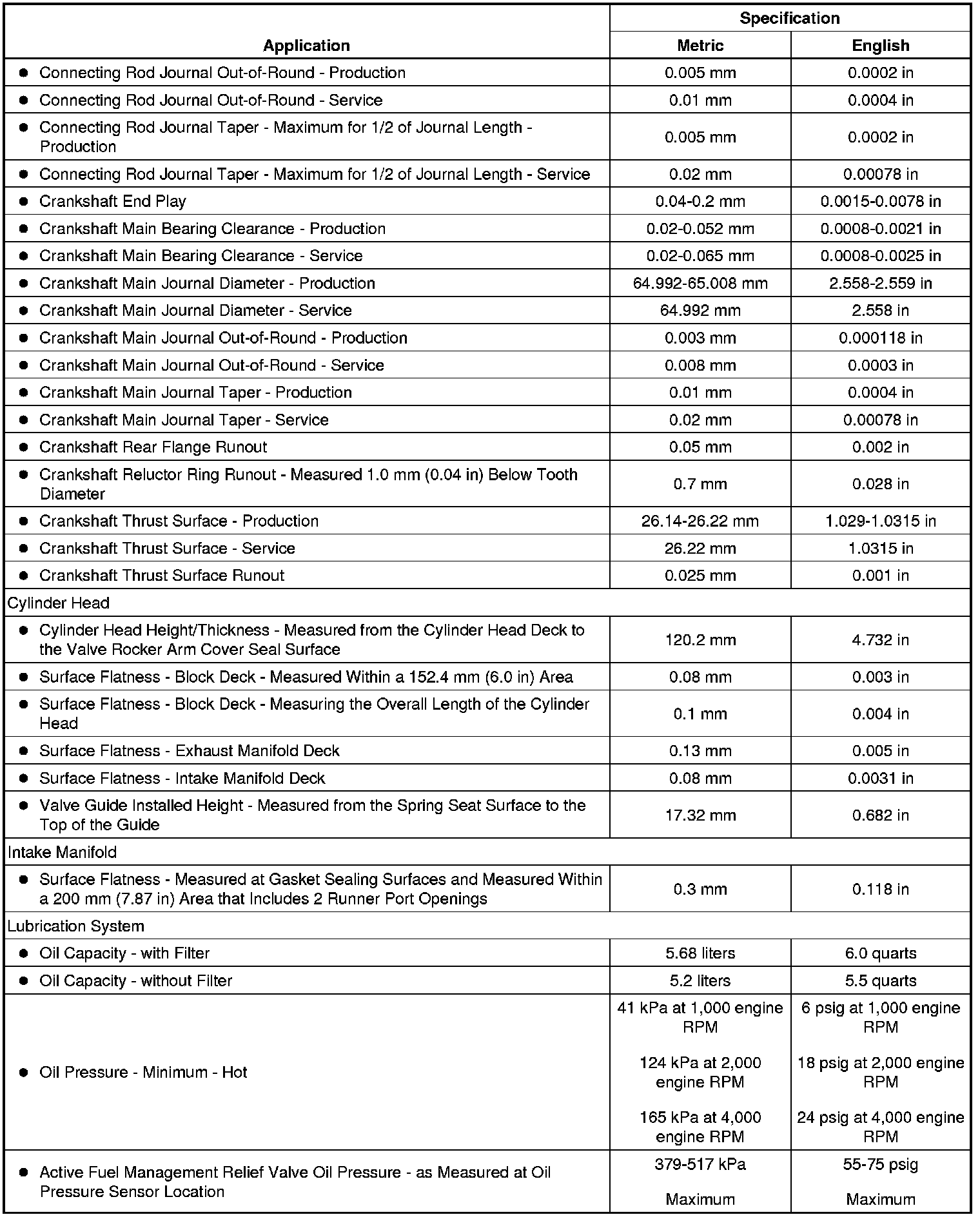

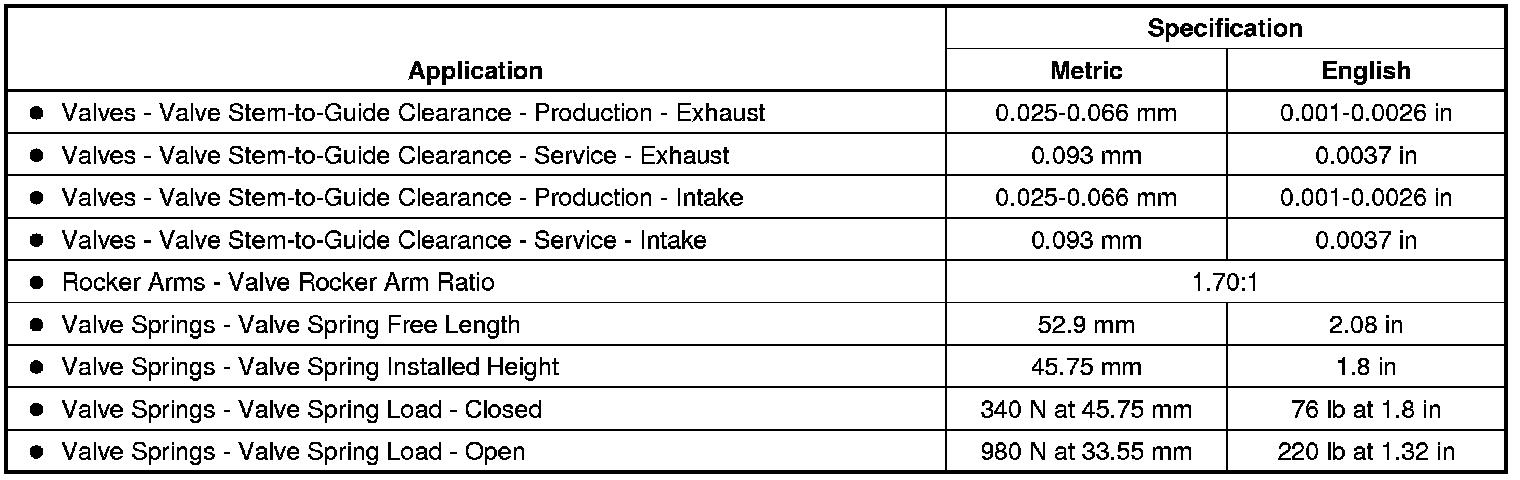

Engine Mechanical Specifications (RPO LY2 VIN C) (4.8L)
