A - Z Index




Master Electrical Component List

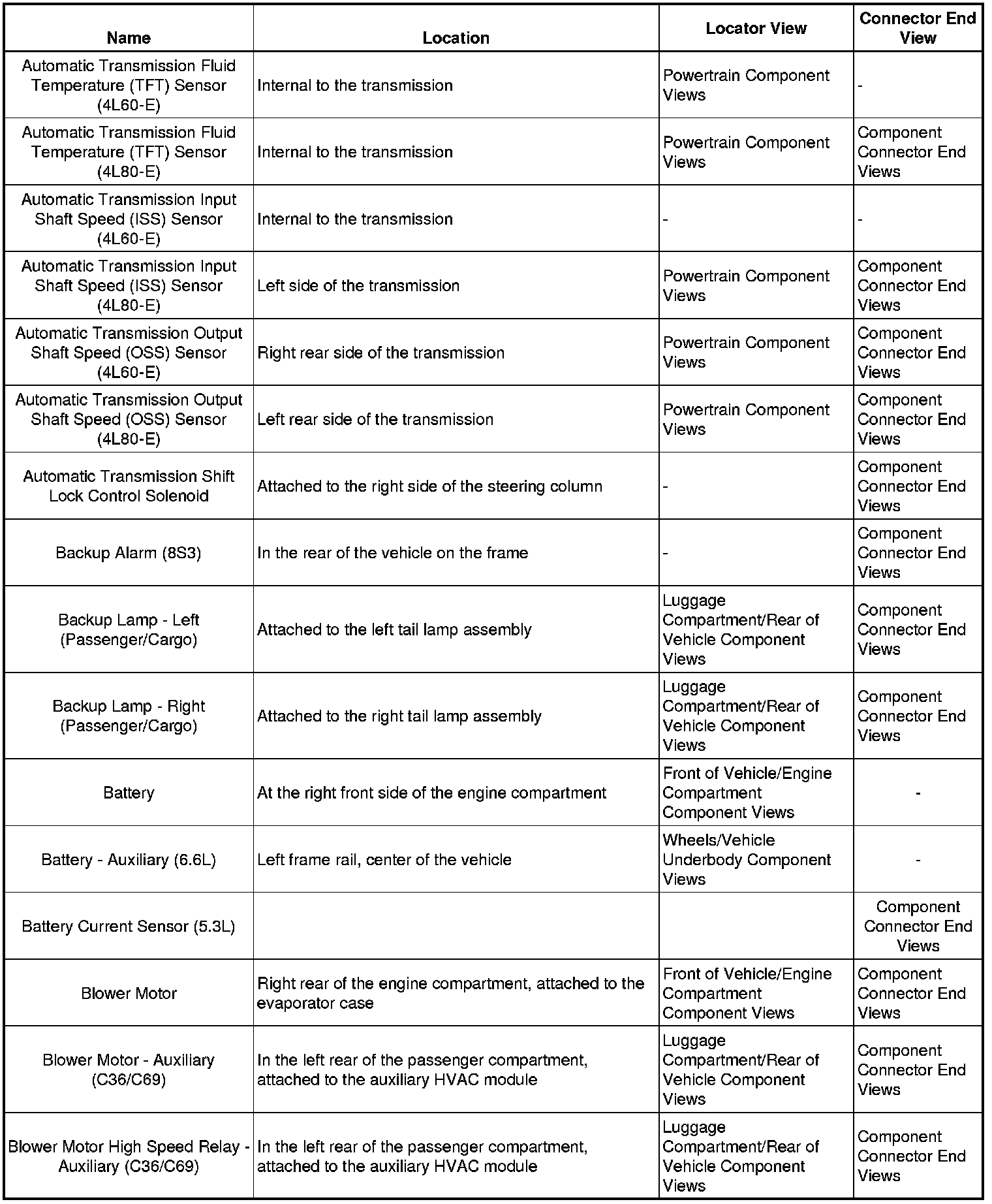

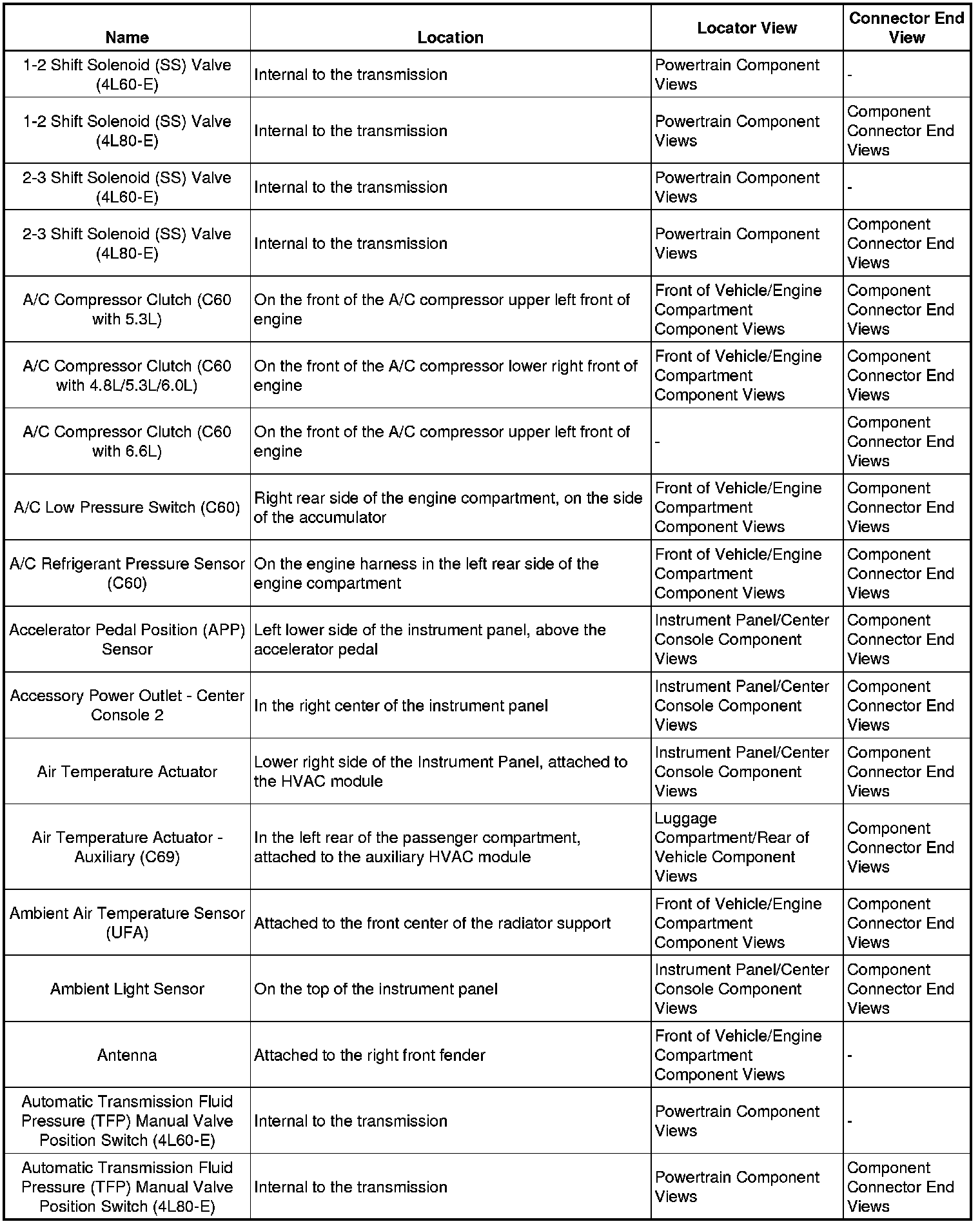

1-2 Sh - Au:




Au - Bl:

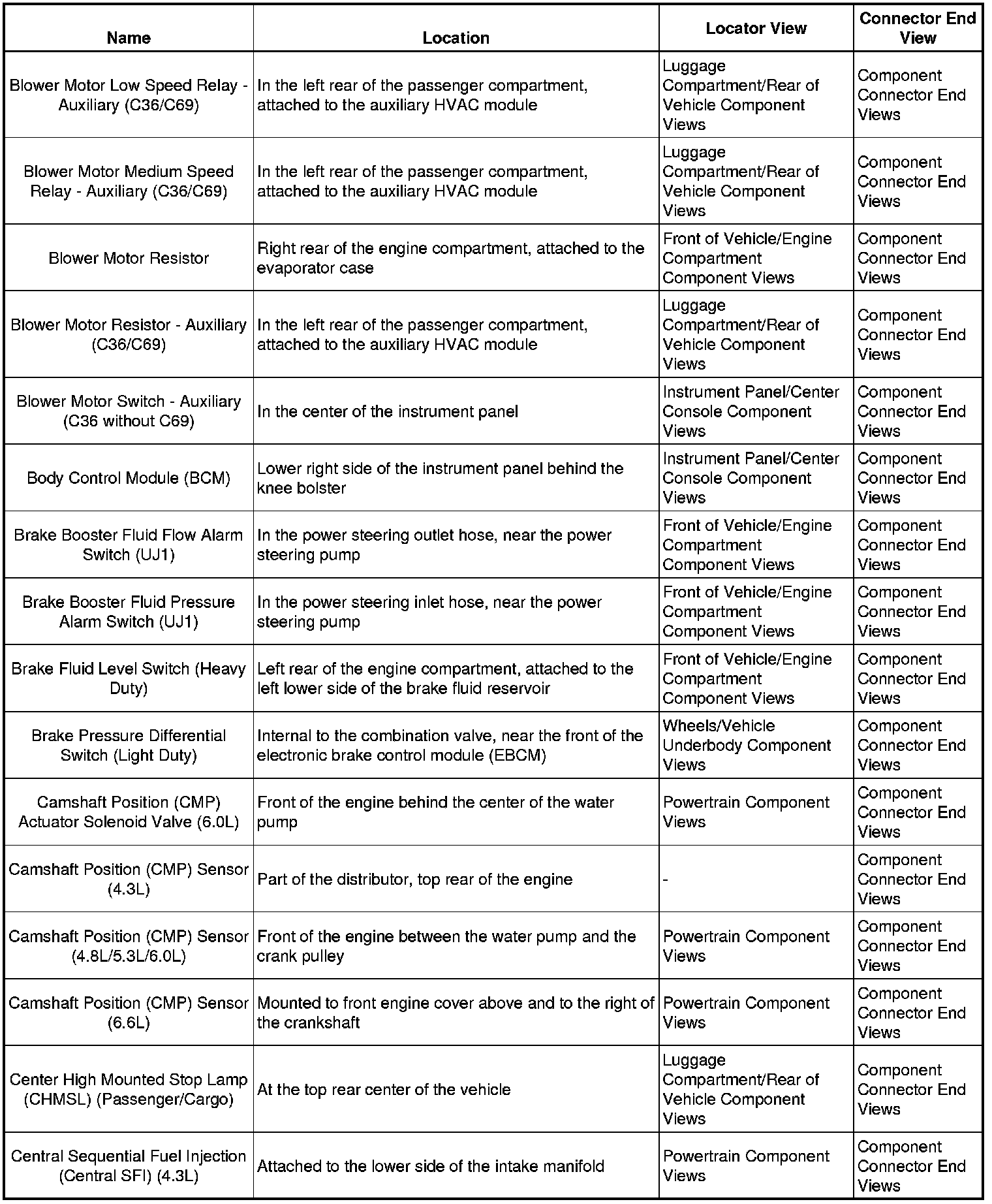

Bl - Ce:

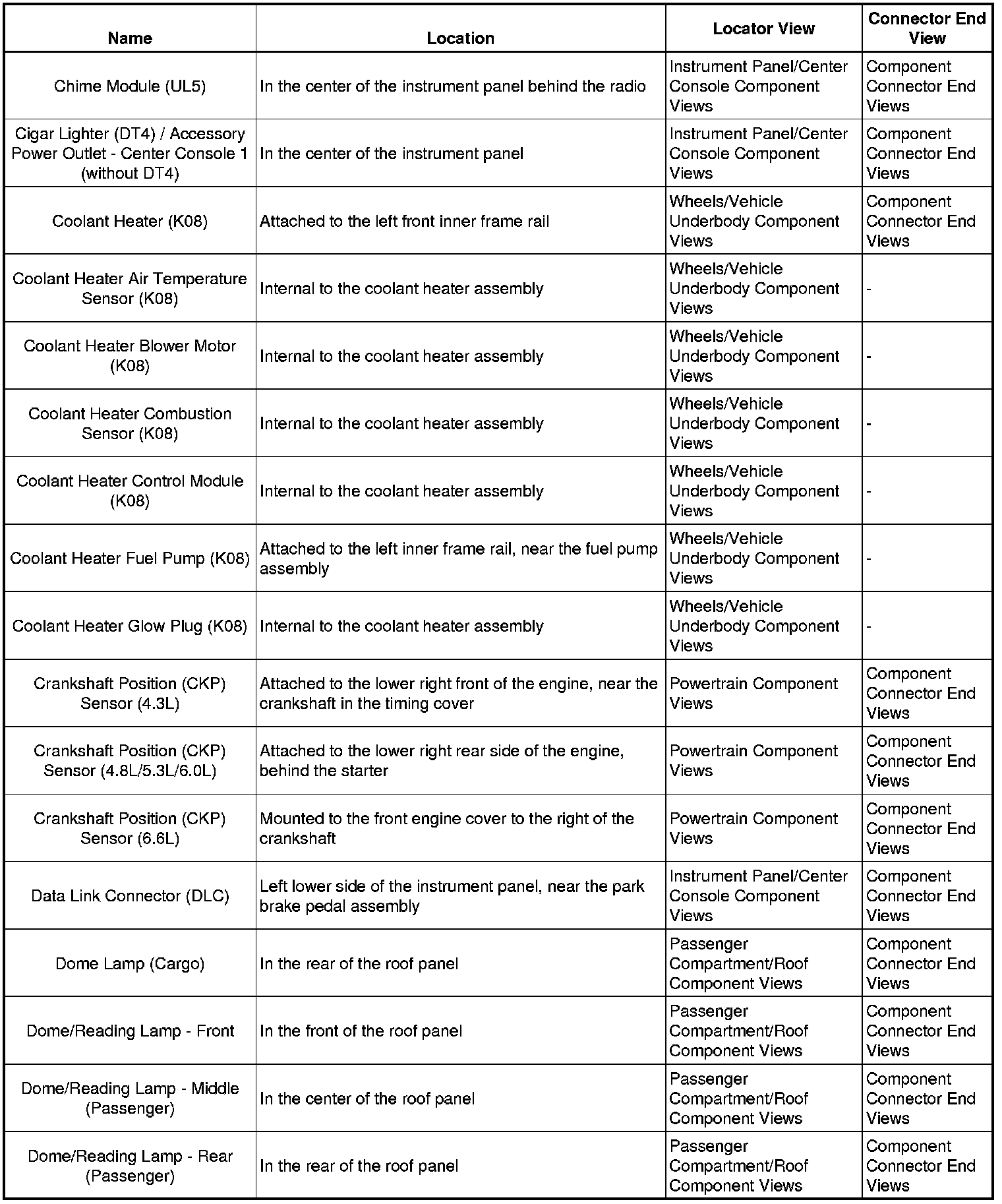

Ch - Do:

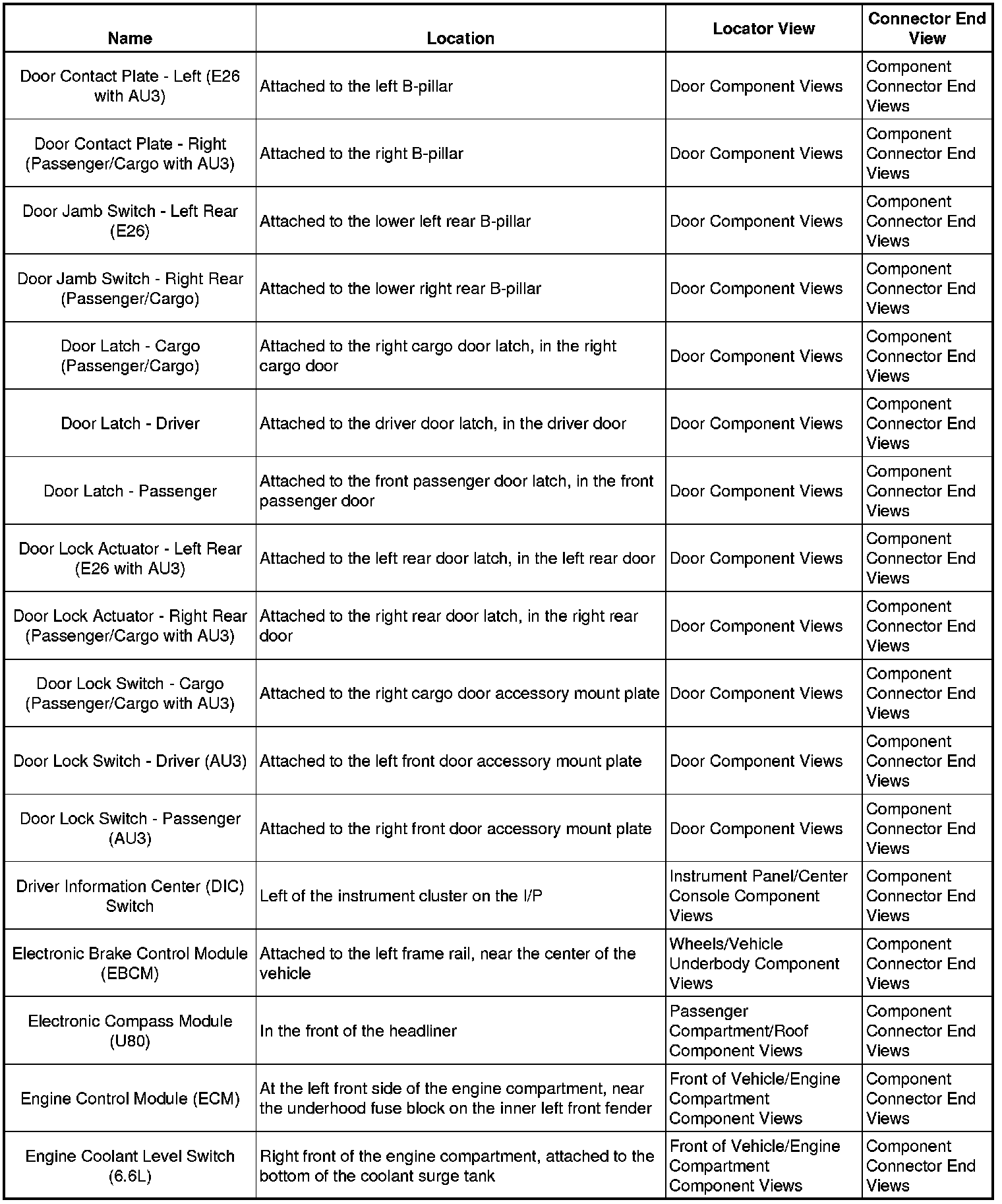

Do - En:

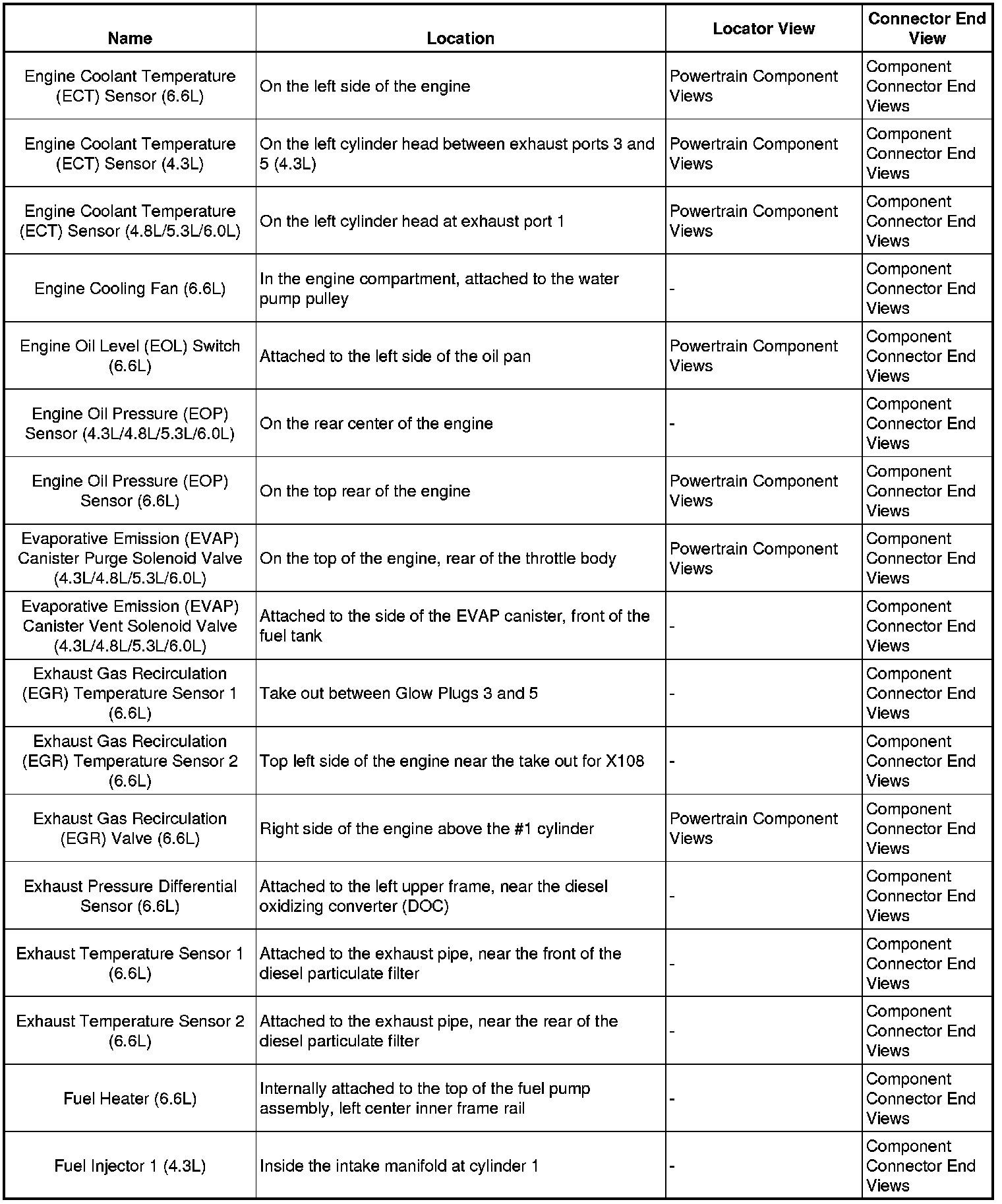

En - Fu:

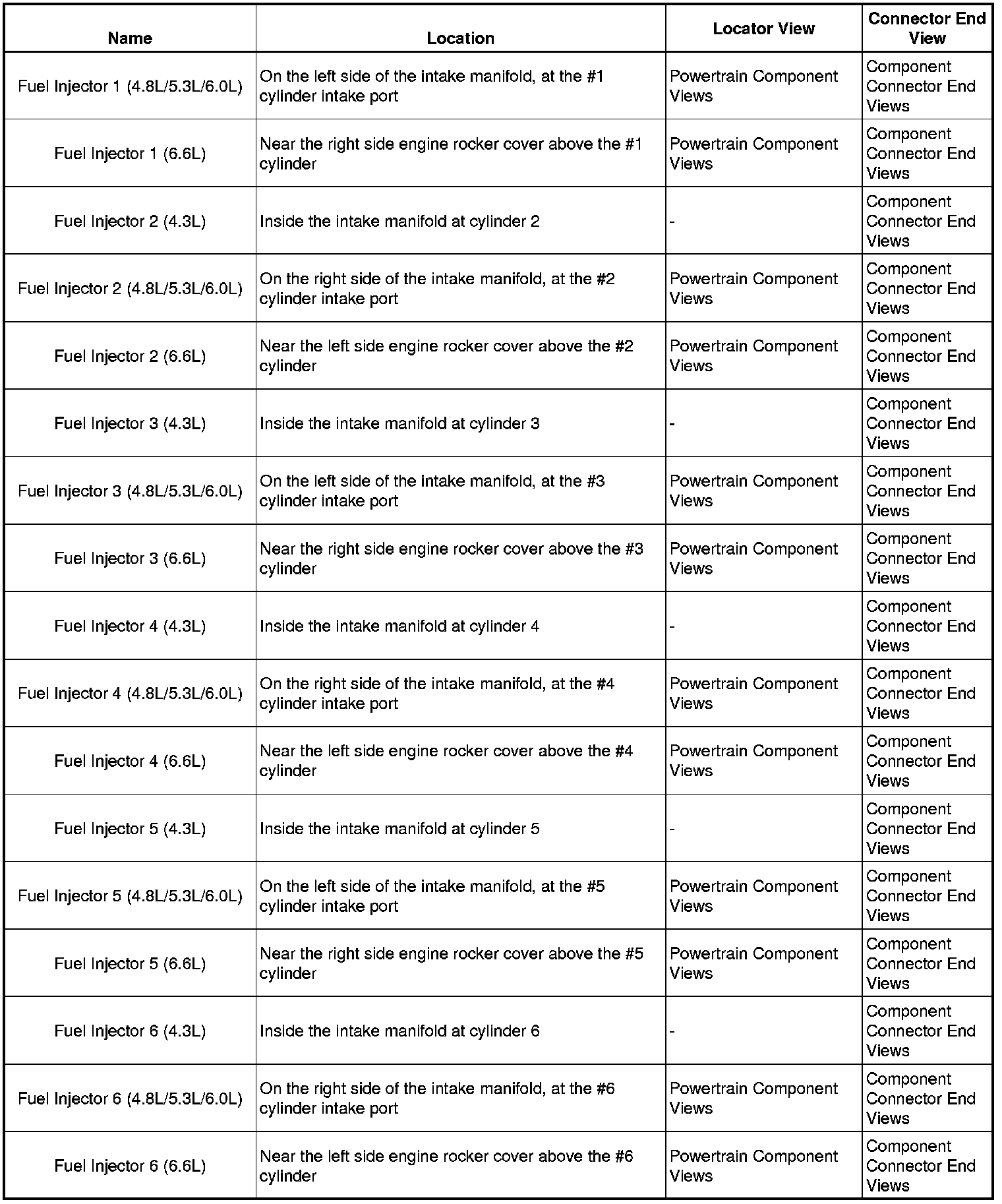

Fu - Fu:

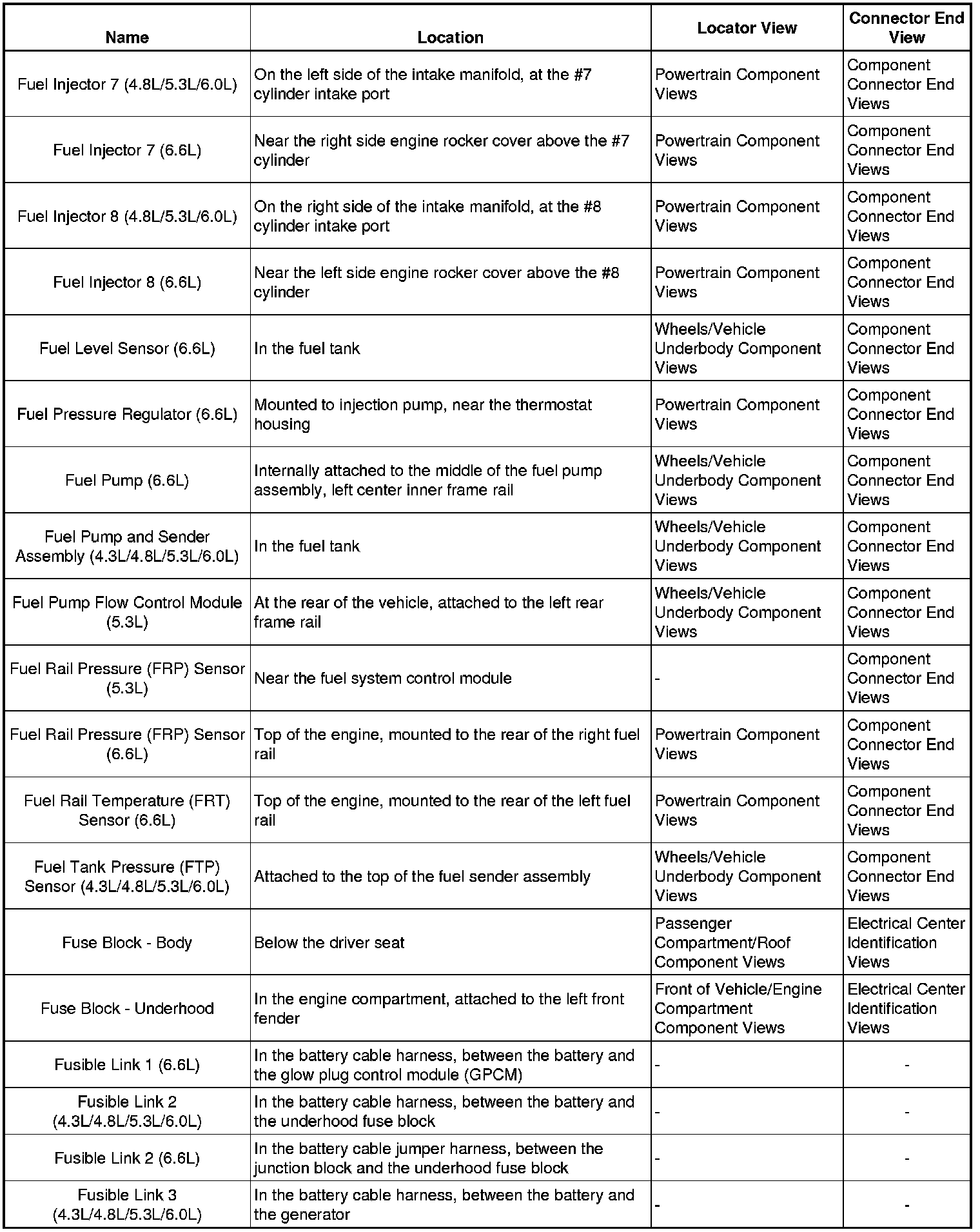

Fu - Fu:

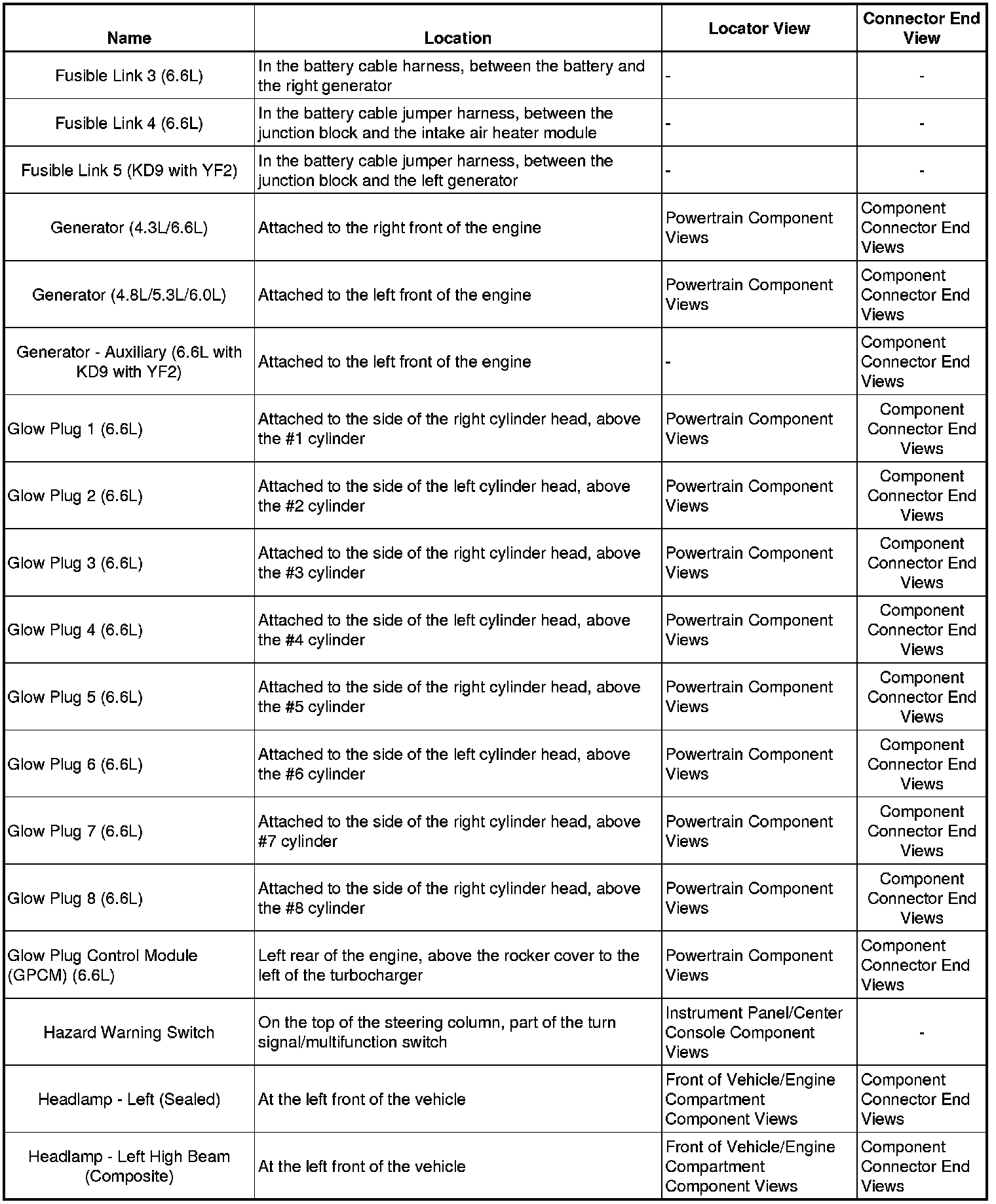

Fu - He:

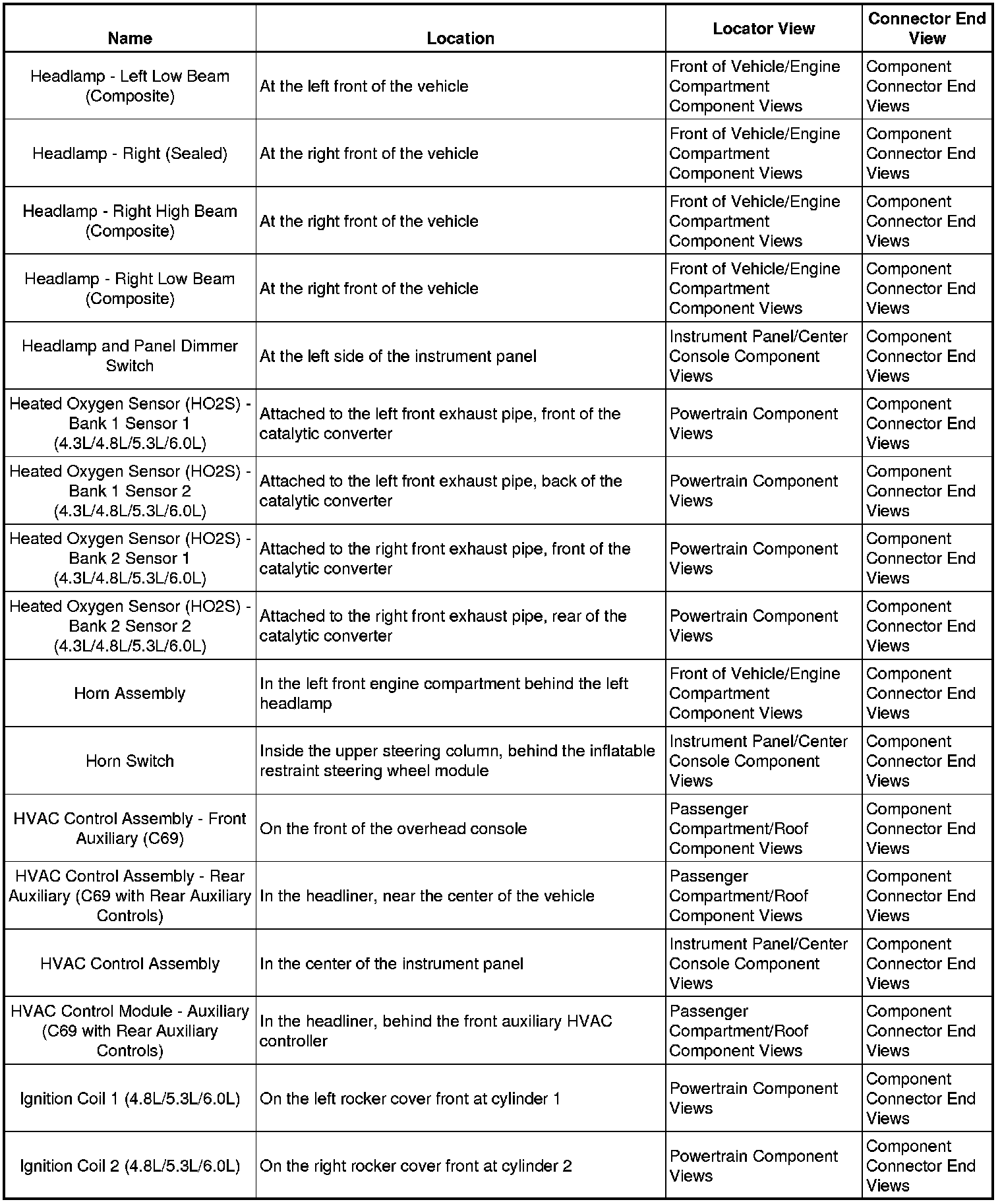

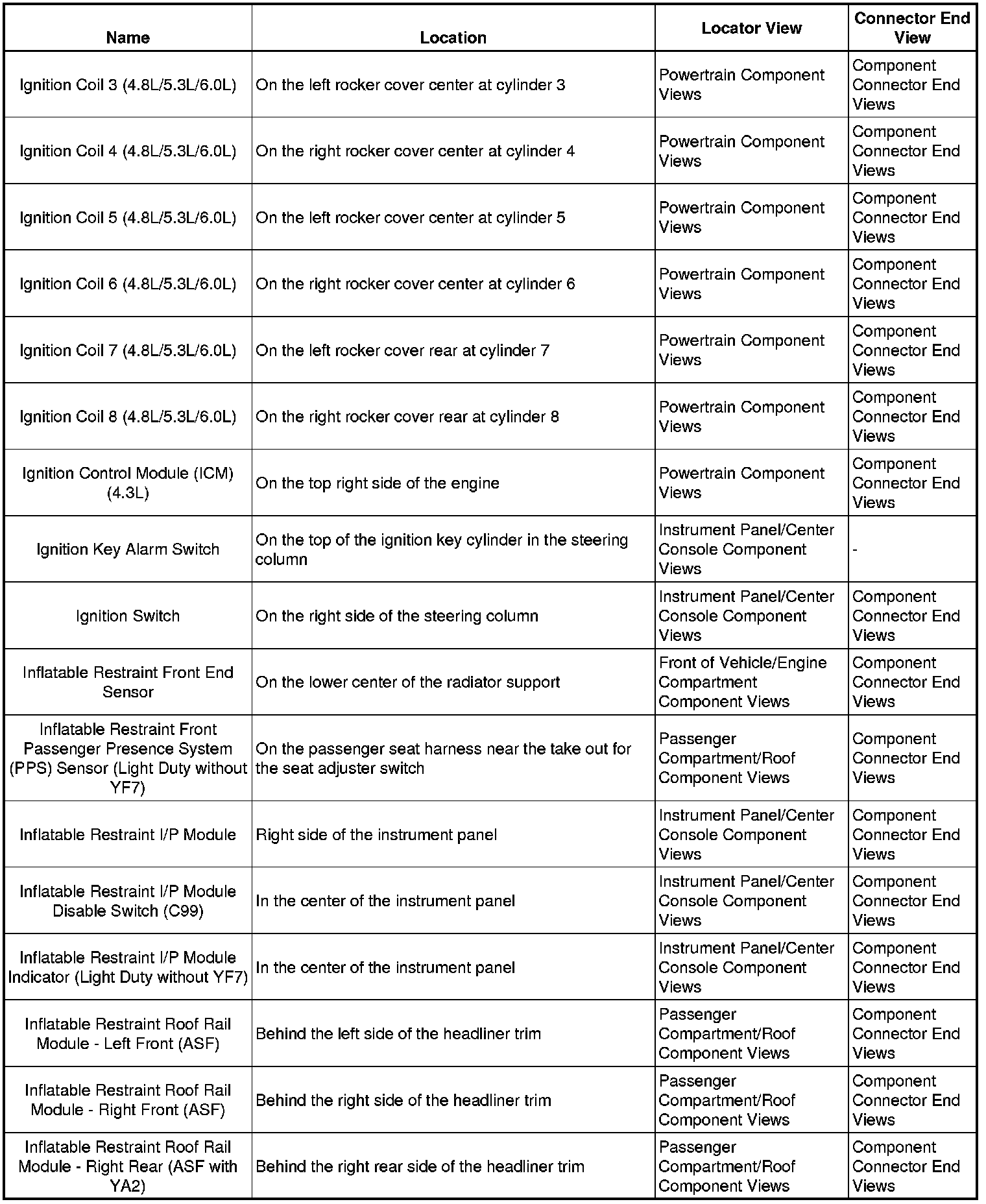

He - Ig:

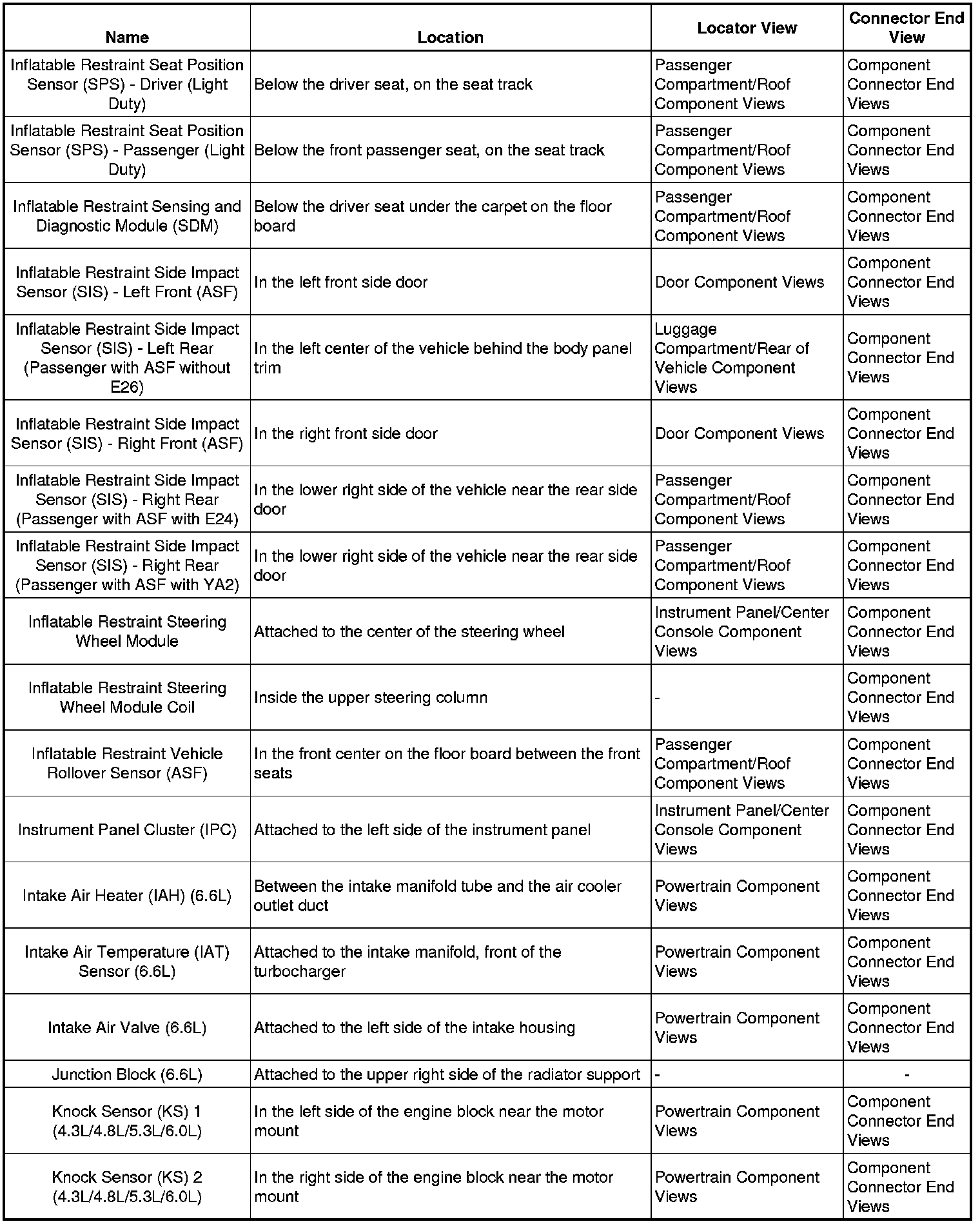

Ig - In:




In - Kn:

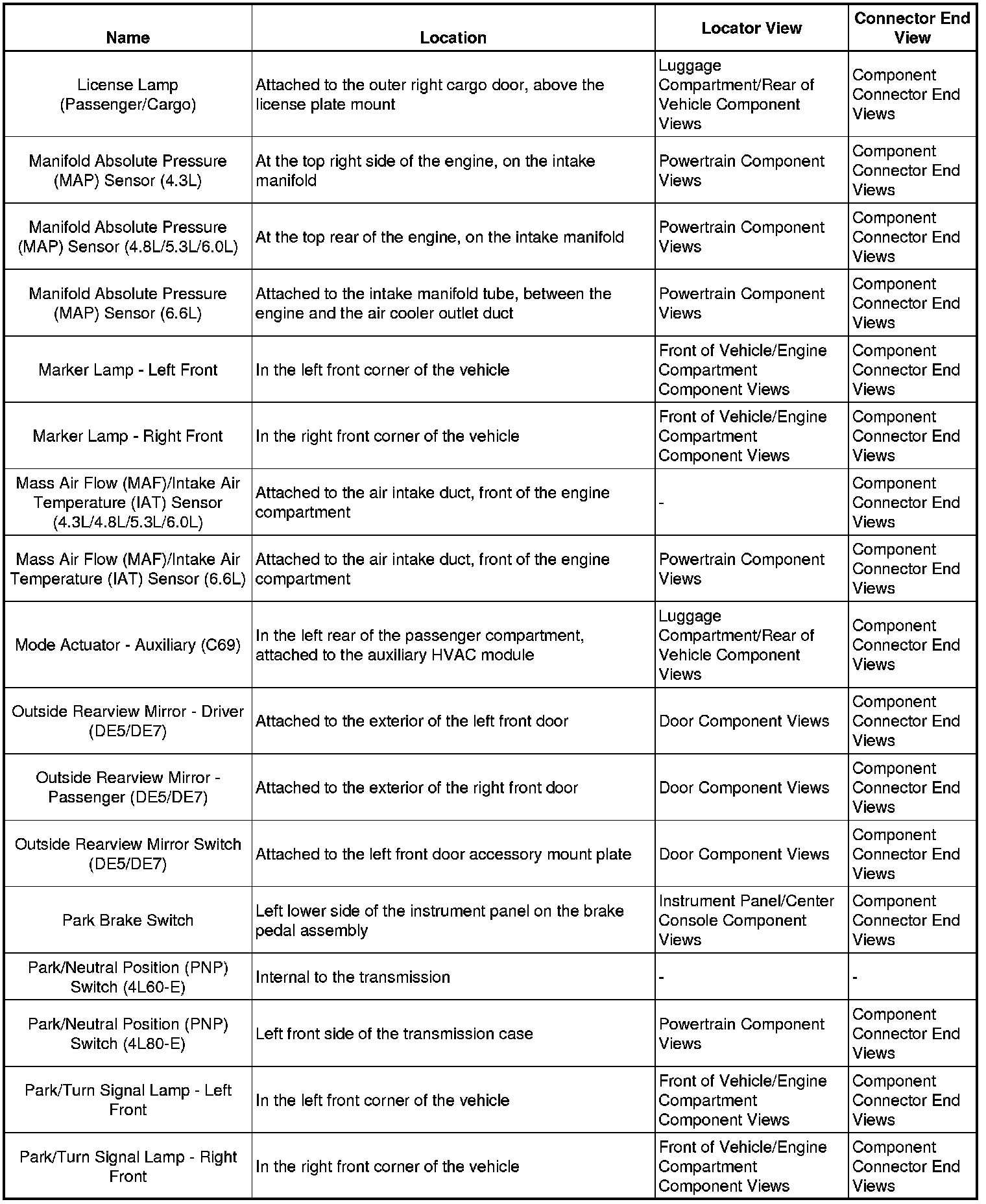

Li - Pa:

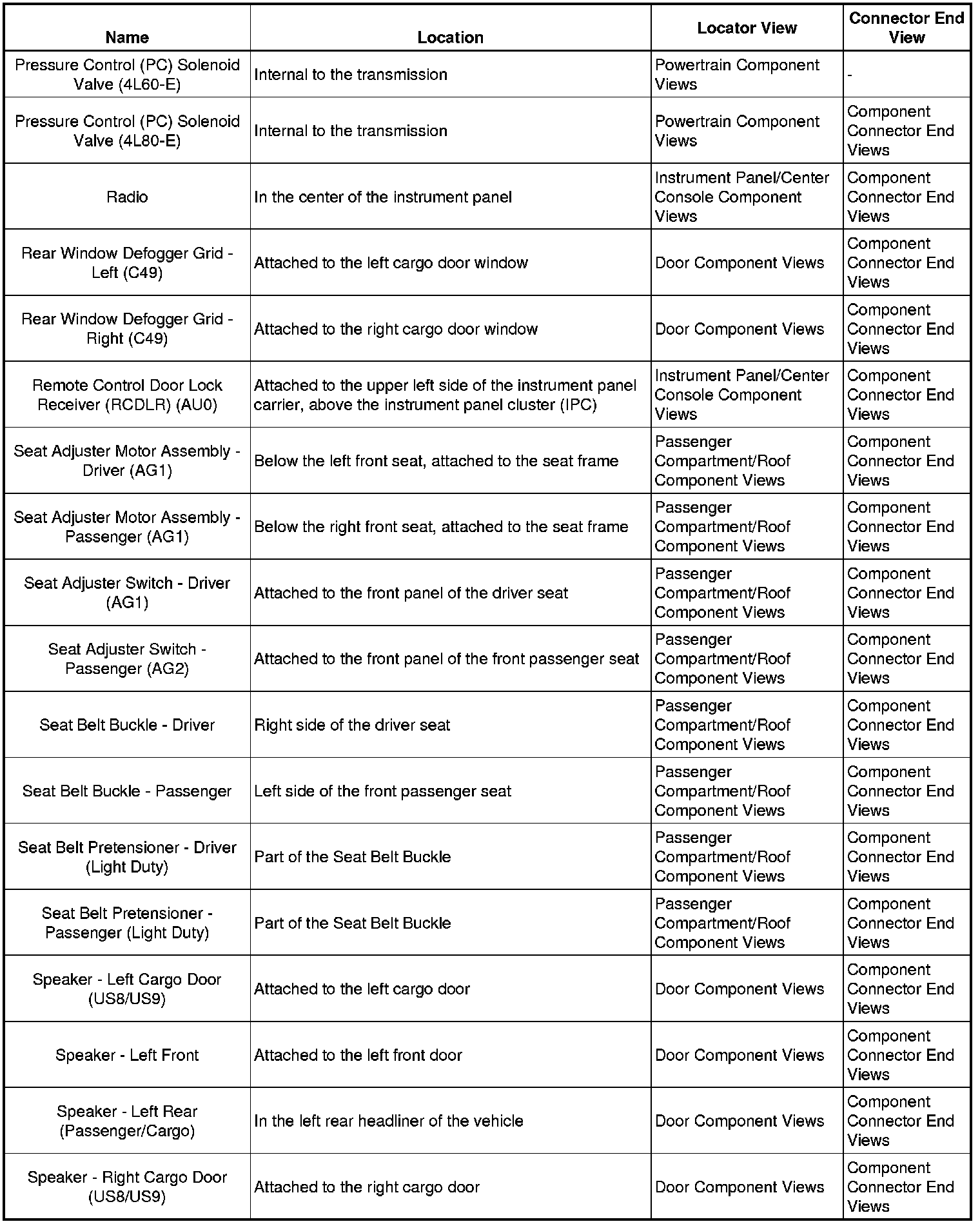

Pr - Sp:

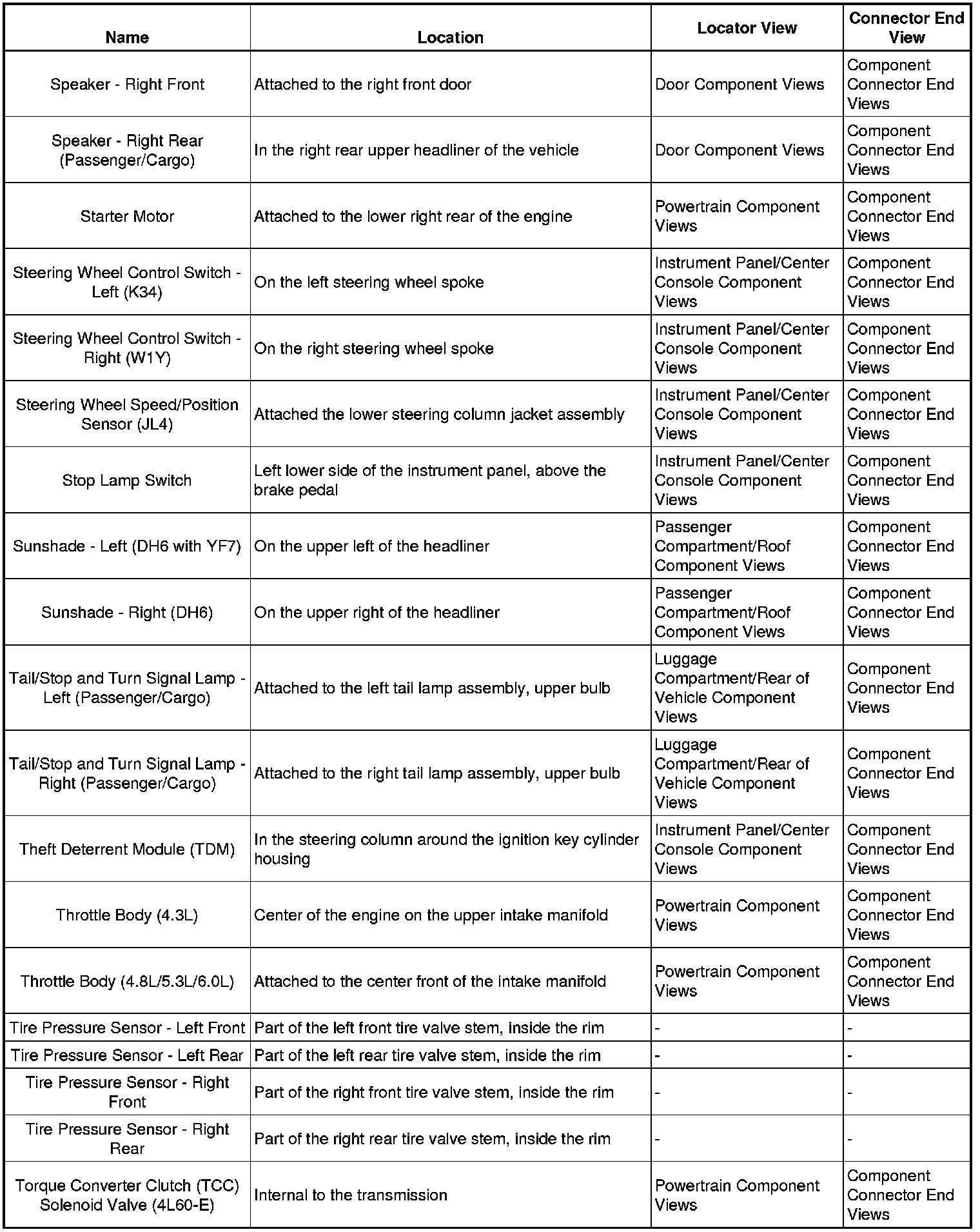

Sp - To:

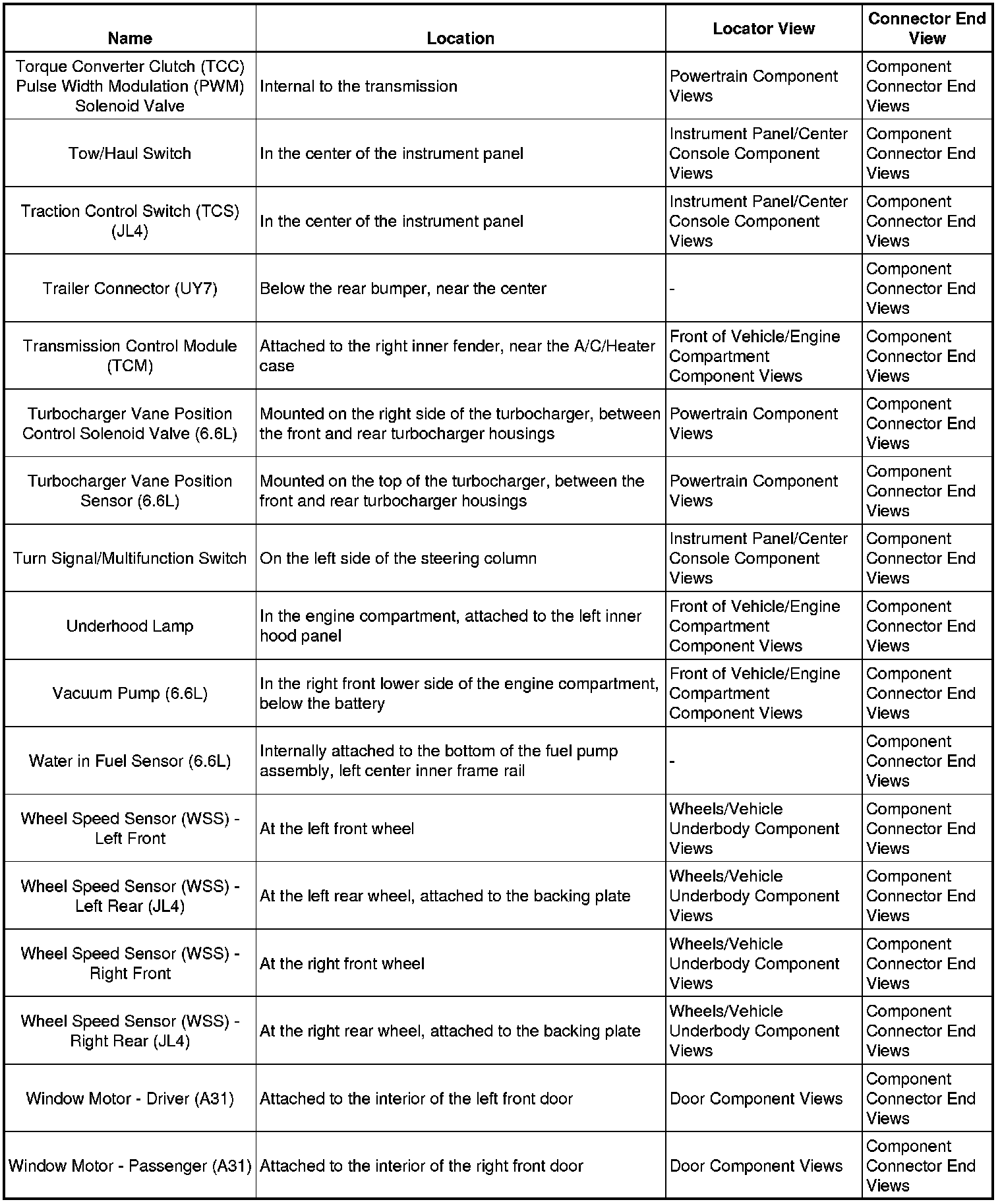

To - Wi:

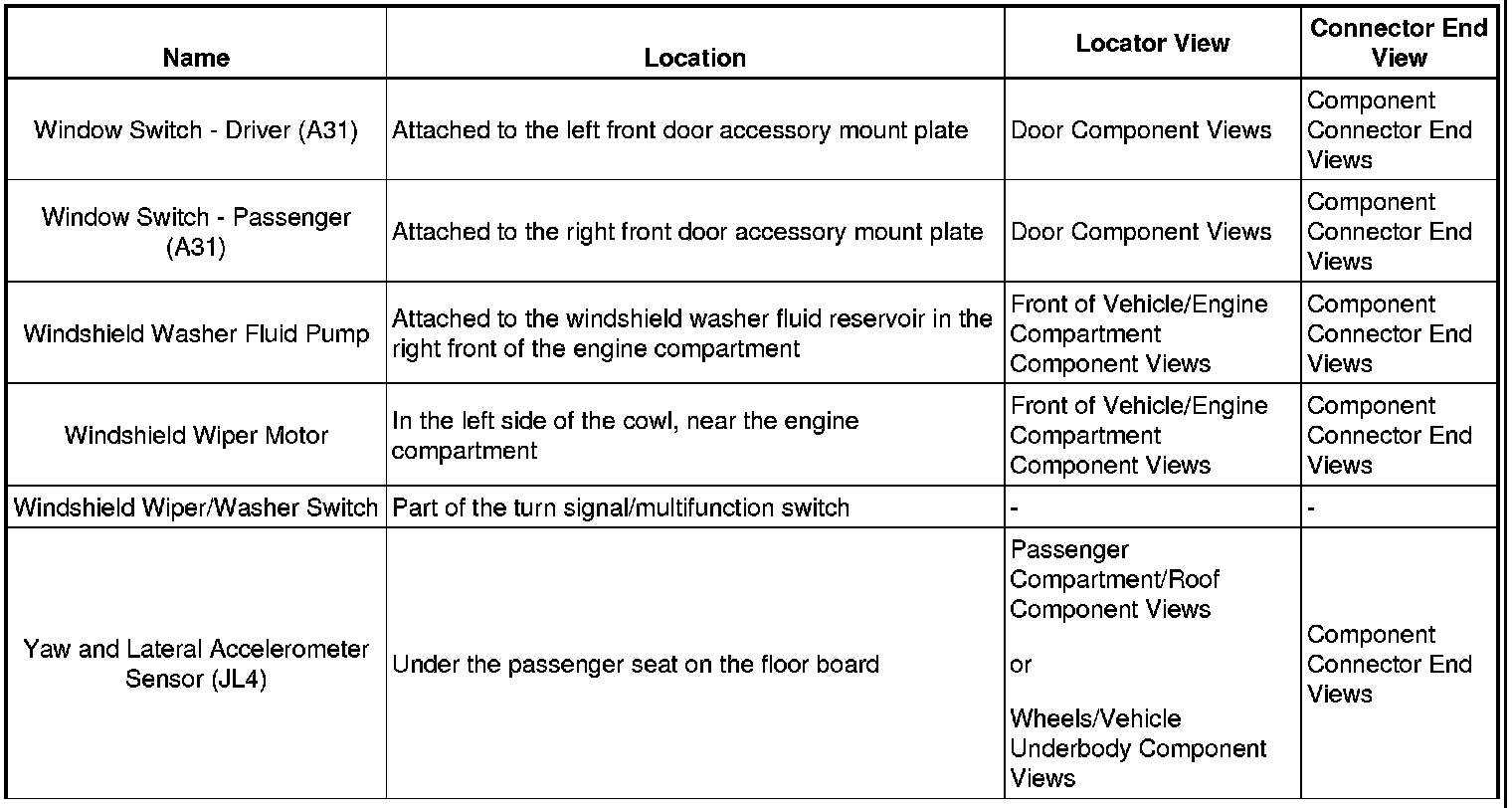

Wi - Ya:
