Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

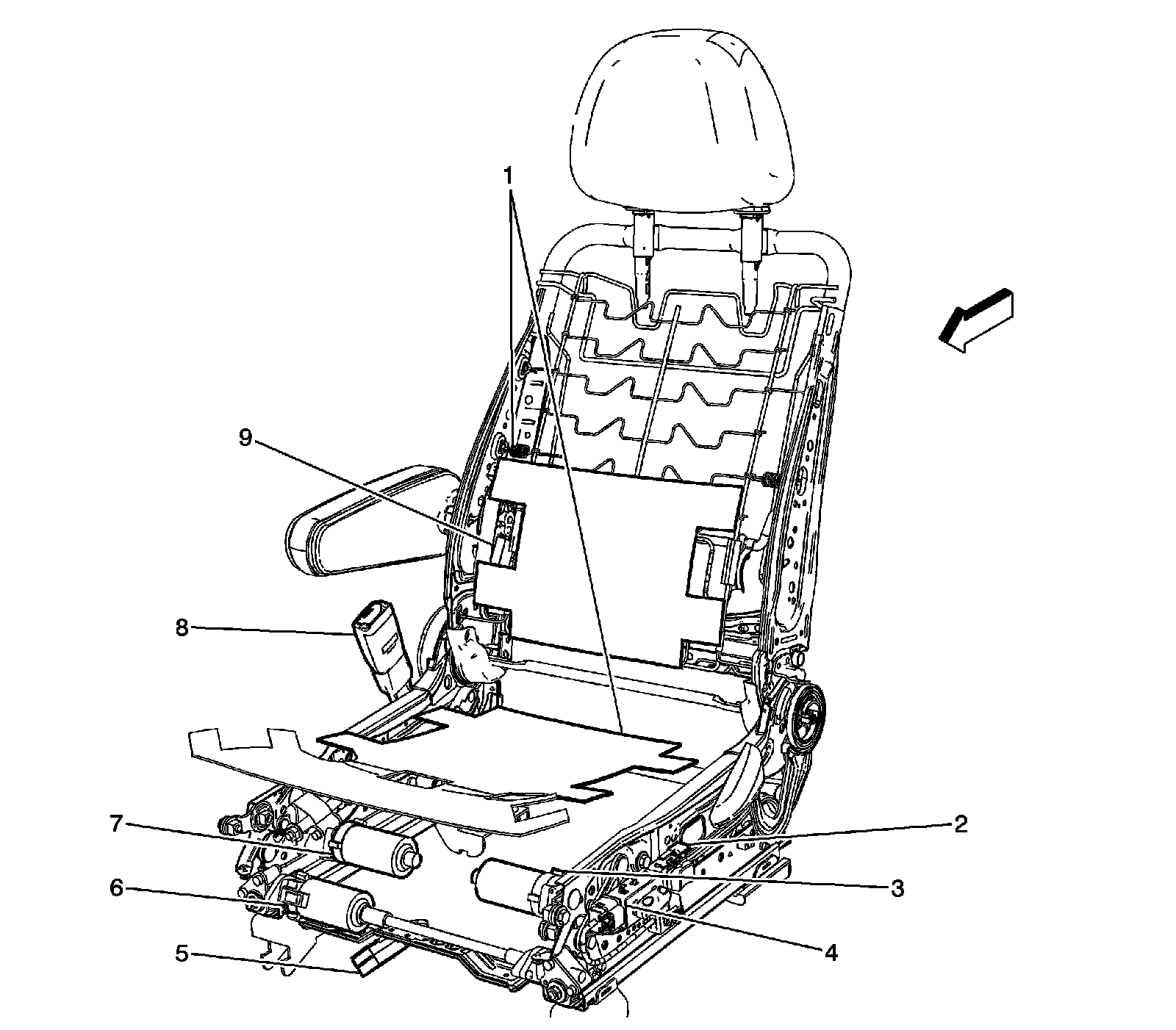

Driver Seat Components




1 - Heated Seat Element - Driver (KA1)
2 - Lumbar Adjuster Switch - Driver (AJ6)
3 - Seat Front Vertical Motor - Driver (AJ6)
4 - Seat Adjuster Switch - Driver (AJ6)
5 - Heated Seat Control Module Driver (KA1)
6 - Seat Horizontal Motor - Driver (AJ6) (KA1)
7 - Seat Rear Vertical Motor - Driver (AJ6)
8 - Seat Belt Switch - Left
9 - Seat Lumbar Motor - Driver (AJ6)

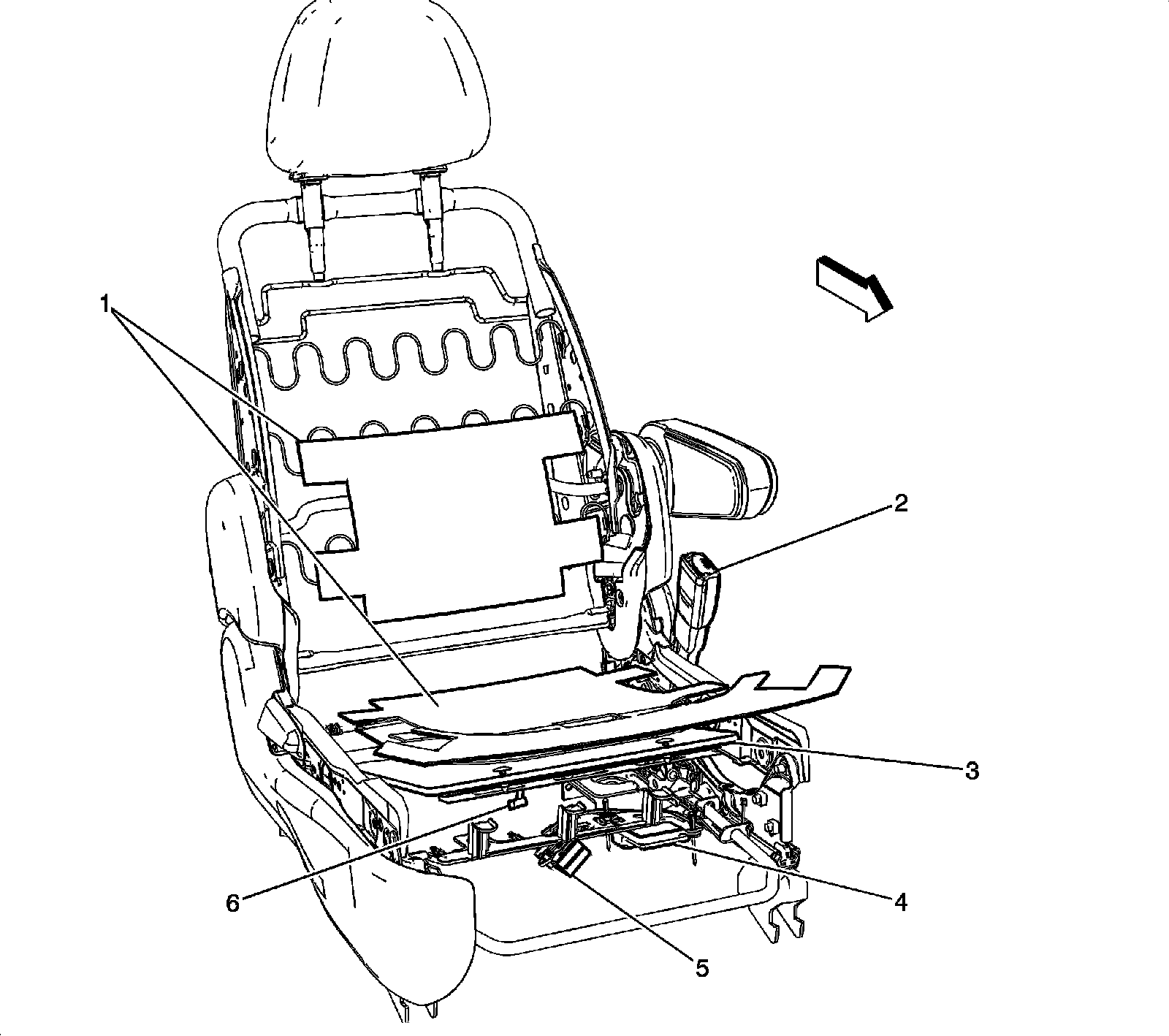

Passenger Seat Components




1 - Heated Seat Element - Passenger (KA1)
2 - Seat Belt Switch - Right
3 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad
4 - Inflatable Restraint Front Passenger Presence System (PPS) Module
5 - Heated Seat Control Module Passenger (KA1)
6 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
