Brake Switch (Cruise Control)




Component Connector End Views

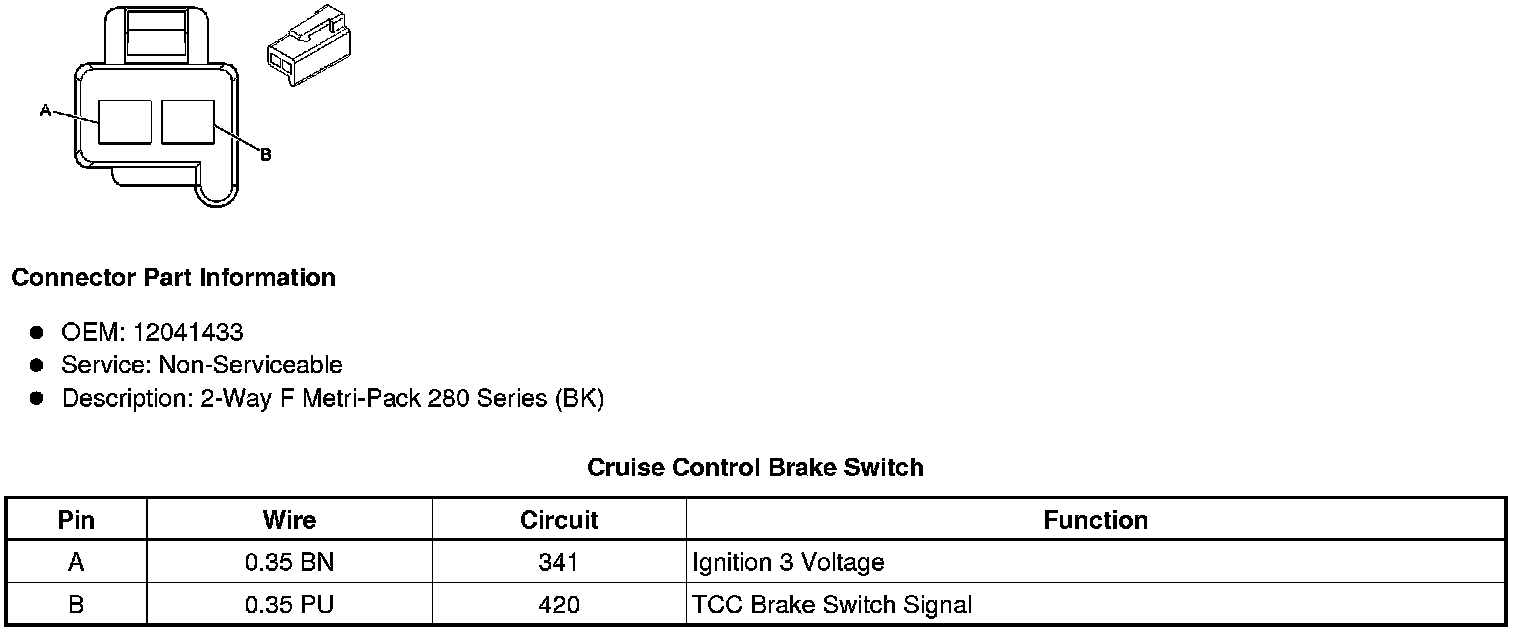

Cruise Control Brake Switch

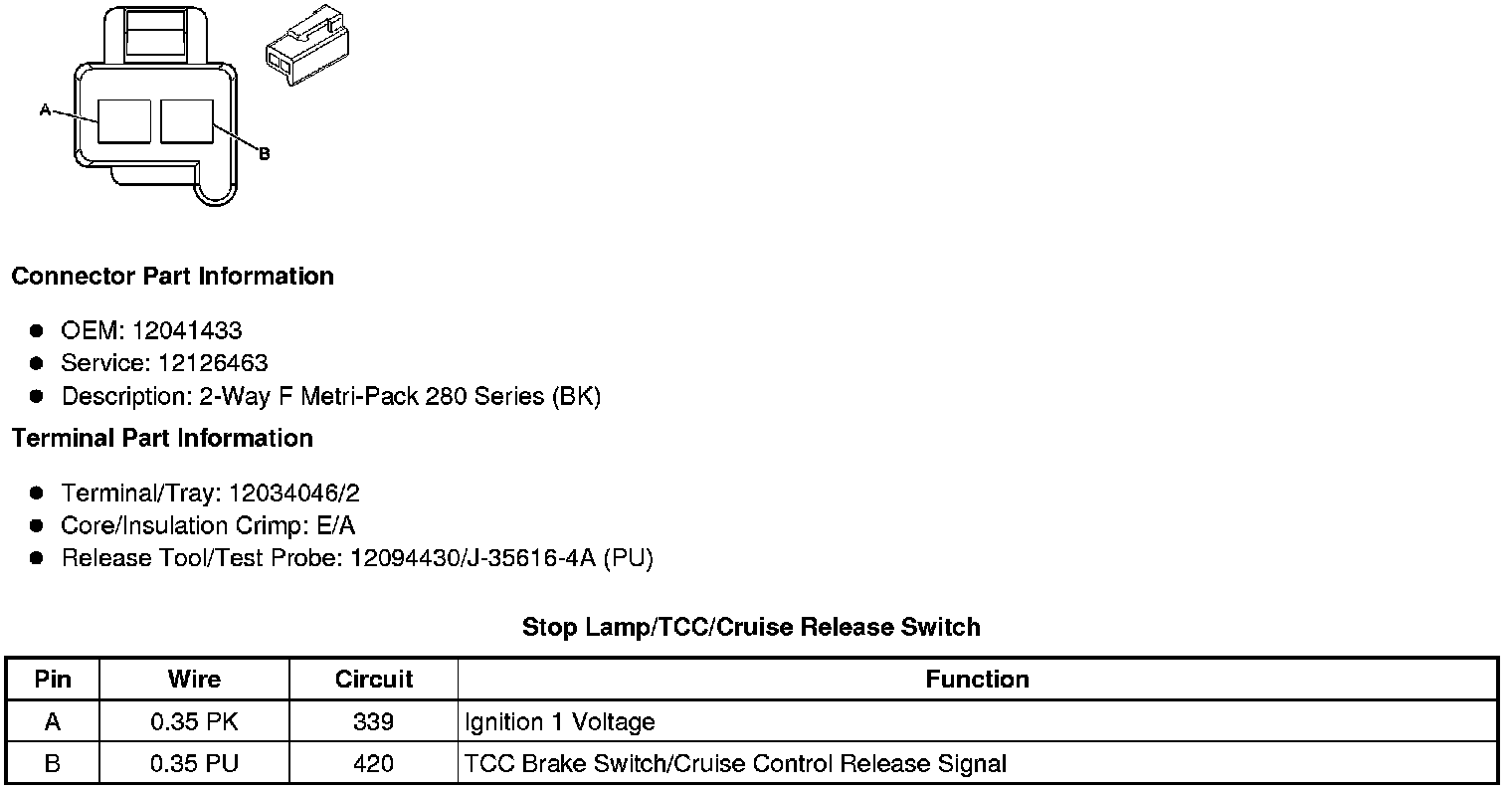

Stop Lamp/TCC/Cruise Release Switch
