Daytime Running Lamp




Component Connector End Views

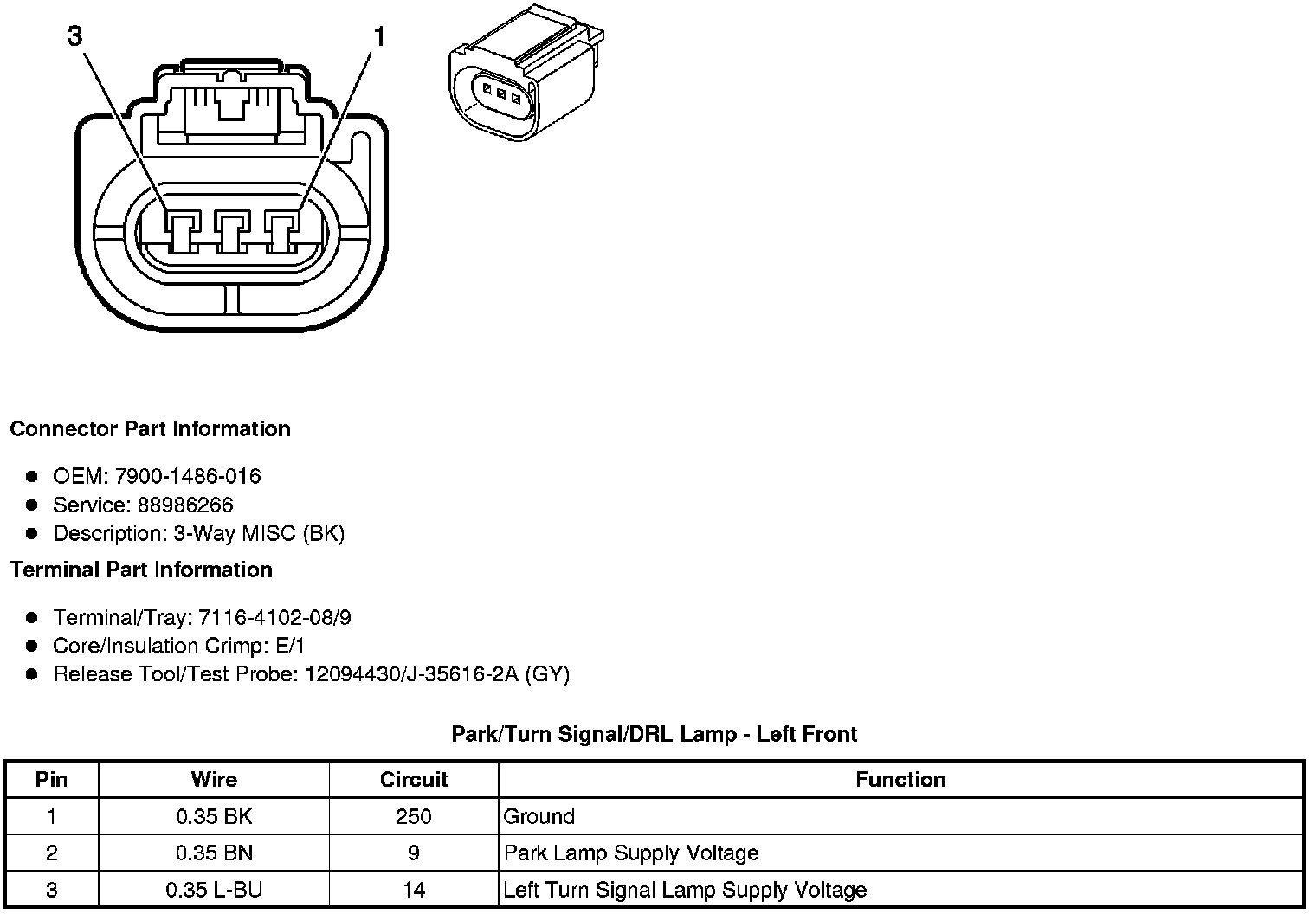

Park/Turn Signal/DRL Lamp - Left Front






Park/Turn Signal/DRL Lamp - Right Front
