Impact Sensor




Component Connector End Views

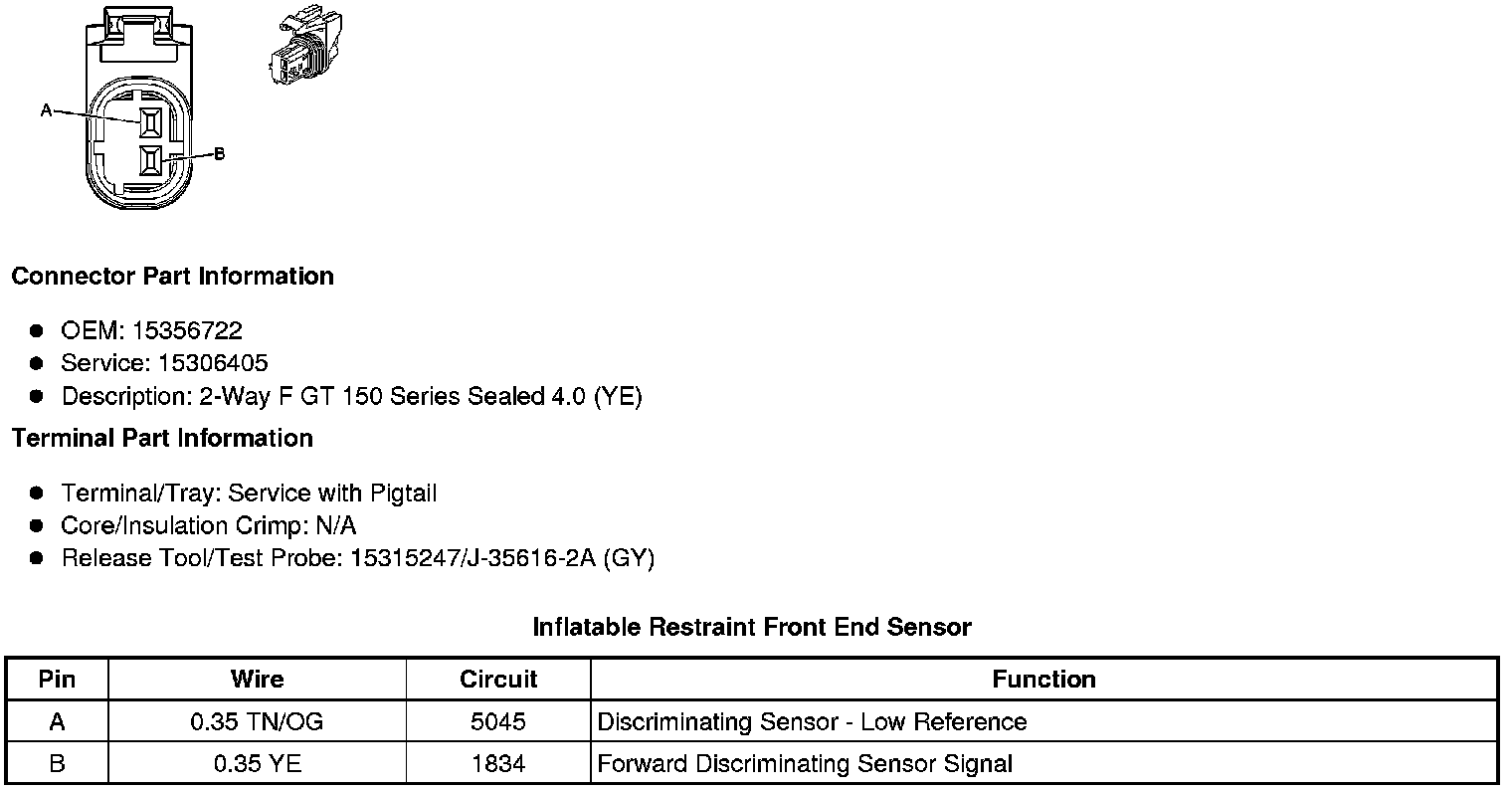

Inflatable Restraint Front End Sensor

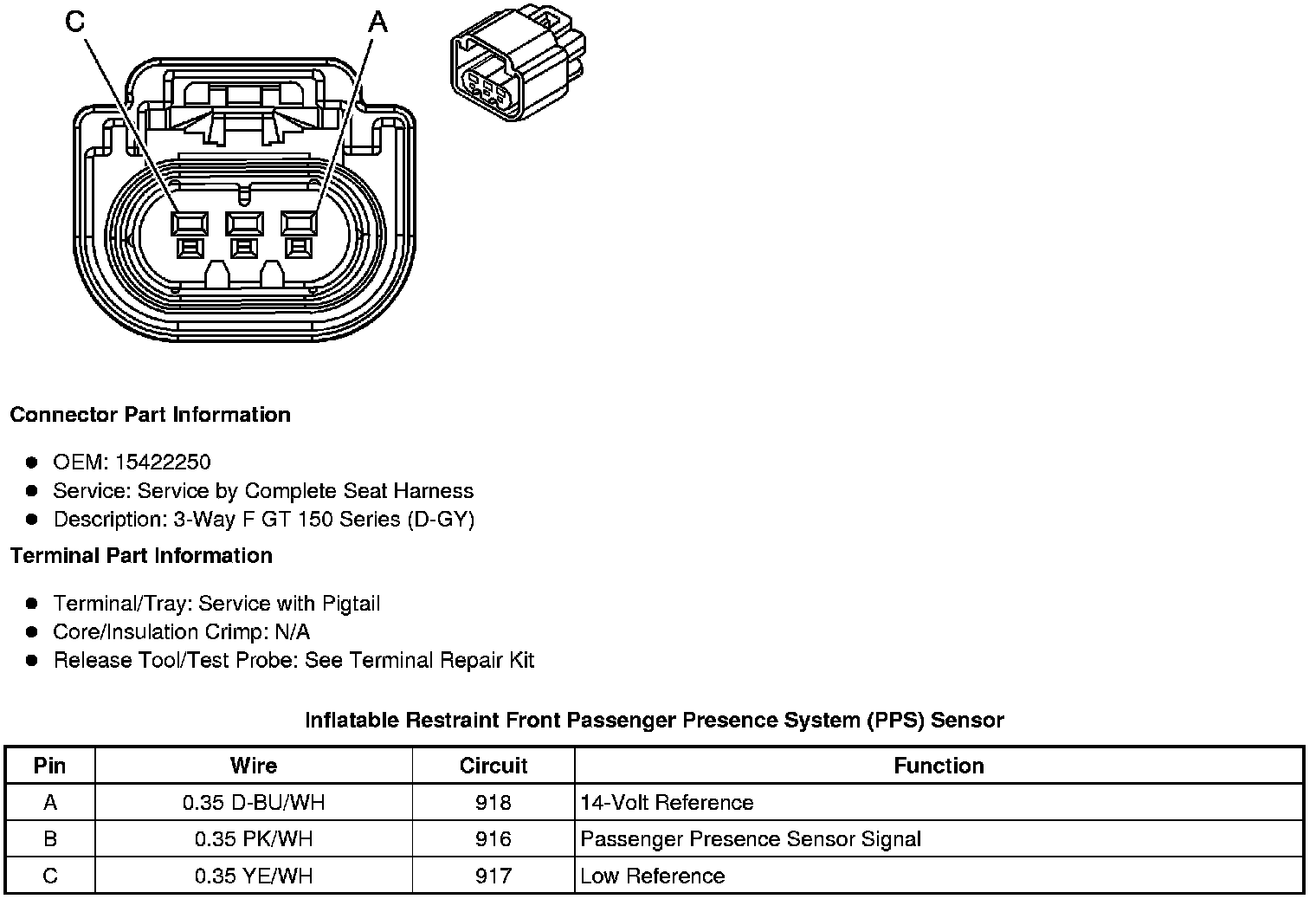

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

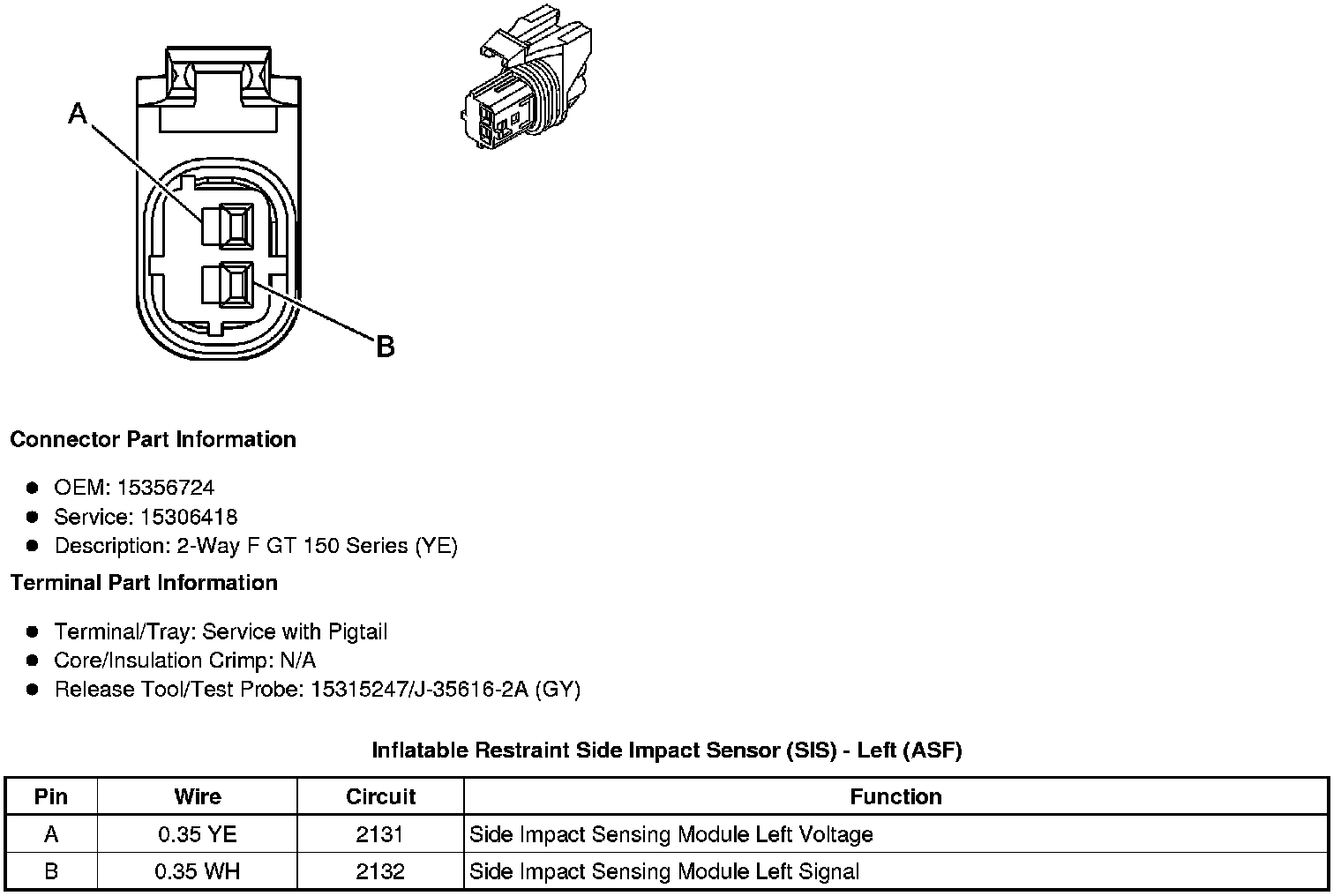

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

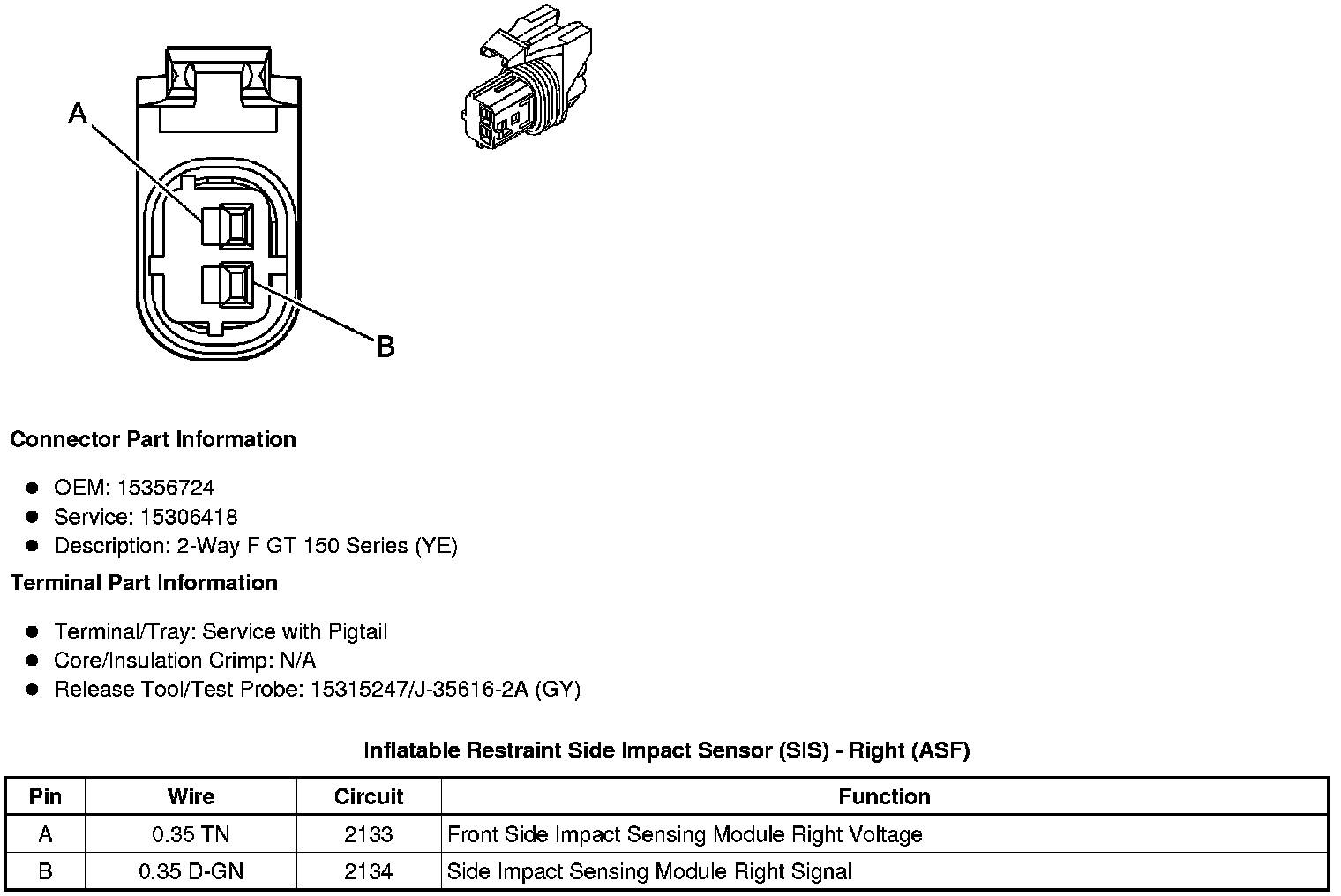

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)

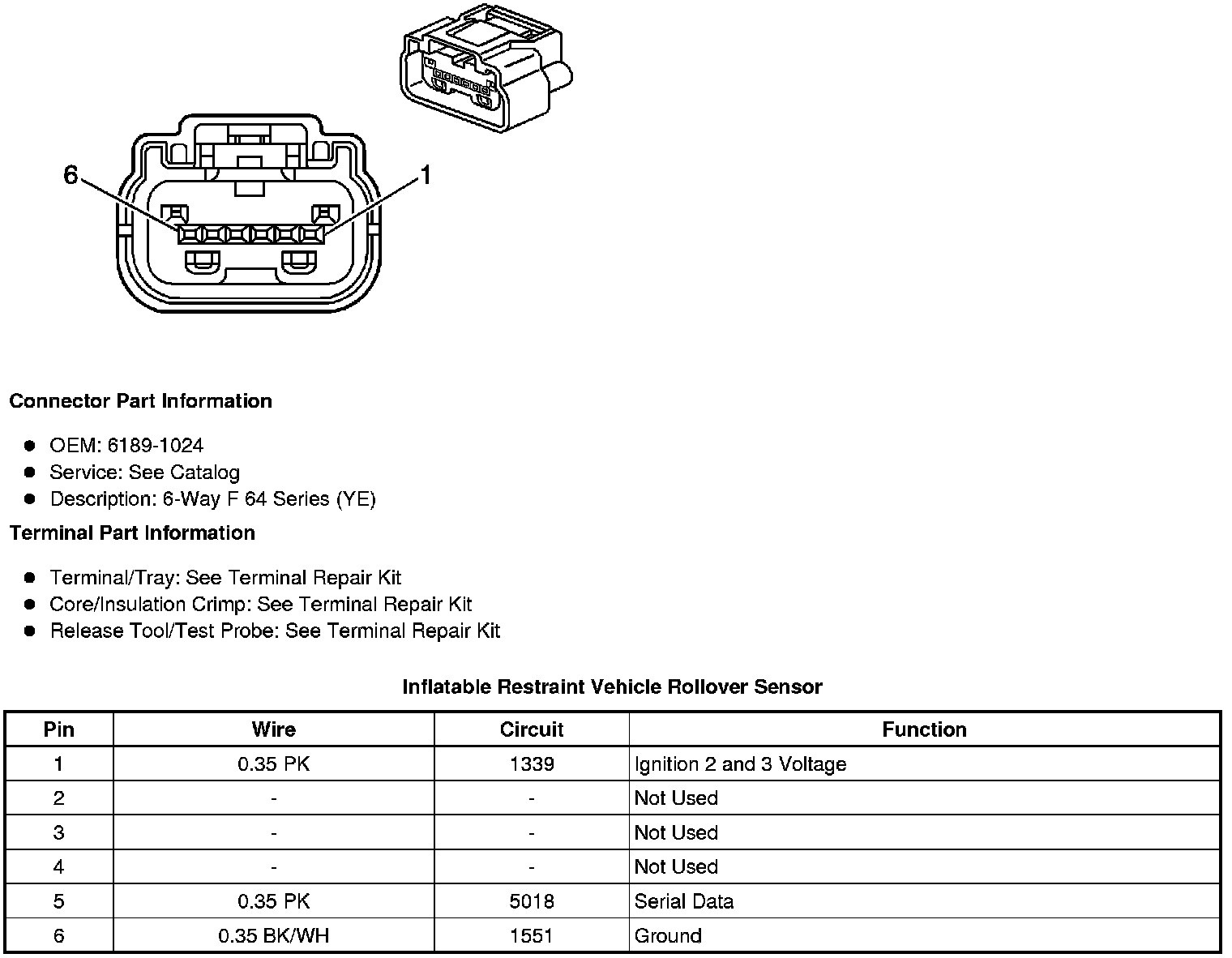

Inflatable Restraint Vehicle Rollover Sensor
