Power Window Switch




Component Connector End Views

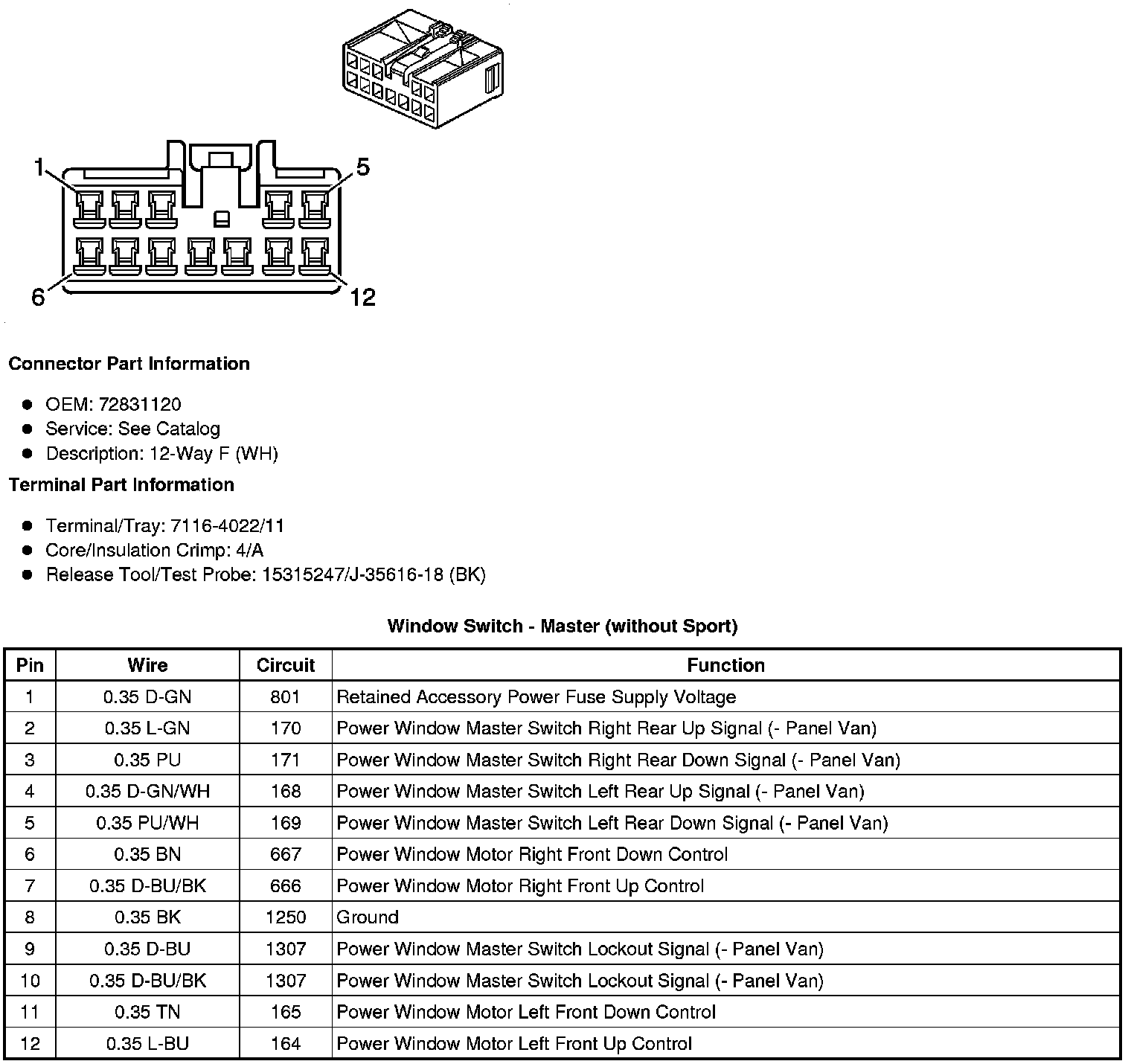

Window Switch - Master (without Sport)

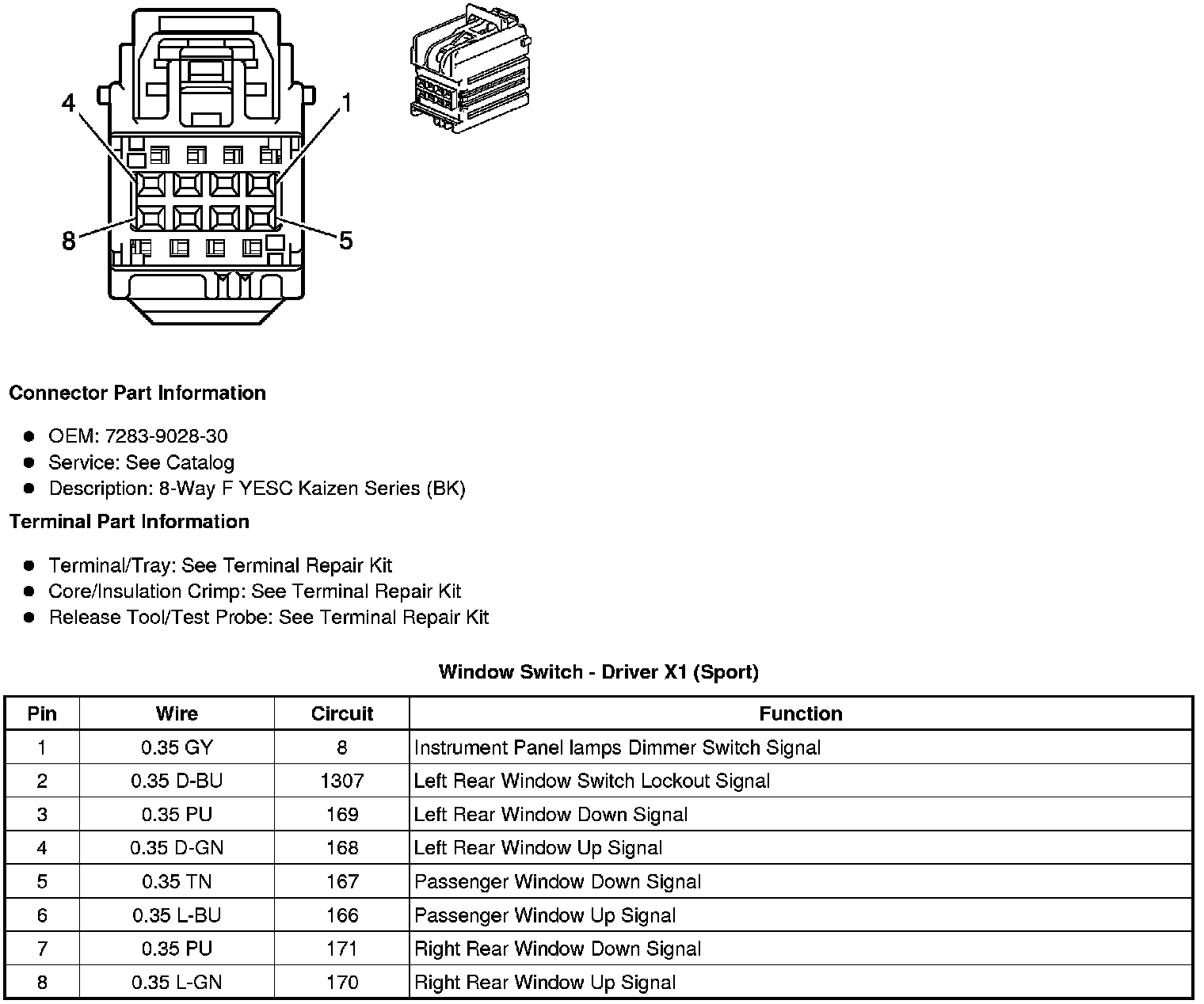

Window Switch - Driver X1 (Sport)

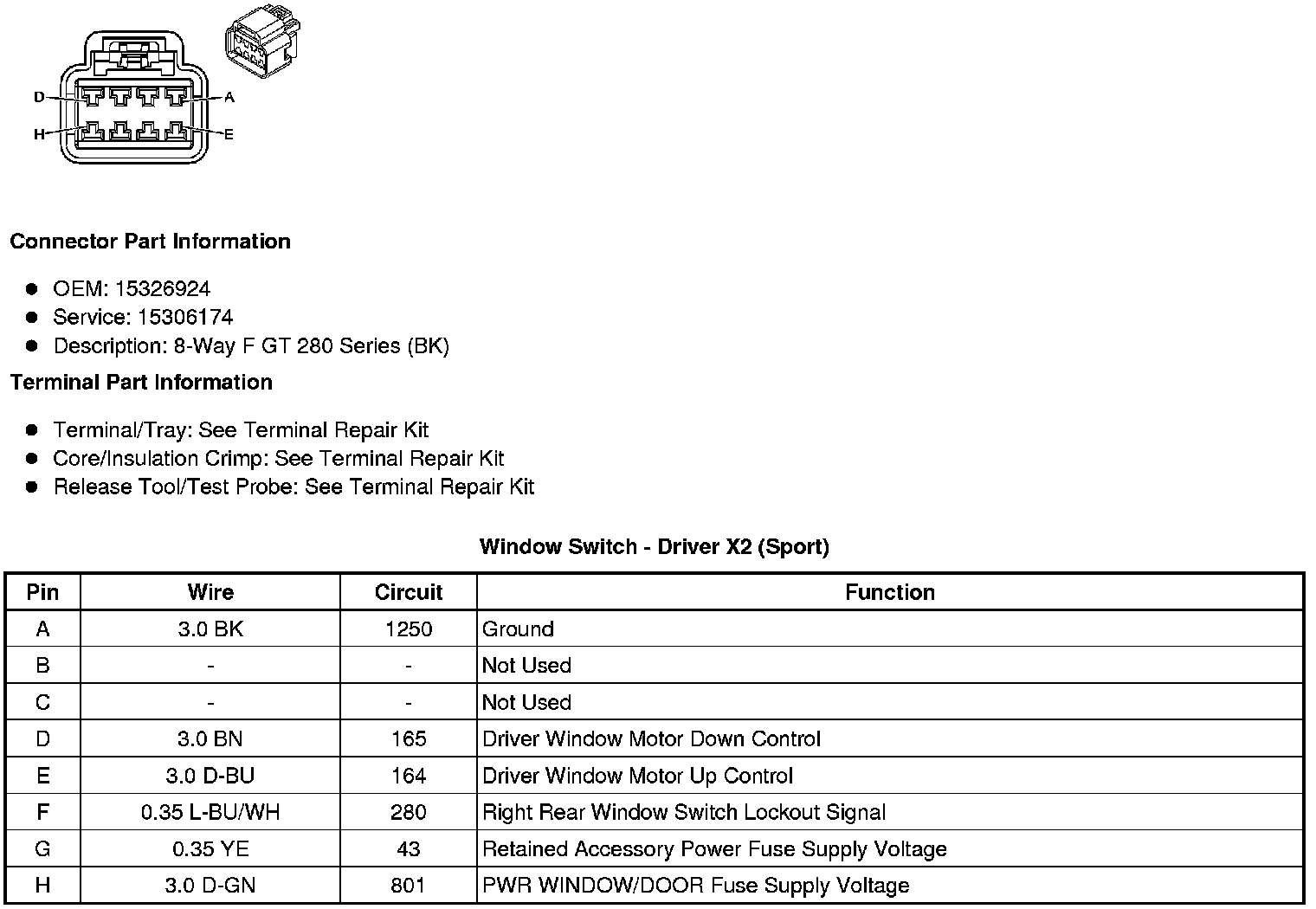

Window Switch - Driver X2 (Sport)

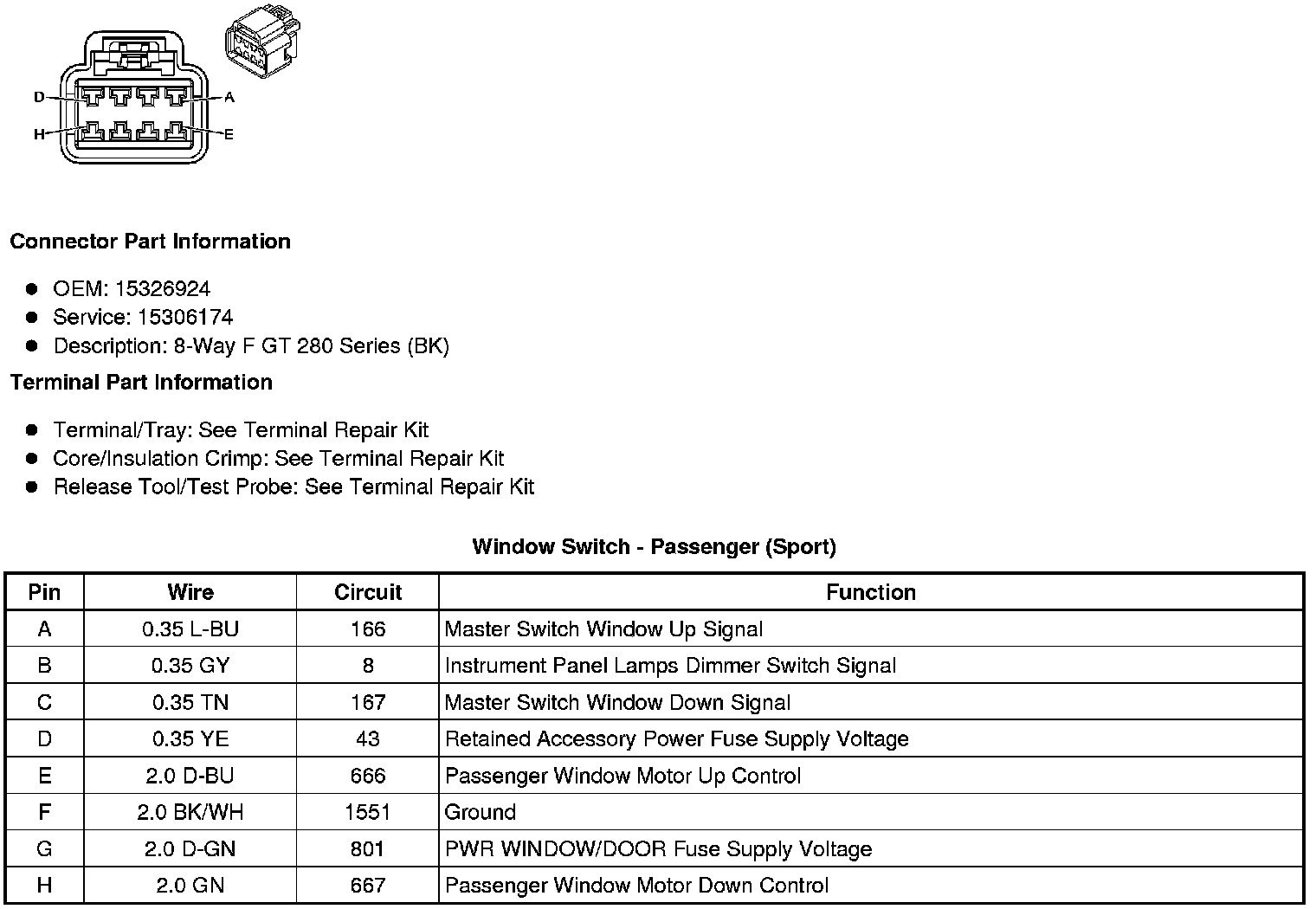

Window Switch - Passenger (Sport)

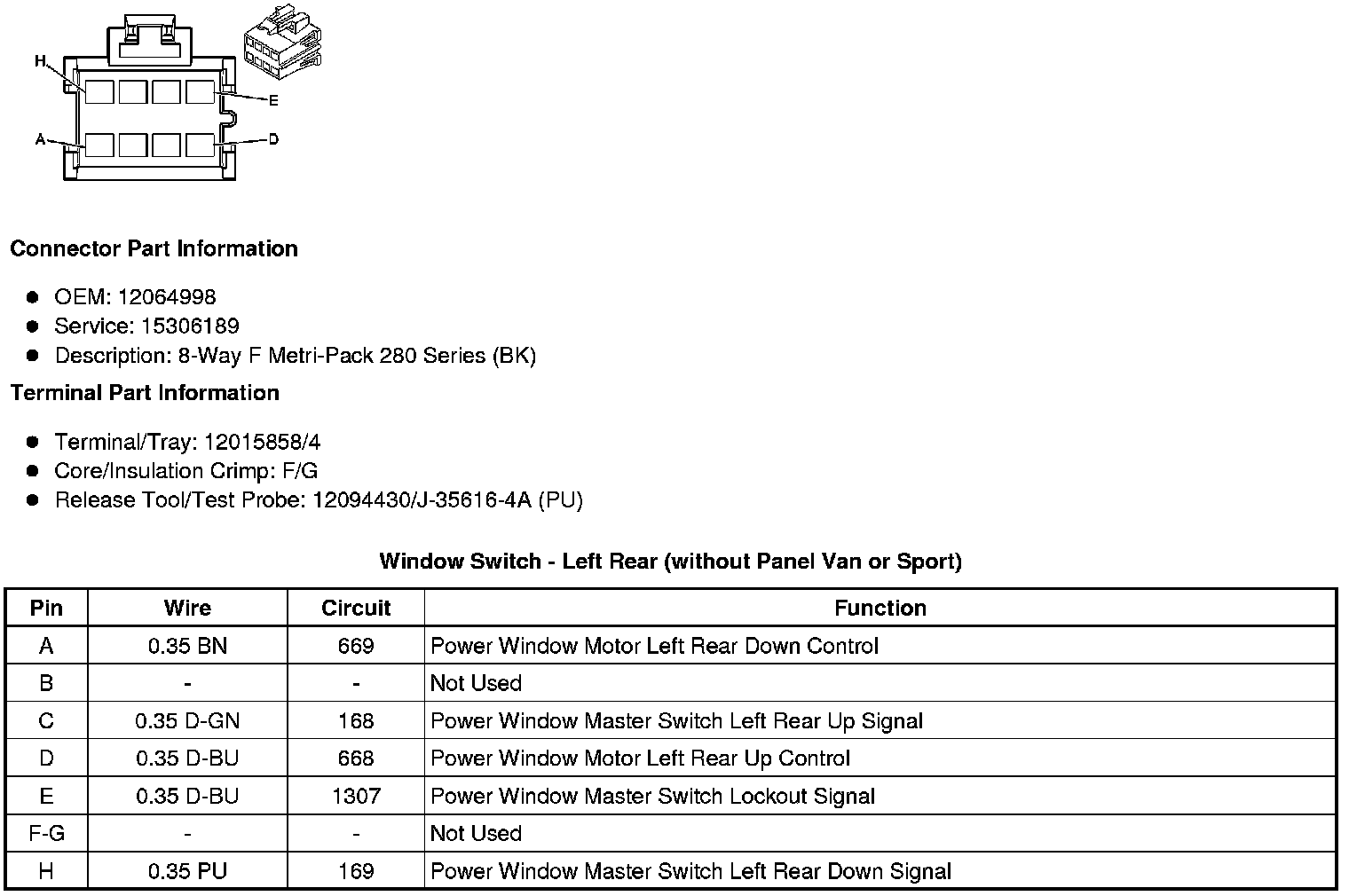

Window Switch - Left Rear (without Panel Van or Sport)

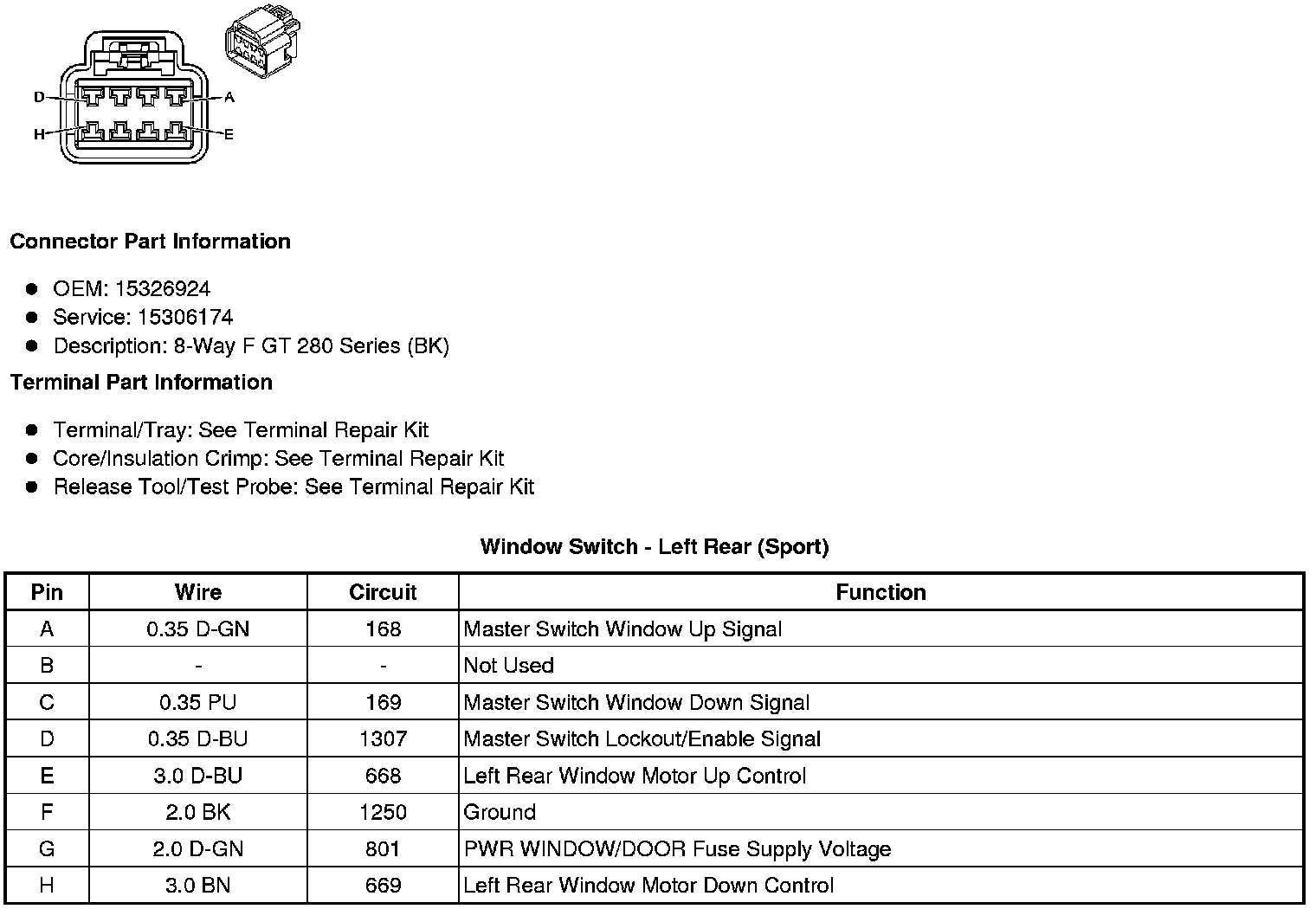

Window Switch - Left Rear (Sport)

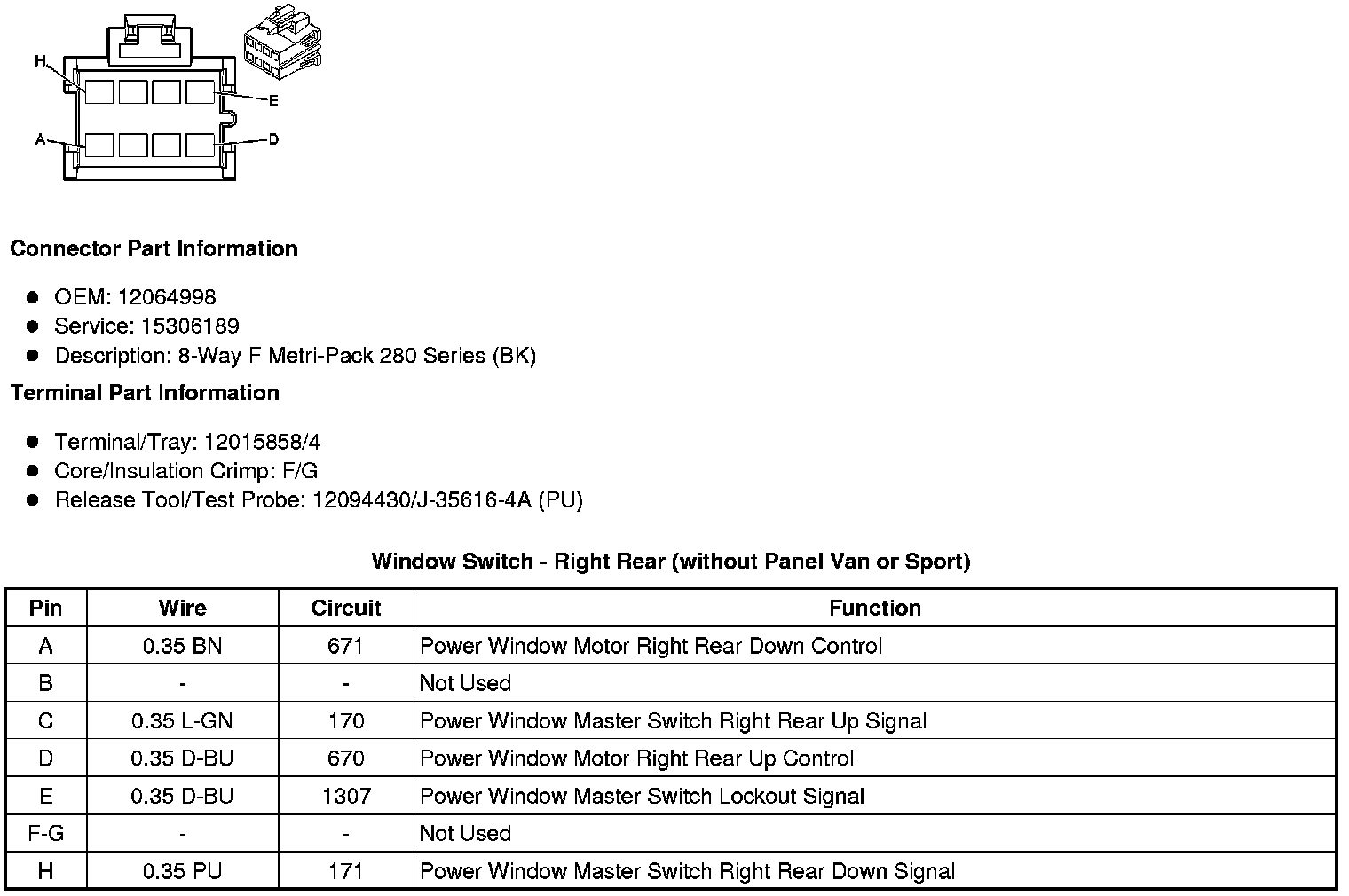

Window Switch - Right Rear (without Panel Van or Sport)

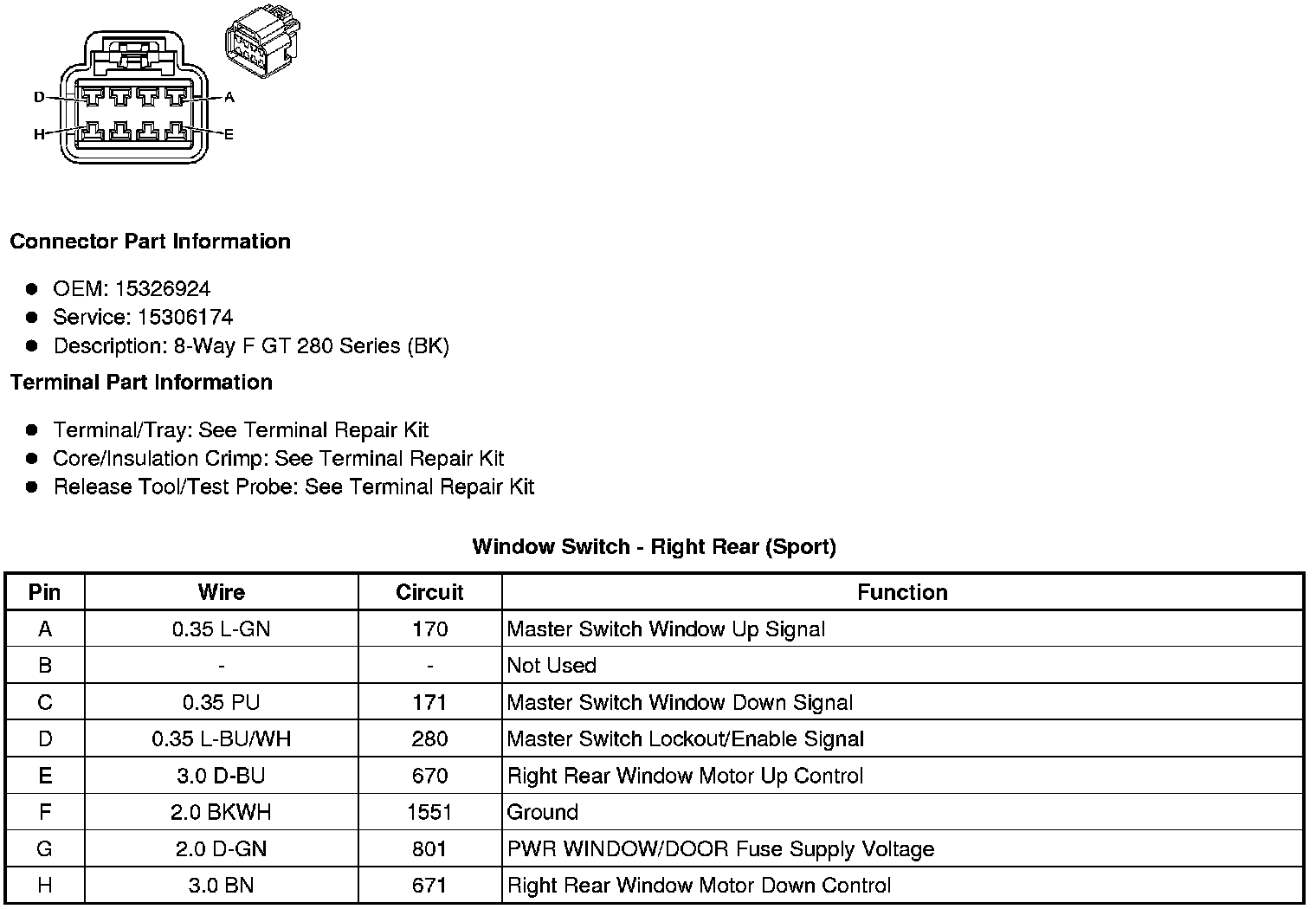

Window Switch - Right Rear (Sport)






Driver Rear Access Panel Switch - Left Rear Panel (Panel Van)






Driver Rear Access Panel Switch - Right Rear Panel (Panel Van)

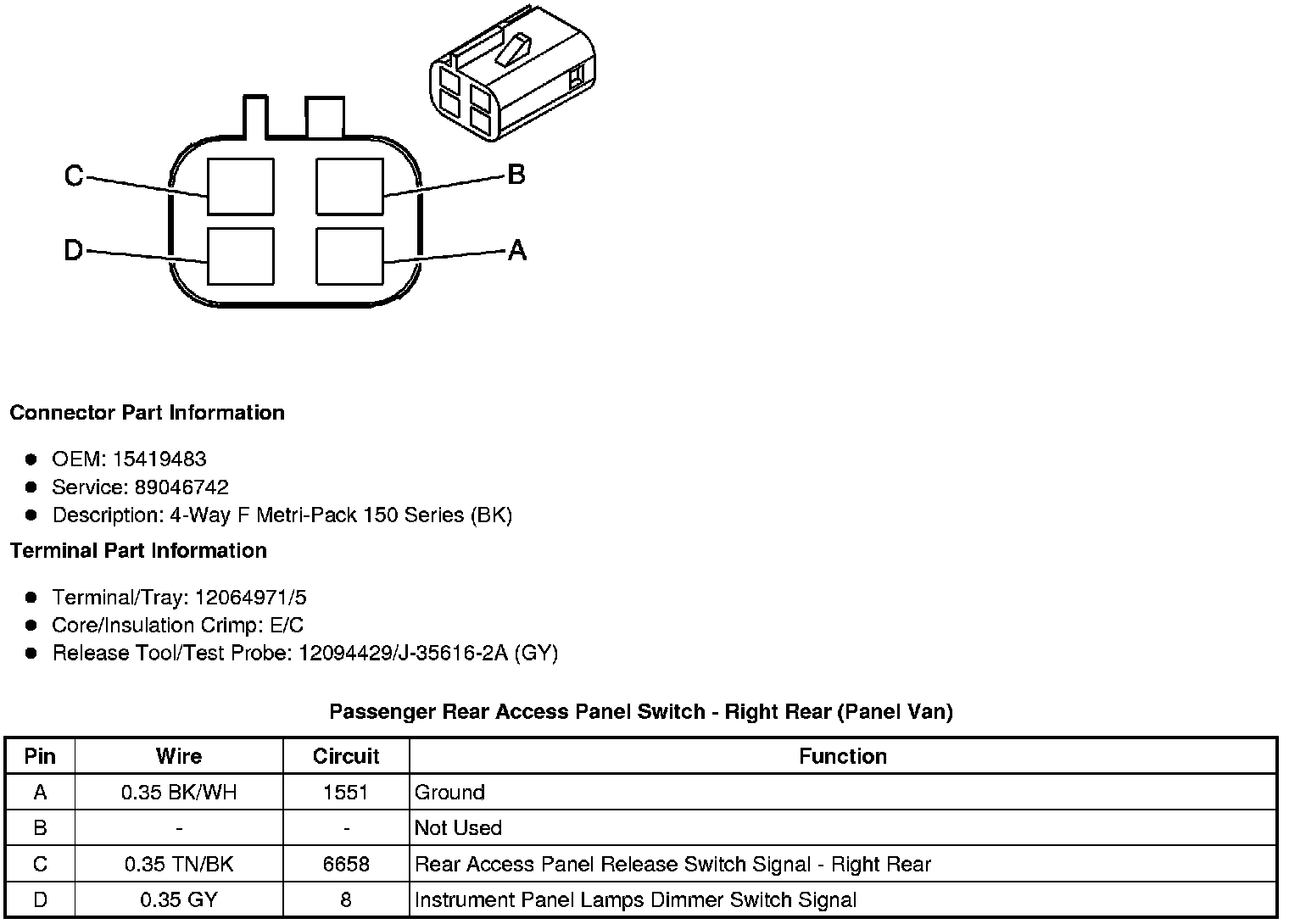

Passenger Rear Access Panel Switch - Right Rear (Panel Van)
