Release Systems Schematics




Release Systems Schematics

Liftgate (Except Panel Van)

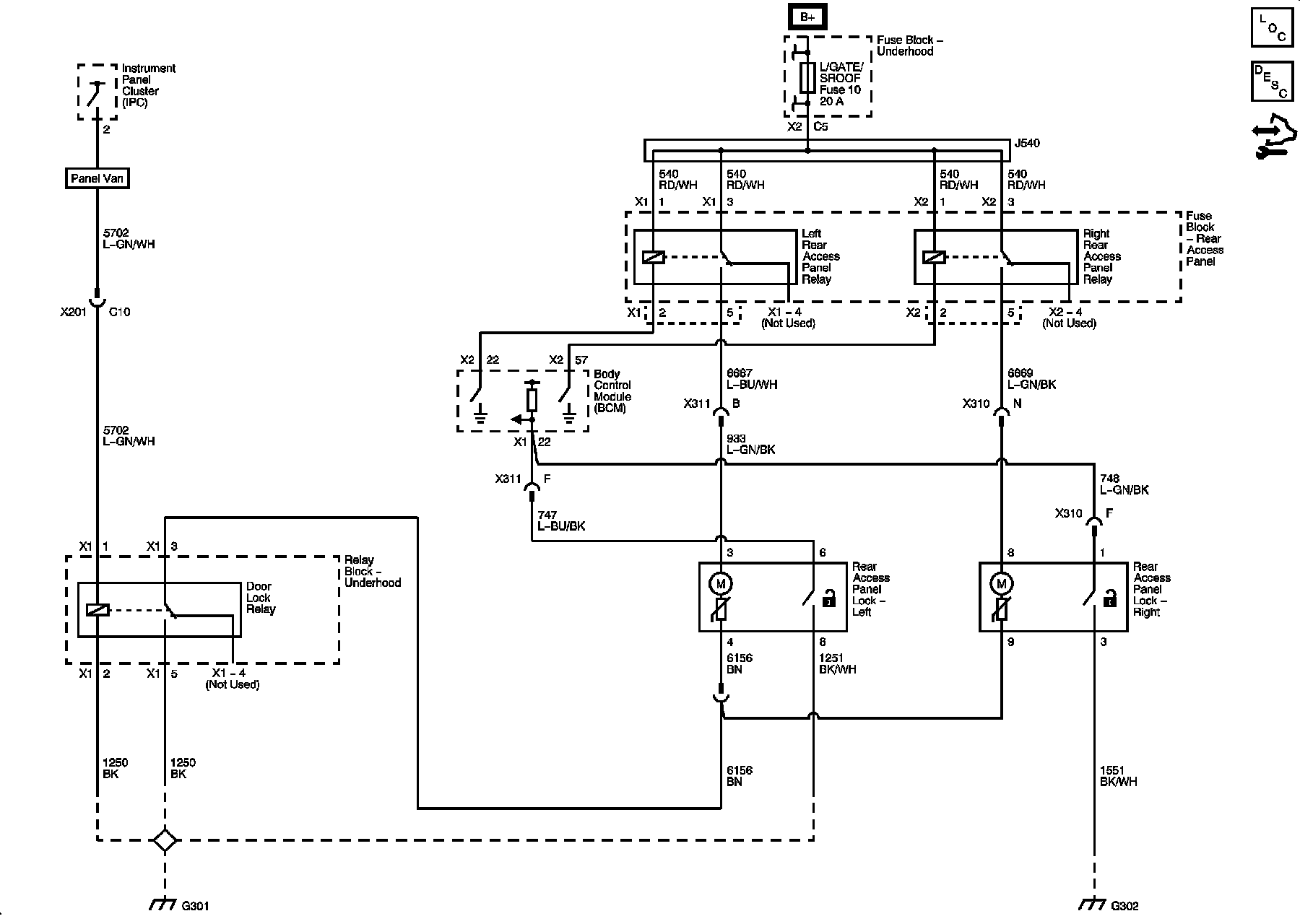

Liftgate/Rear Access Panel Schematics (Panel Van) 1 of 2





Liftgate/Rear Access Panel Schematics (Panel Van) 2 of 2
