Transmission Control Systems




Automatic Transmission Controls Schematics

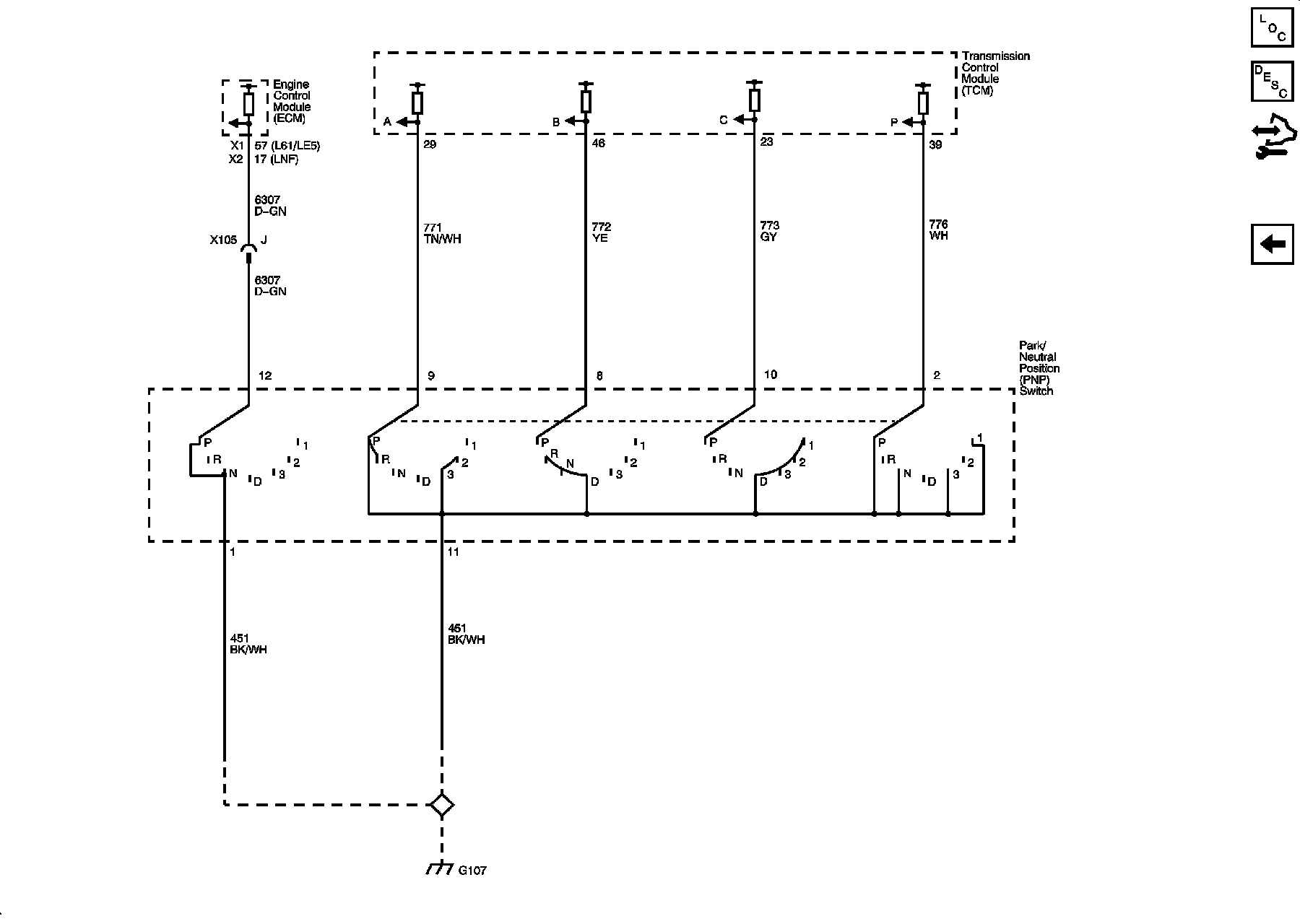

PNP Switch

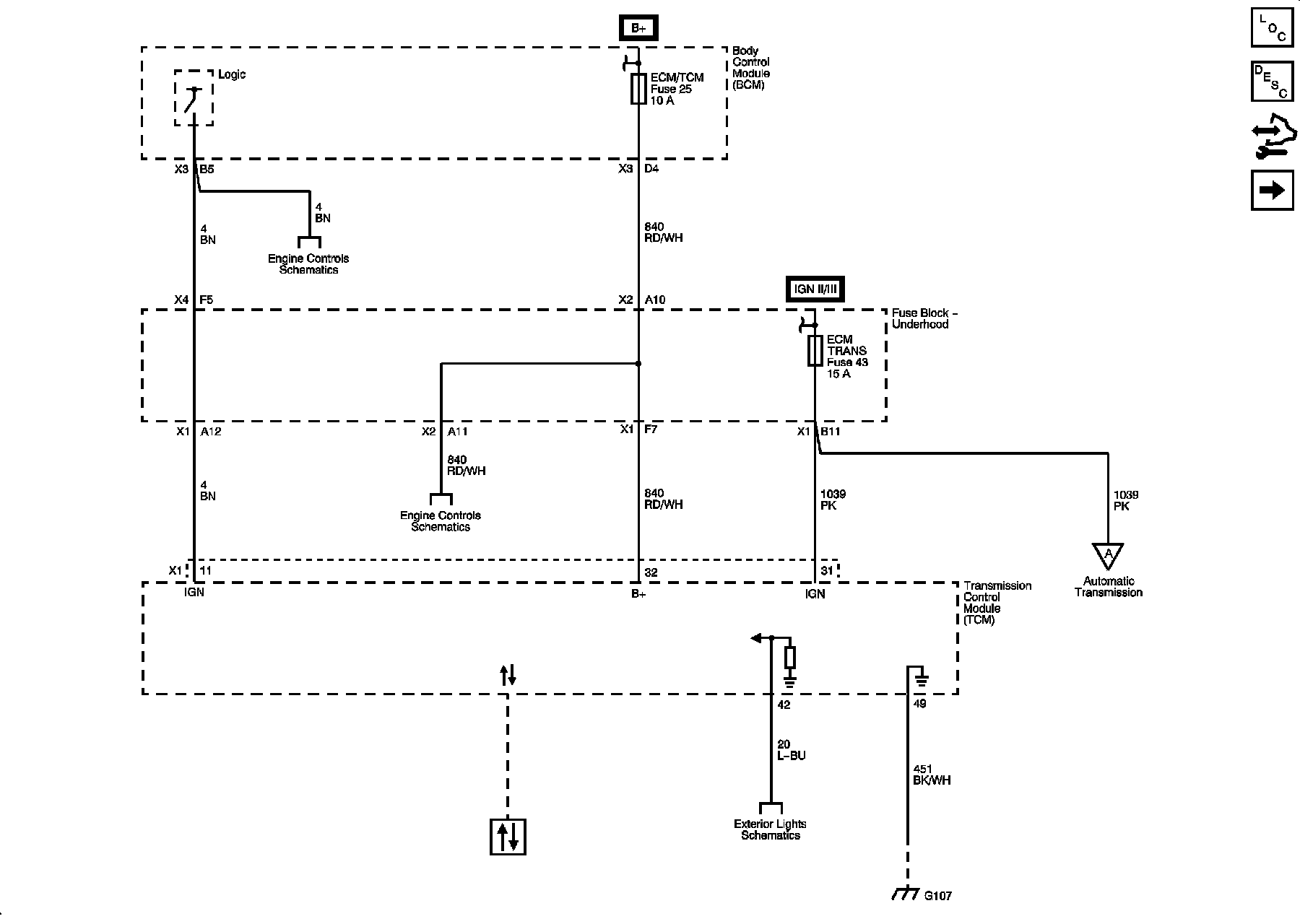

TCM, Power, and Ground

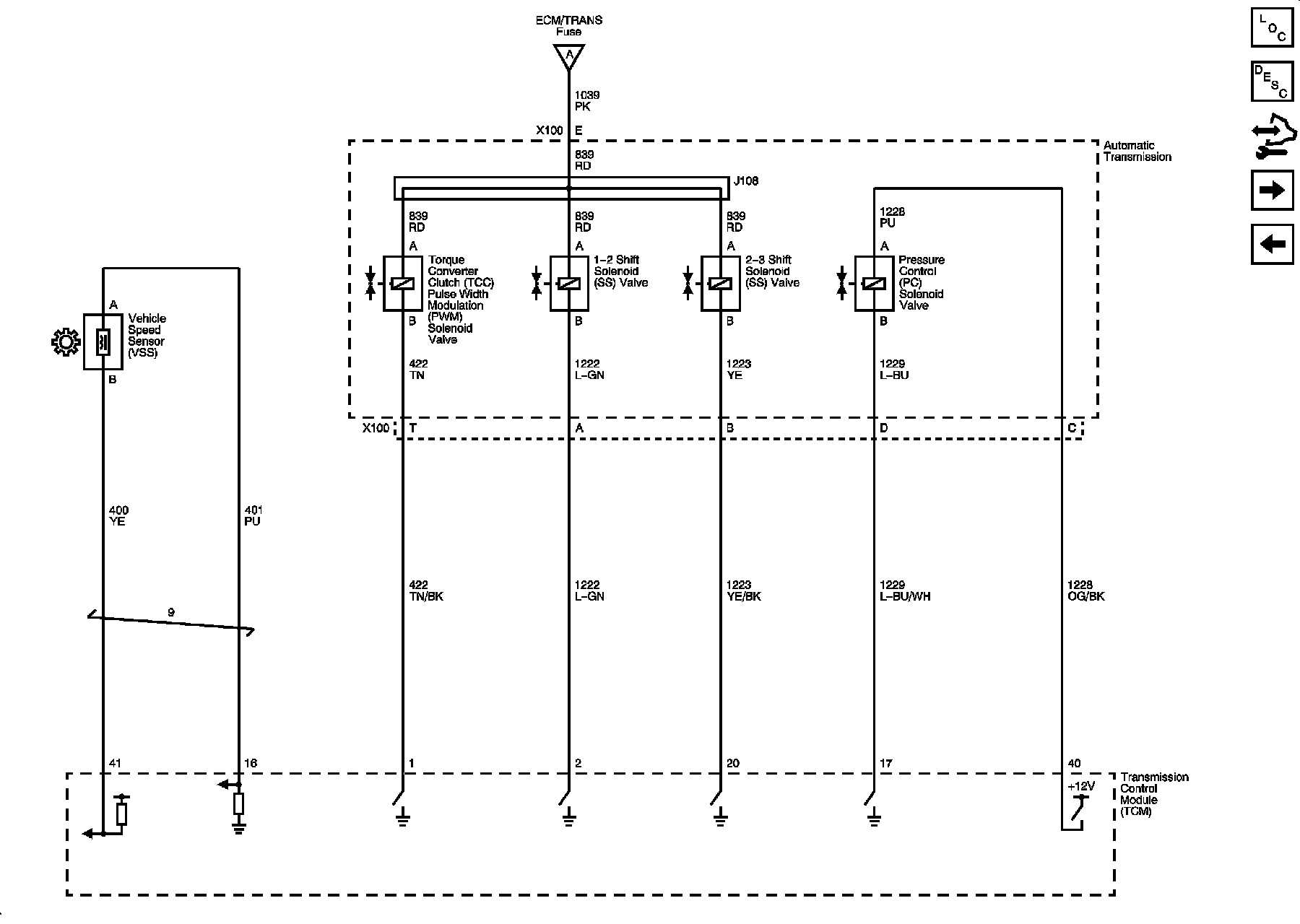

Transmission Solenoid and VSS

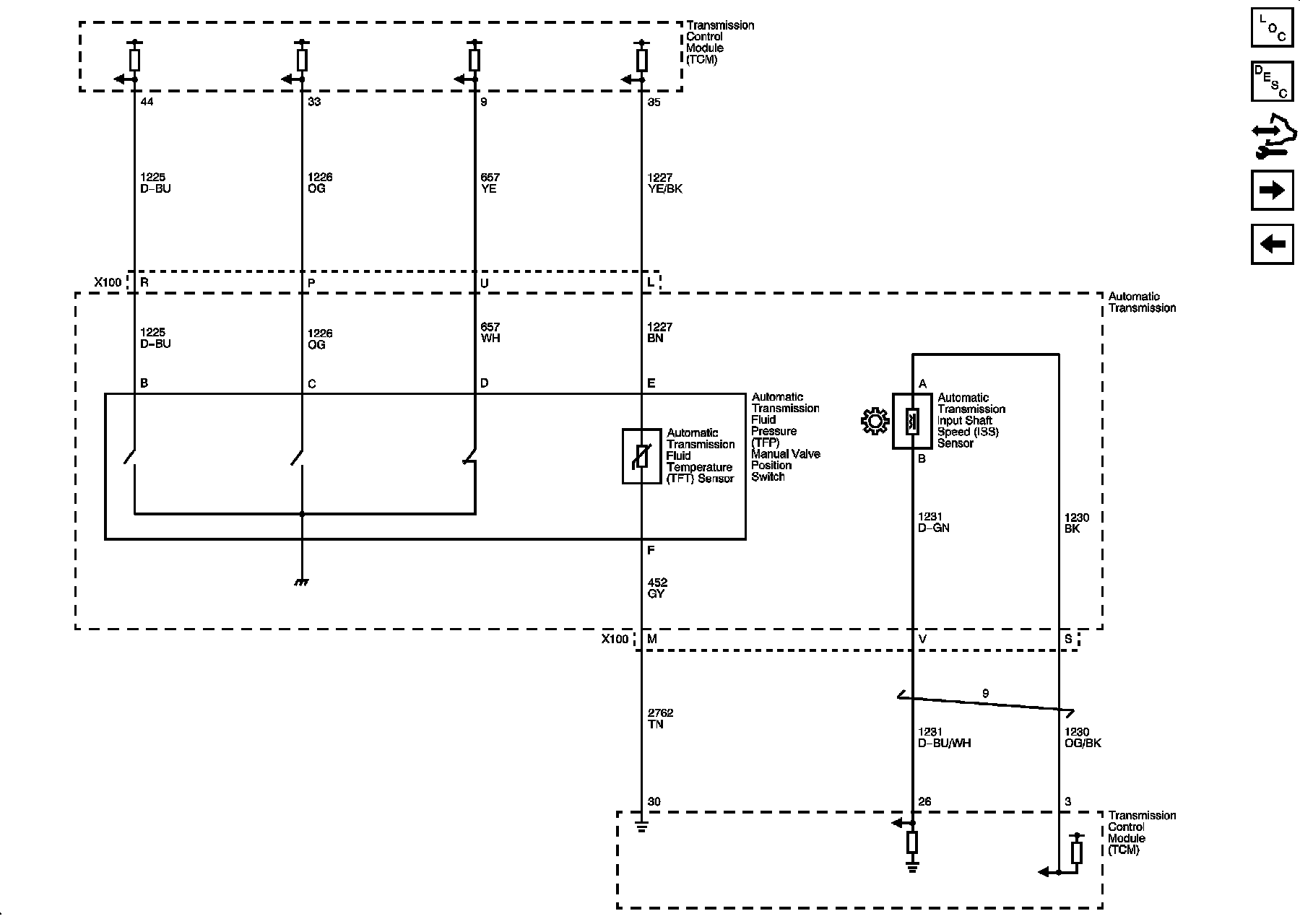

Transmission Switches, TFT, and A/T ISS Sensors
