Sunroof / Moonroof

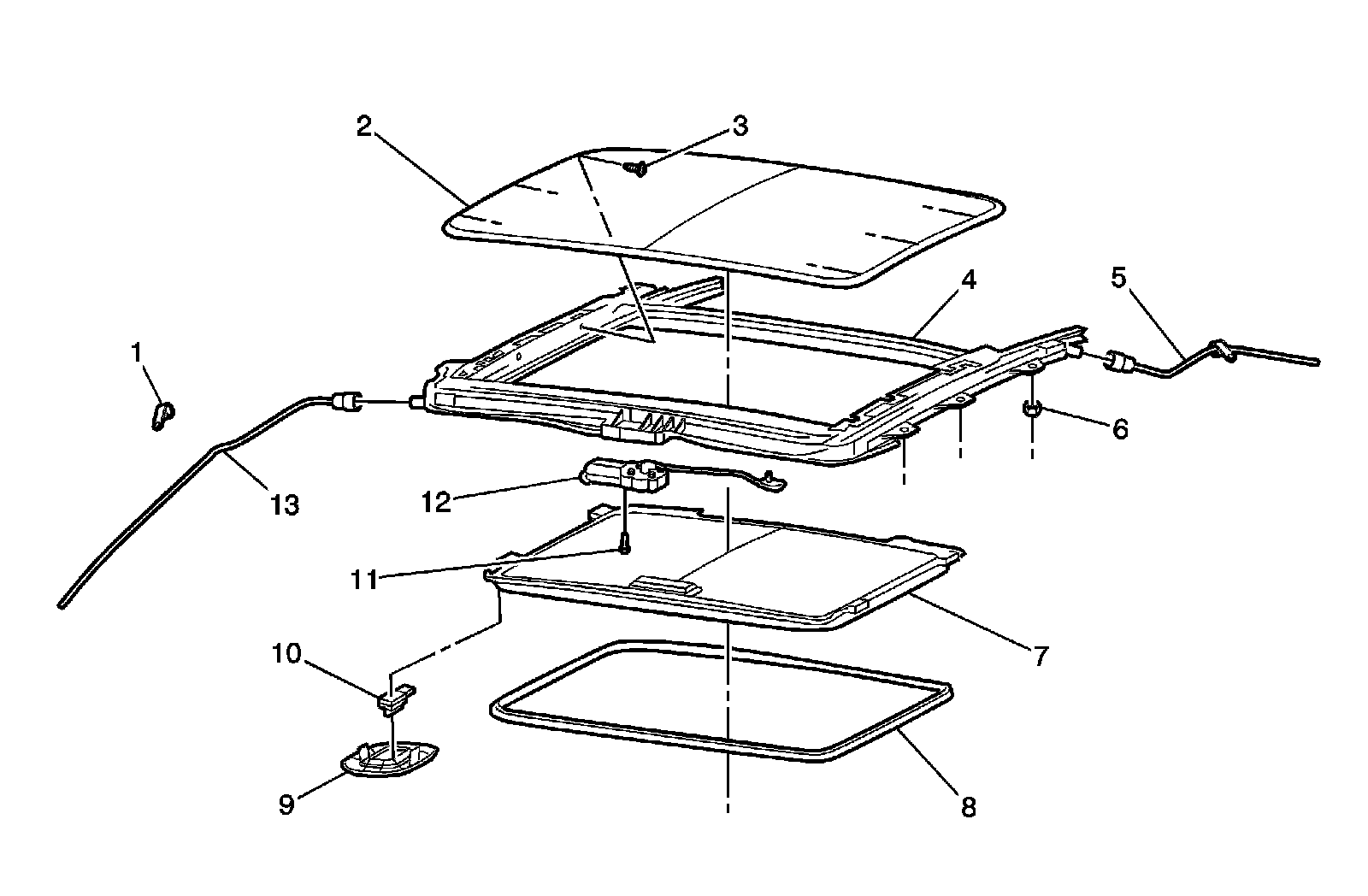

Power Sunroof Disassembled View

Power Sunroof Disassembled View




1 - Sunroof Drain Hose Retainer
2 - Sunroof Window Panel
3 - Sunroof Window Bolt/Screw
4 - Sunroof Module Assembly
5 - Sunroof Rear Drain Hose
6 - Sunroof Module Assembly to Roof Nut
7 - Sunroof Sunshade
8 - Sunroof Opening Bezel/Lace
9 - Sunroof Switch Bezel
10 - Sunroof Switch
11 - Sunroof Motor/Actuator Bolt/Screw
12 - Sunroof Motor/Actuator
13 - Sunroof Front Drain Hose
