Front Camber Adjustment

Front Camber Adjustment

1. Loosen both strut to knuckle nuts just enough to allow for movement.




2. If the strut has not been modified previously, perform the following steps before continuing with the wheel alignment:

1. Disconnect the strut from the knuckle. Refer to Strut Replacement (Strut Replacement).

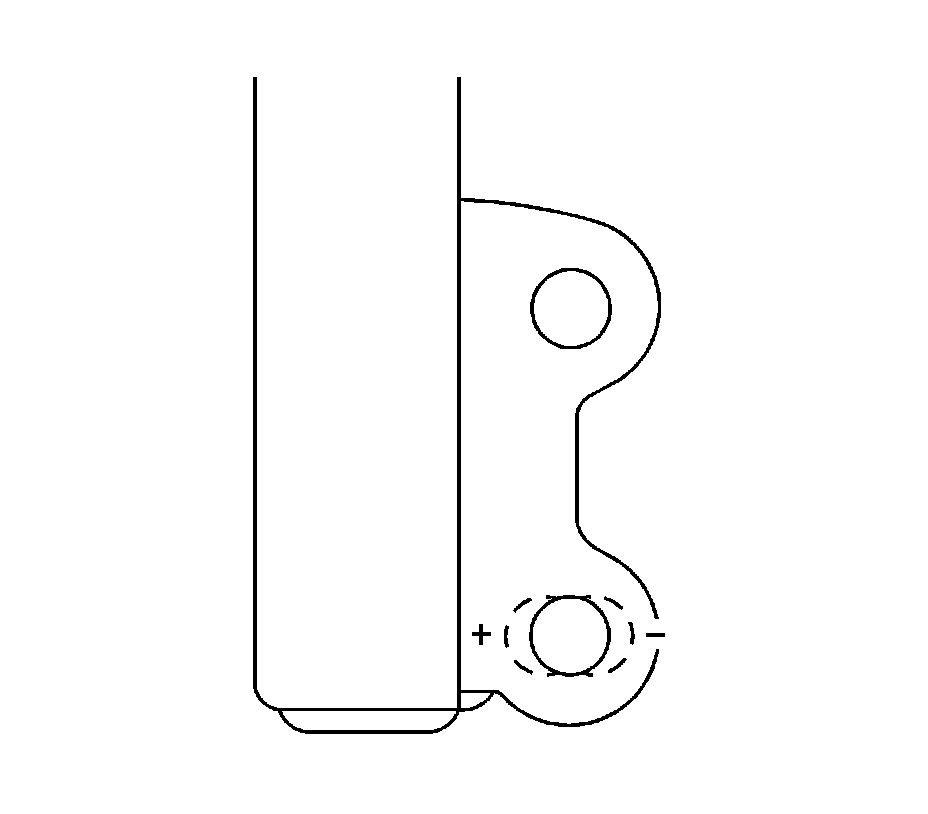

2. File the lower hole until the groove of the stamped ring around the hole.
3. Connect the strut to the knuckle. Refer to Strut Replacement (Strut Replacement).

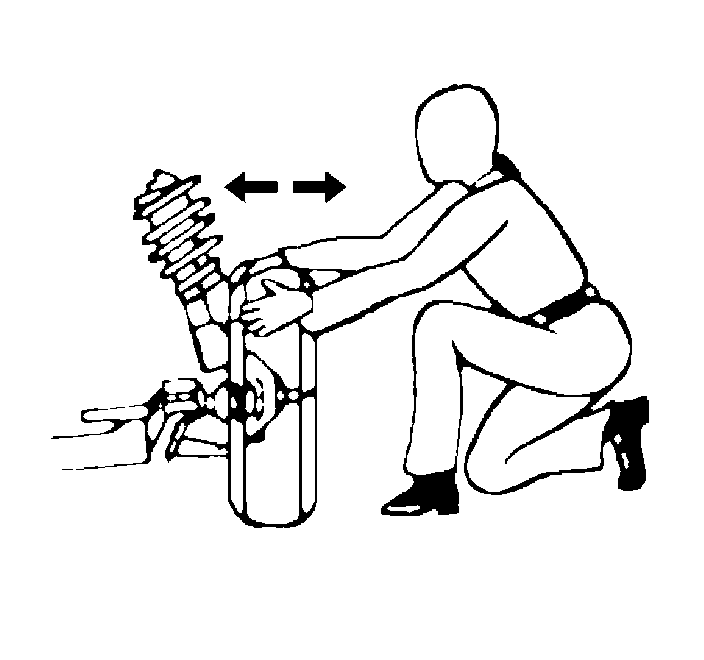

3. Adjust the camber to specification by moving the top of the wheel in or out. Refer to Wheel Alignment Specifications (Specifications).
