Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

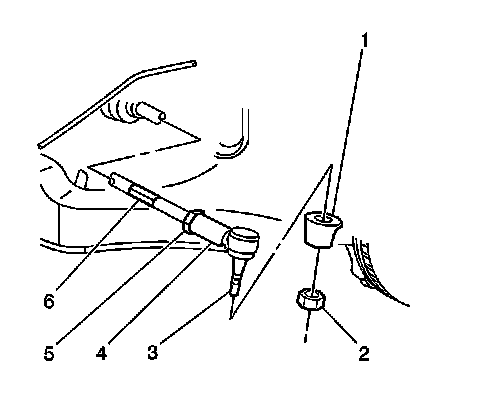

1. Ensure that the steering wheel is set in a straight ahead position.
2. Loosen the tie rod jam nut (5).
3. Adjust the toe to specification by turning the inner tie rod (6). Refer to Wheel Alignment Specifications (Specifications).

Caution: Refer to Fastener Caution (Fastener Caution).

4. Tighten the tie rod jam nut (5).

Tighten the tie rod jam nut (5) to 68 Nm (50 lb ft).
