Air Flow Meter/Sensor: Diagrams

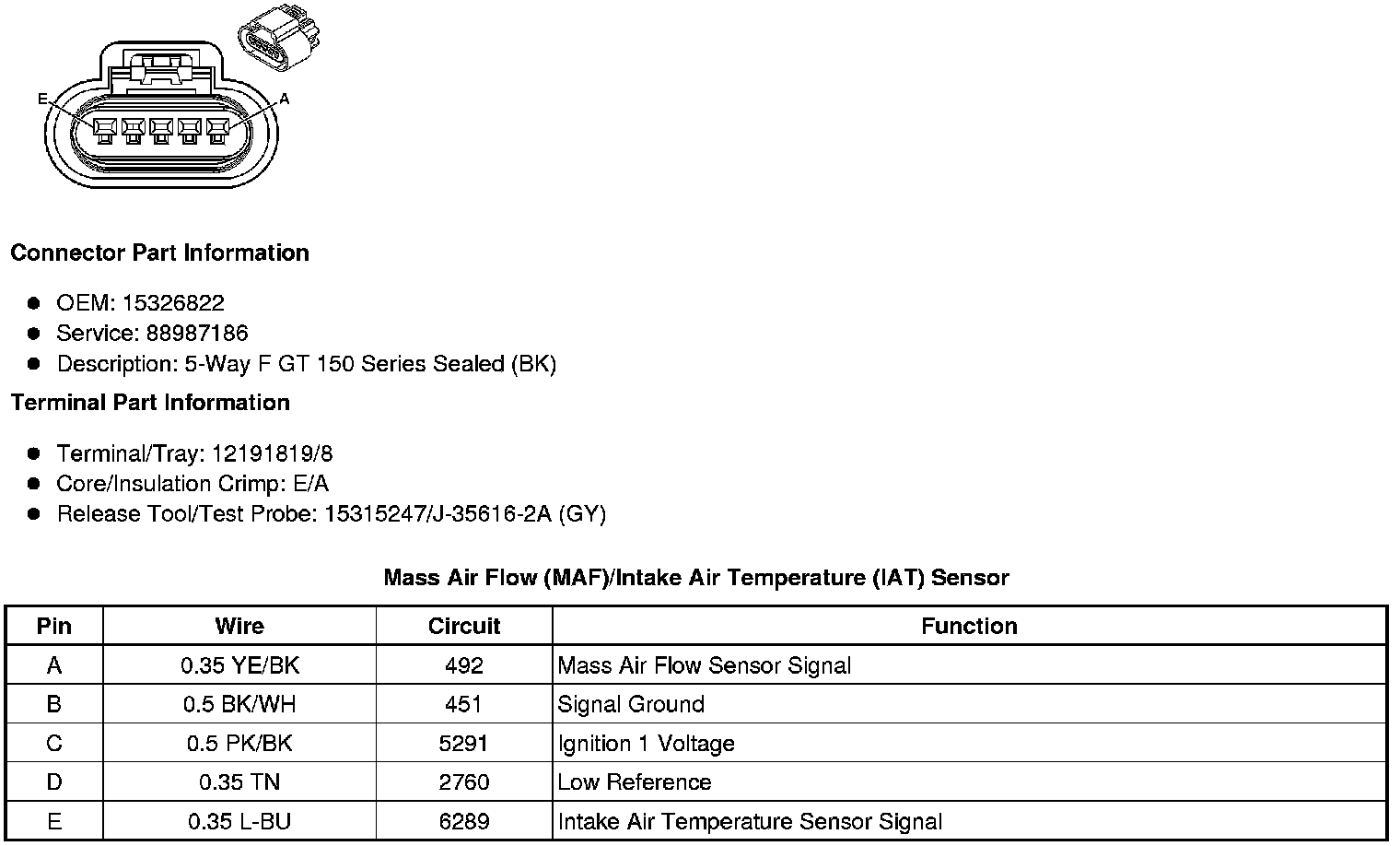

Component Connector End Views
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
