Harness Routing Views

Harness Routing Views

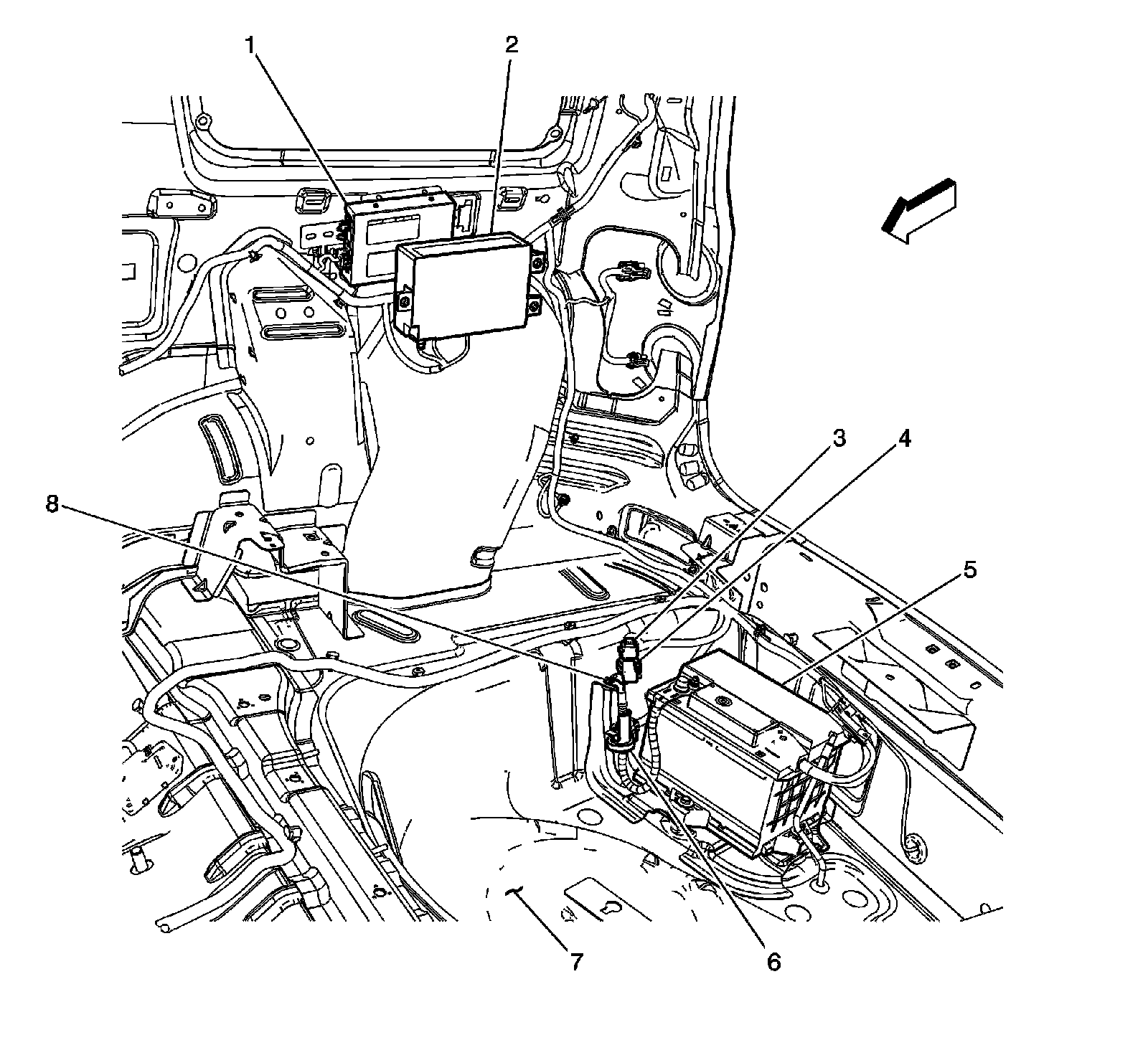

Right Rear of the Passenger Compartment




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM) (UE1)
3 - VCIM fuse Holder - 10AMP (UE1)
4 - BCM Fuse holder - 50AMP
5 - Battery
6 - Battery Current Sensor
7 - Floor Panel
8 - G403
