Door Switch




Component Connector End Views

Door Jamb Switch - Left Front

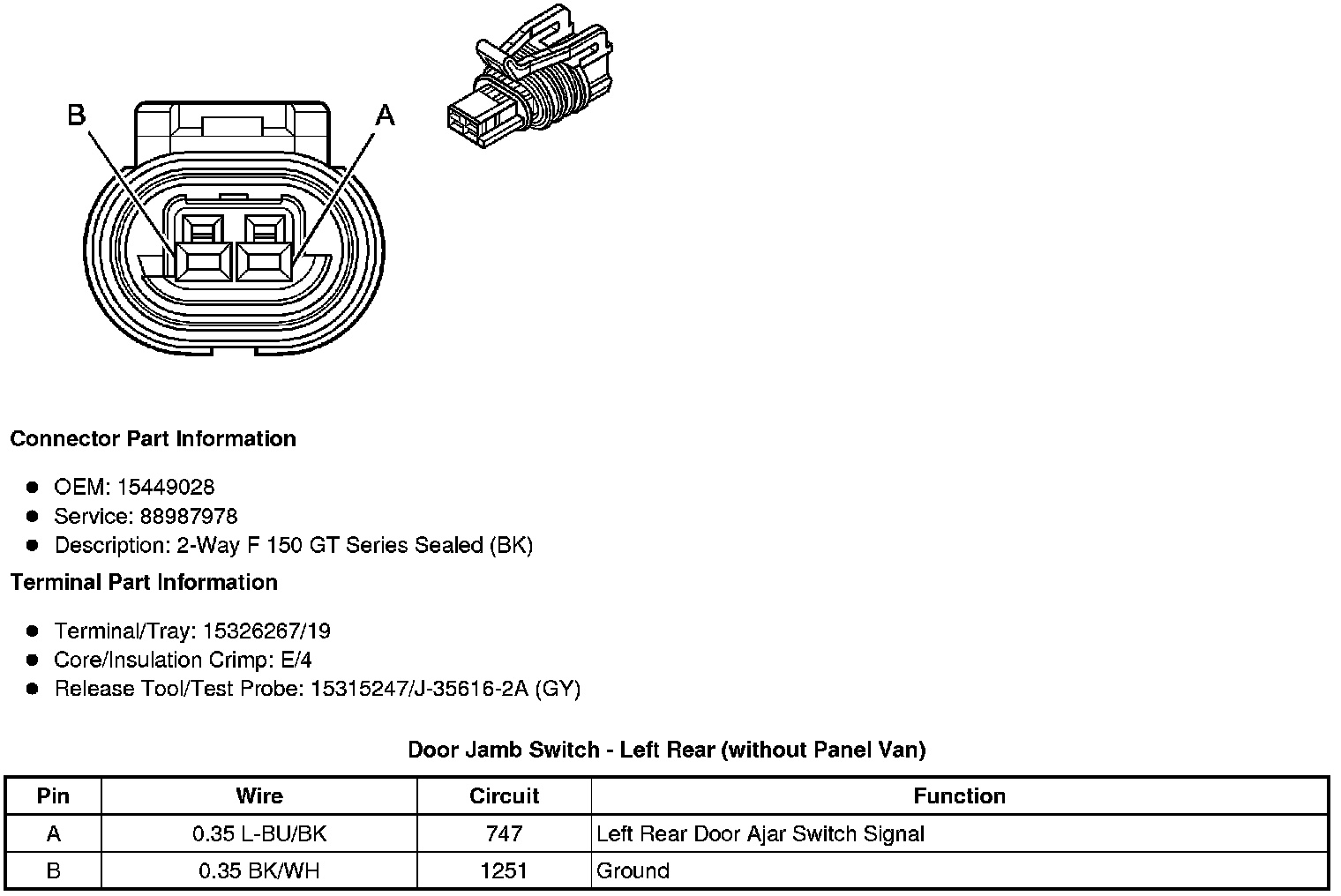

Door Jamb Switch - Left Rear (without Panel Van)

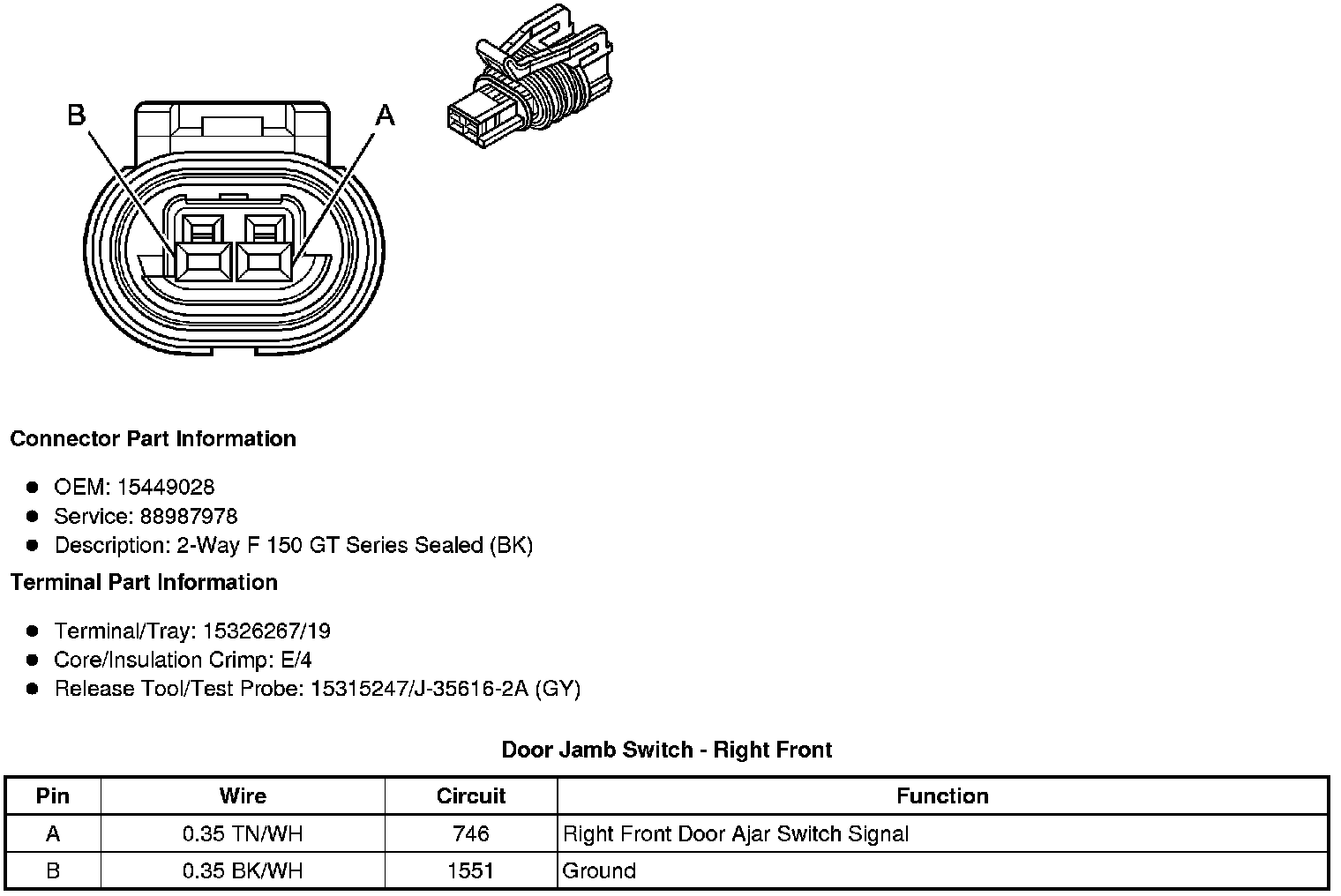

Door Jamb Switch - Right Front

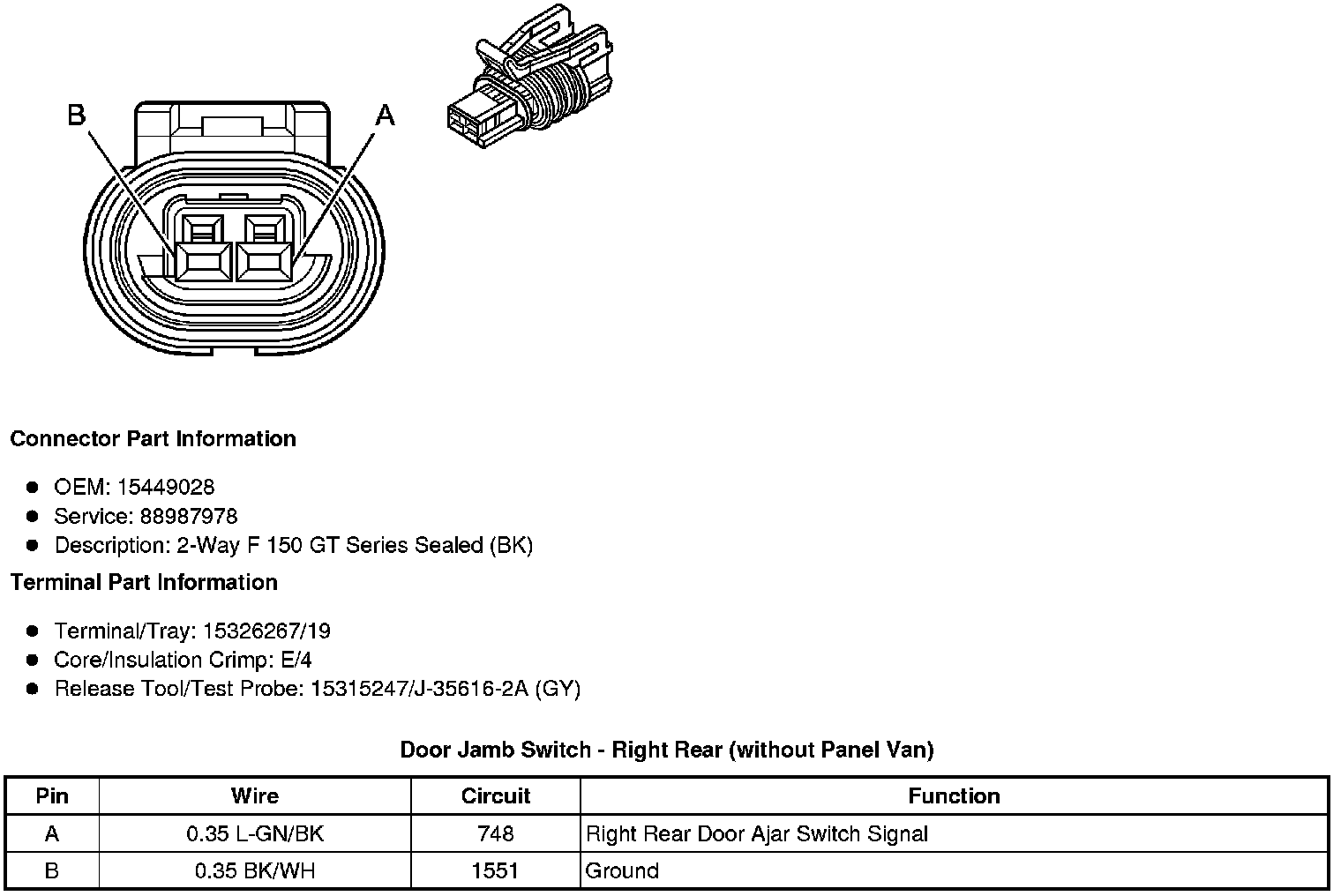

Door Jamb Switch - Right Rear (without Panel Van)
