Master Splice List
Master Electrical Component List

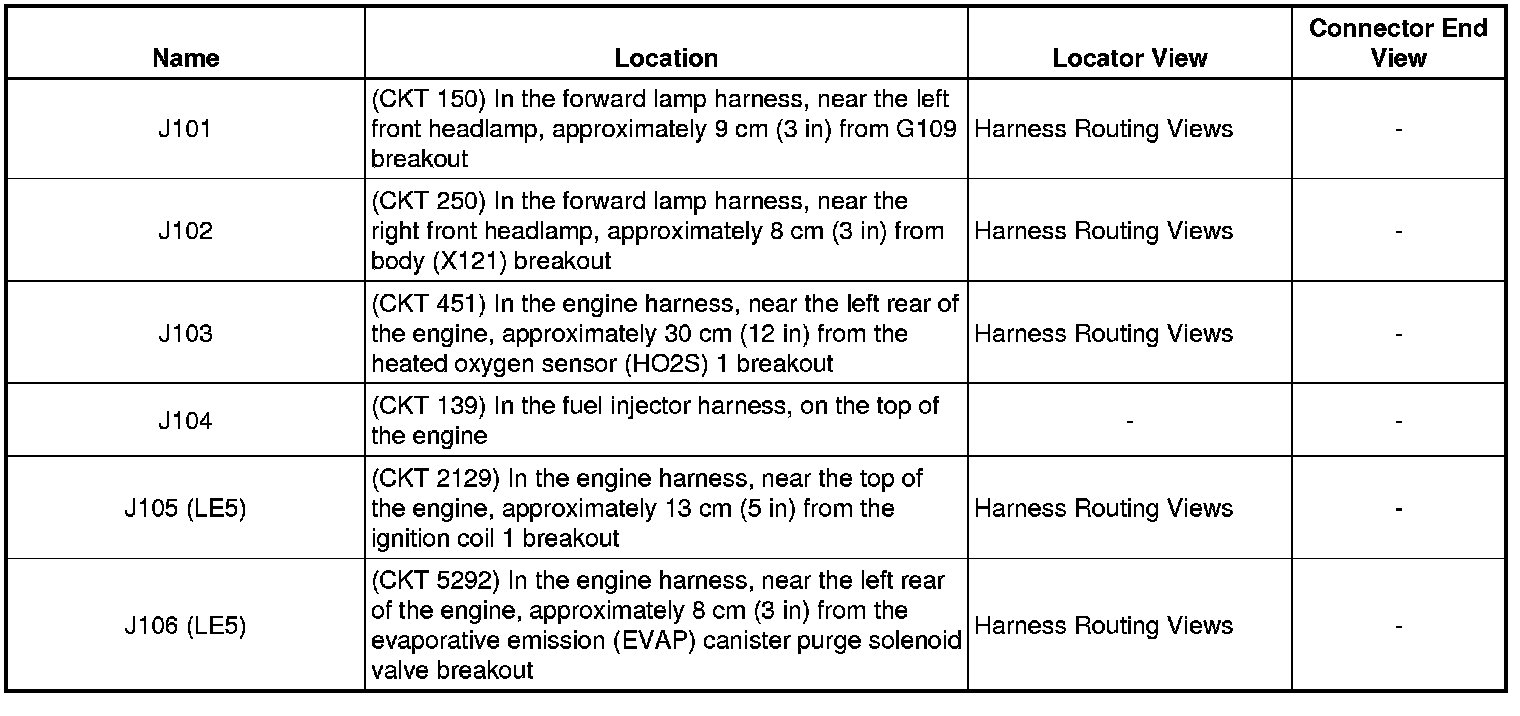

J101 - J106:

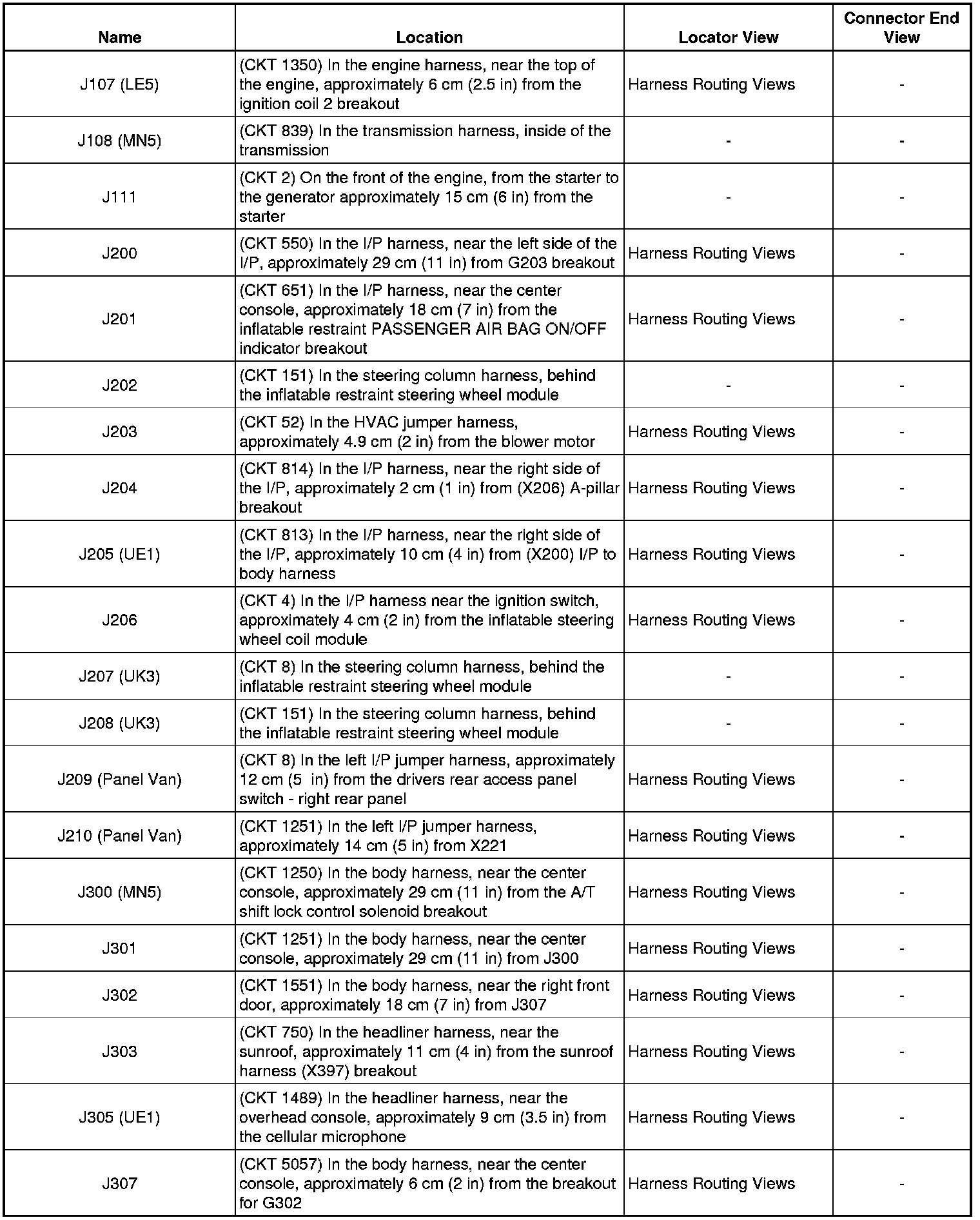

J107 - J307:

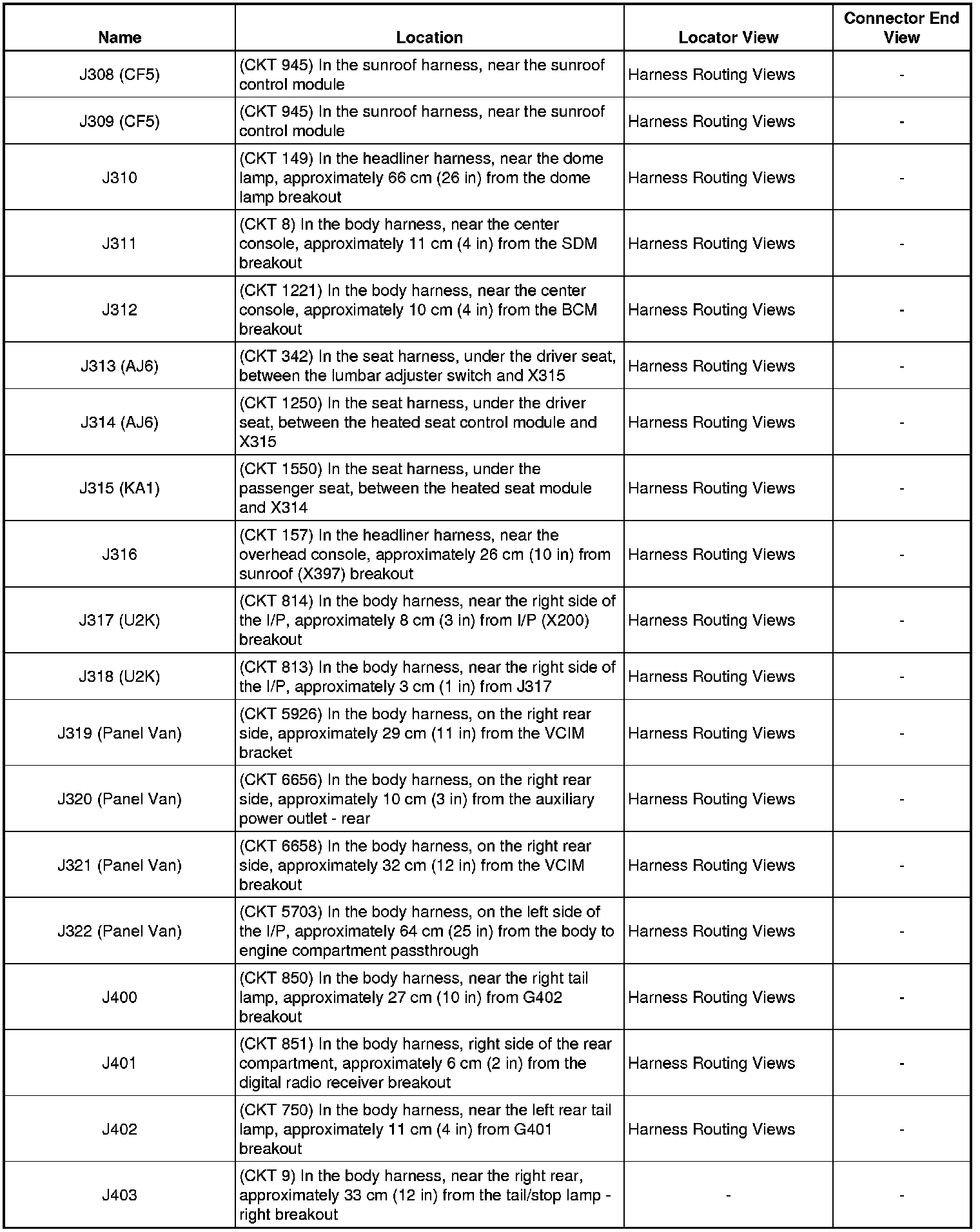

J308 - J403:

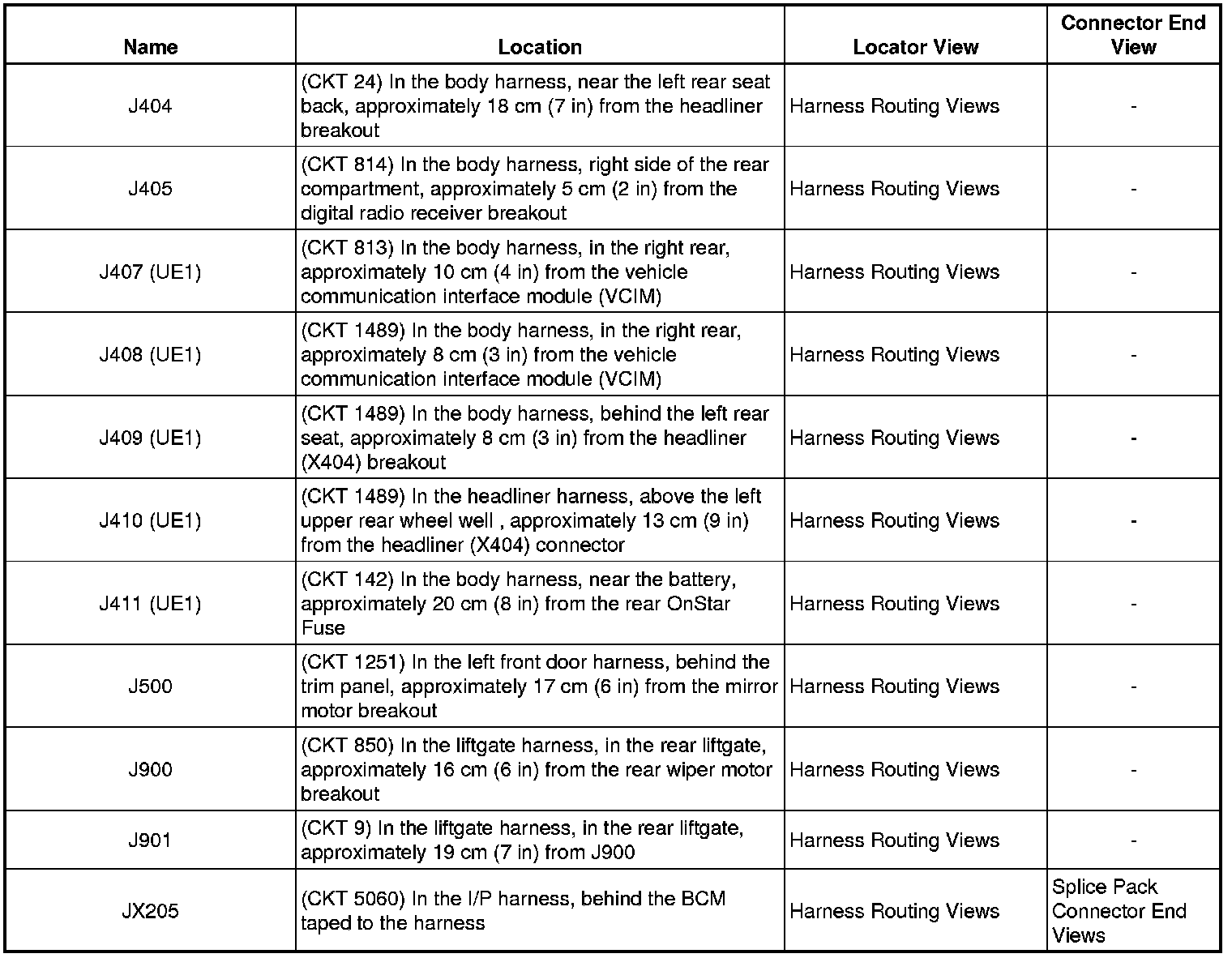

J404 - JX205:
