Body Control System Schematics

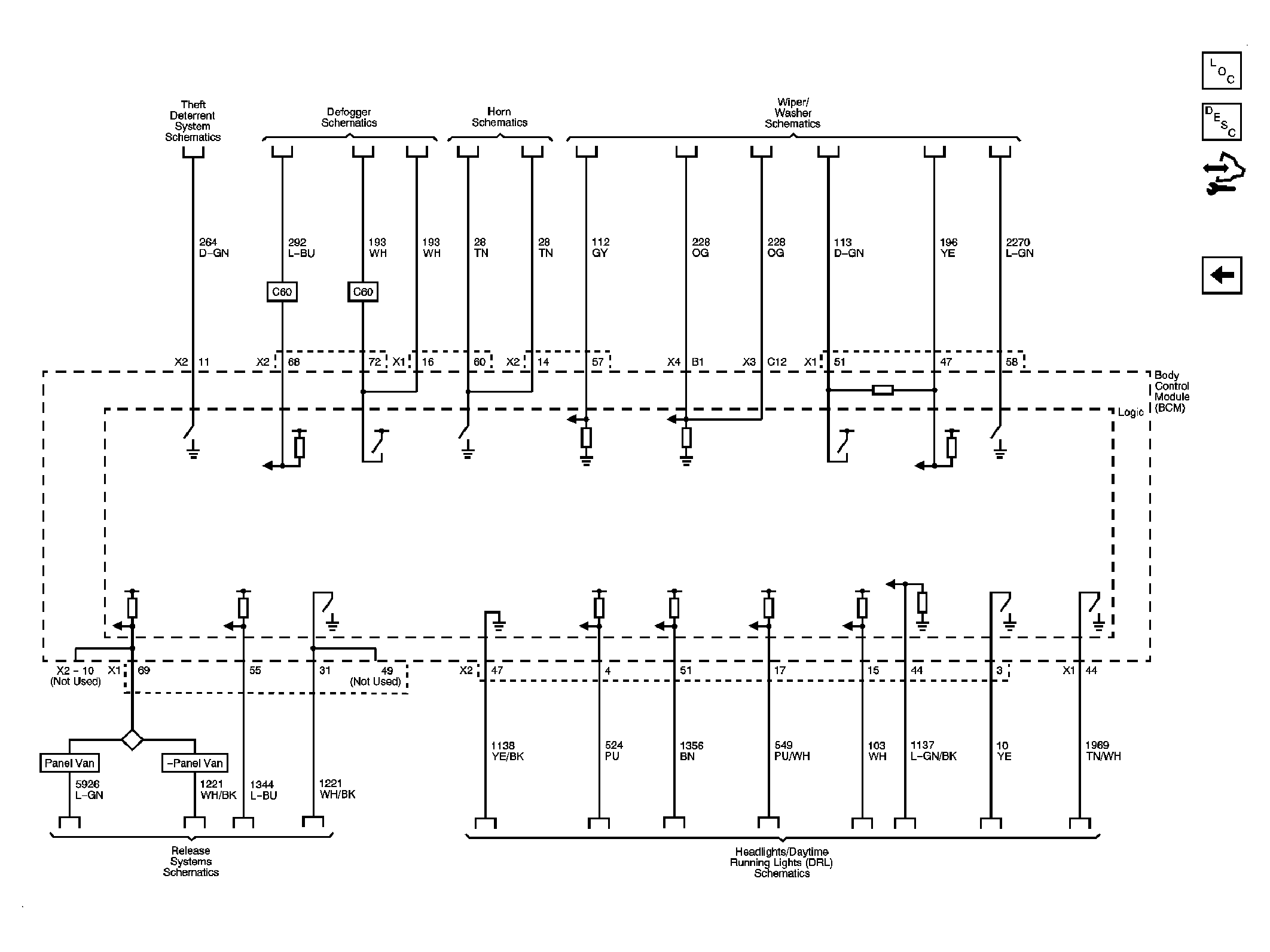

Fig 1: Body Rear End, Defogger, Headlights, DRL, Horns & Wiper/Washer References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

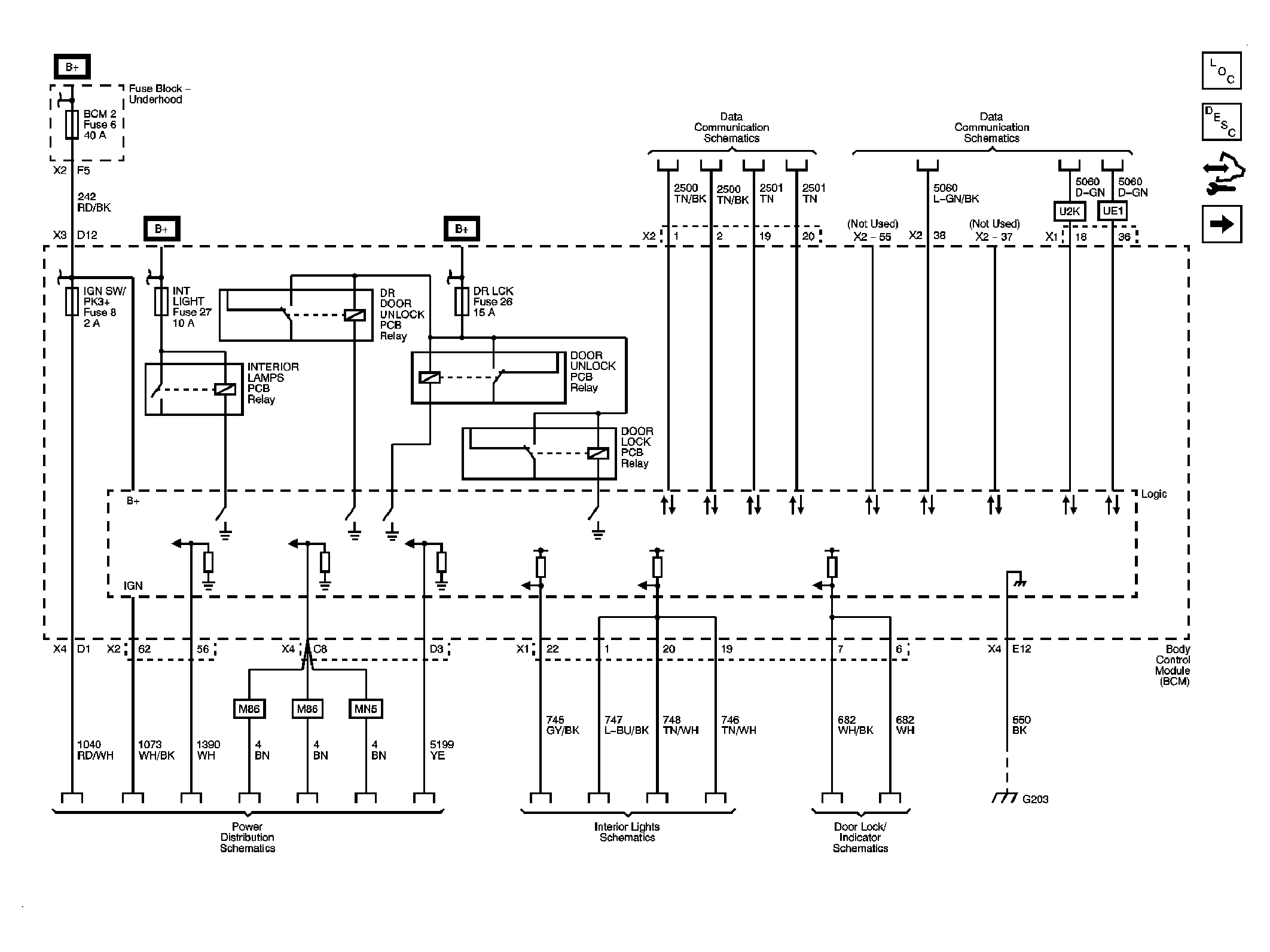

Fig 2: Door Lock Indicators, Power, Ground, Data Link & Engine References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

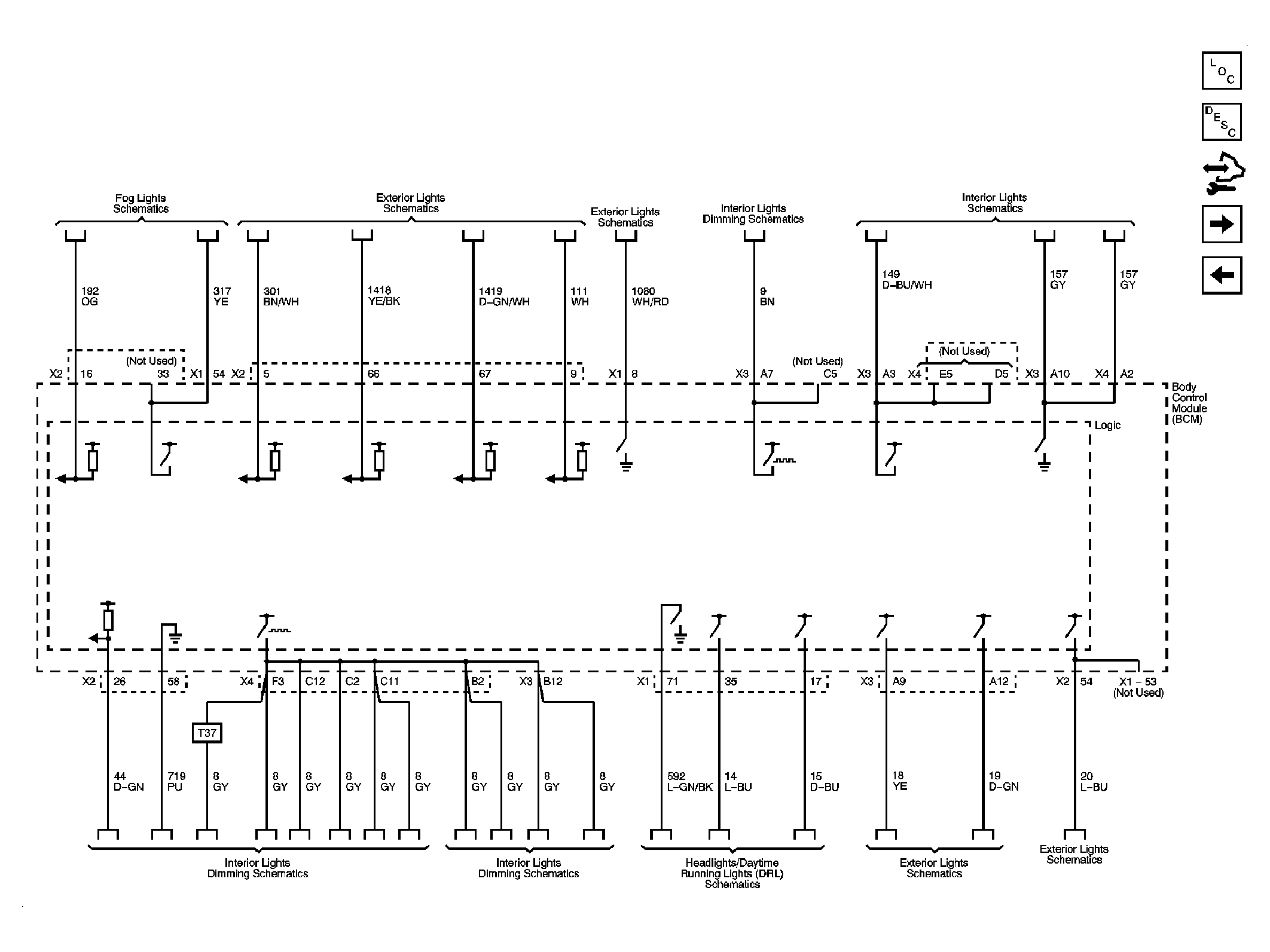

Fig 3: Lighting System References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

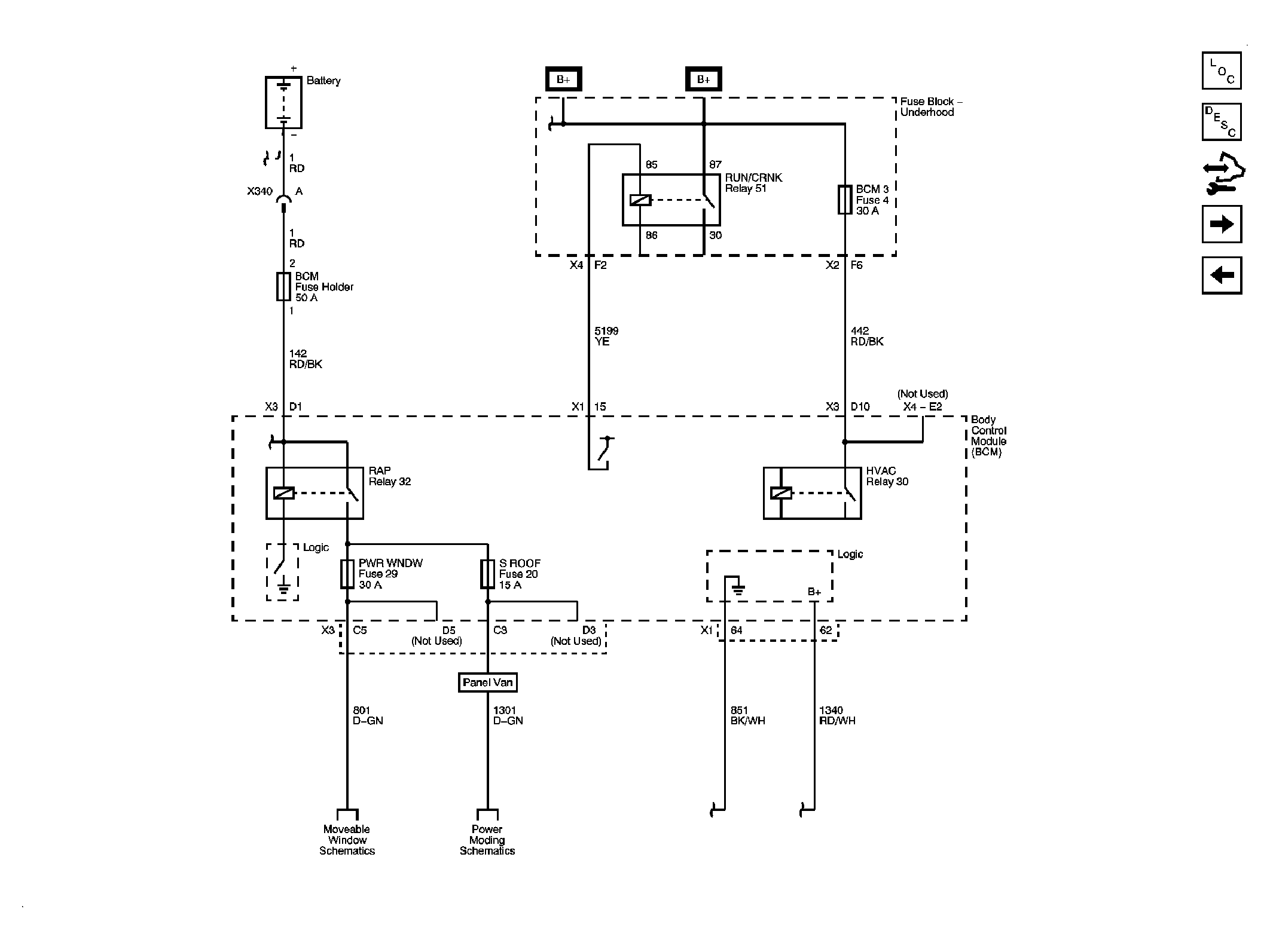

Fig 4: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR Windows, Sunroof Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

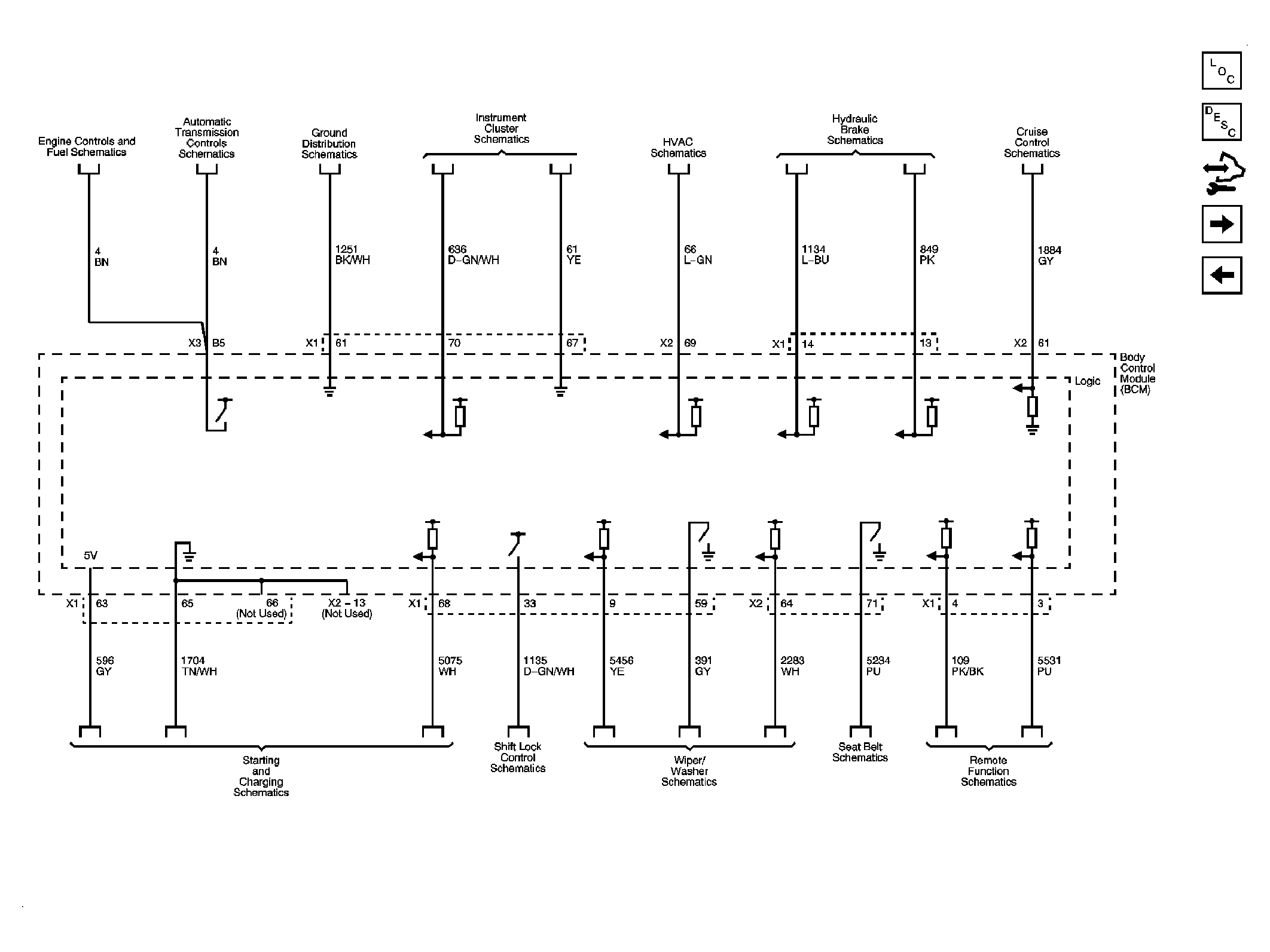

Fig 5: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
