Body Control System Schematics

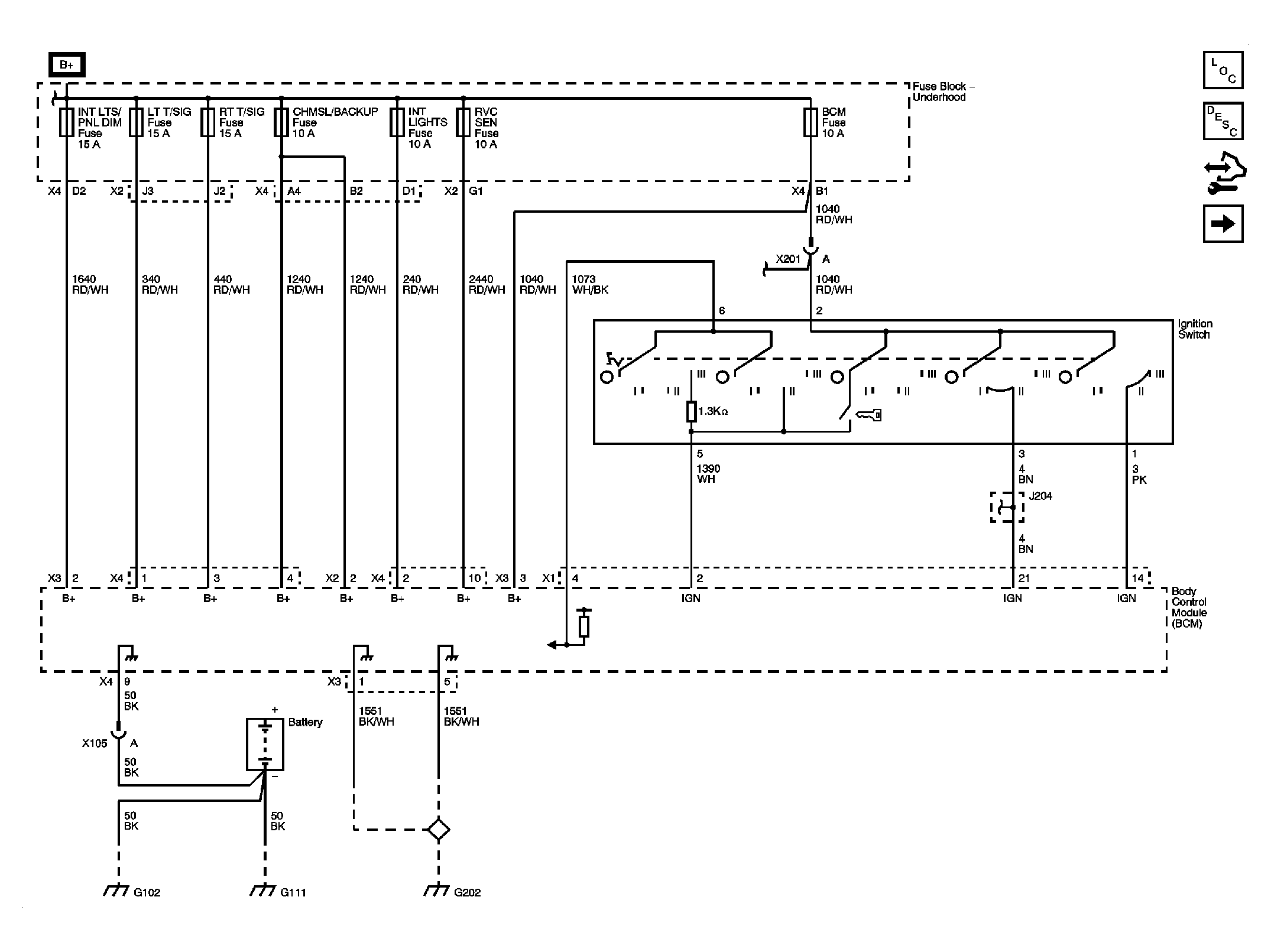

Fig 1: Power and Ground
Courtesy of GENERAL MOTORS CORP.

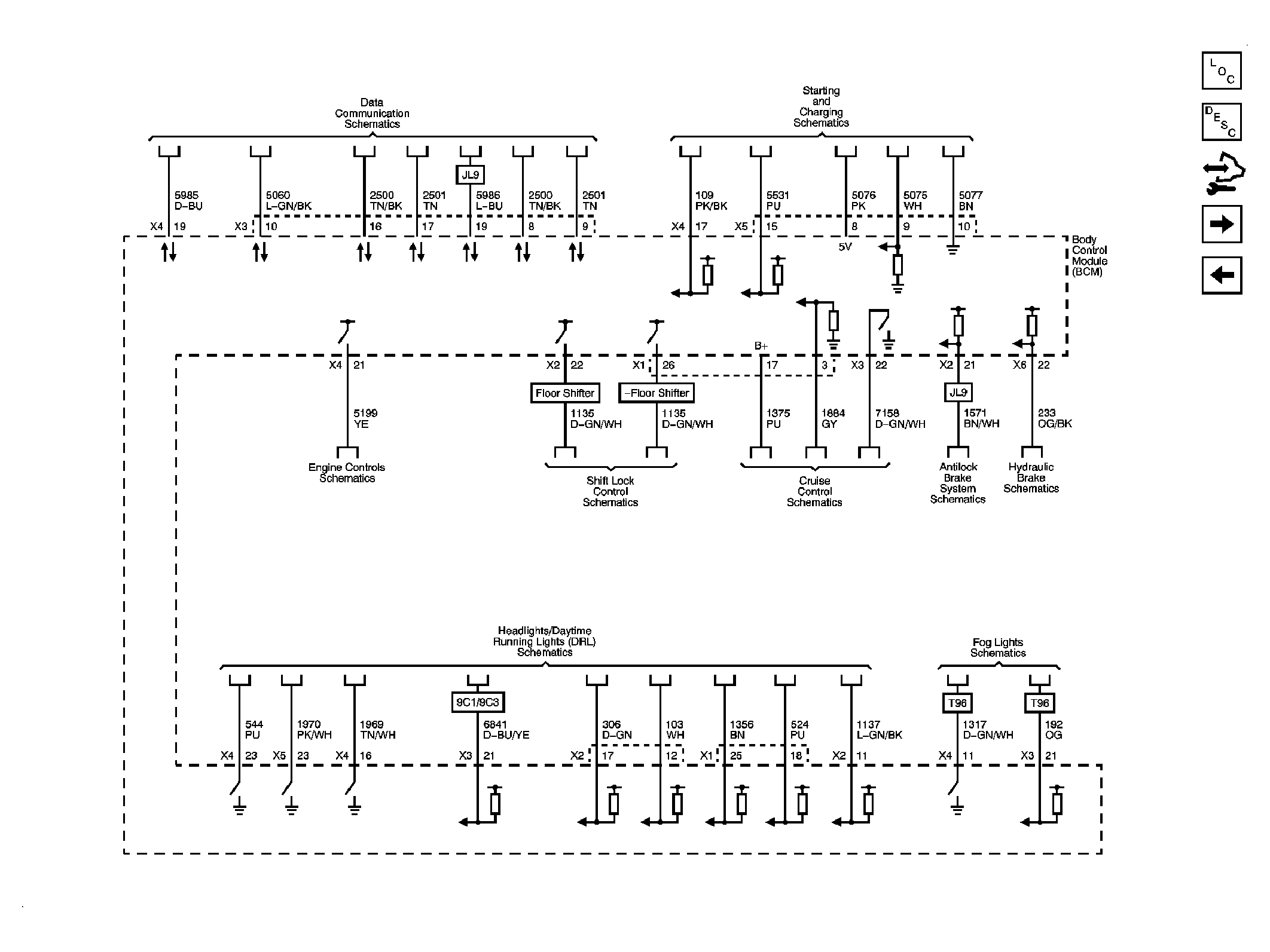

Fig 2: Data Link, Starting and Charging, Engine Controls, Shift Lock Control, Cruise Control, ABS, Brake Warning, Headlights/DRL, and Fog Lights References
Courtesy of GENERAL MOTORS CORP.

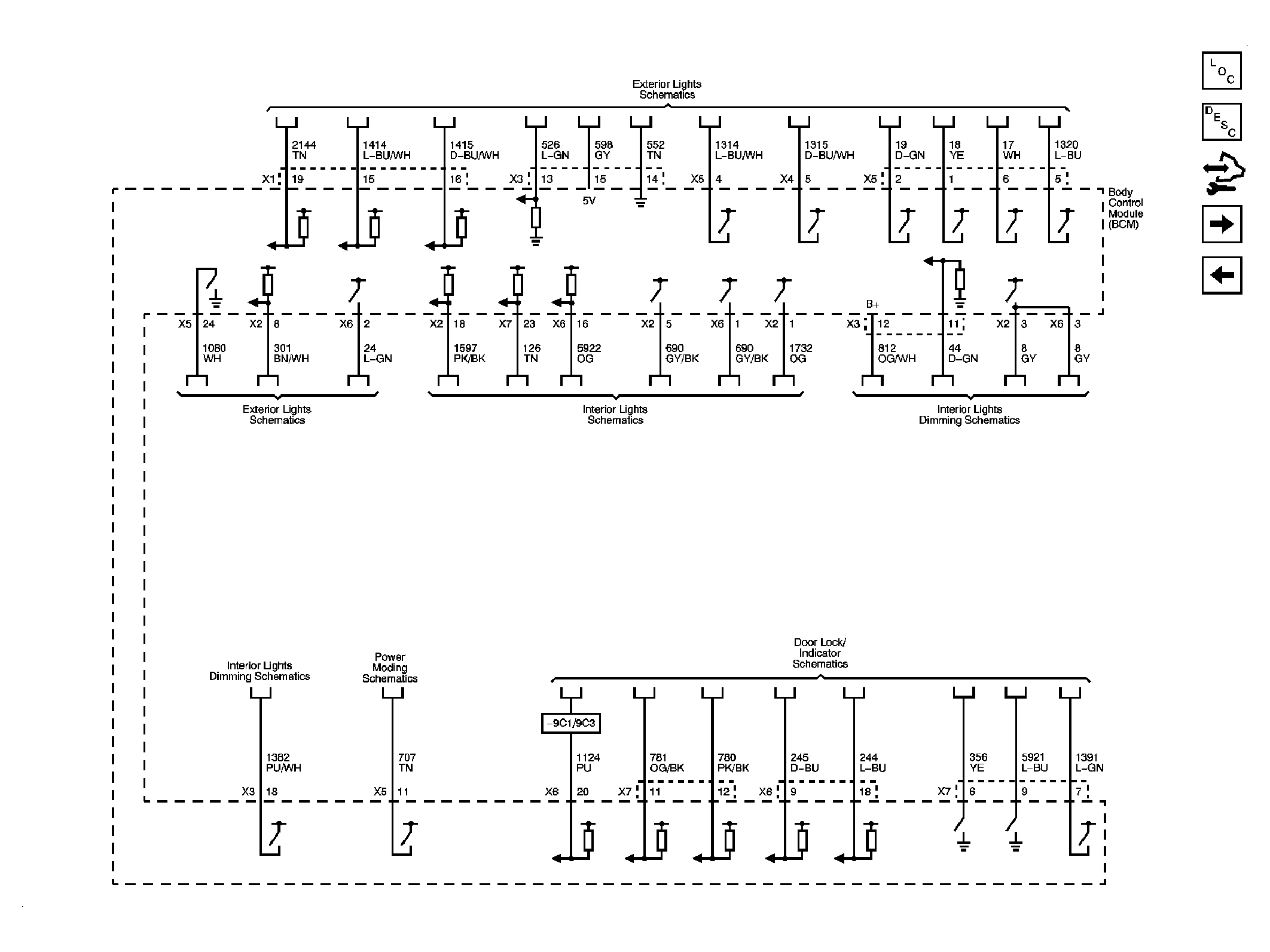

Fig 3: Exterior Lights, Interior Lights, Interior Lights Dimming, Power Moding, and Door Lock/Indicator References
Courtesy of GENERAL MOTORS CORP.

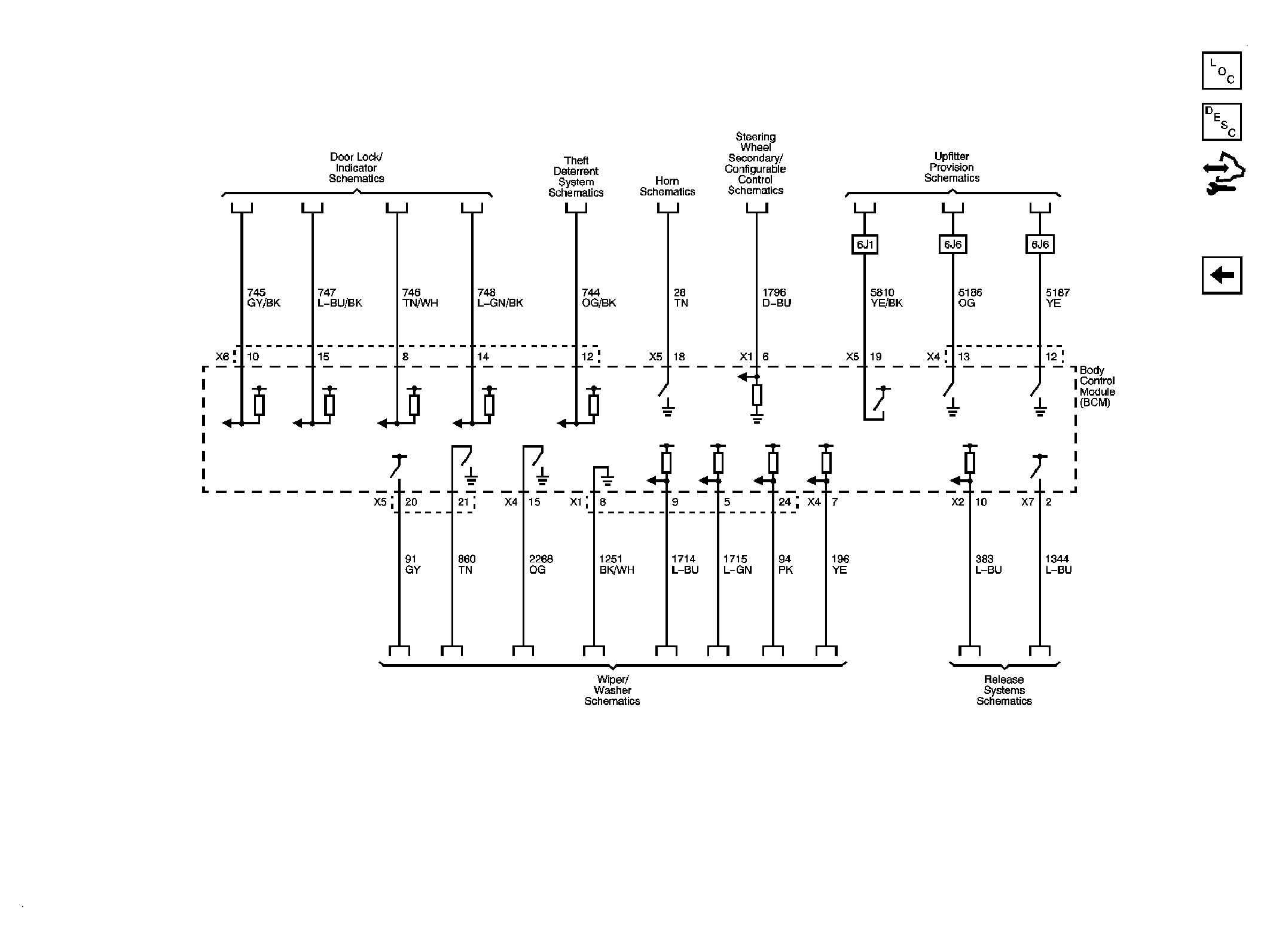

Fig 4: Door Lock/Indicator Continued, Theft Deterrent, Horns, Steering Wheel, Upfitter Provisions, Wiper/Washer, and Release System References
Courtesy of GENERAL MOTORS CORP.
