Steering Wheel Control Switch Assembly Replacement

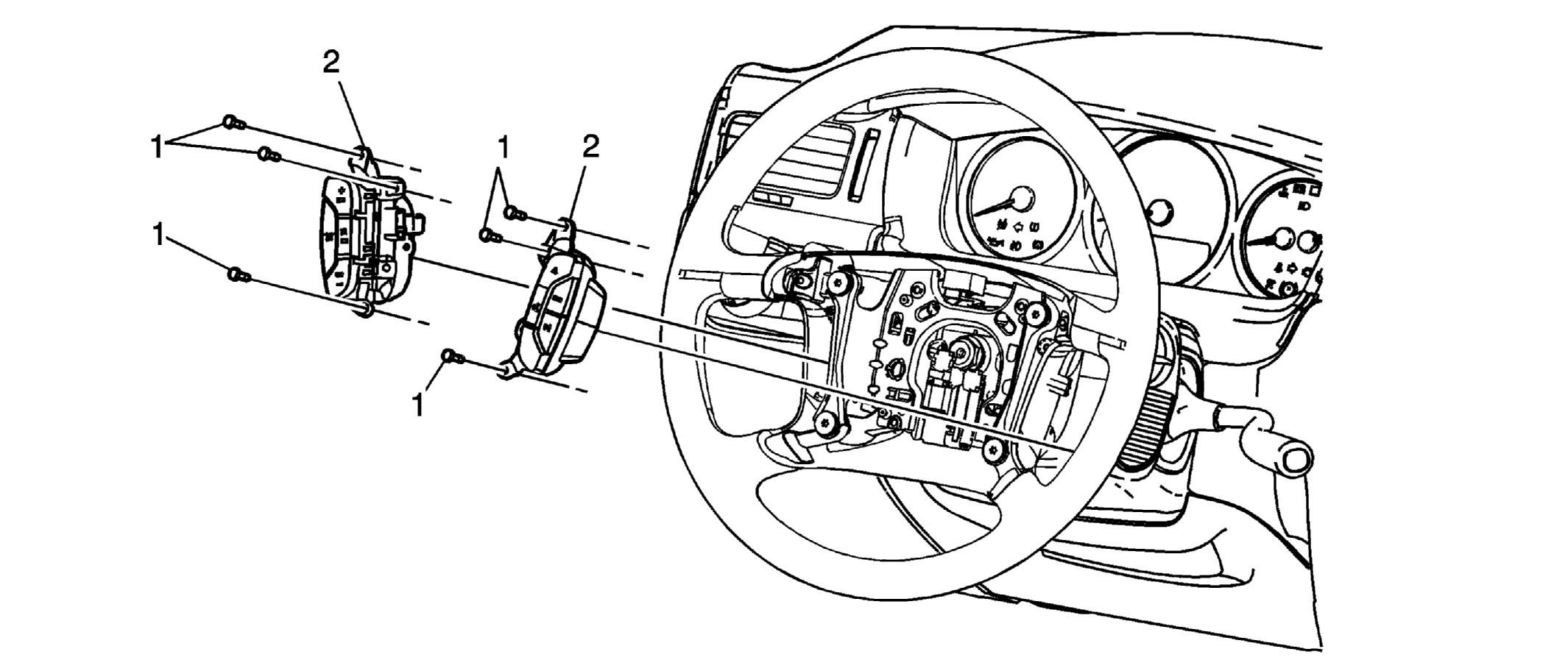

Fig 1: Replacing Steering Wheel Control Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Switch Bolt/Screw CAUTION: Refer to Fastener Caution . Tip:  Disconnect the electrical connector. Tighten:  2 N.m (18 lb in)
2	Radio, HVAC and Cruise Control Assembly Switch Assembly
