Remote Function Schematics

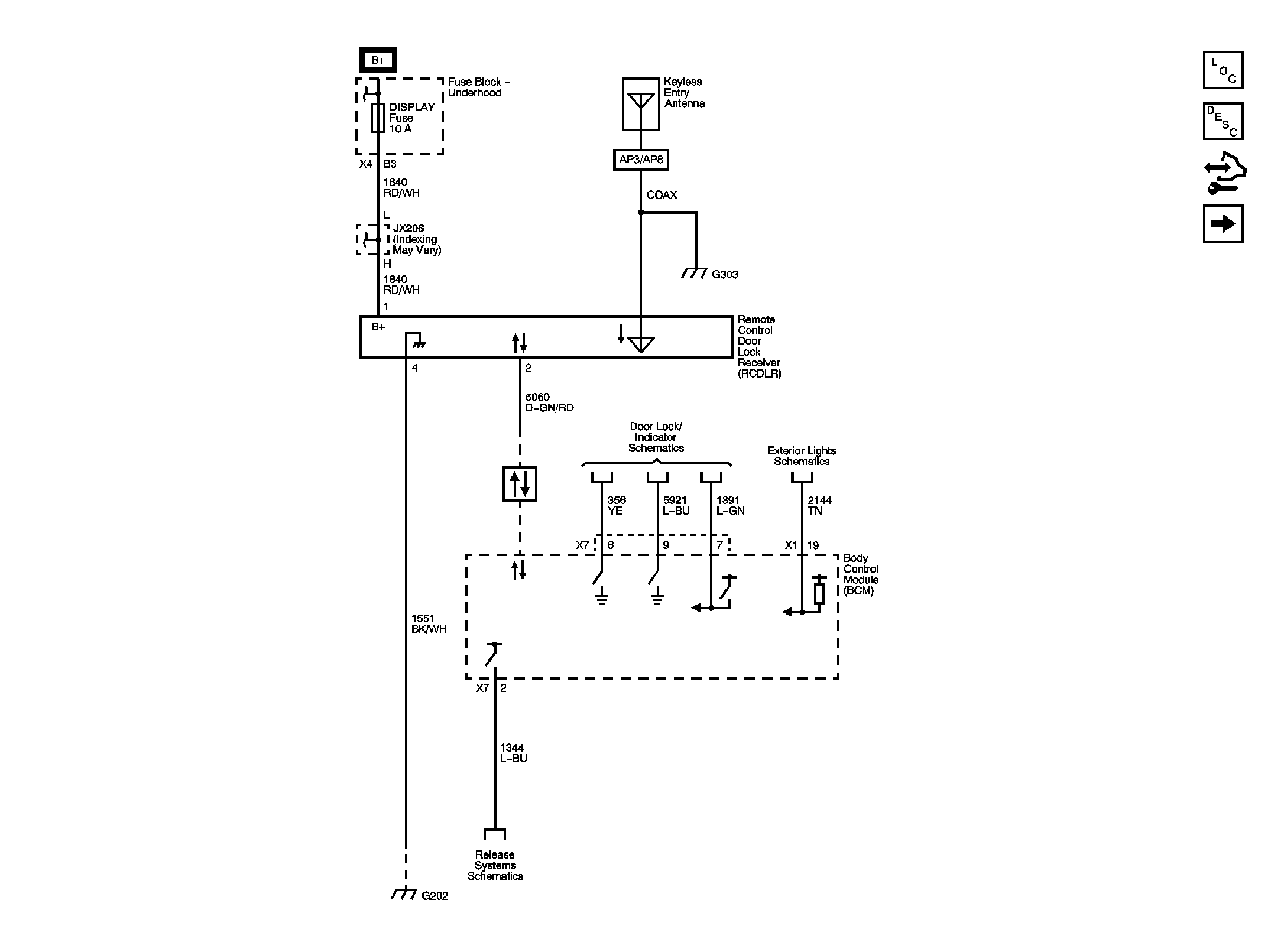

Fig 1: Keyless Entry Schematic
GM2080711Courtesy of GENERAL MOTORS CORP.

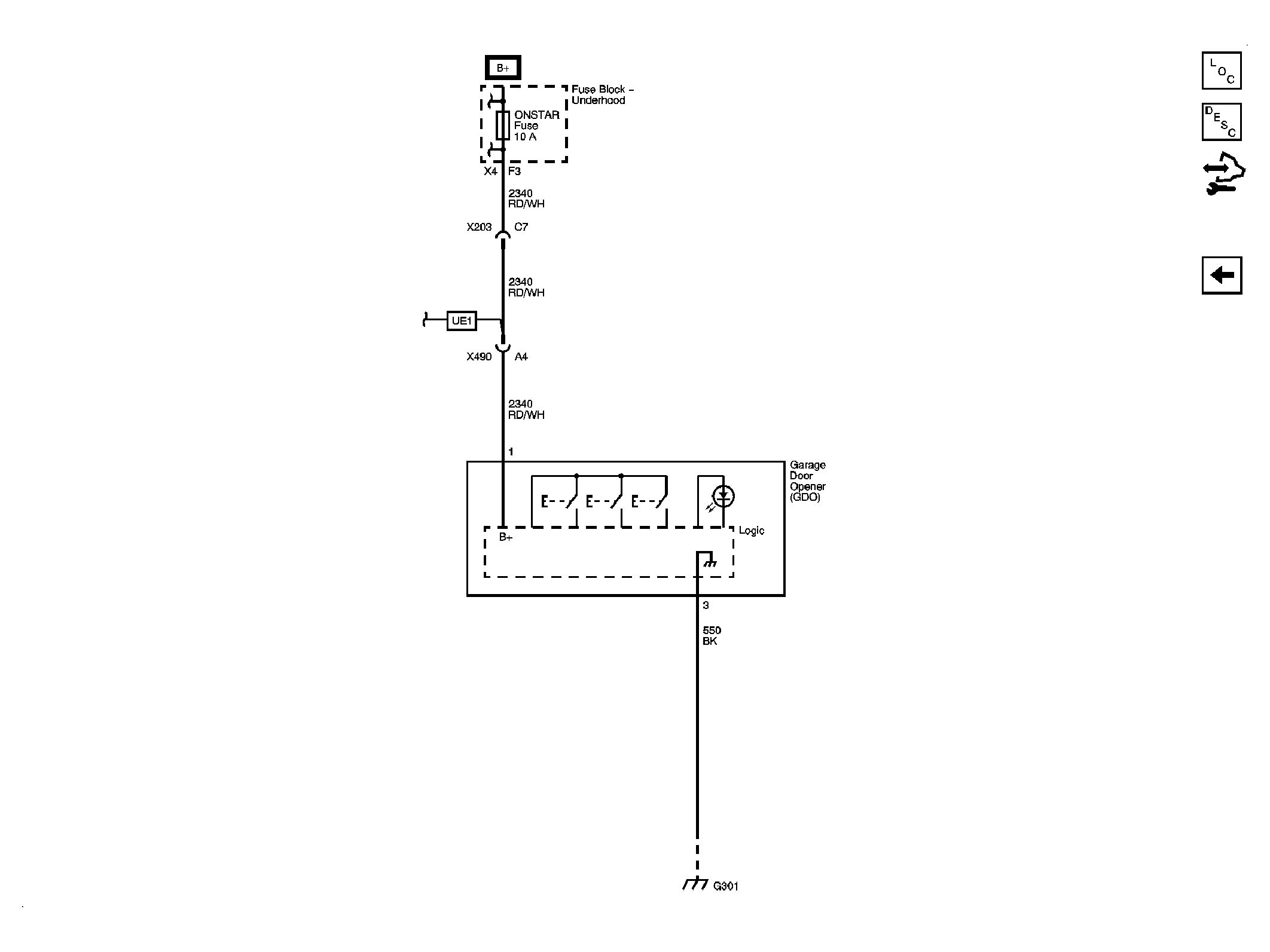

Fig 2: Garage Door Opener Schematic
GM2080712Courtesy of GENERAL MOTORS CORP.
