Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

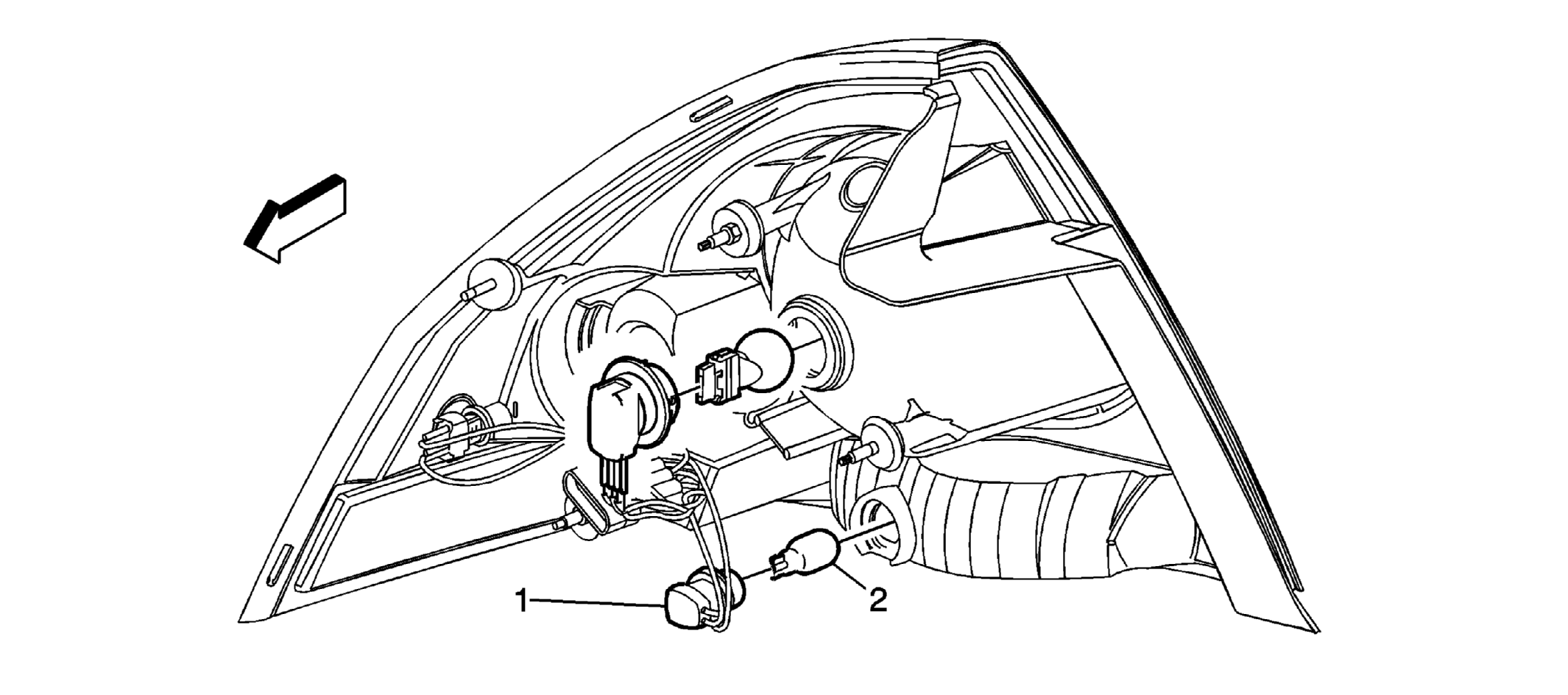

Fig 1: Replacing Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement (Monte Carlo) or Tail Lamp Replacement (Impala) .
1	Socket, Reverse Lamp Bulb Tip: Twist the socket counterclockwise a quarter turn to remove.
2	Bulb, Reverse Lamp Tip: Pull outward on the bulb in order to replace.
