Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

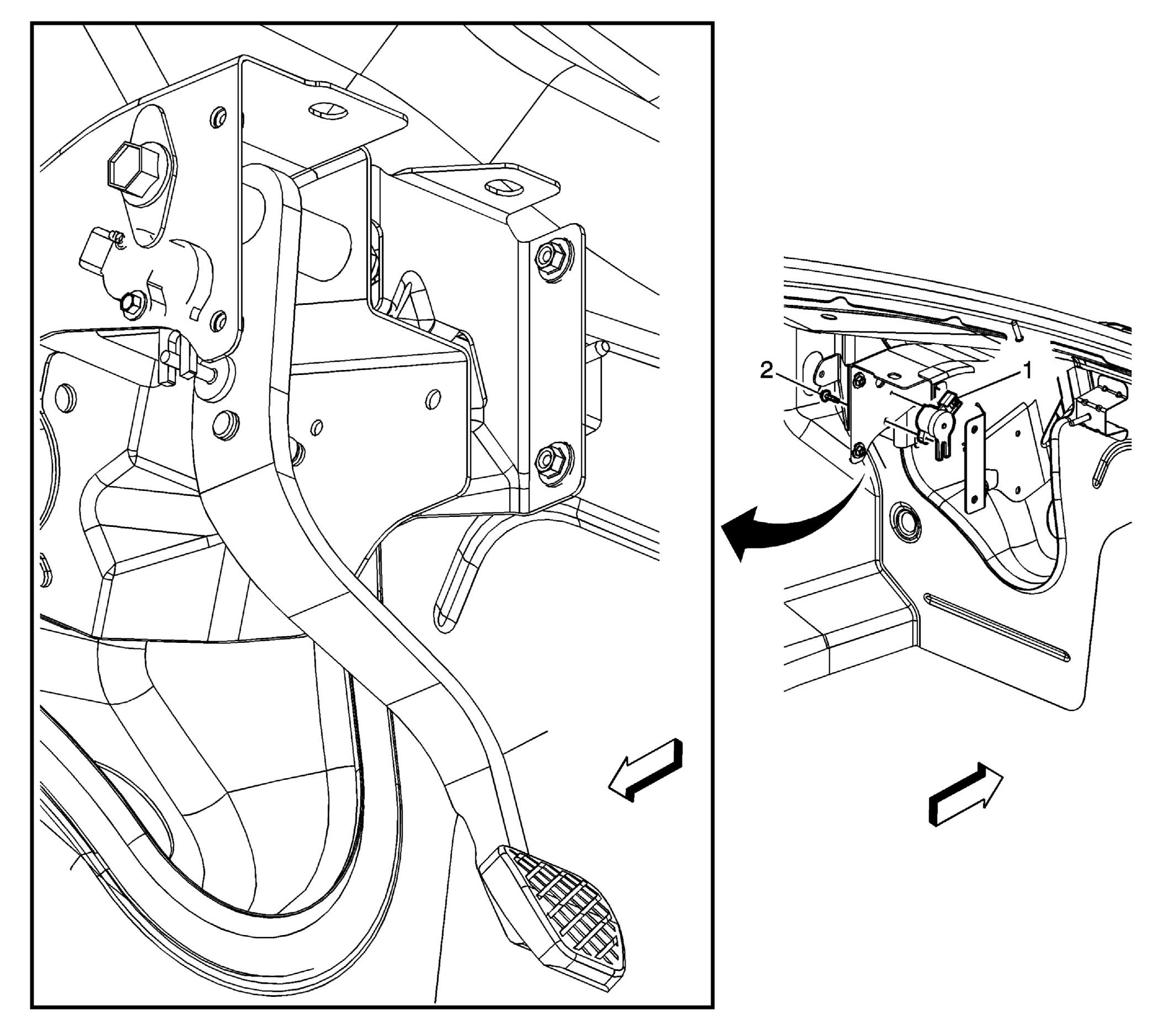

Fig 1: Replacing Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Sensor Assembly, Brake Pedal Position Tip: Disconnect the electrical connector.
2	Bolt, Brake Pedal Position Sensor Tip: Calibrate the position sensor. Refer to Brake Pedal Position Sensor Calibration . Do not reuse the position sensor bolt. Always use a new bolt when installing a brake pedal position sensor. Tighten: 2 N.m (18 lb in)

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Sensor Assembly, Brake Pedal Position
Tip: Disconnect the electrical connector.

Bolt, Brake Pedal Position Sensor
Tip:

Calibrate the position sensor. Refer to Brake Pedal Position Sensor Calibration .
Do not reuse the position sensor bolt. Always use a new bolt when installing a brake pedal position sensor.

Tighten: 2 N.m (18 lb in)
