Installation Procedure

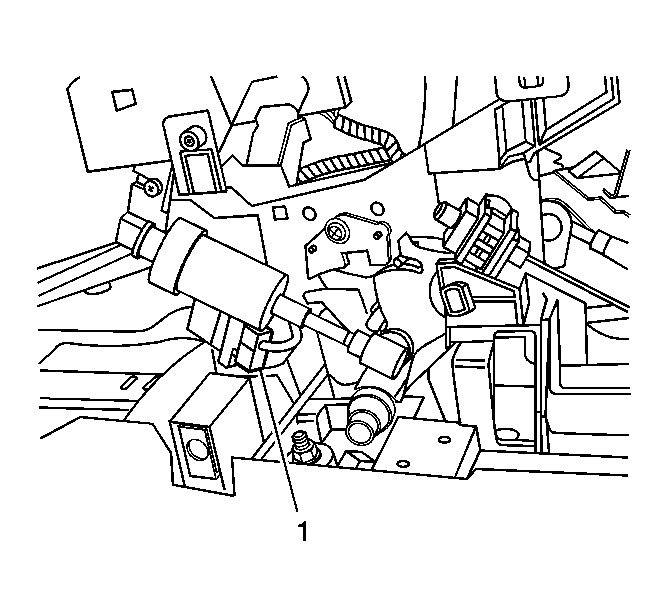

    Fig 1: Automatic Transaxle Shift Lock Actuator Electrical Connector
    GM1218843Courtesy of GENERAL MOTORS CORP.
  1. Install both ends of the automatic transaxle shift lock actuator to the pivot points.
  2. Connect the automatic transaxle shift lock actuator electrical connector (1).
  3. Install the center console. Refer to Front Floor Console Replacement .
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (RPO LS4) or Battery Negative Cable Disconnection and Connection (RPOs LZE/LZ4/LZ8) .
