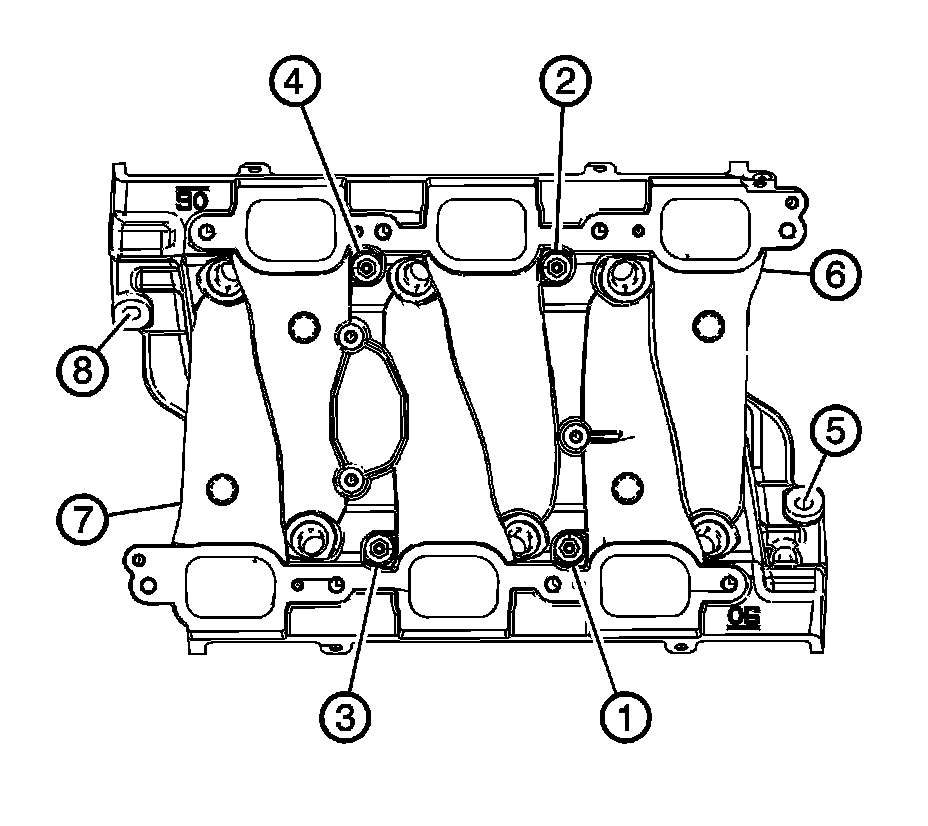

Intake Manifold

Lower Intake Manifold Bolt - Center
First Pass 7 N.m (62 lb in)
Final Pass 13 N.m (115 lb in)

Lower Intake Manifold Bolt - Corner
First Pass 7 N.m (62 lb in)
Final Pass 25 N.m (18 lb ft)

Upper Intake Manifold Bolt/Stud 25 Nm (18 lb ft)

THROTTLE BODY

Throttle Body Bolts 10 Nm (89 lb in)
