Intake Manifold

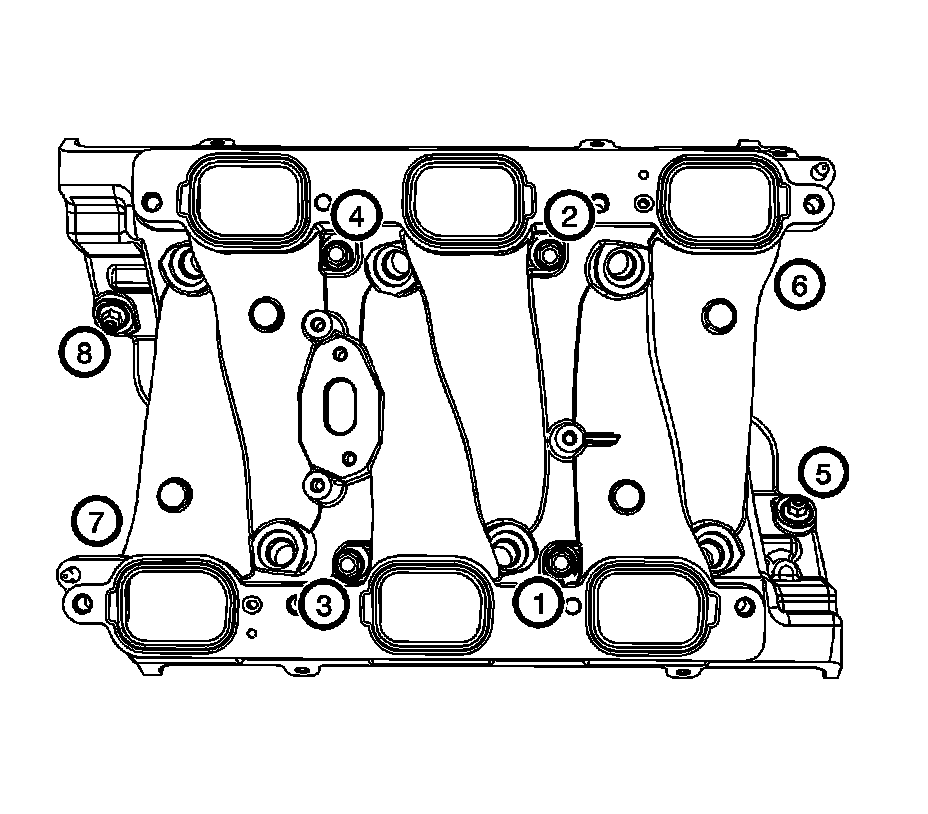

LOWER INTAKE MANIFOLD

Tighten the lower intake manifold bolts (1, 2, 3, 4, 5, 8, 6, 7, 8) in sequence to 7 N.m (62 lb in).
Tighten the center lower intake manifold bolts (1, 2, 3, 4) in sequence to 16 N.m (12 lb ft).
Tighten the visable corner lower intake manifold bolts (5, 8) to 25 N.m (18 lb ft).
Tighten the hidden corner lower intake manifold bolts (6, 7) to 25 N.m (18 lb ft).

Upper Intake Manifold Bolt/Stud 25 Nm (18 lb ft)

THROTTLE BODY

Throttle Body Bolts 10 Nm (89 lb in)
