Impact Sensor




Component Connector End Views

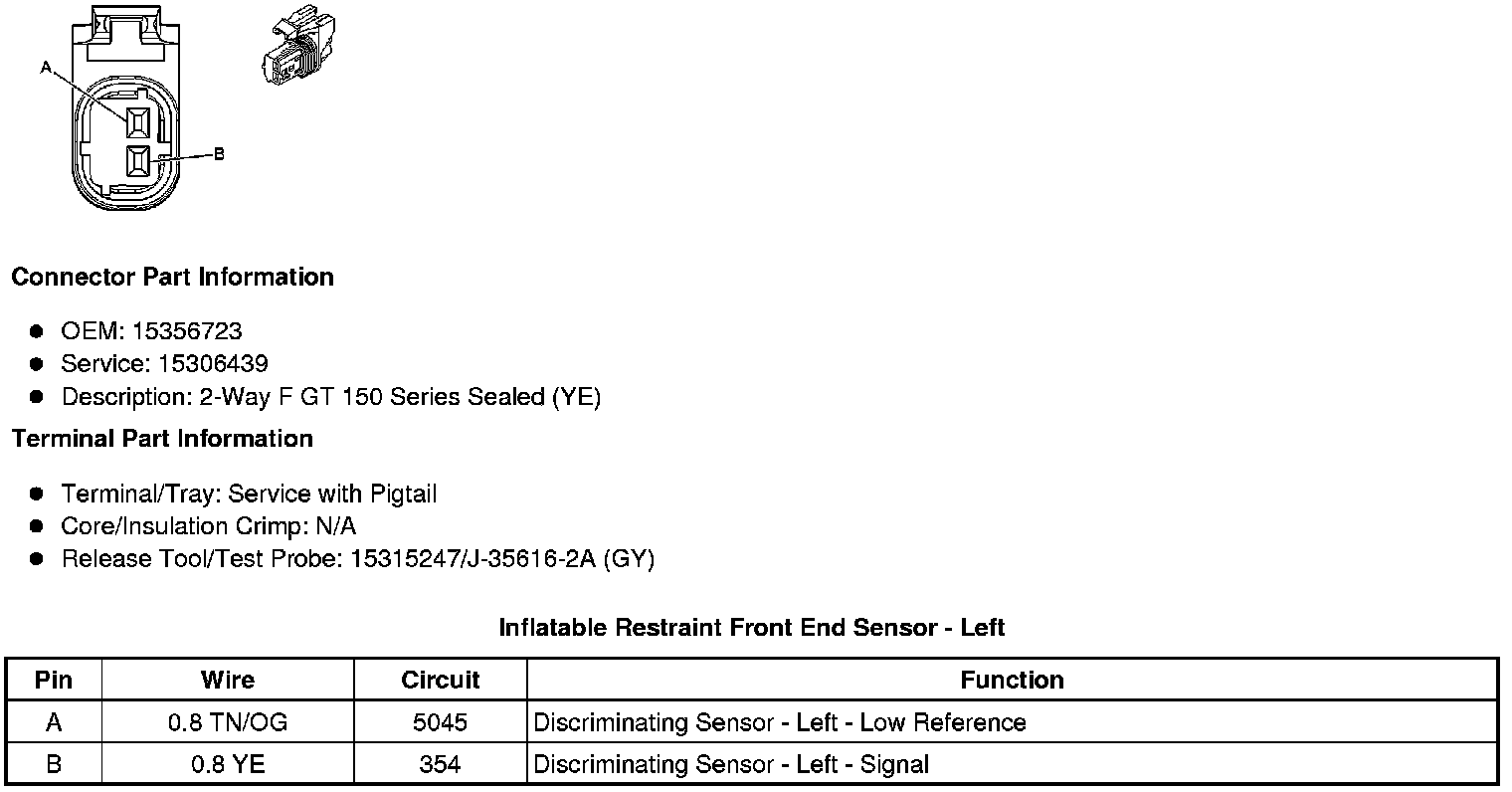

Inflatable Restraint Front End Sensor - Left

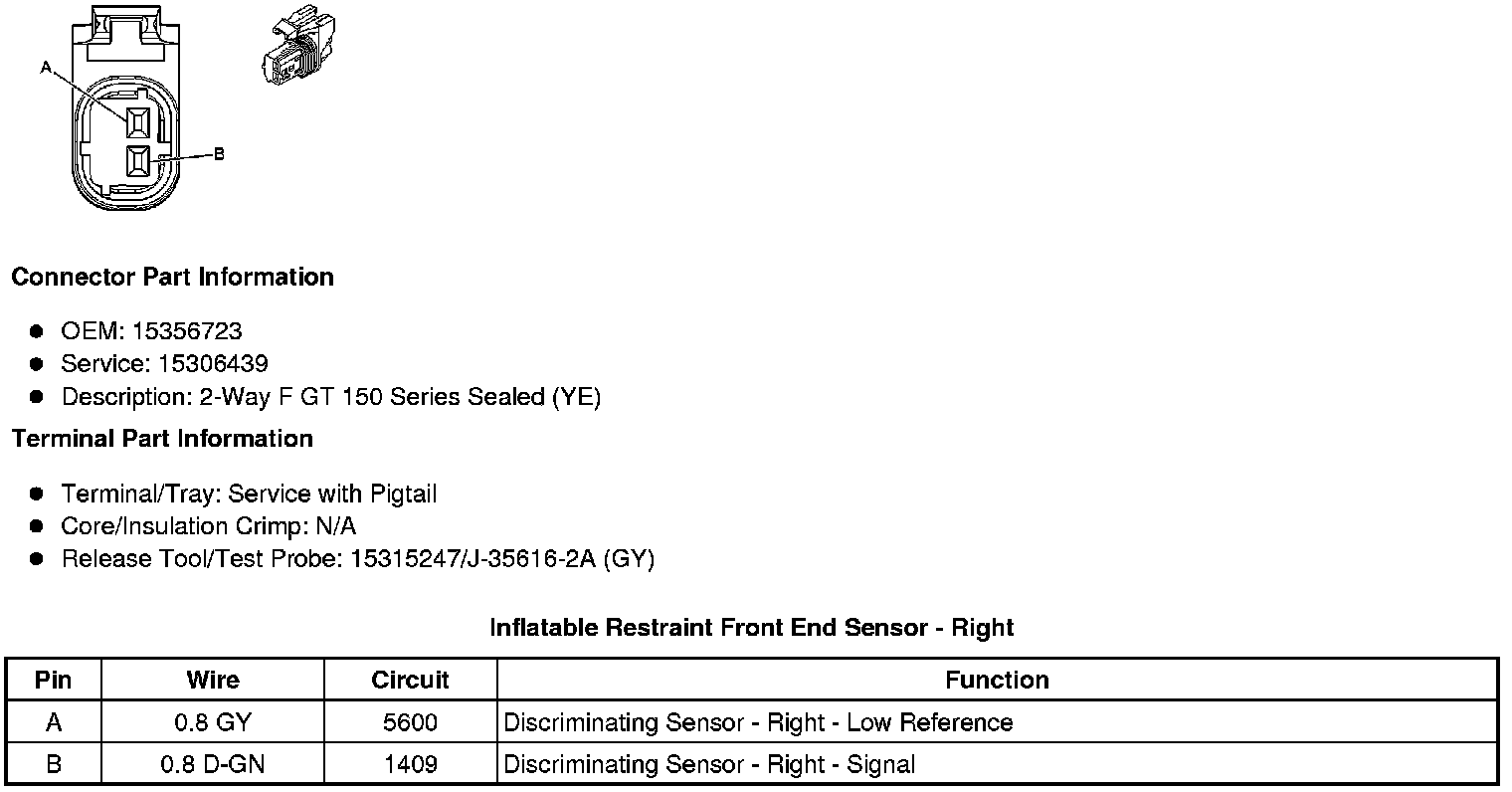

Inflatable Restraint Front End Sensor - Right

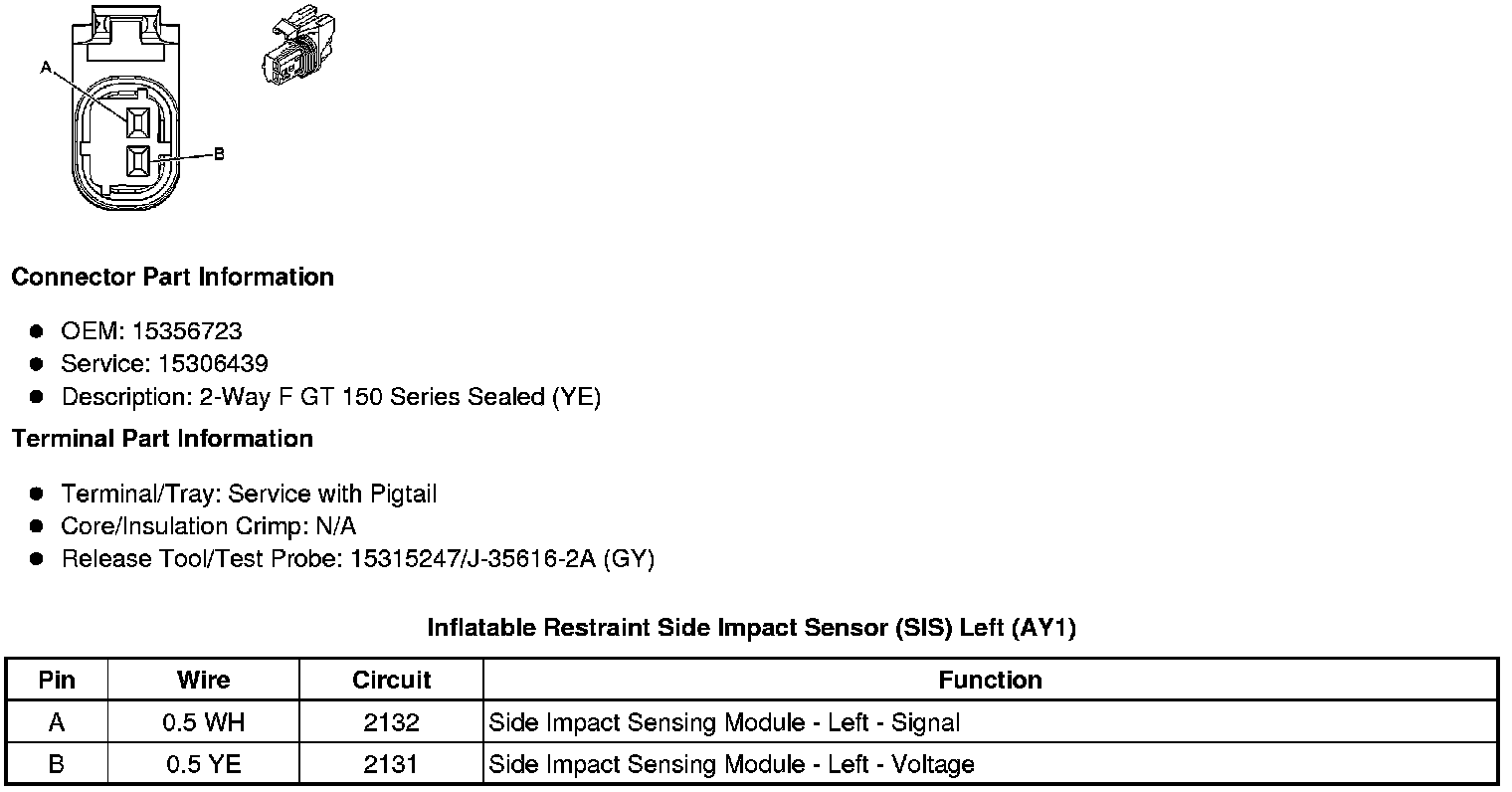

Inflatable Restraint Side Impact Sensor (SIS) - Left (AY1)






Inflatable Restraint Side Impact Sensor (SIS) Right (AY1)

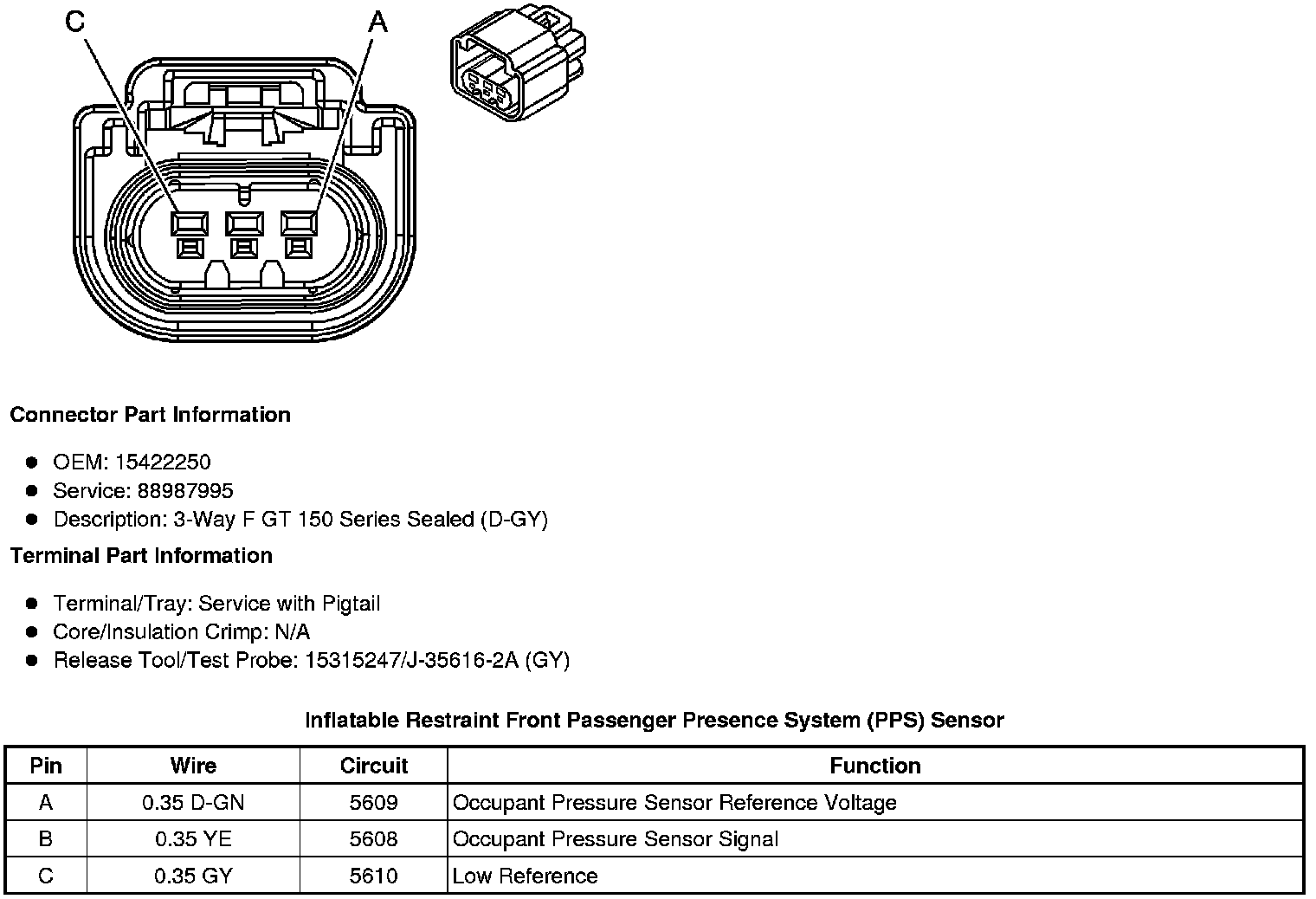

Inflatable Restraint Front Passenger Presence System (PPS) Sensor
