Air Bag




Component Connector End Views

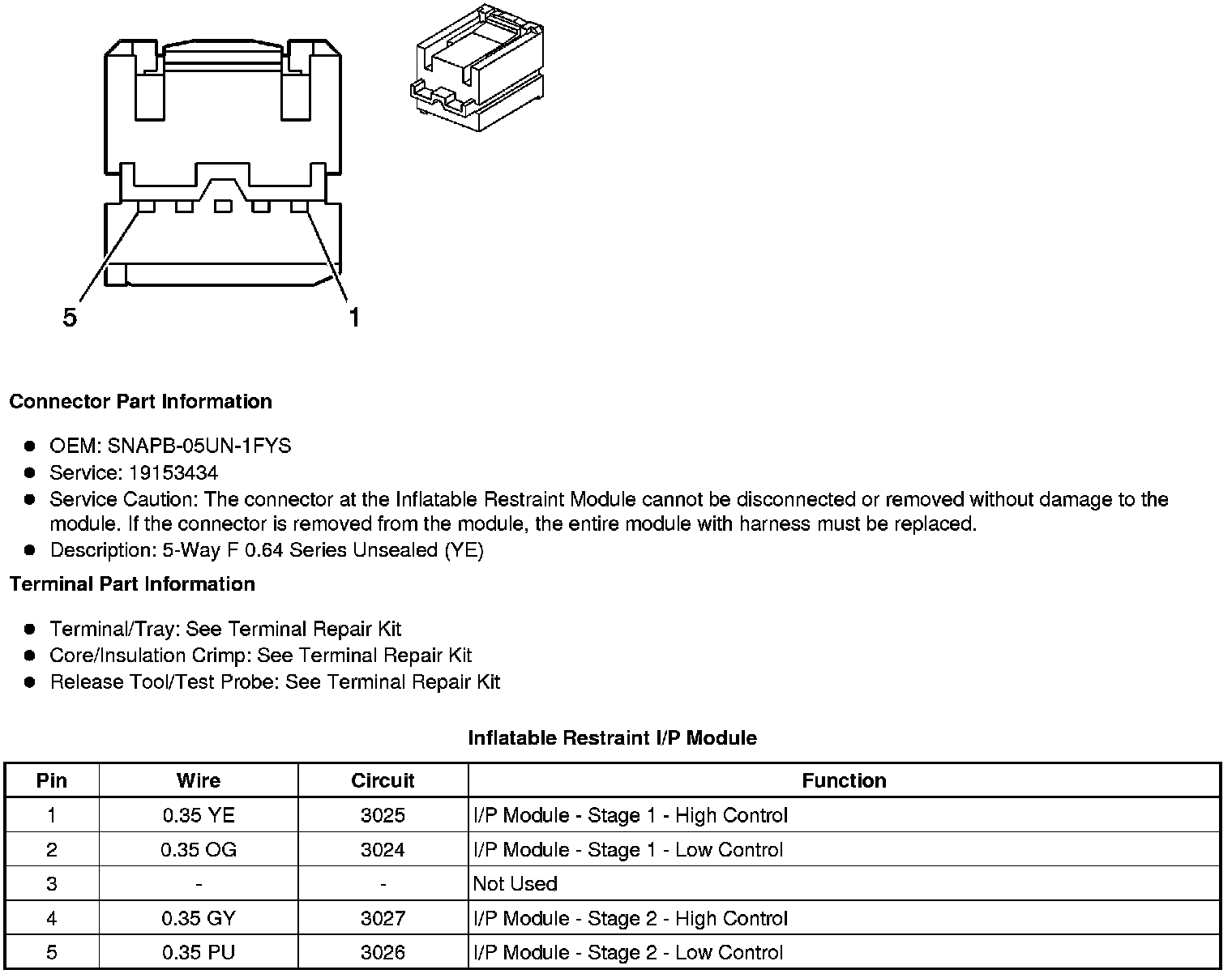

Inflatable Restraint I/P Module






Inflatable Restraint Roof Rail Module - Driver






Inflatable Restraint Roof Rail Module - Passenger

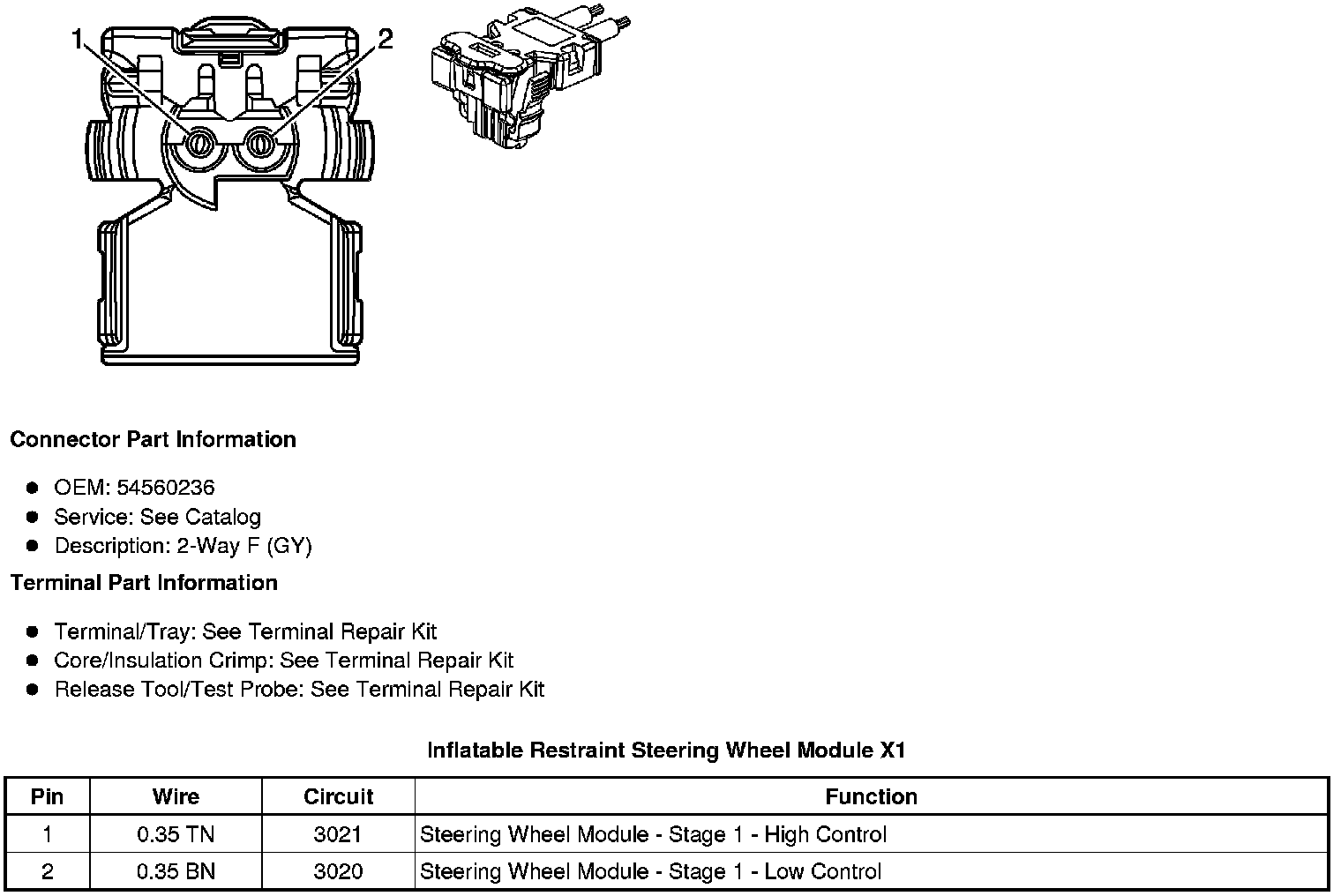

Inflatable Restraint Steering Wheel Module X1

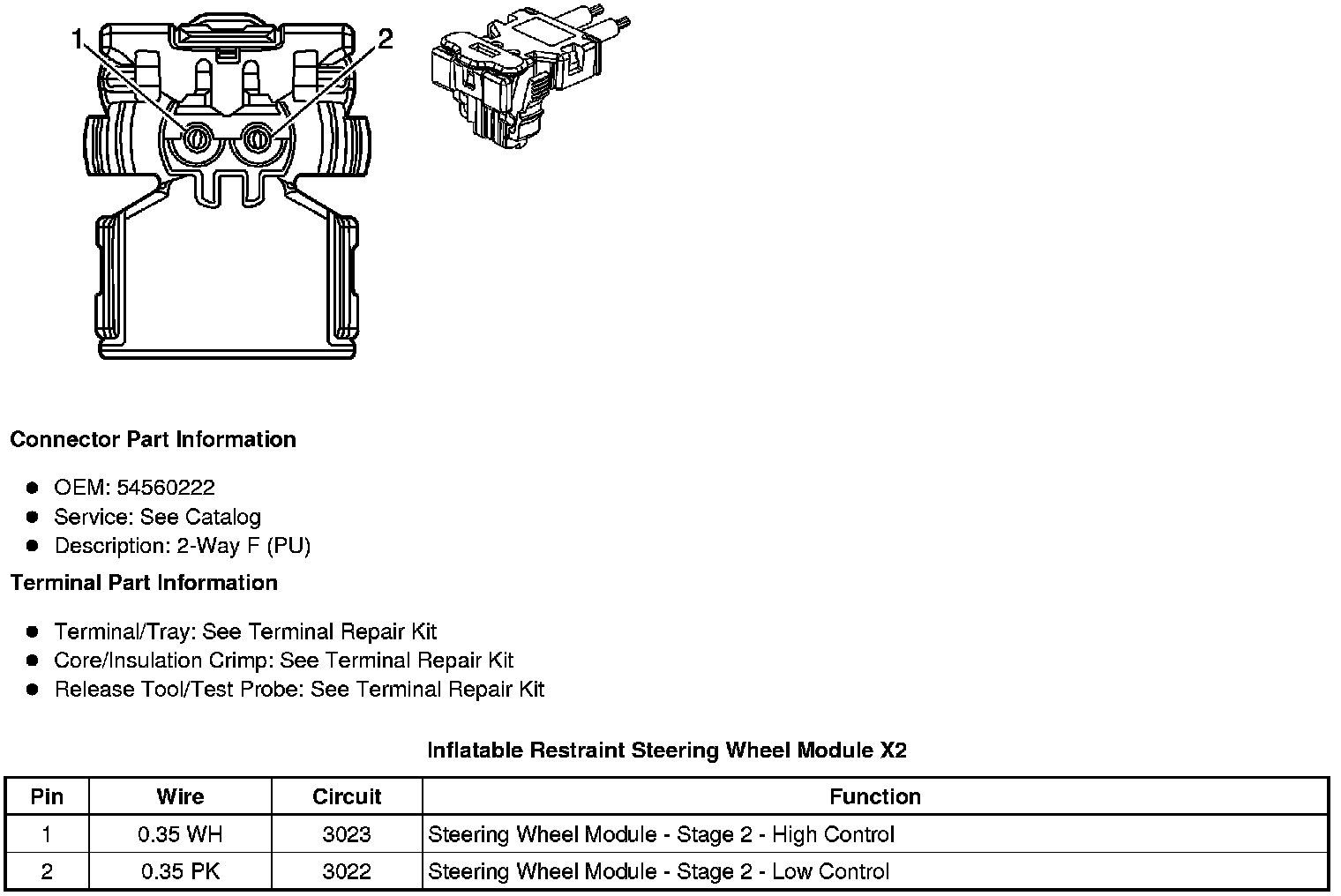

Inflatable Restraint Steering Wheel Module X2

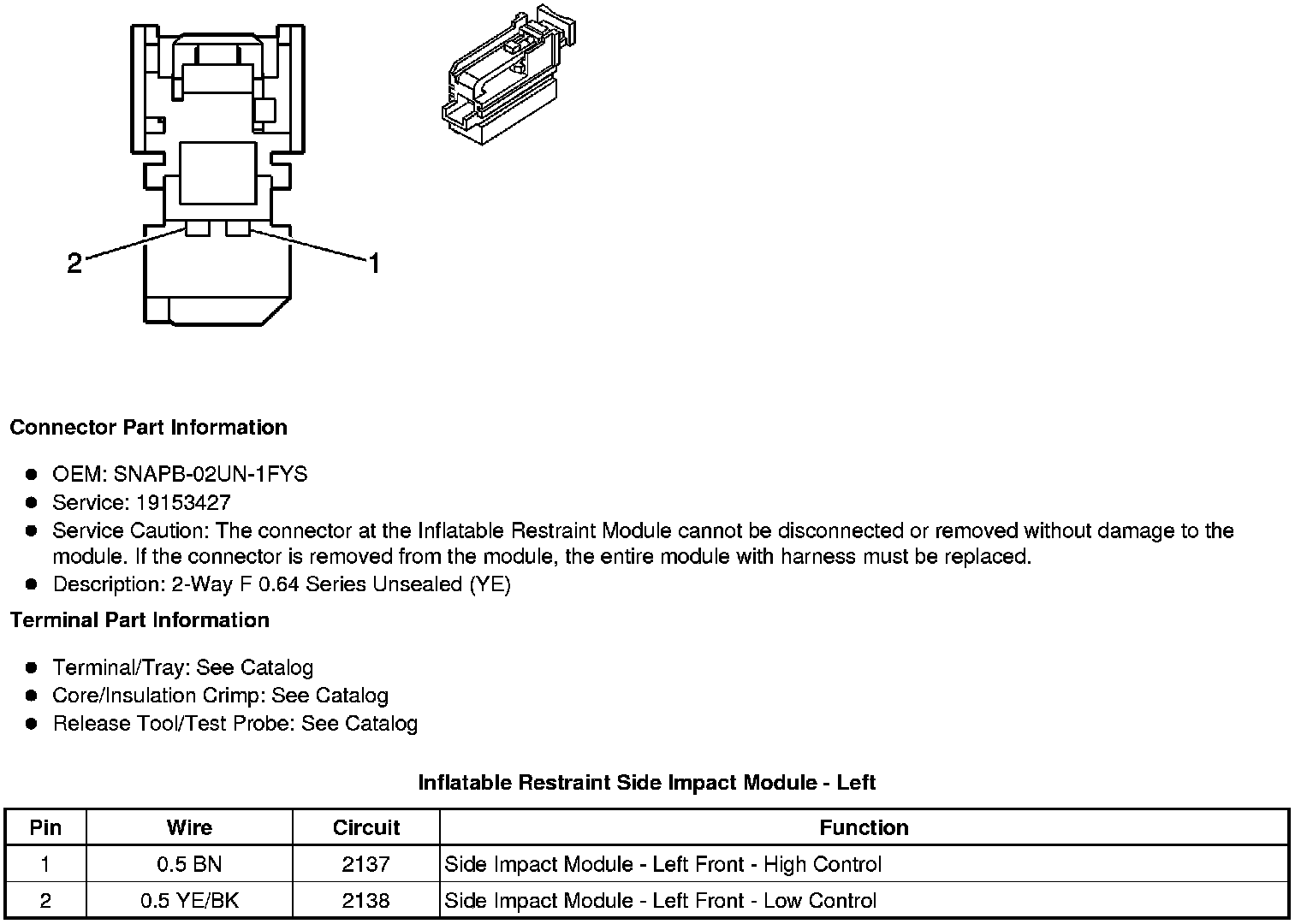

Inflatable Restraint Side Impact Module - Left






Inflatable Restraint Side Impact Module - Right
