Cabin Temperature Sensor / Switch




Component Connector End Views

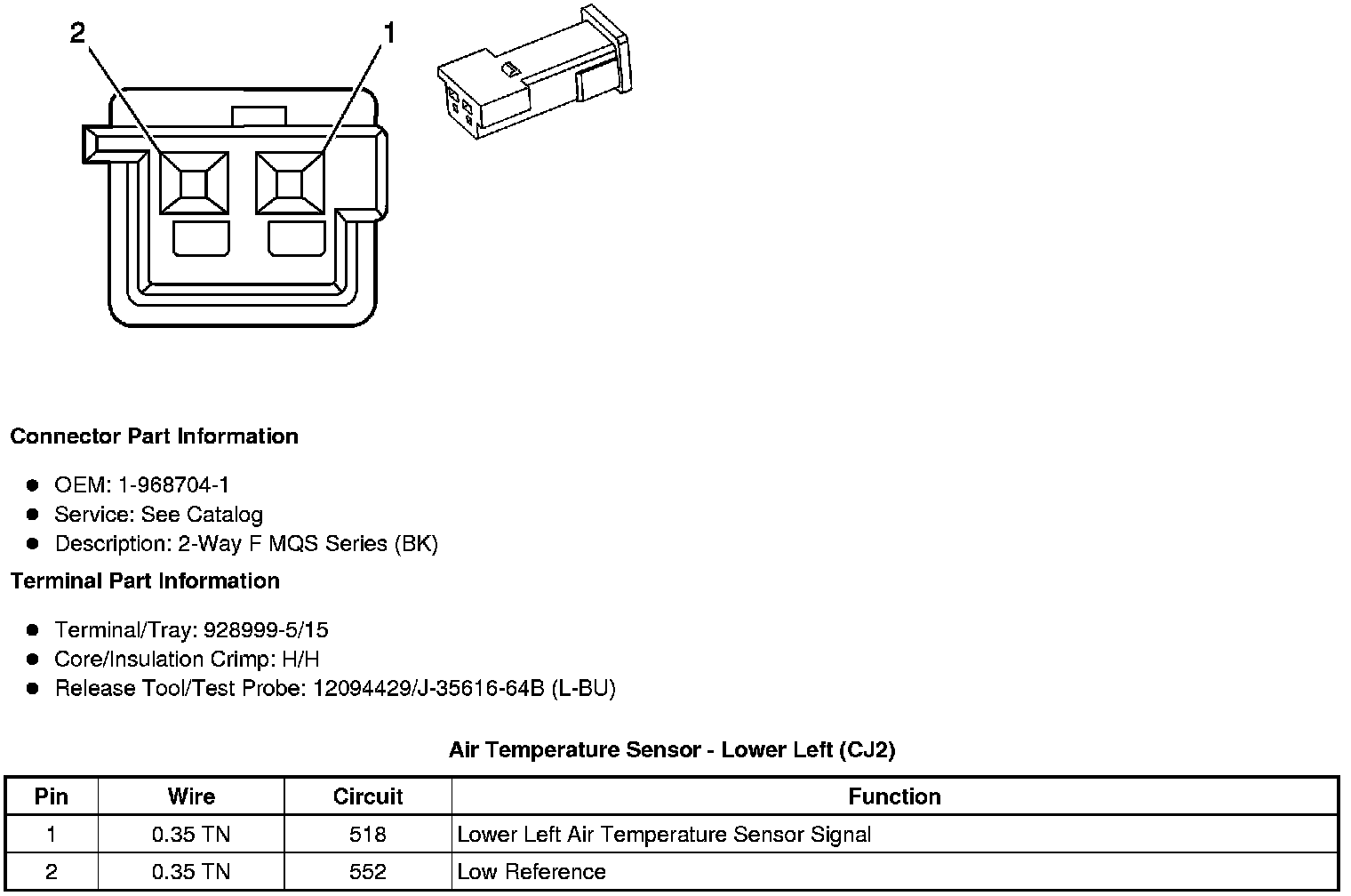

Air Temperature Sensor - Lower Left (CJ2)






Air Temperature Sensor - Lower Right (CJ2)






Air Temperature Sensor - Upper Left (CJ2)






Air Temperature Sensor - Upper Right (CJ2)
