Control Assembly, HVAC




Component Connector End Views

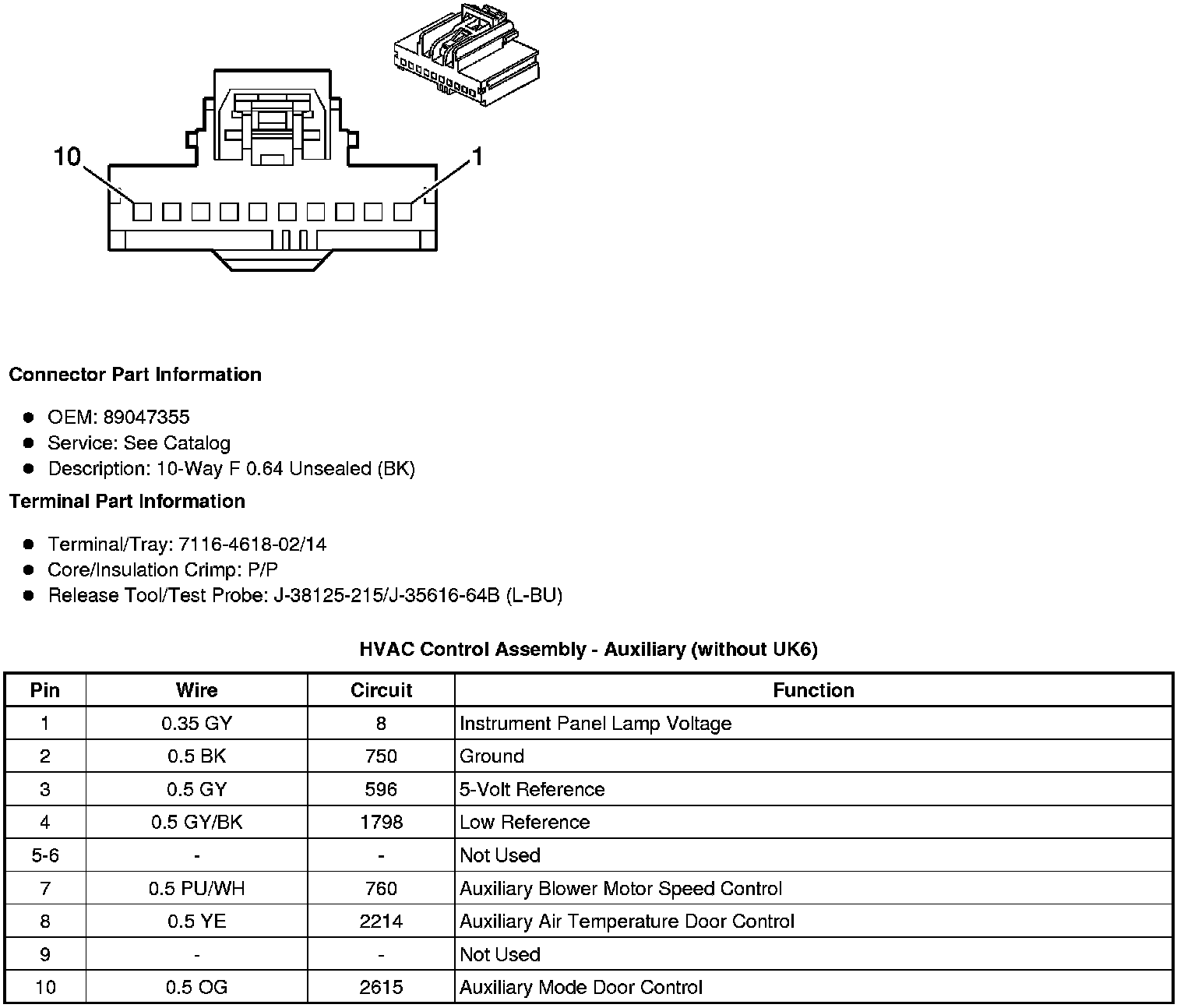

HVAC Control Assembly - Auxiliary (without UK6)

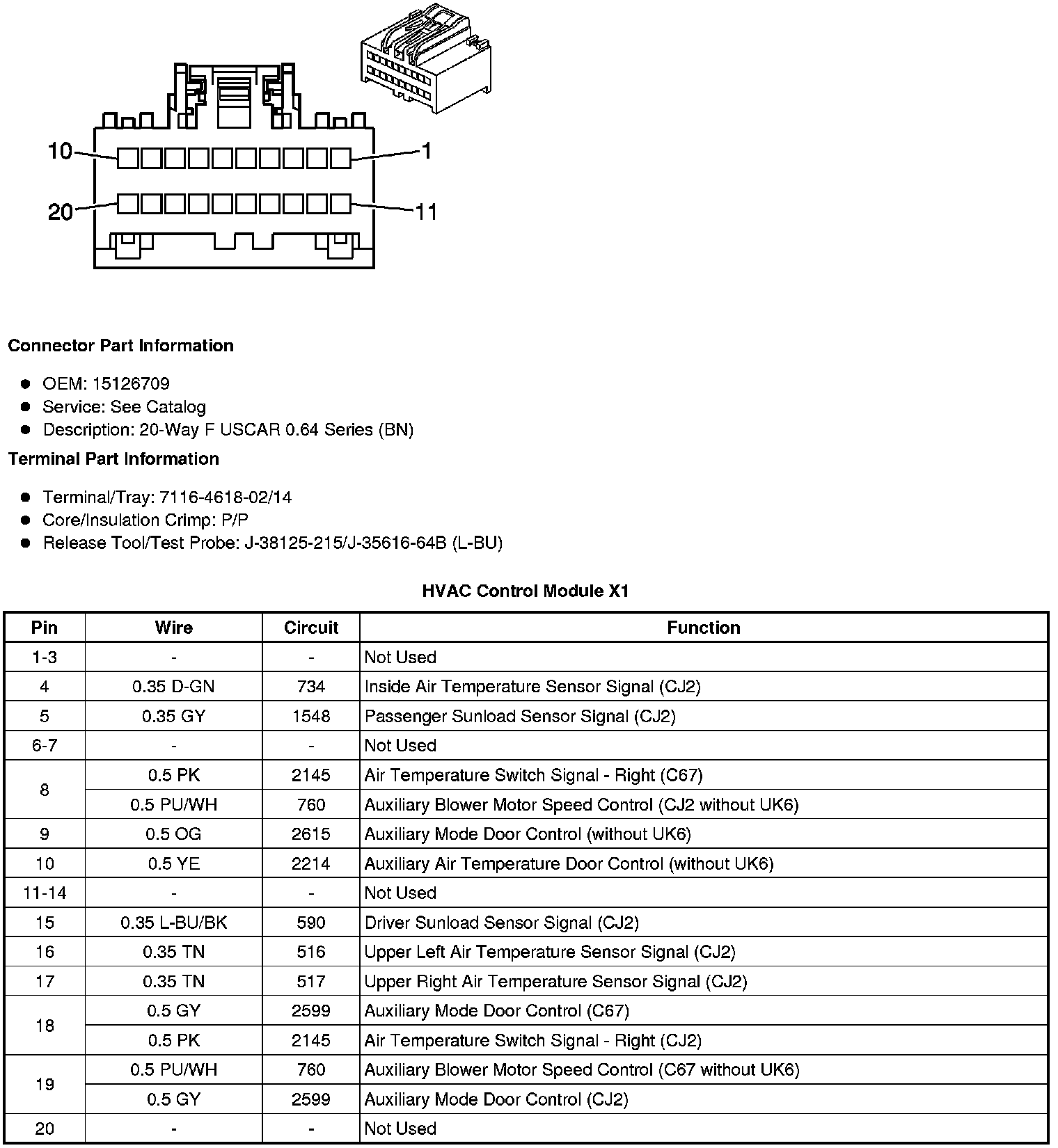

HVAC Control Module X1

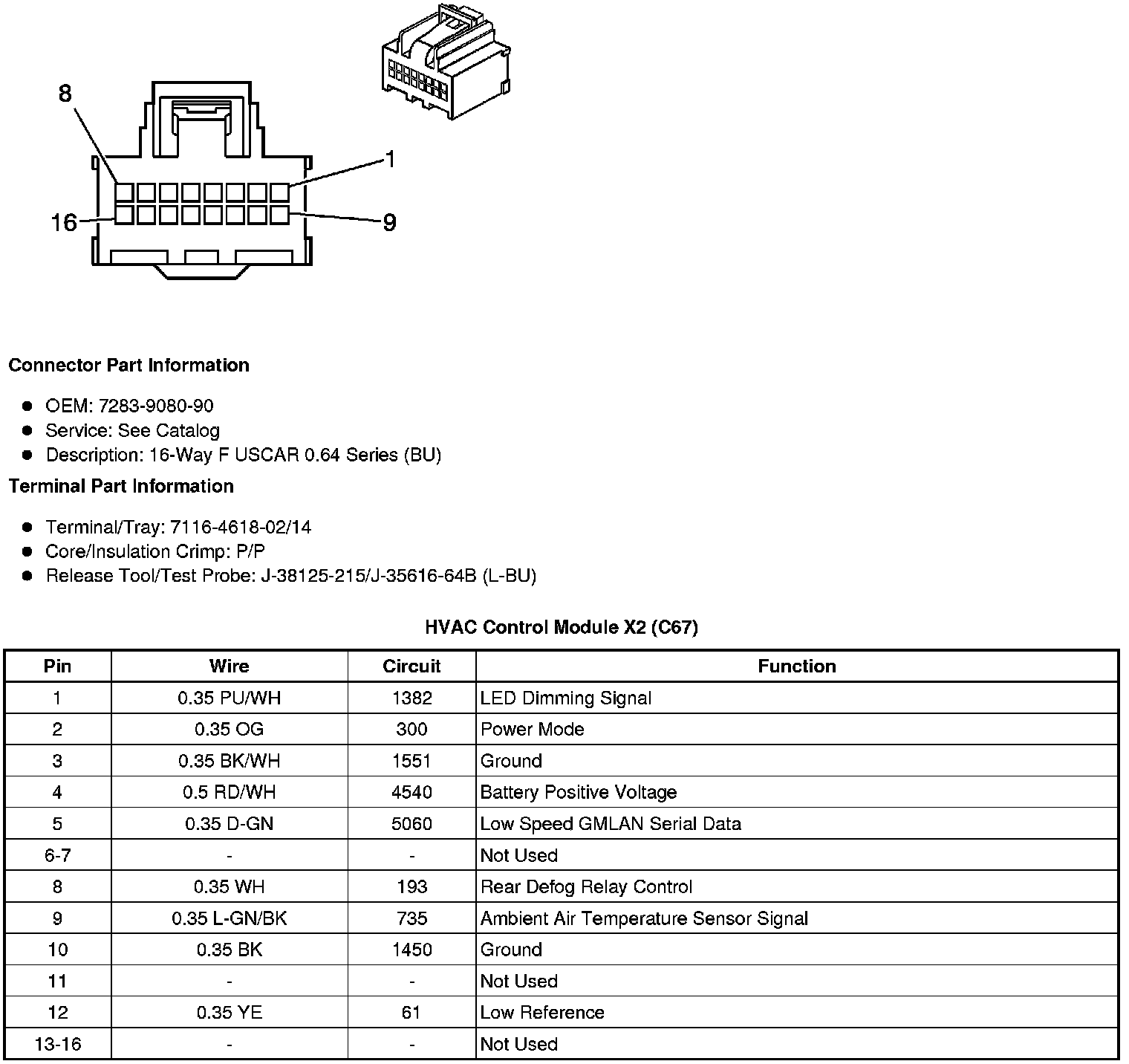

HVAC Control Module X2 (C67)

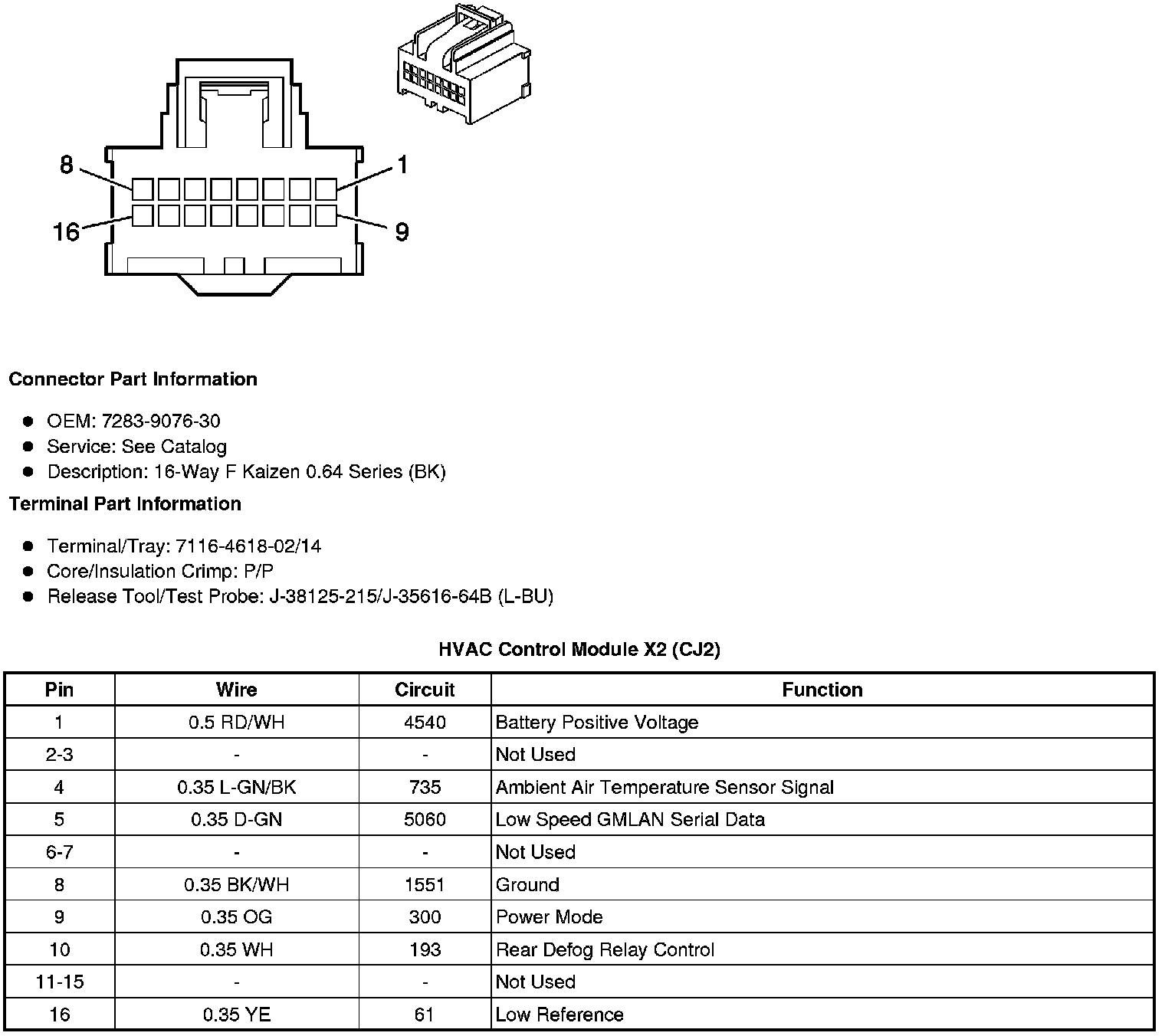

HVAC Control Module X2 (CJ2)

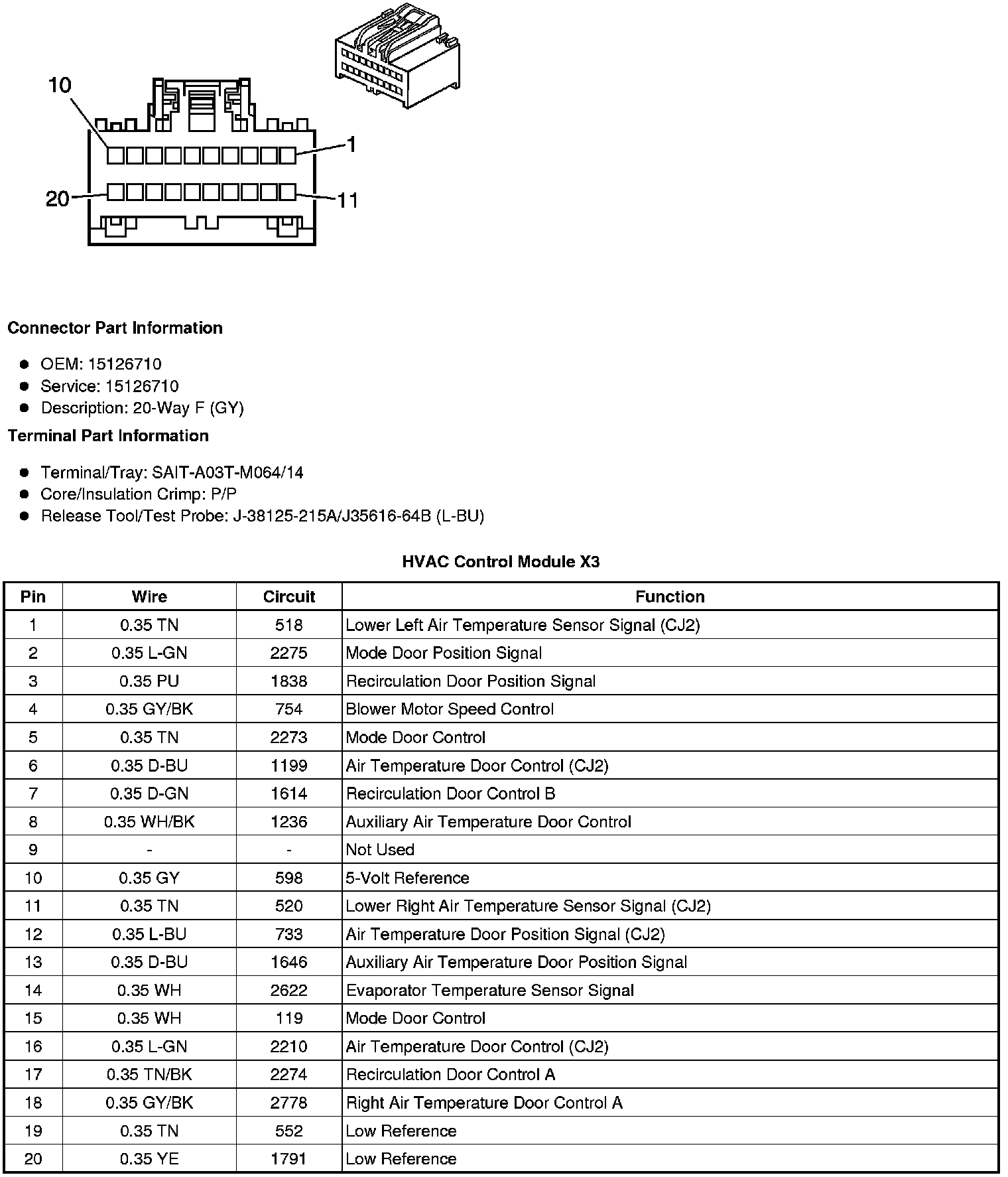

HVAC Control Module X3

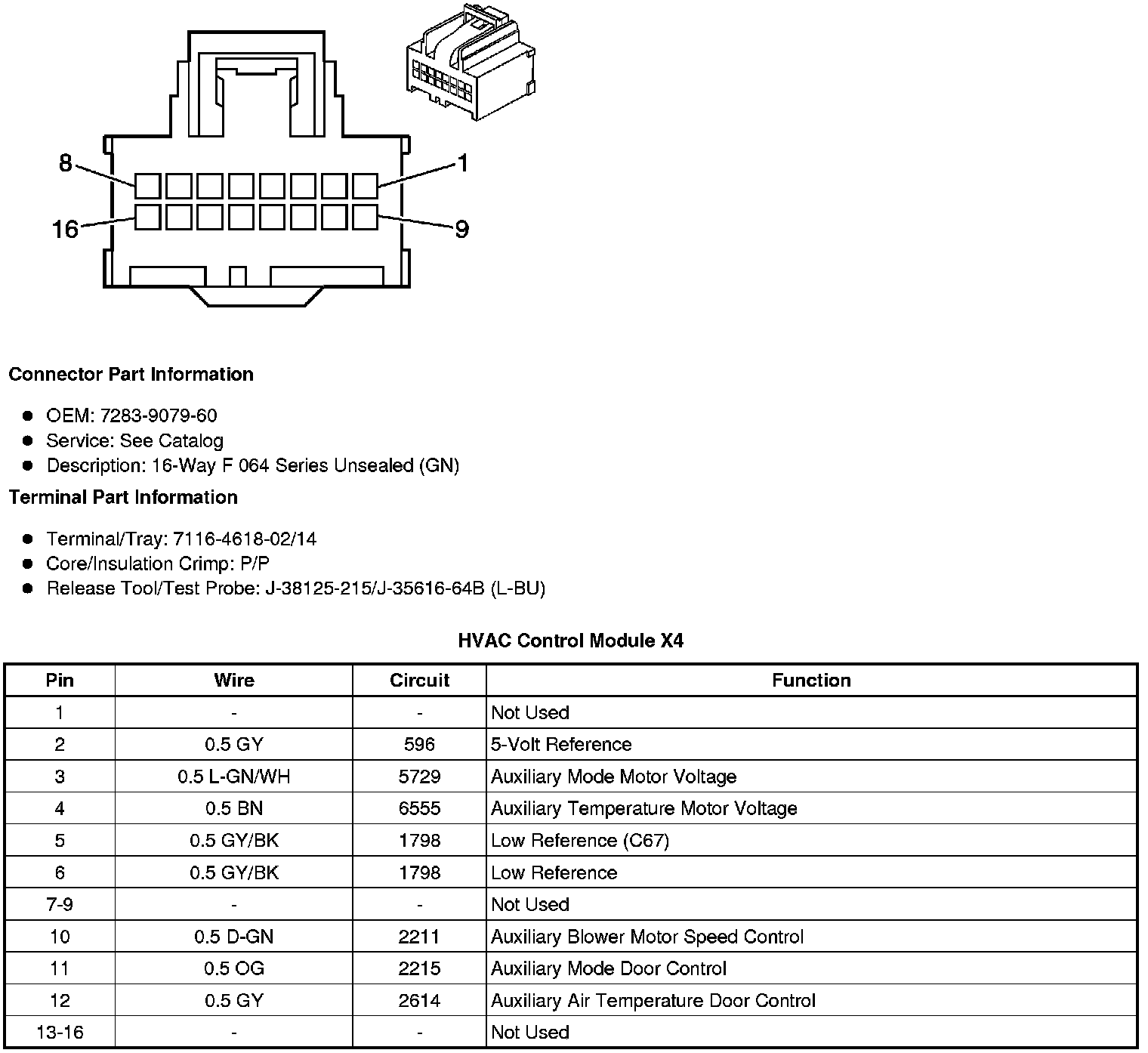

HVAC Control Module X4

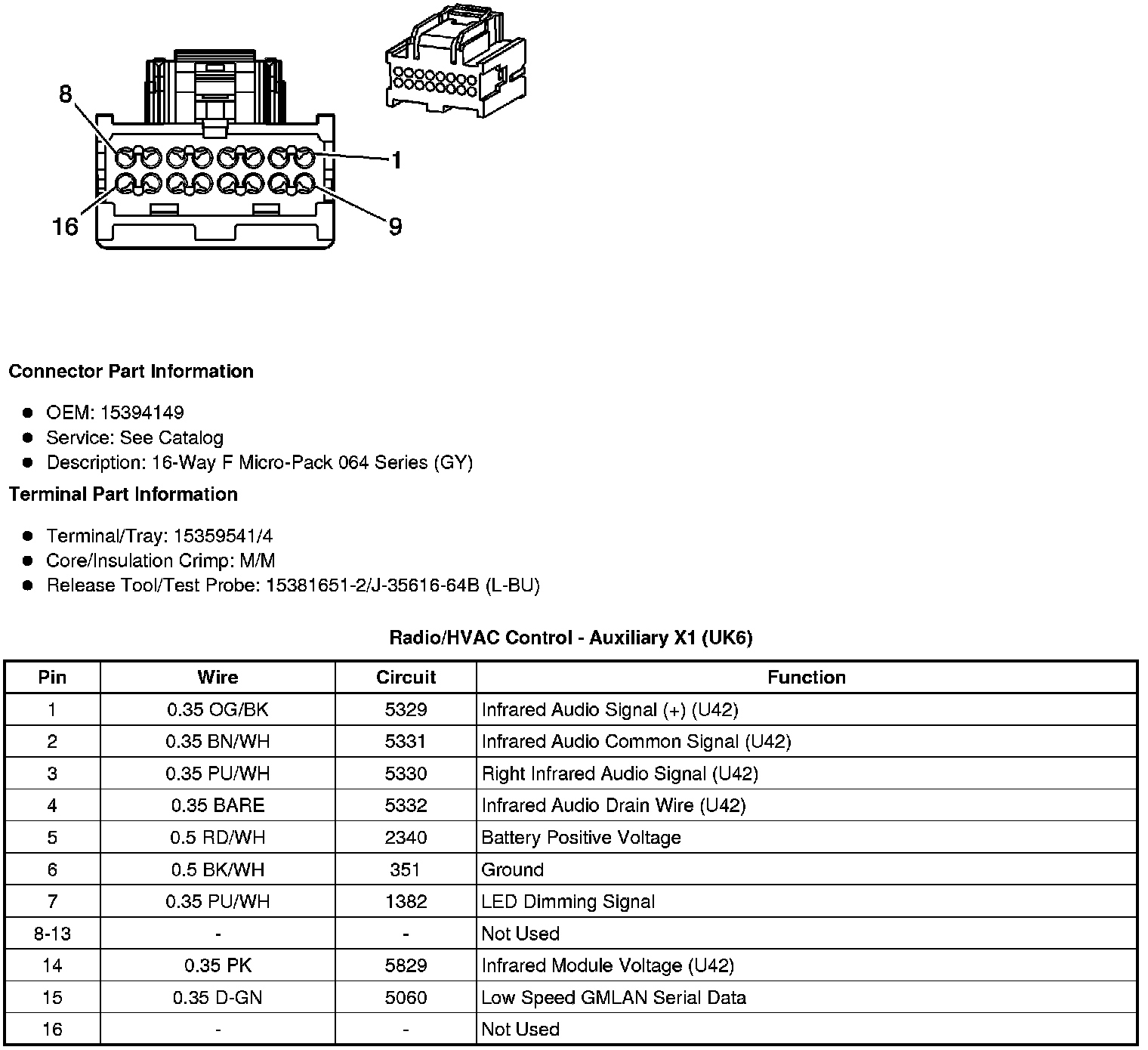

Radio/HVAC Control - Auxiliary X1 (UK6)

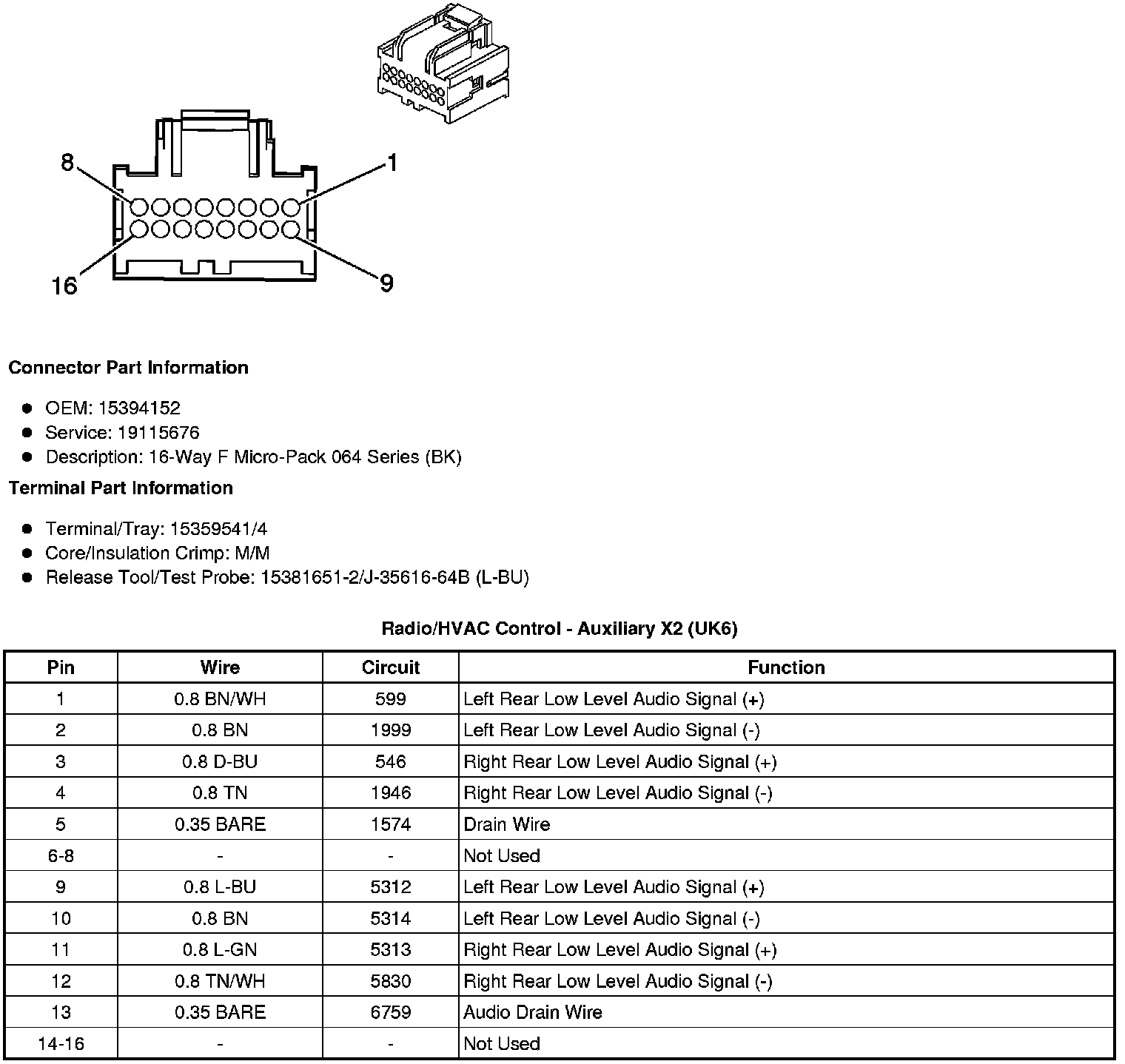

Radio/HVAC Control - Auxiliary X2 (UK6)
