Impact Sensor




Component Connector End Views

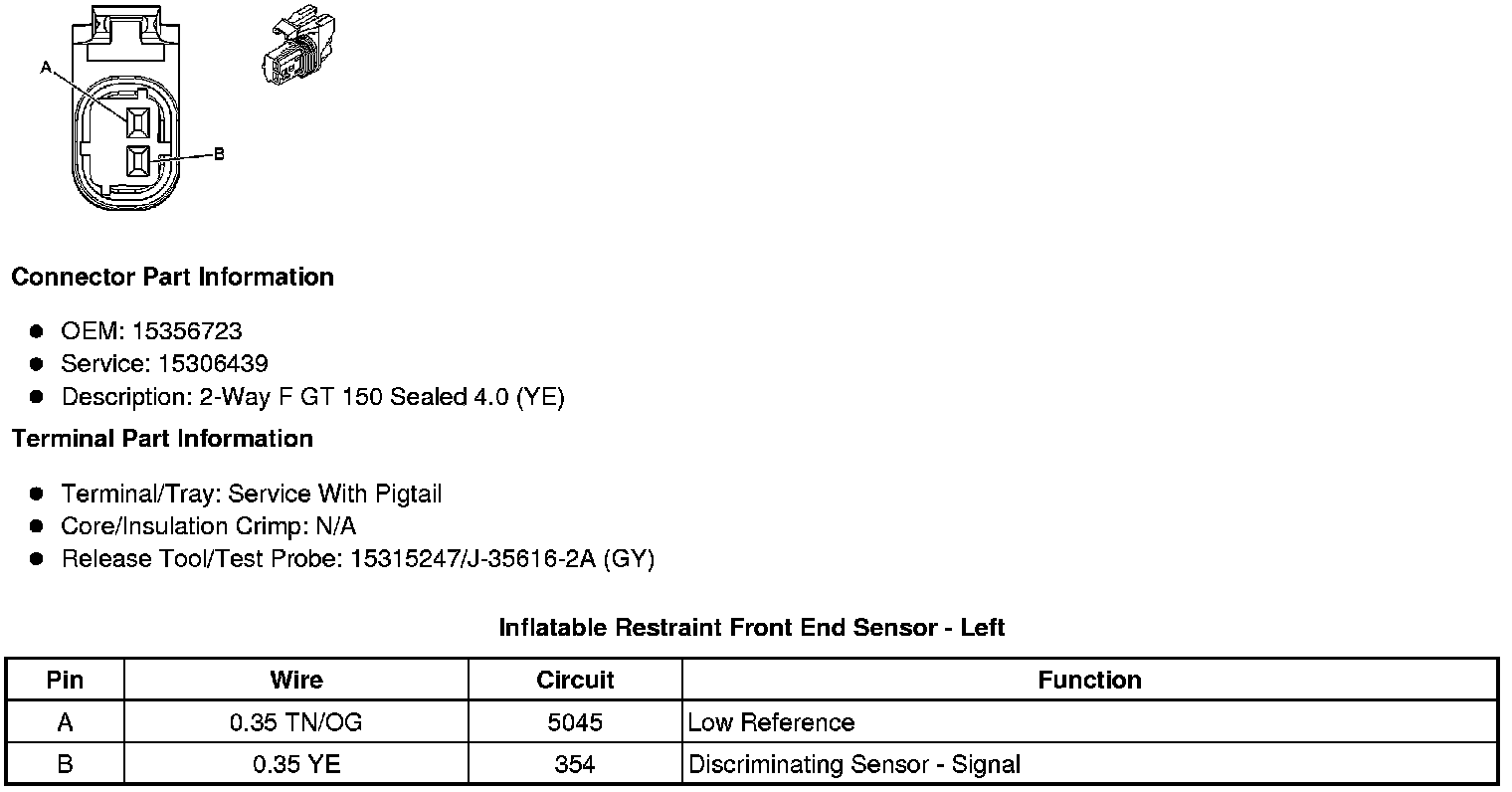

Inflatable Restraint Front End Sensor - Left

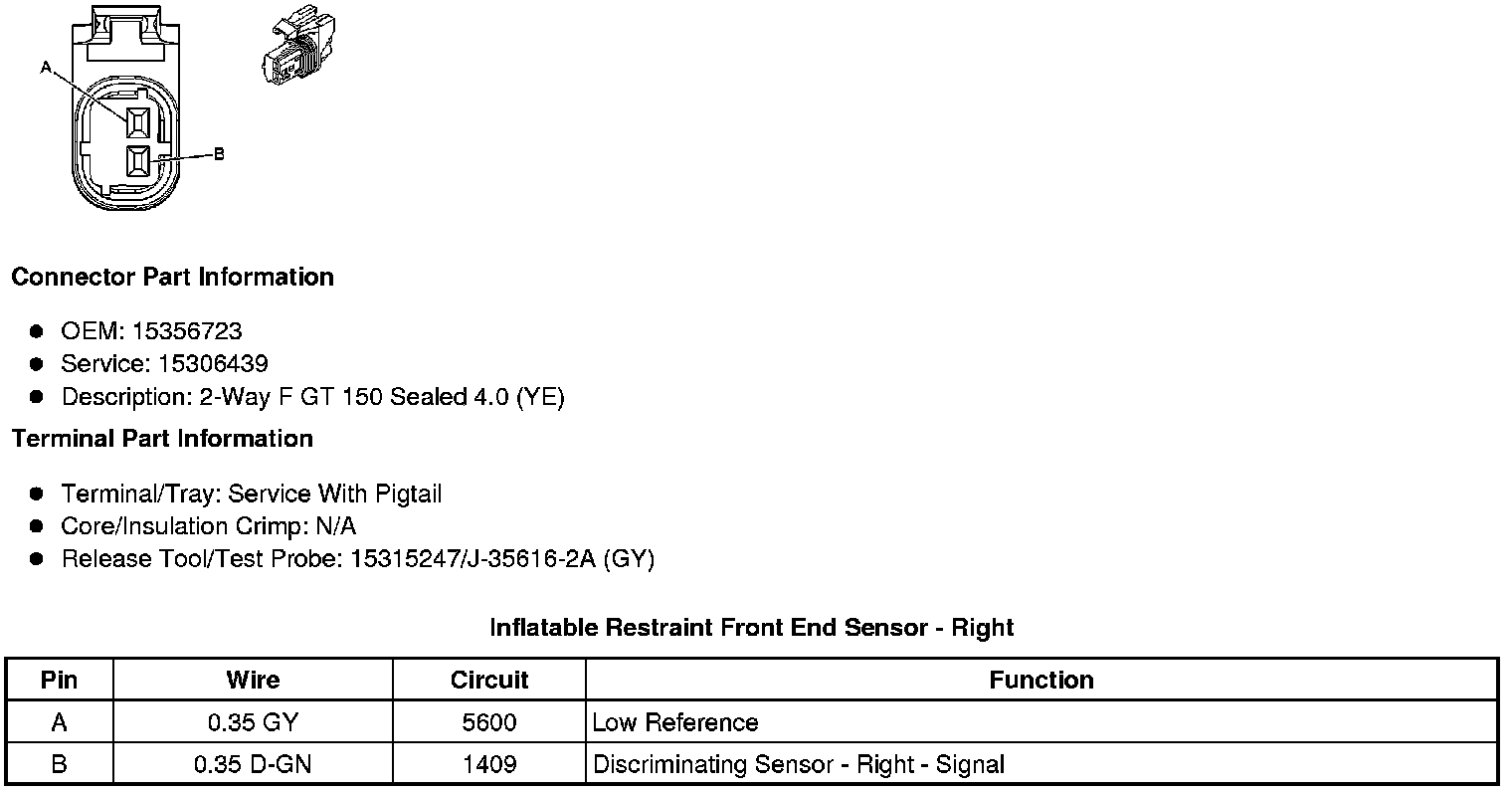

Inflatable Restraint Front End Sensor - Right

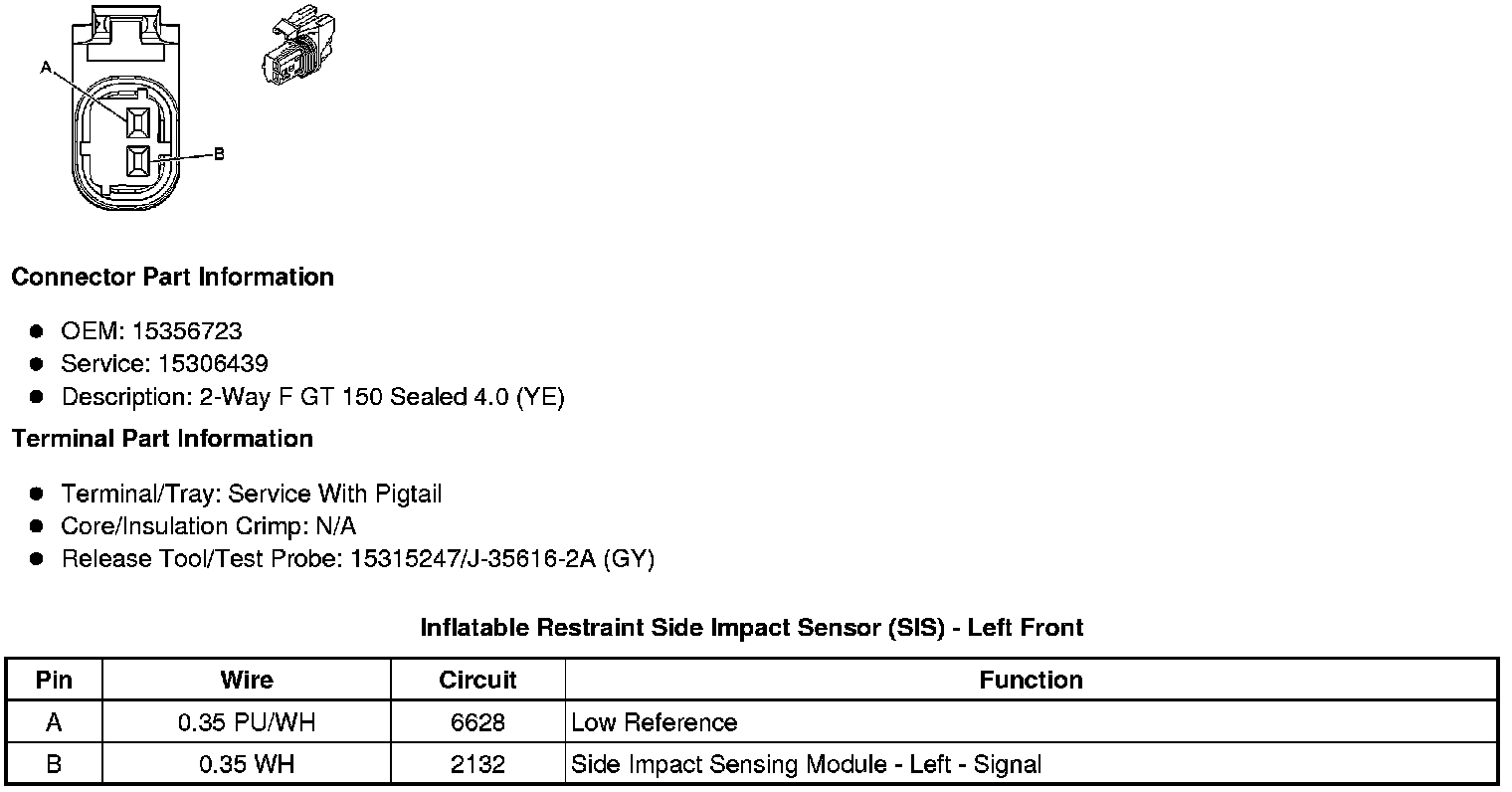

Inflatable Restraint Side Impact Sensor (SIS) - Left Front

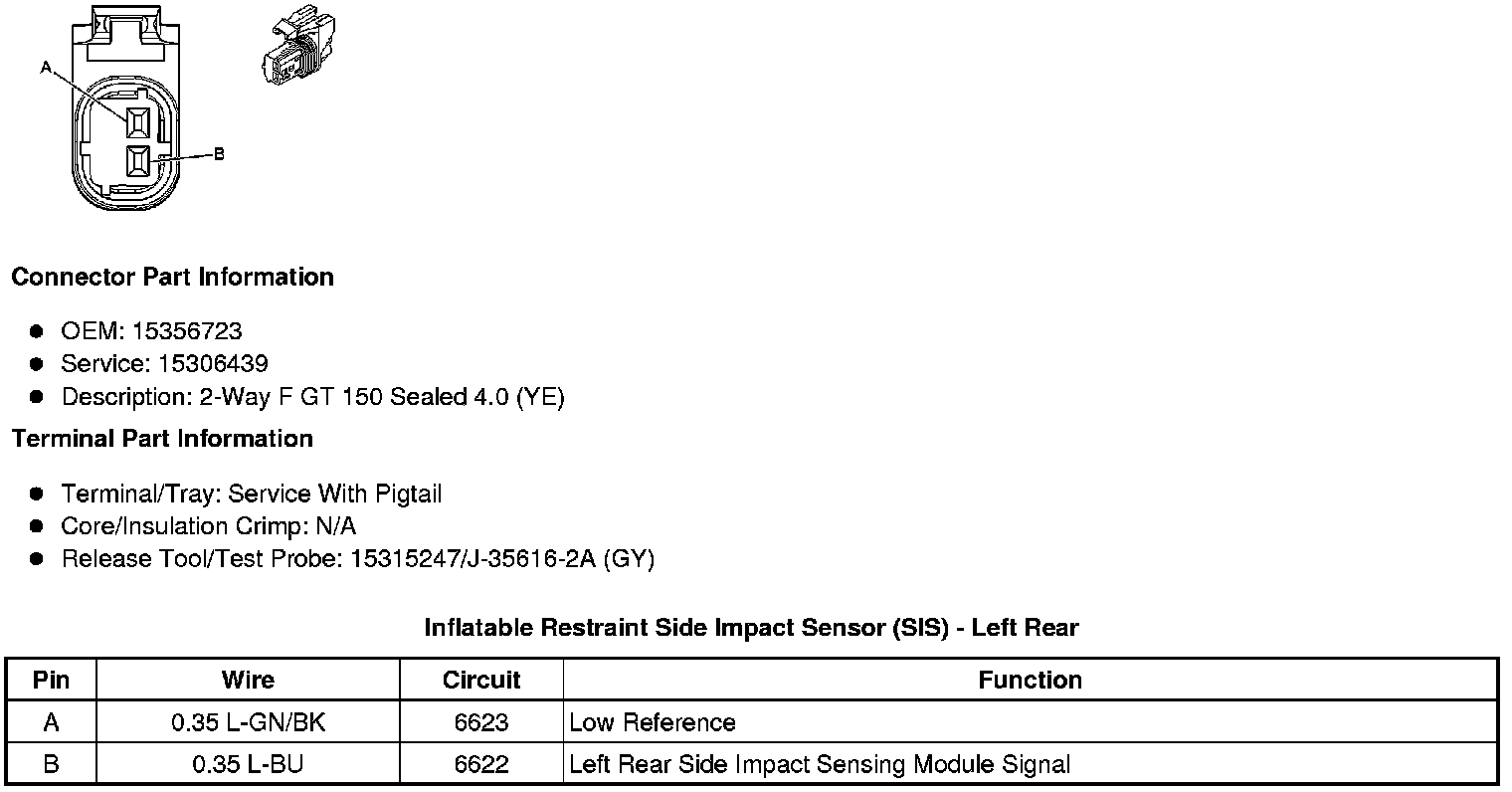

Inflatable Restraint Side Impact Sensor (SIS) - Left Rear

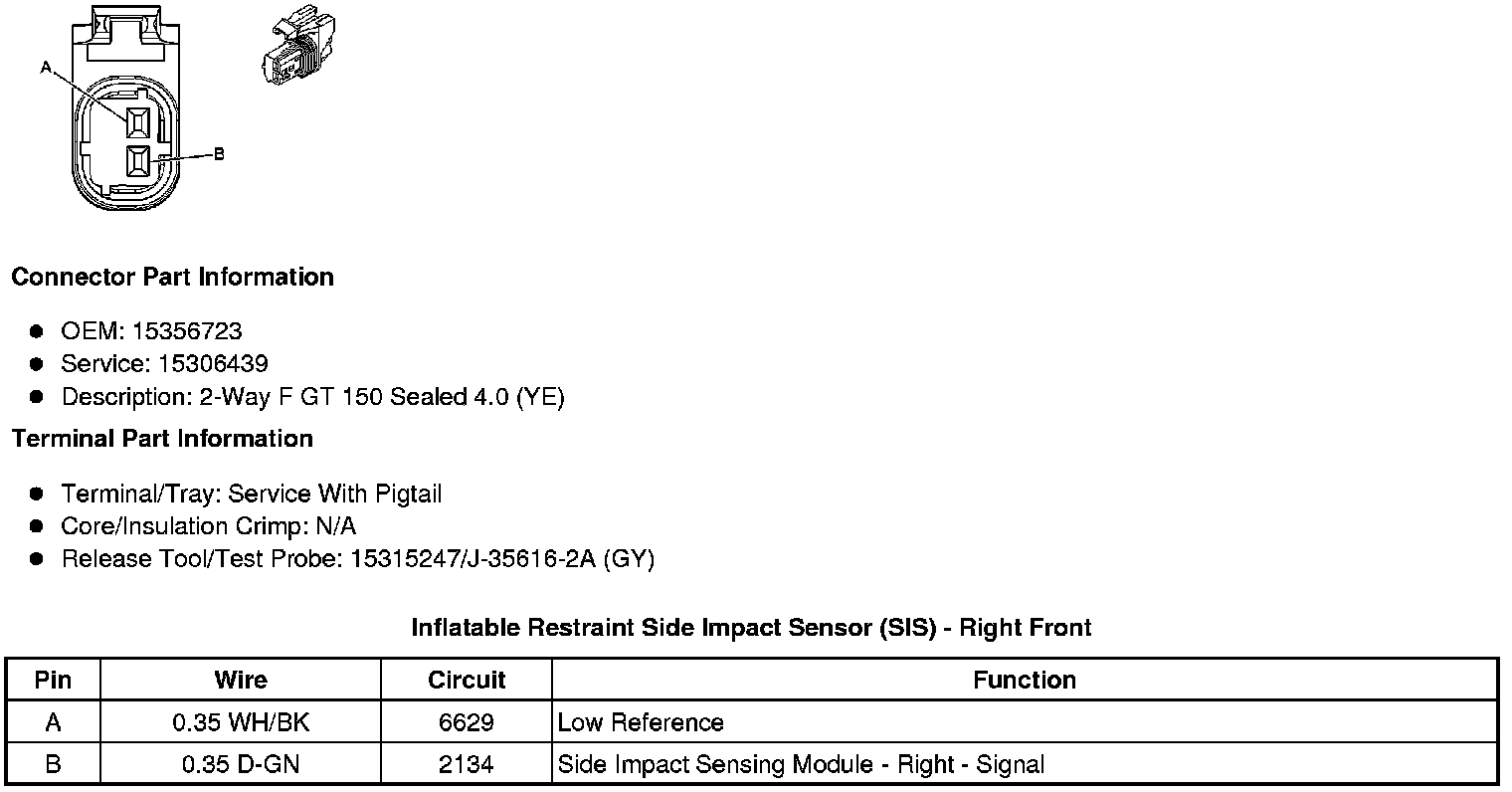

Inflatable Restraint Side Impact Sensor (SIS) - Right Front






Inflatable Restraint Side Impact Sensor (SIS) - Right Rear

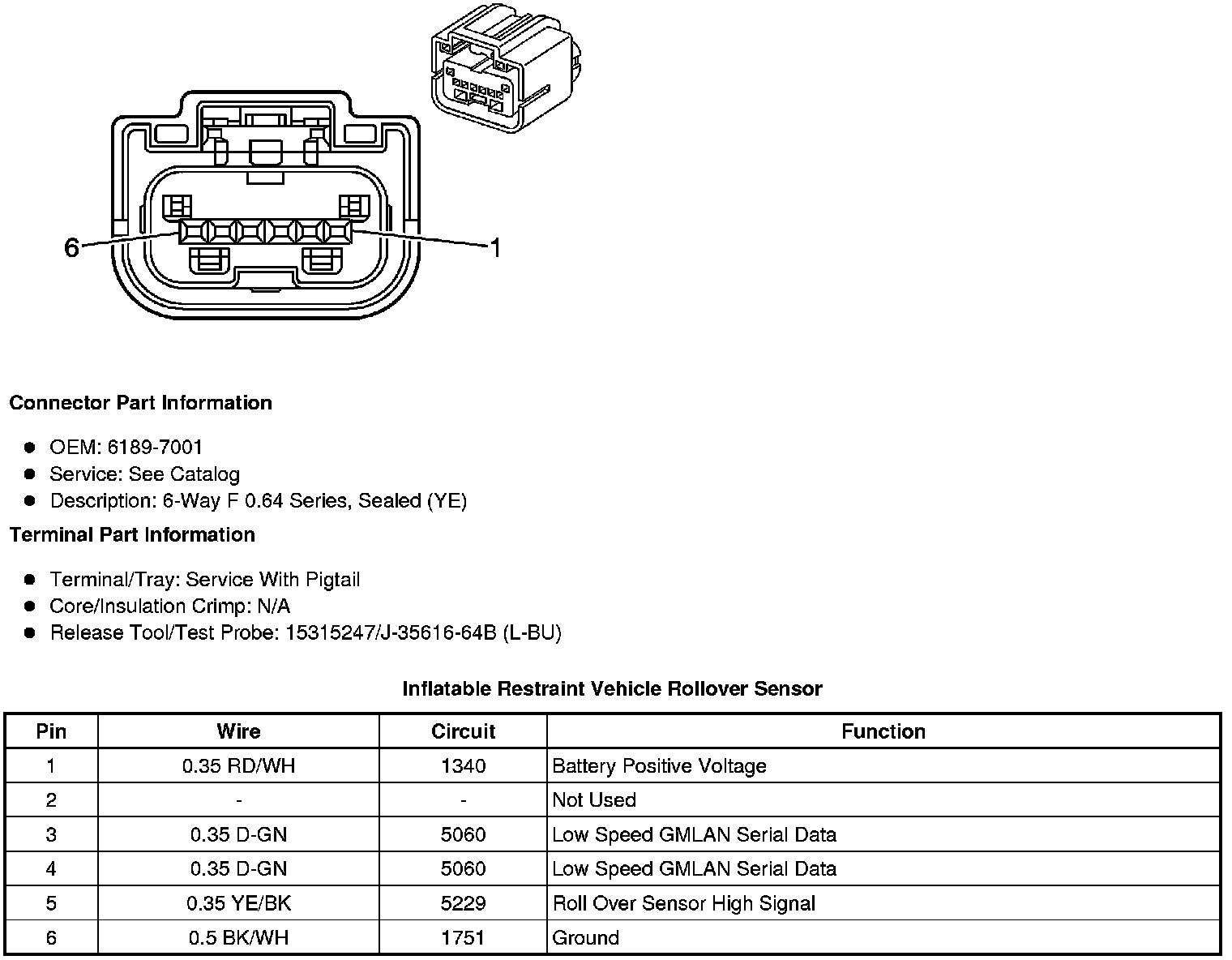

Inflatable Restraint Vehicle Rollover Sensor
