Map Light




Component Connector End Views

Courtesy/Reading Lamps - 2nd Row (without U42)






Courtesy/Reading Lamps - 2nd Row X1 (C3U with U42)






Courtesy/Reading Lamps - 2nd Row X2 (C3U with U42)

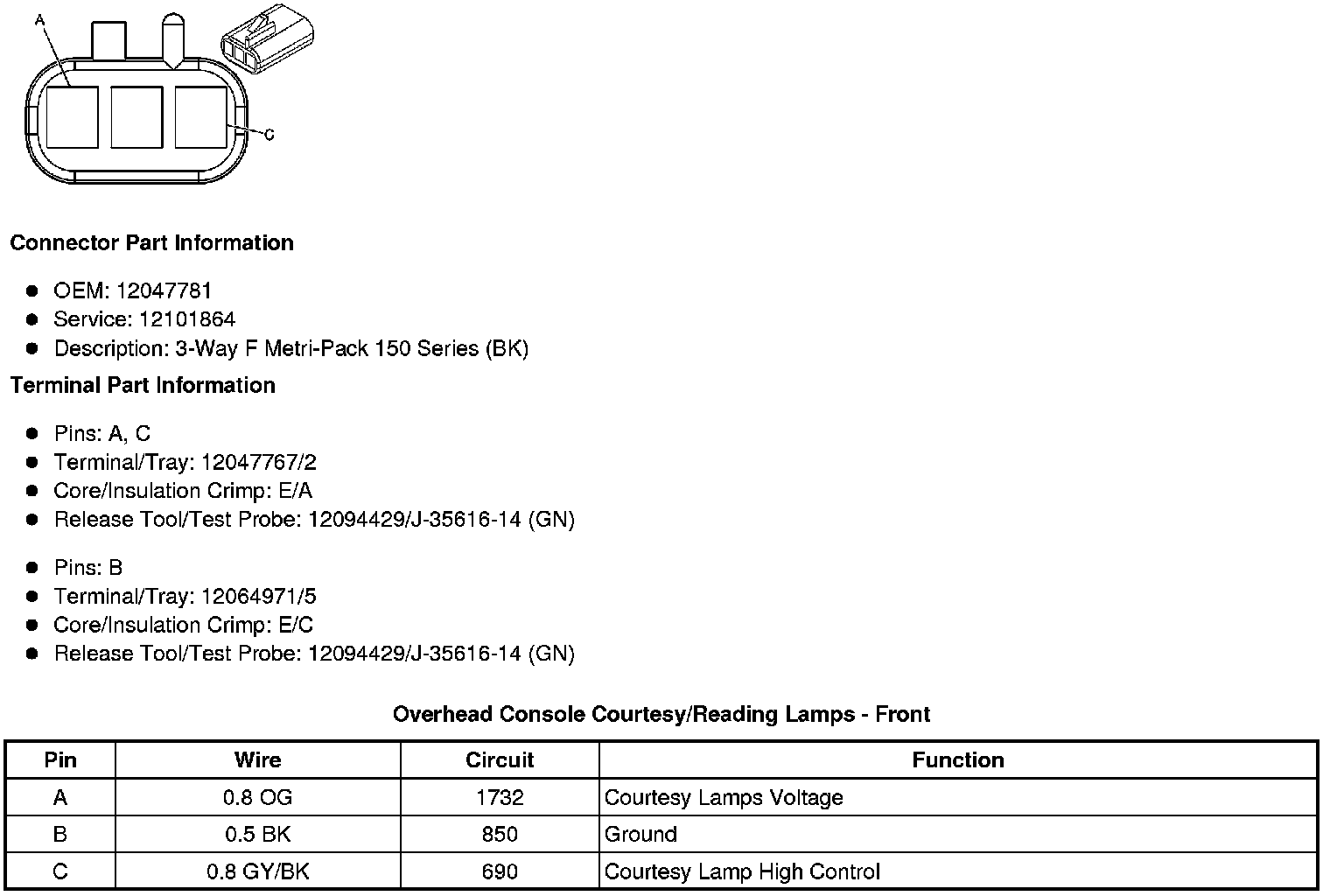

Overhead Console Courtesy/Reading Lamps - Front






Overhead Console Courtesy/Reading Lamps - Rear
