Parking Assist Control Module




Component Connector End Views

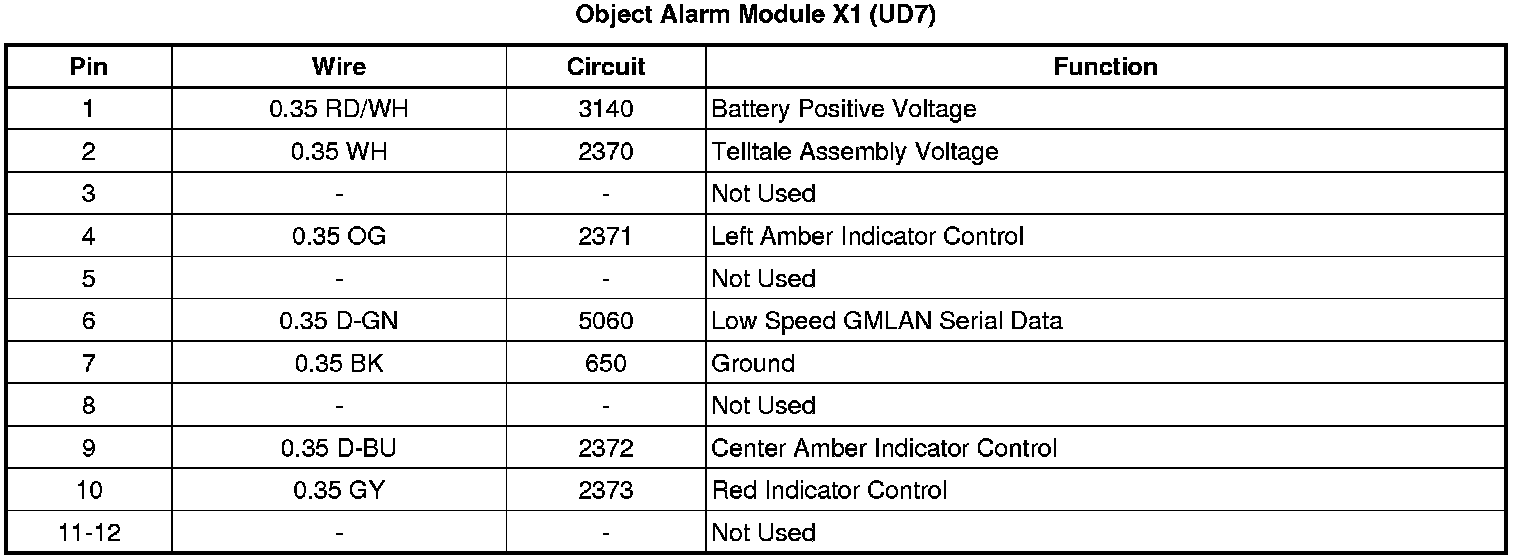

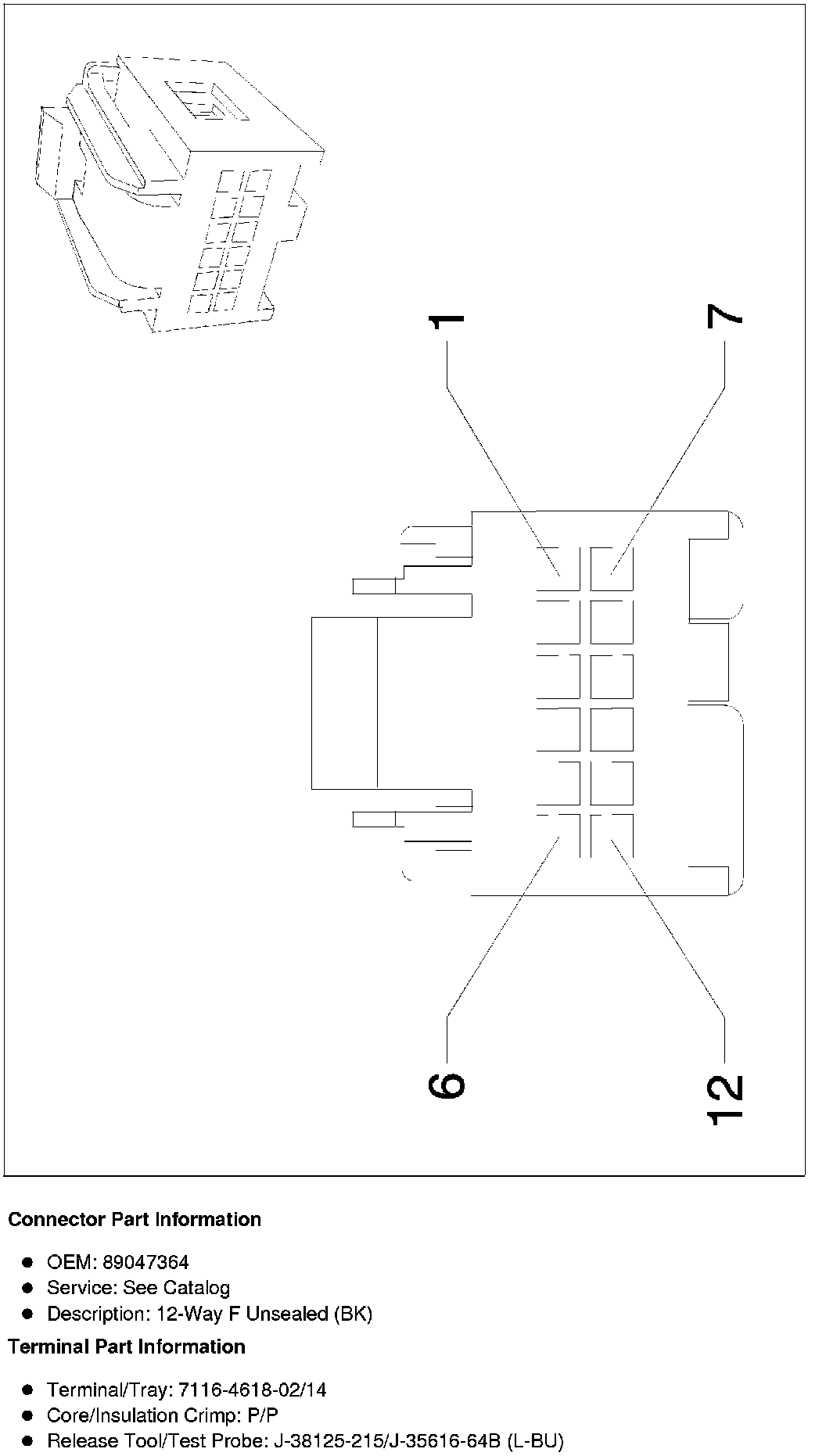

Object Alarm Module X1 (UD7)










Object Alarm Module X2 (UD7)
