Power Door Lock Switch




Component Connector End Views

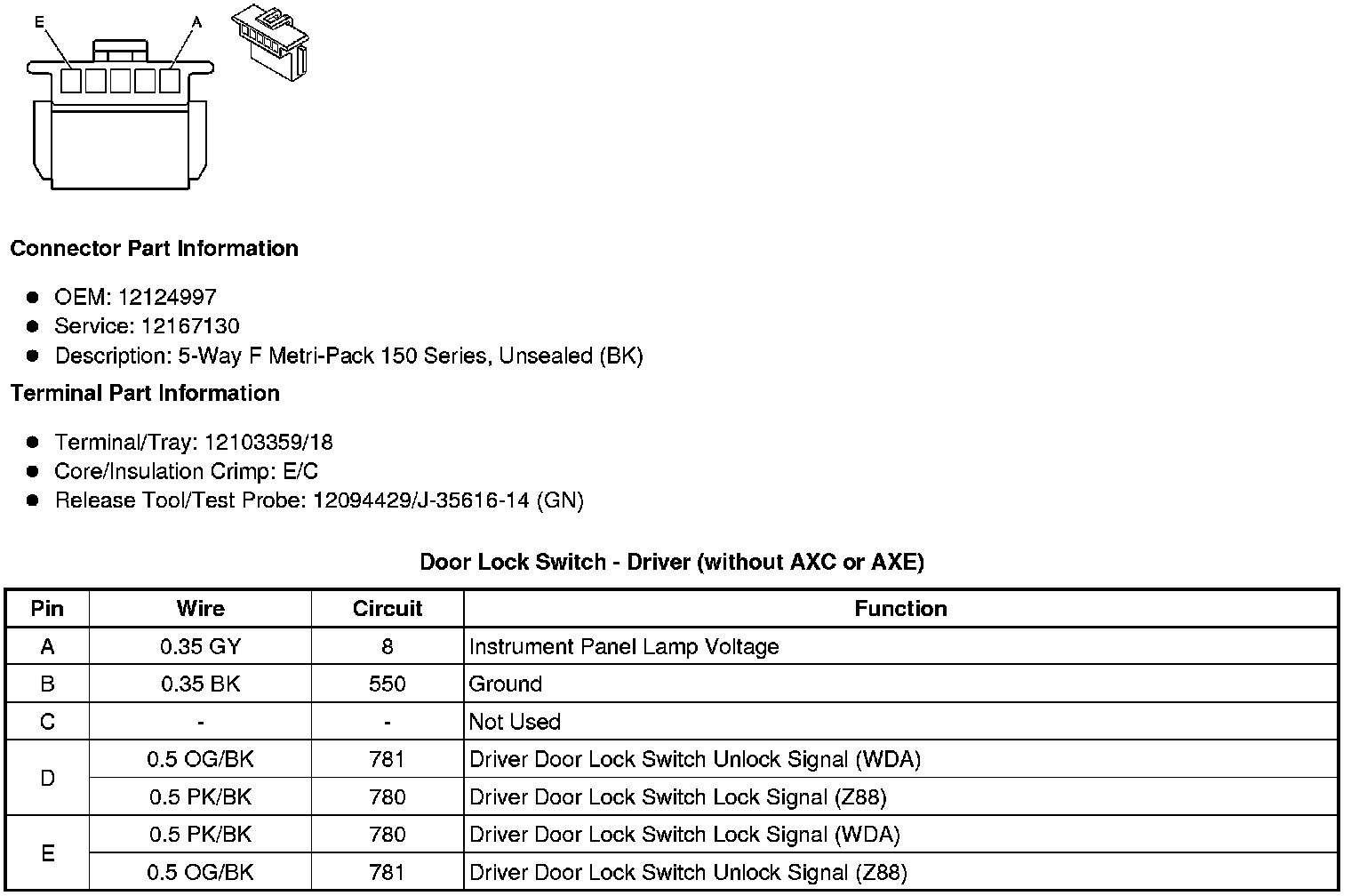

Door Lock Switch - Driver (without AXC or AXE)

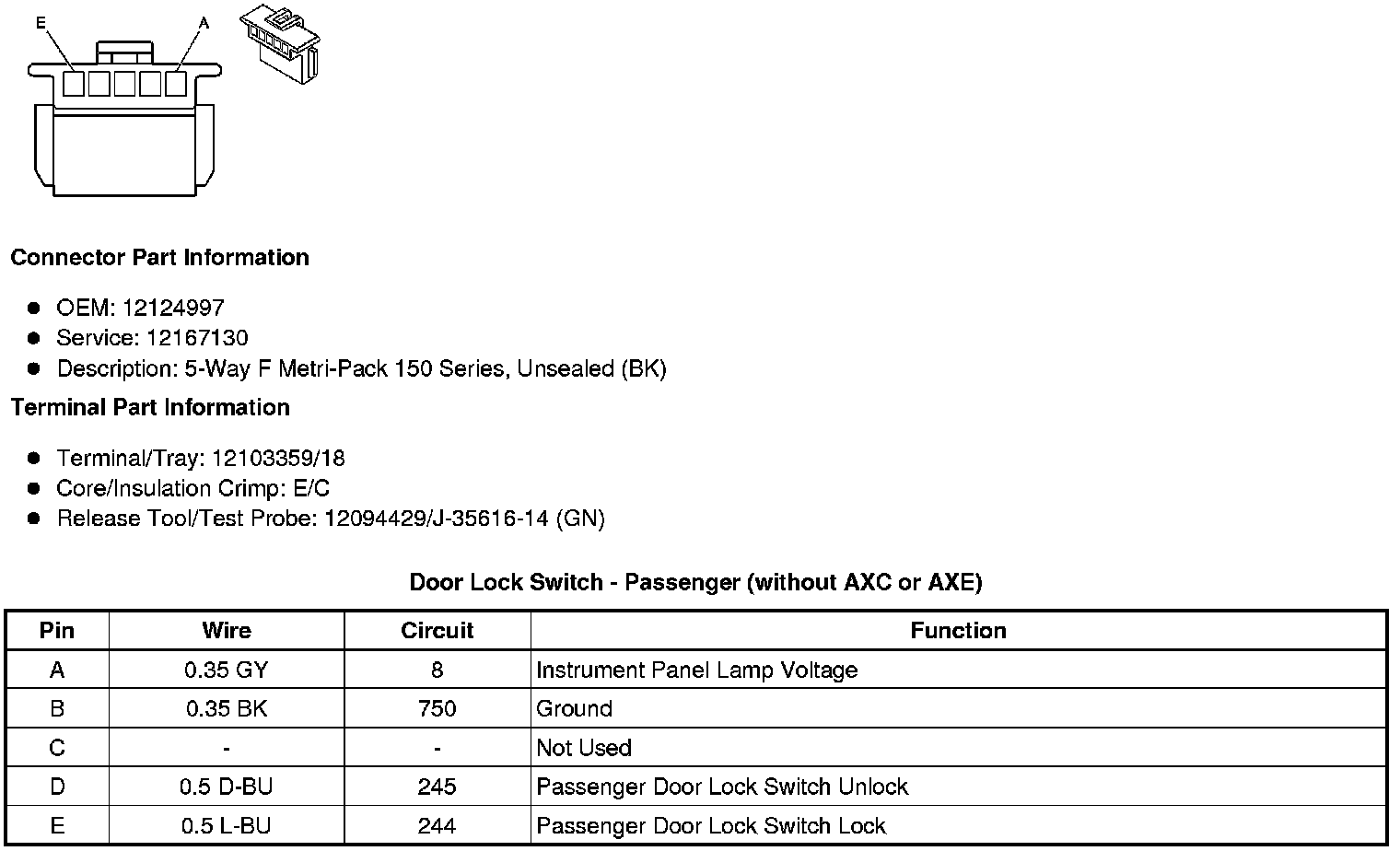

Door Lock Switch - Passenger (without AXC or AXE)
