Power Seat Motor
Component Connector End Views
Seat Front Vertical Motor - Driver (AG1 or AG3 or AH5)
Seat Horizontal Motor - Driver (AG1 or AG3 or AH5)
Seat Horizontal Motor - Passenger (AAQ or AG2)
Seat Lumbar Horizontal Motor - Driver (AG3 or AH5)
Seat Lumbar Horizontal Motor - Passenger (AAQ)

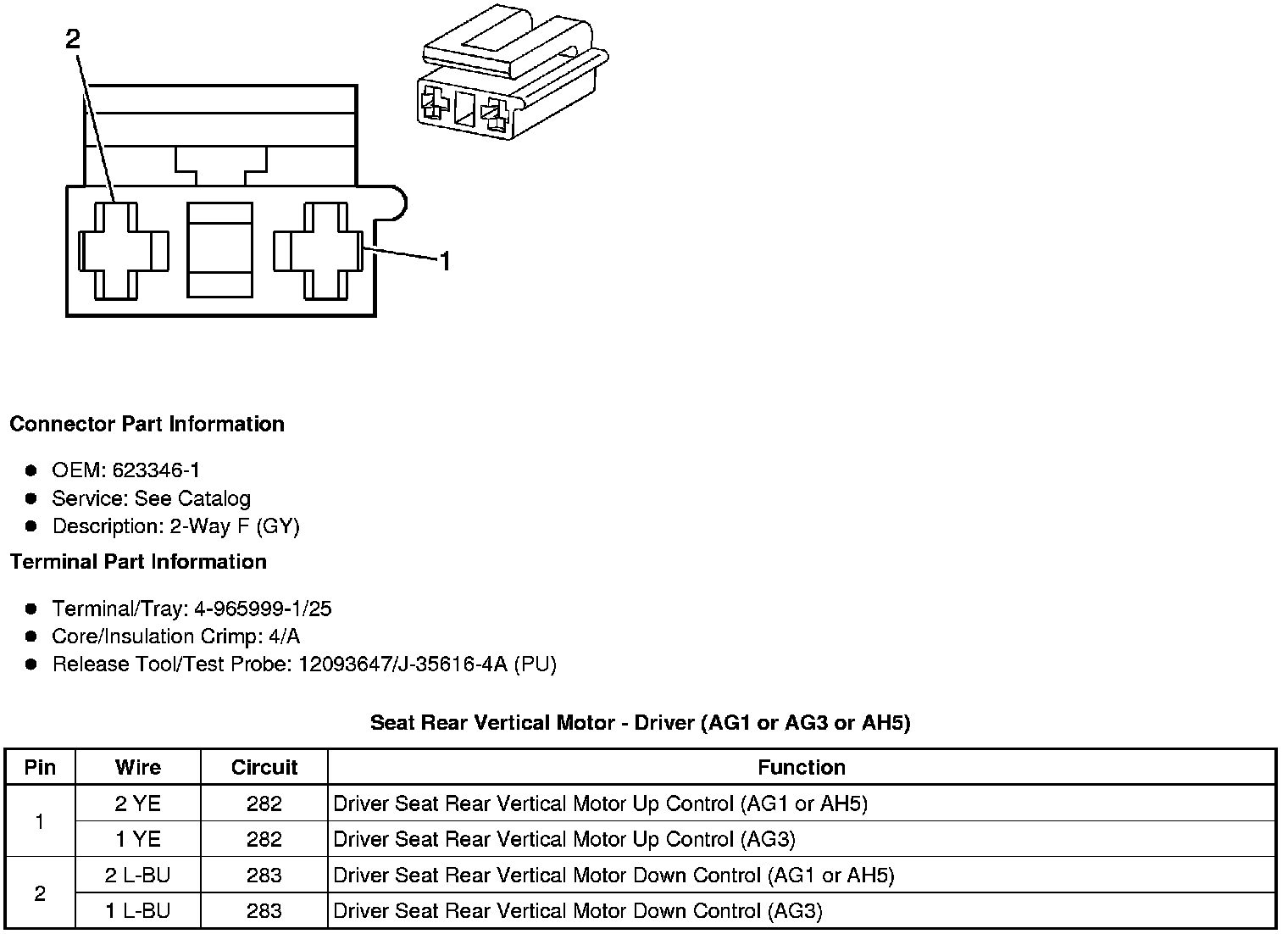

Seat Rear Vertical Motor - Driver (AG1 or AG3 or AH5)

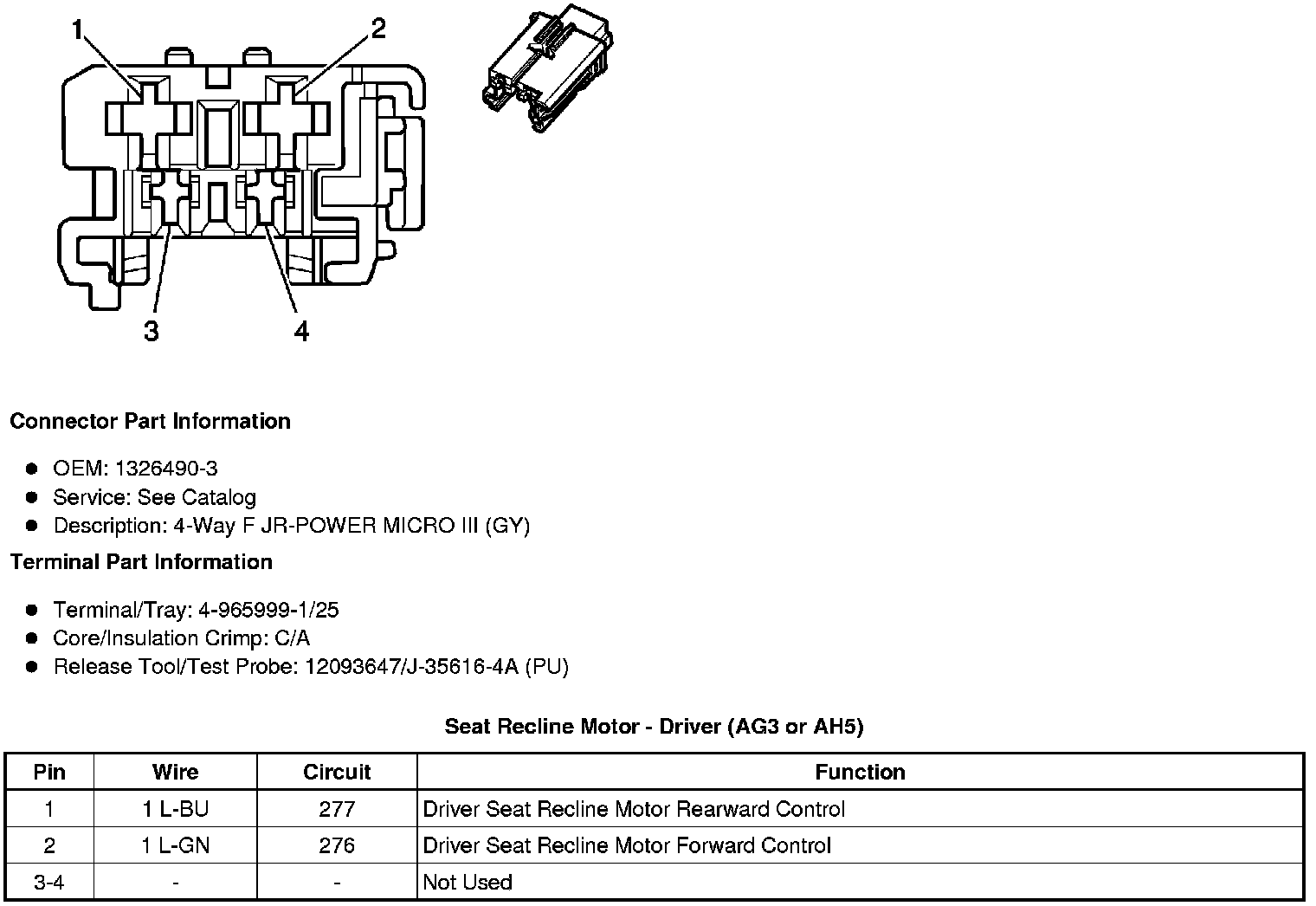

Seat Recline Motor - Driver (AG3 or AH5)

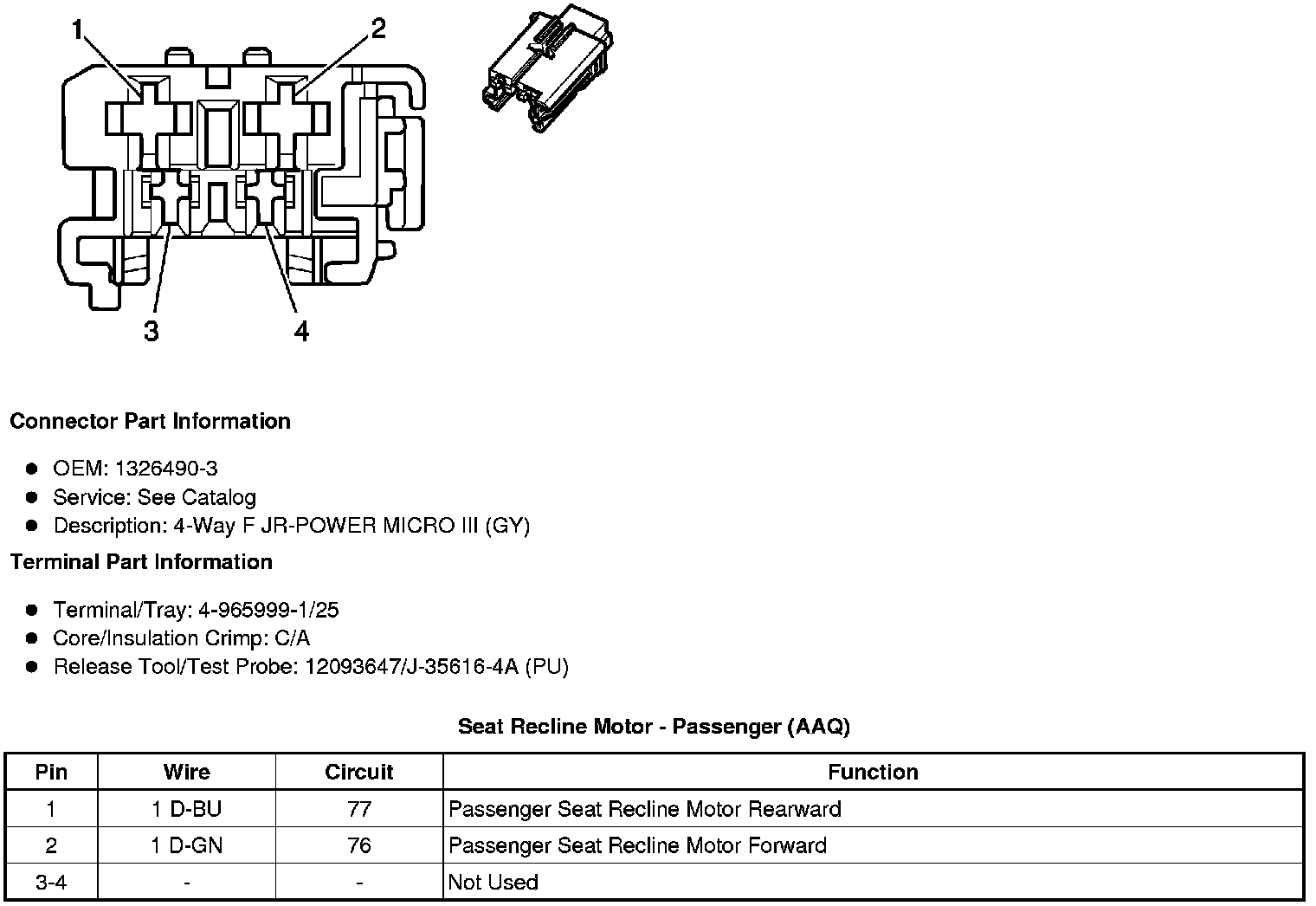

Seat Recline Motor - Passenger (AAQ)
