Power Window Switch




Component Connector End Views

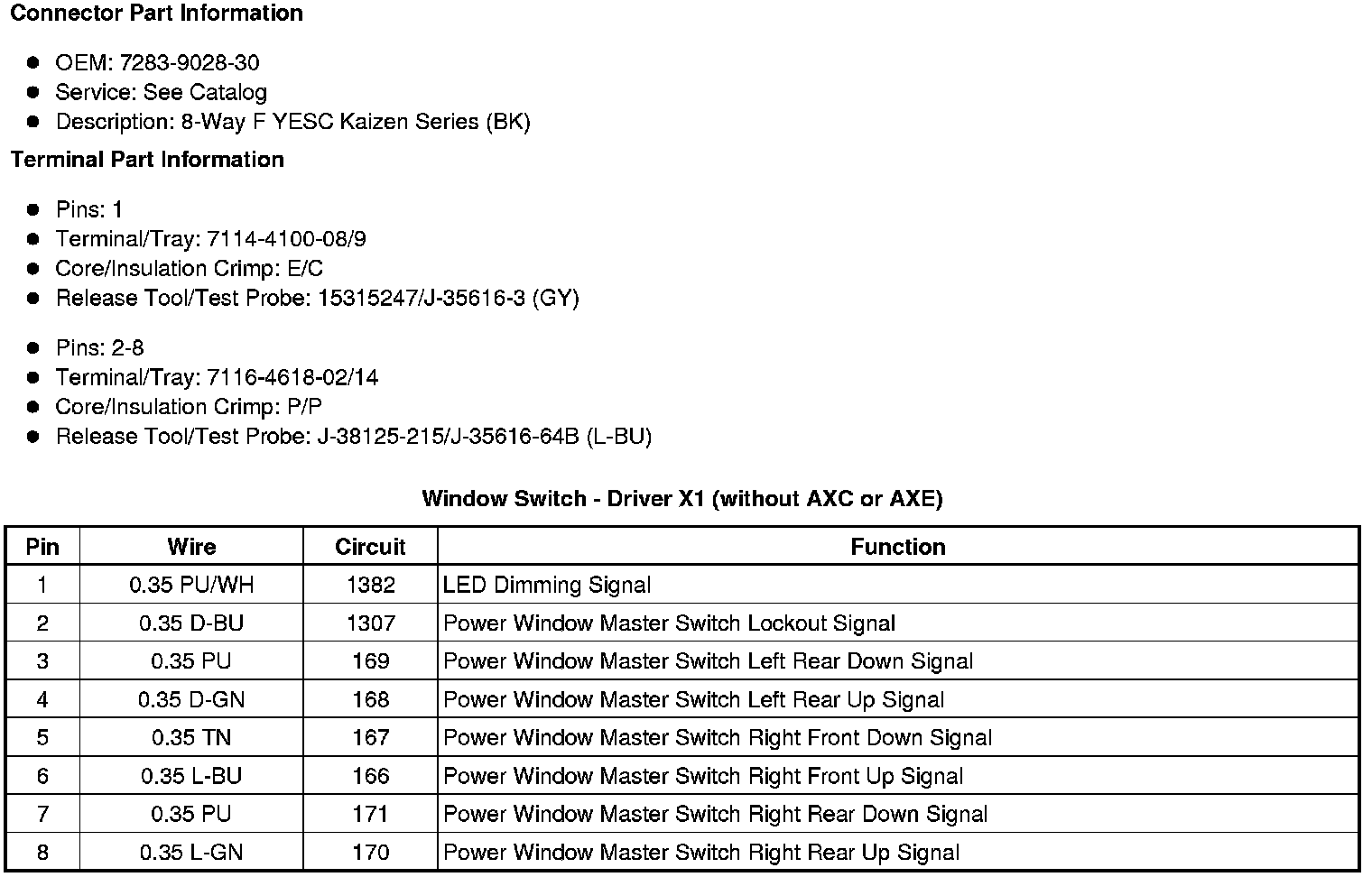

Window Switch - Driver X1 (without AXC or AXE)

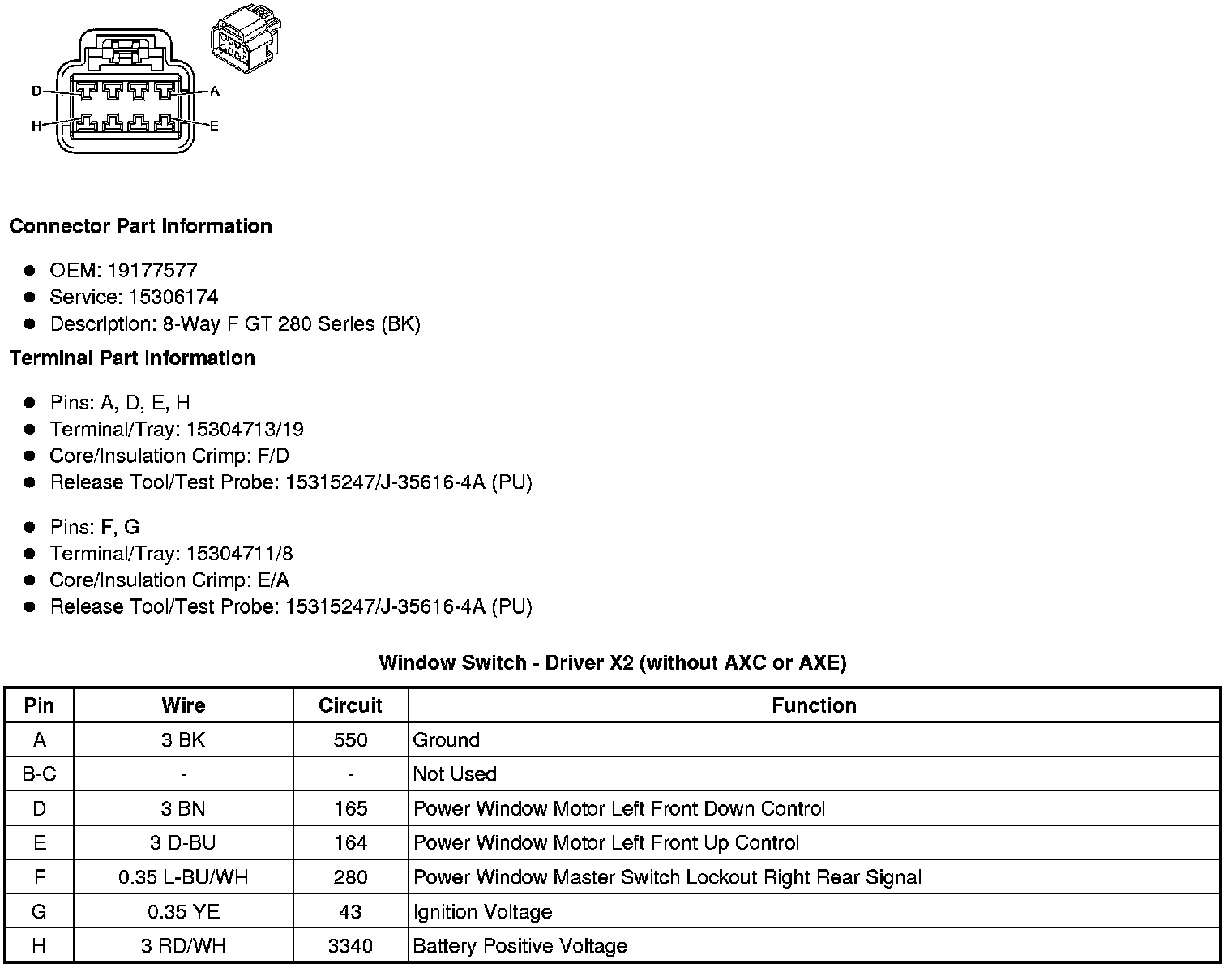

Window Switch - Driver X2 (without AXC or AXE)

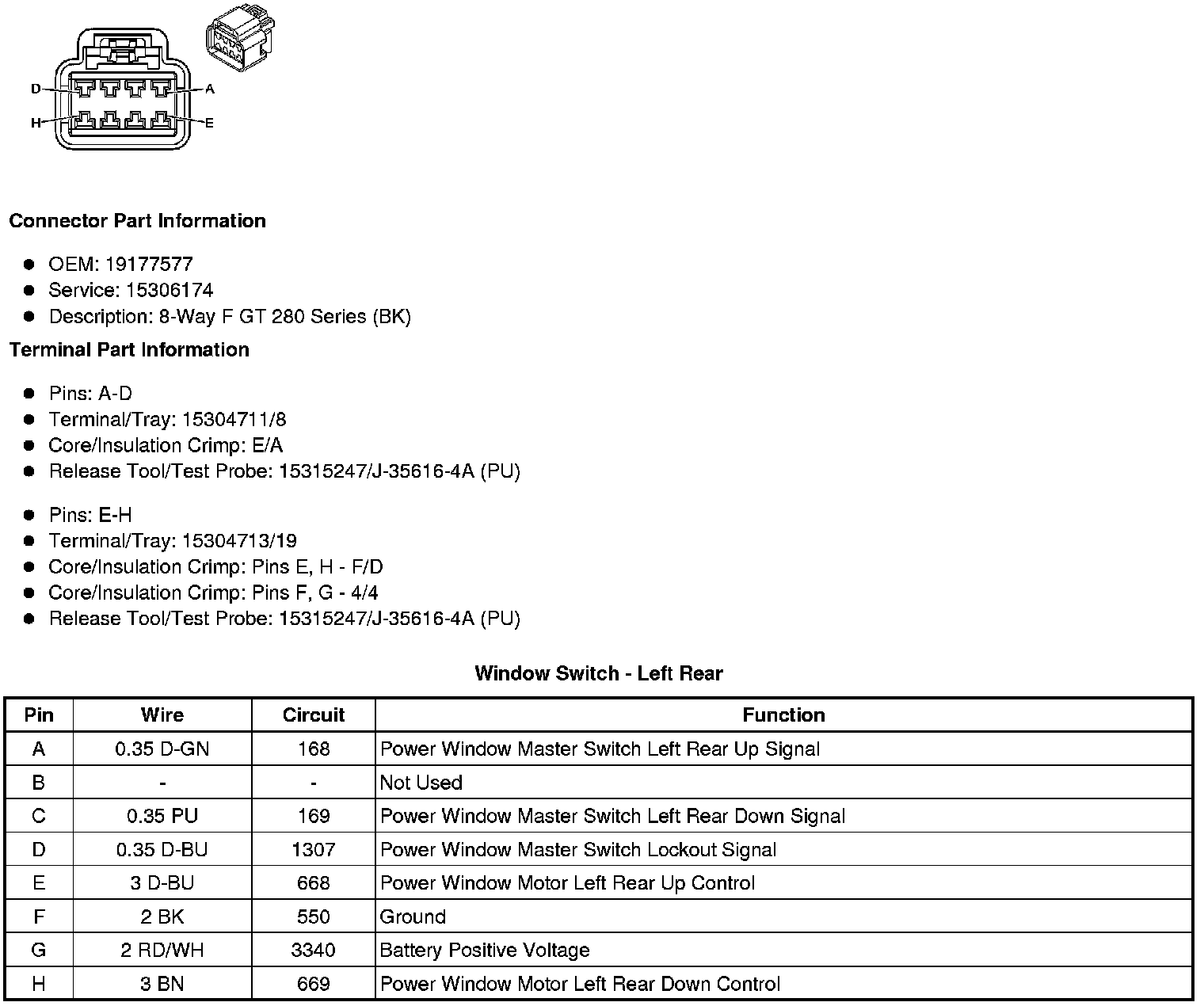

Window Switch - Left Rear

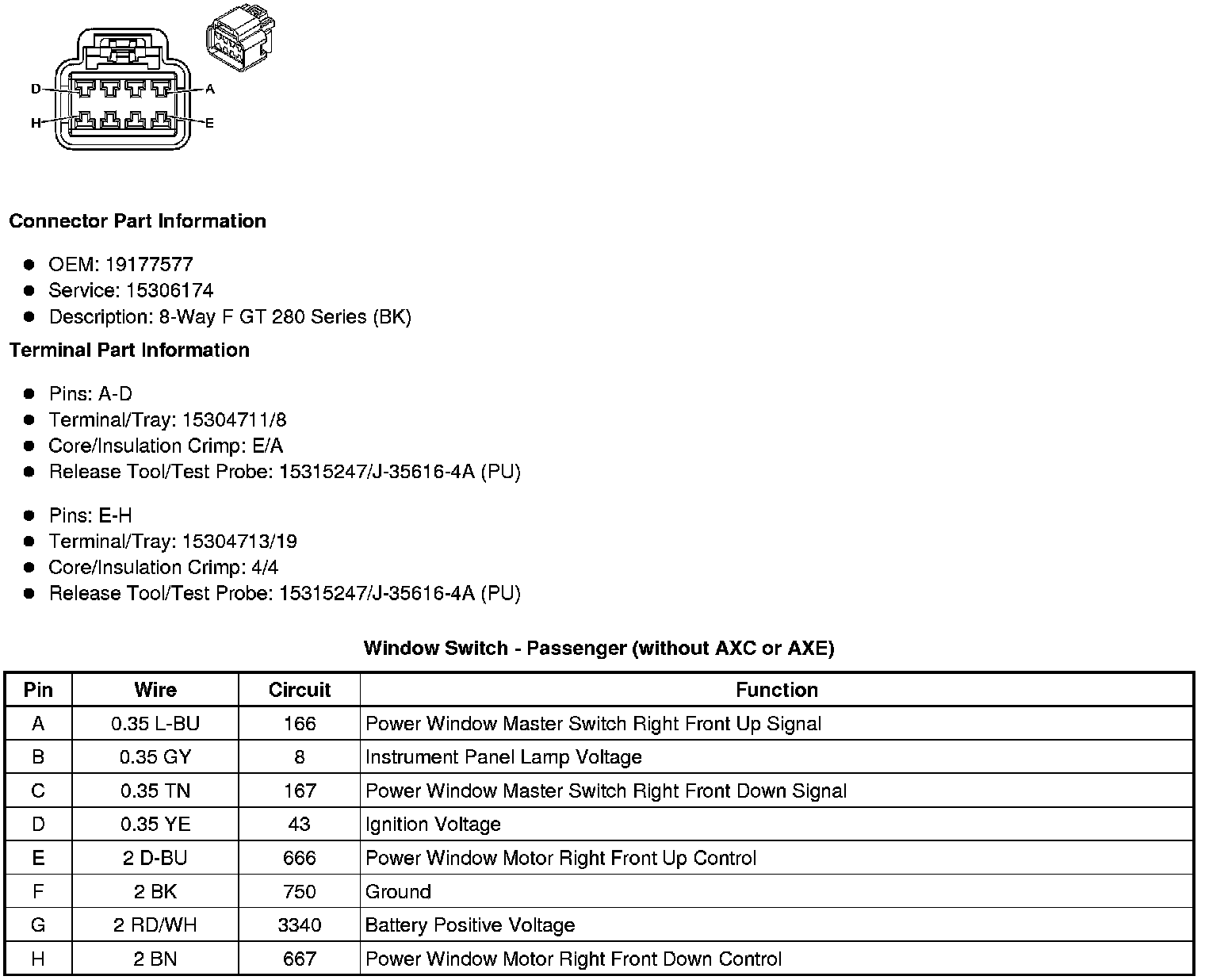

Window Switch - Passenger (without AXC or AXE)

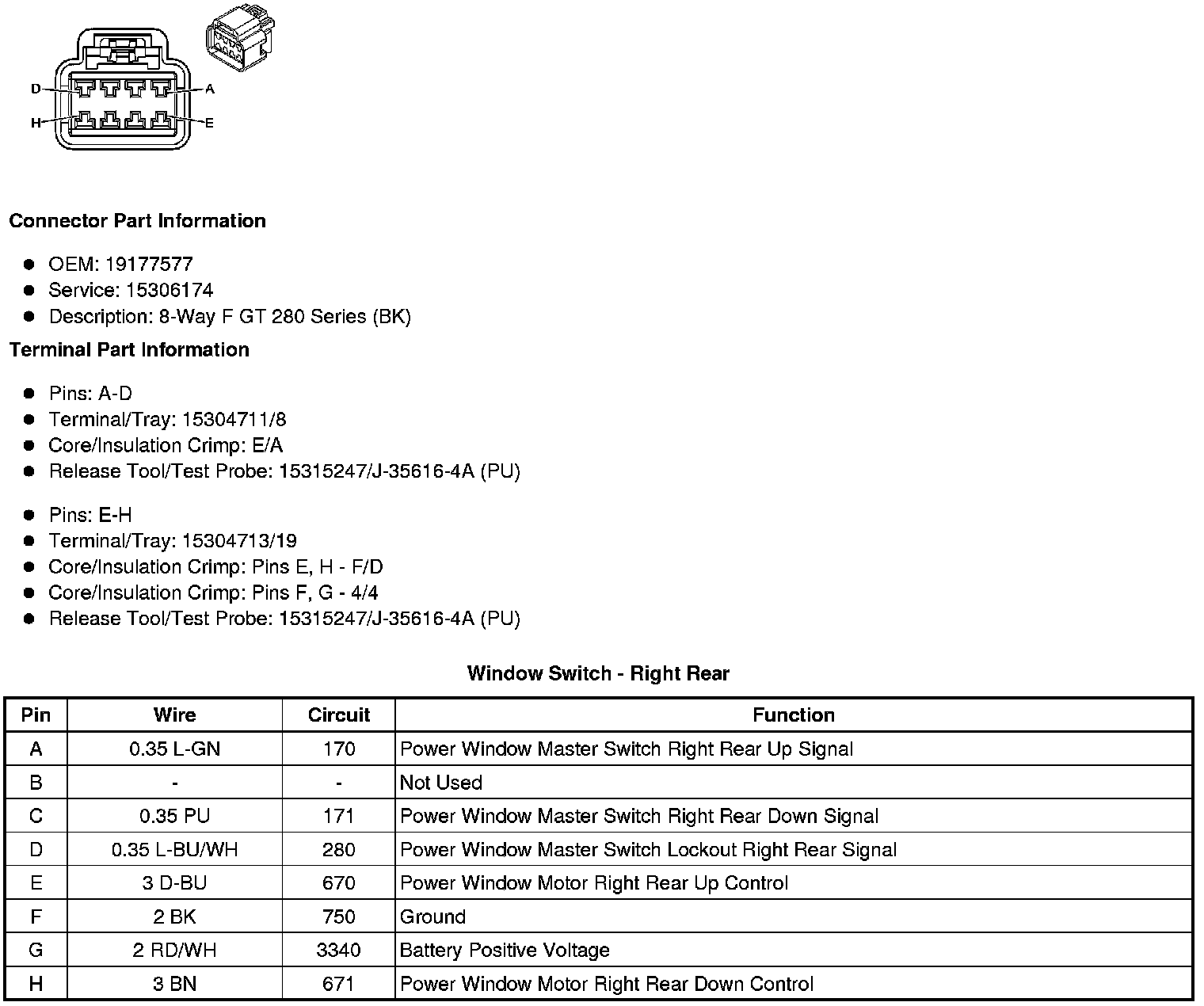

Window Switch - Right Rear
