Seat Temperature Control Module
Component Connector End Views

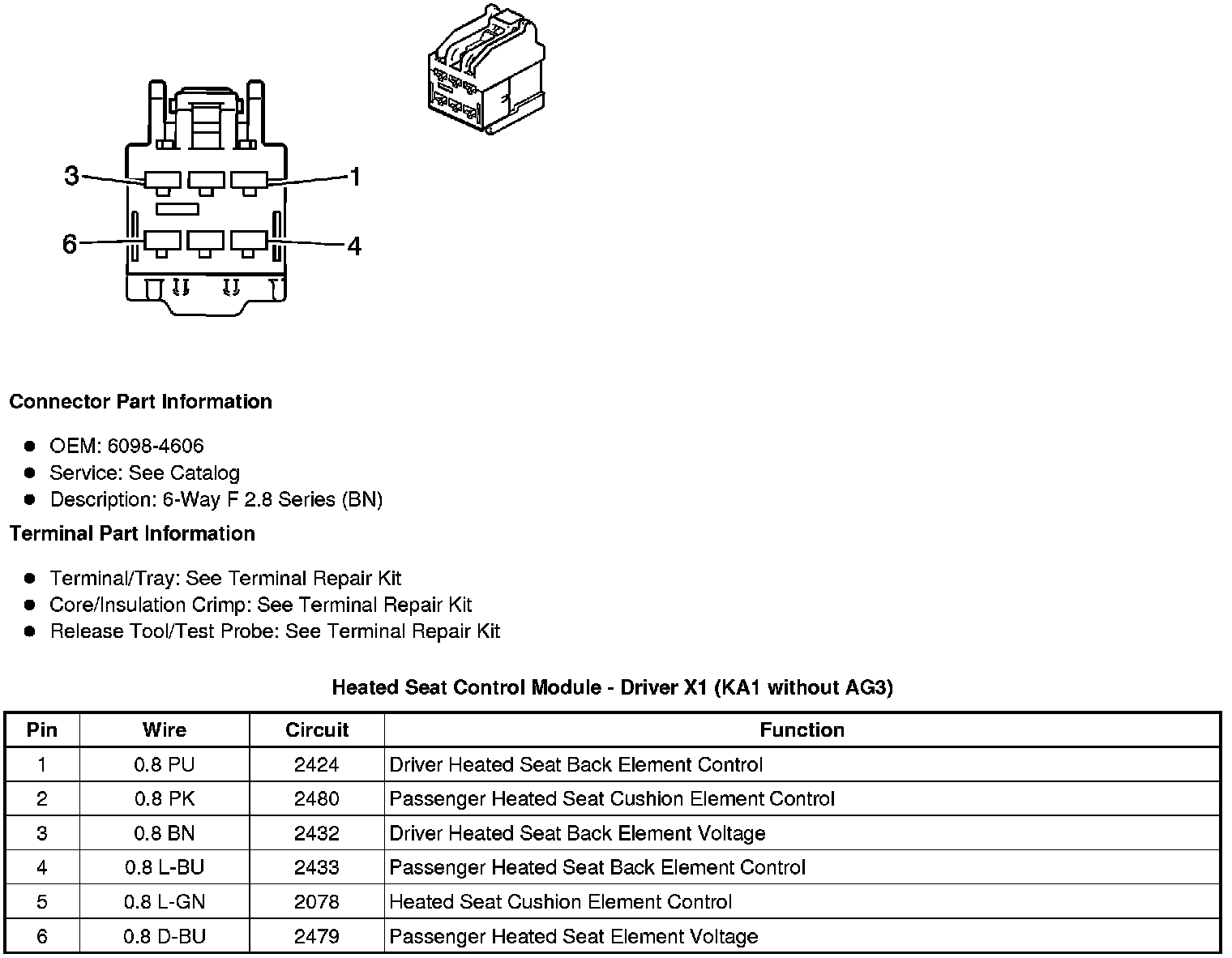

Heated Seat Control Module - Driver X1 (KA1 without AG3)

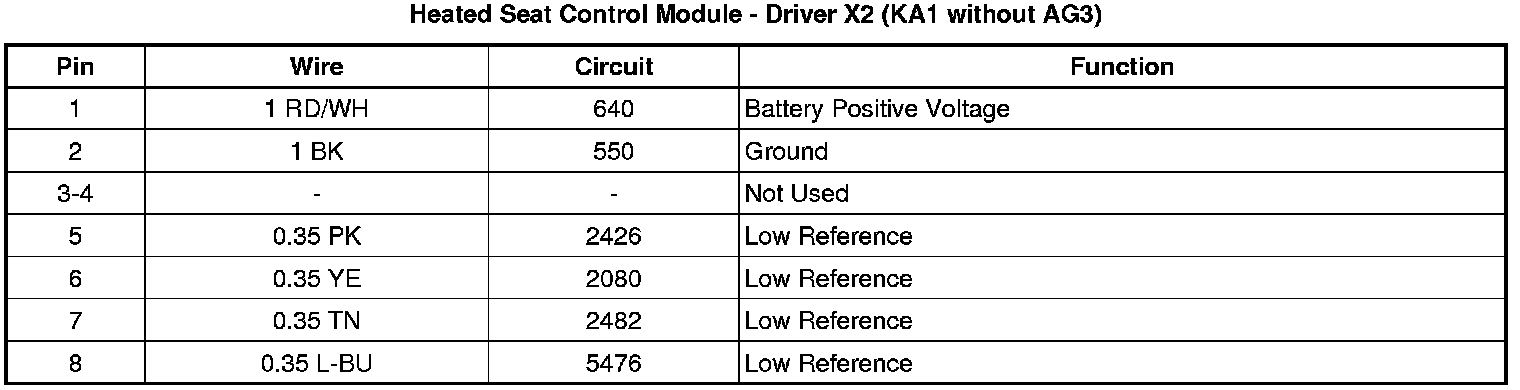

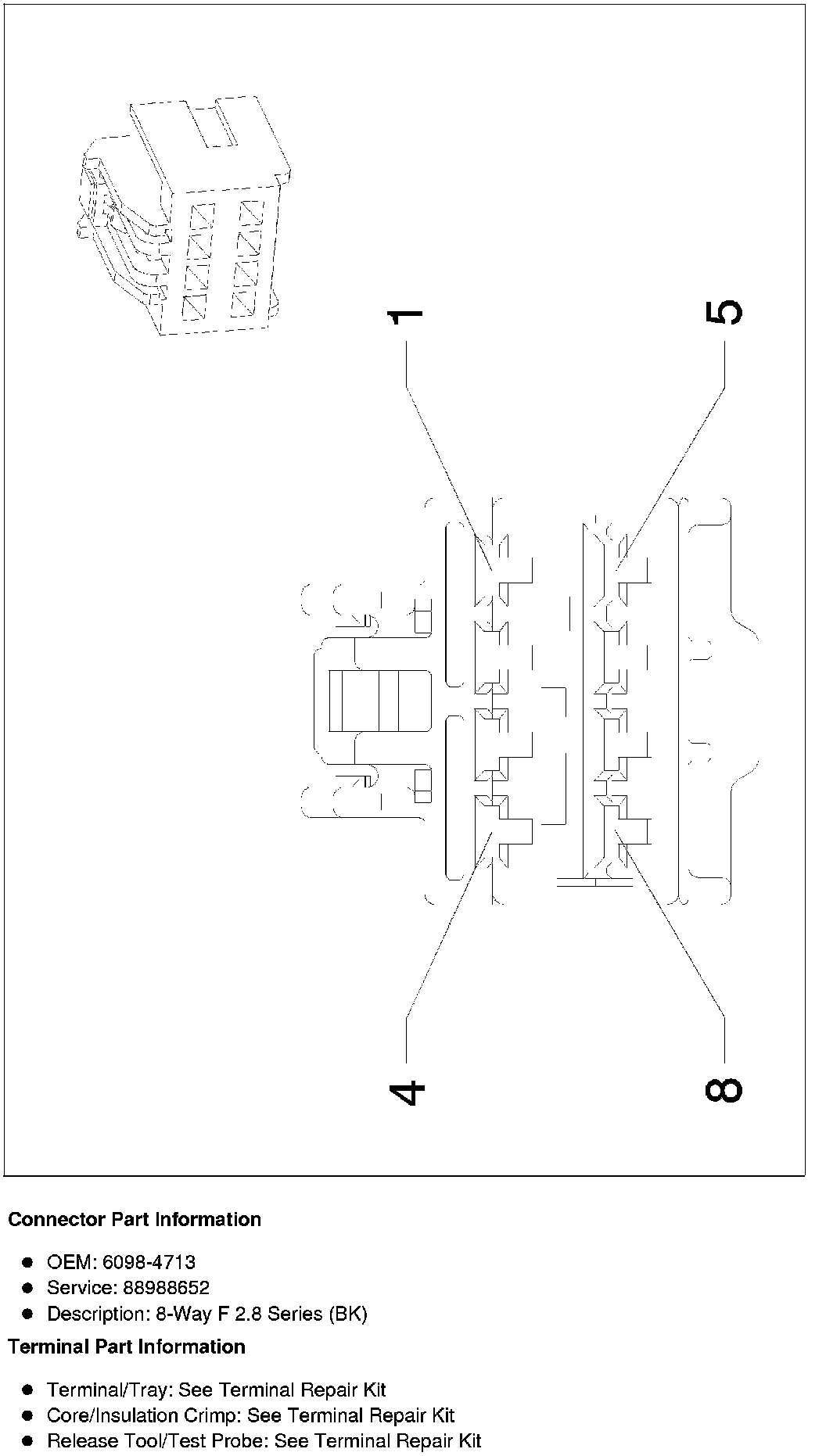

Heated Seat Control Module - Driver X2 (KA1 without AG3)

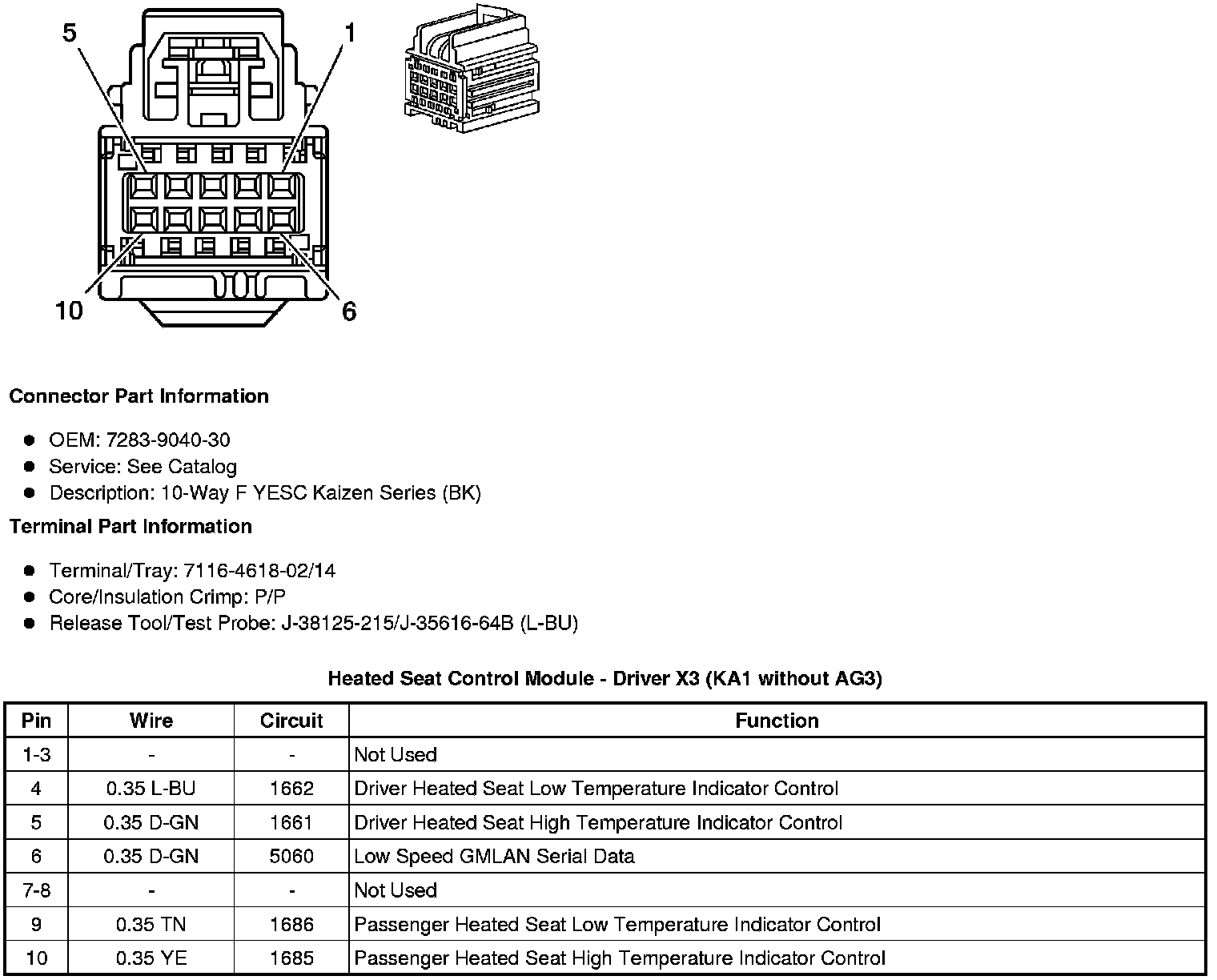

Heated Seat Control Module - Driver X3 (KA1 without AG3)

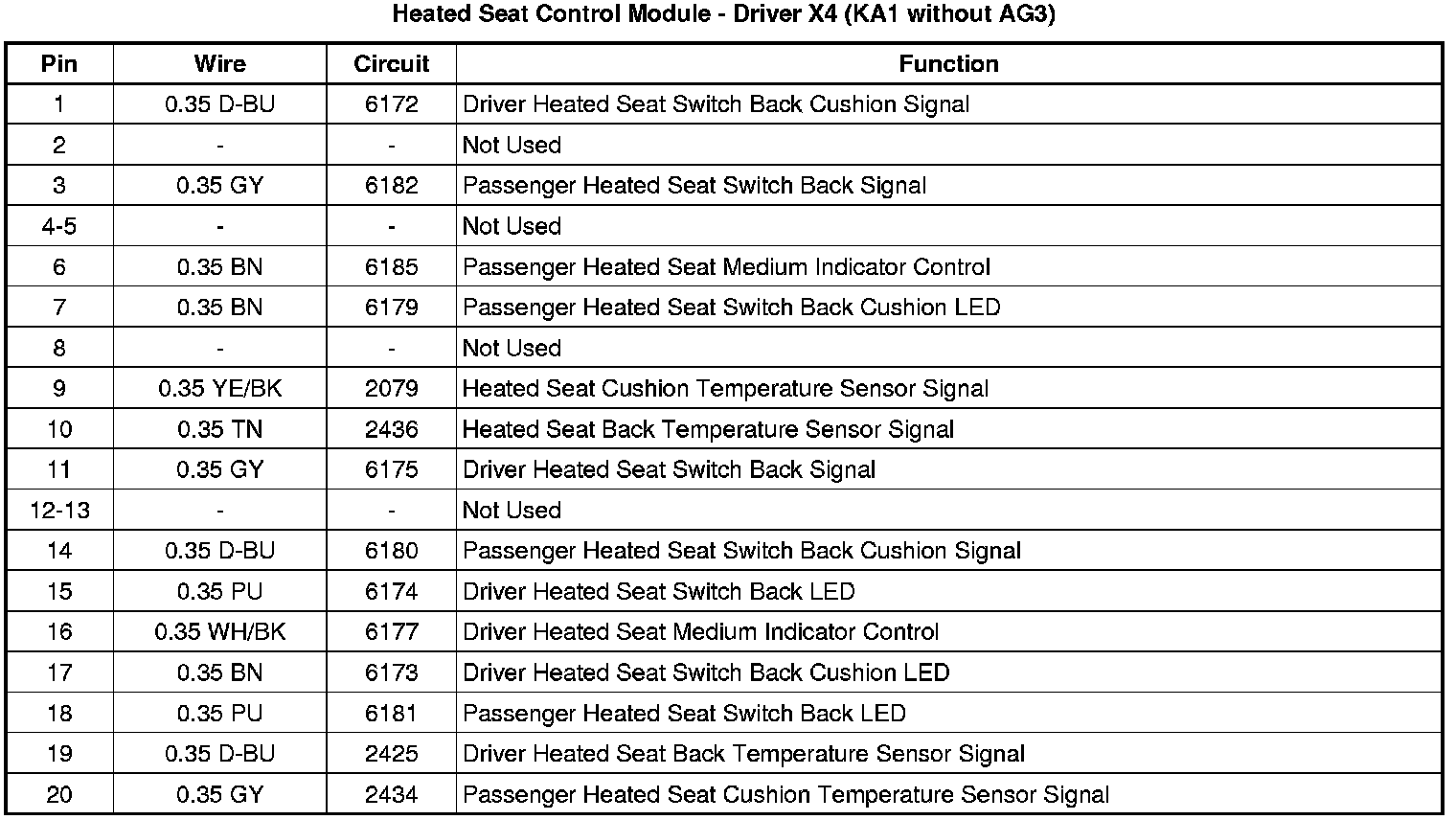

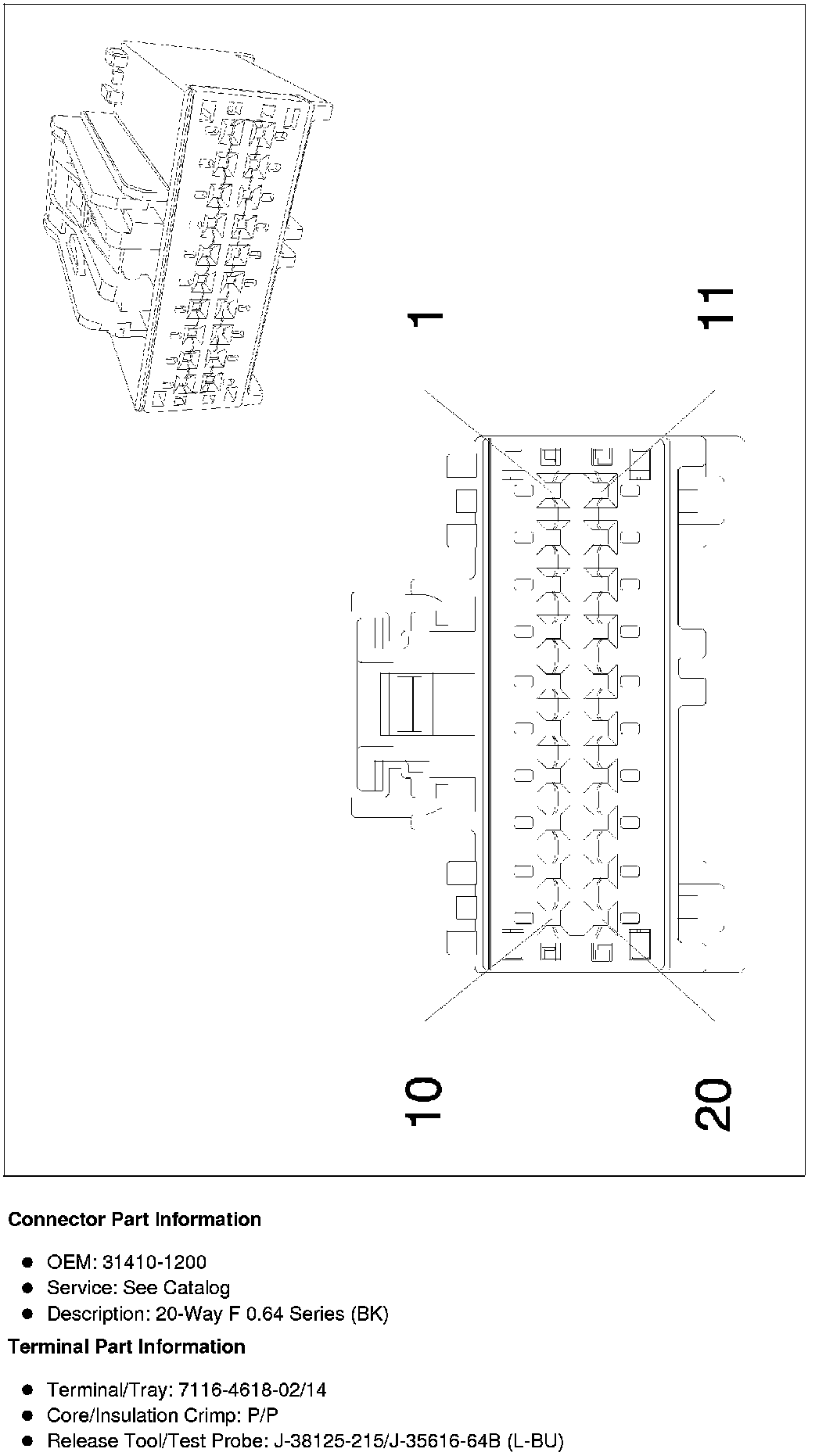

Heated Seat Control Module - Driver X4 (KA1 without AG3)

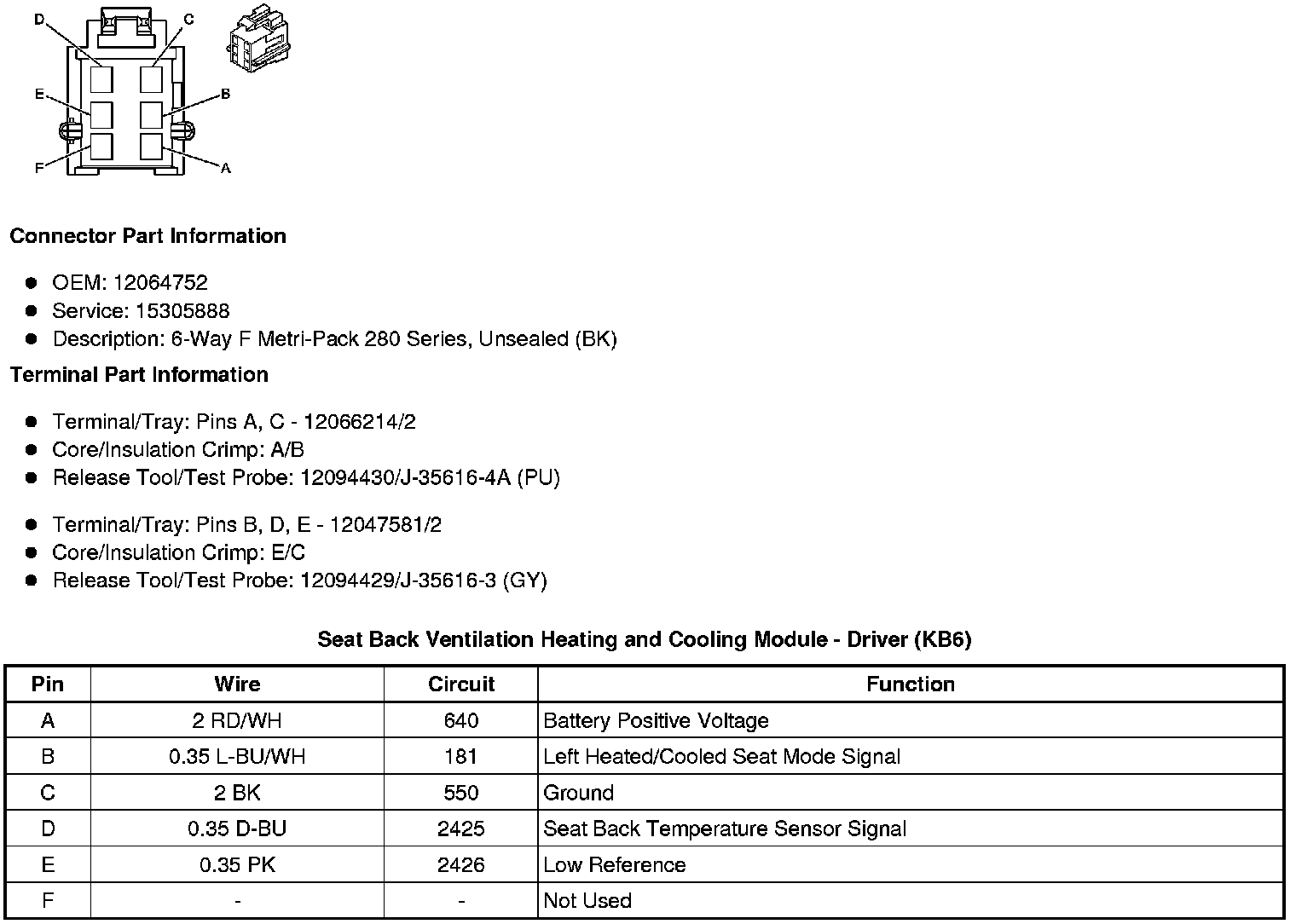

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)

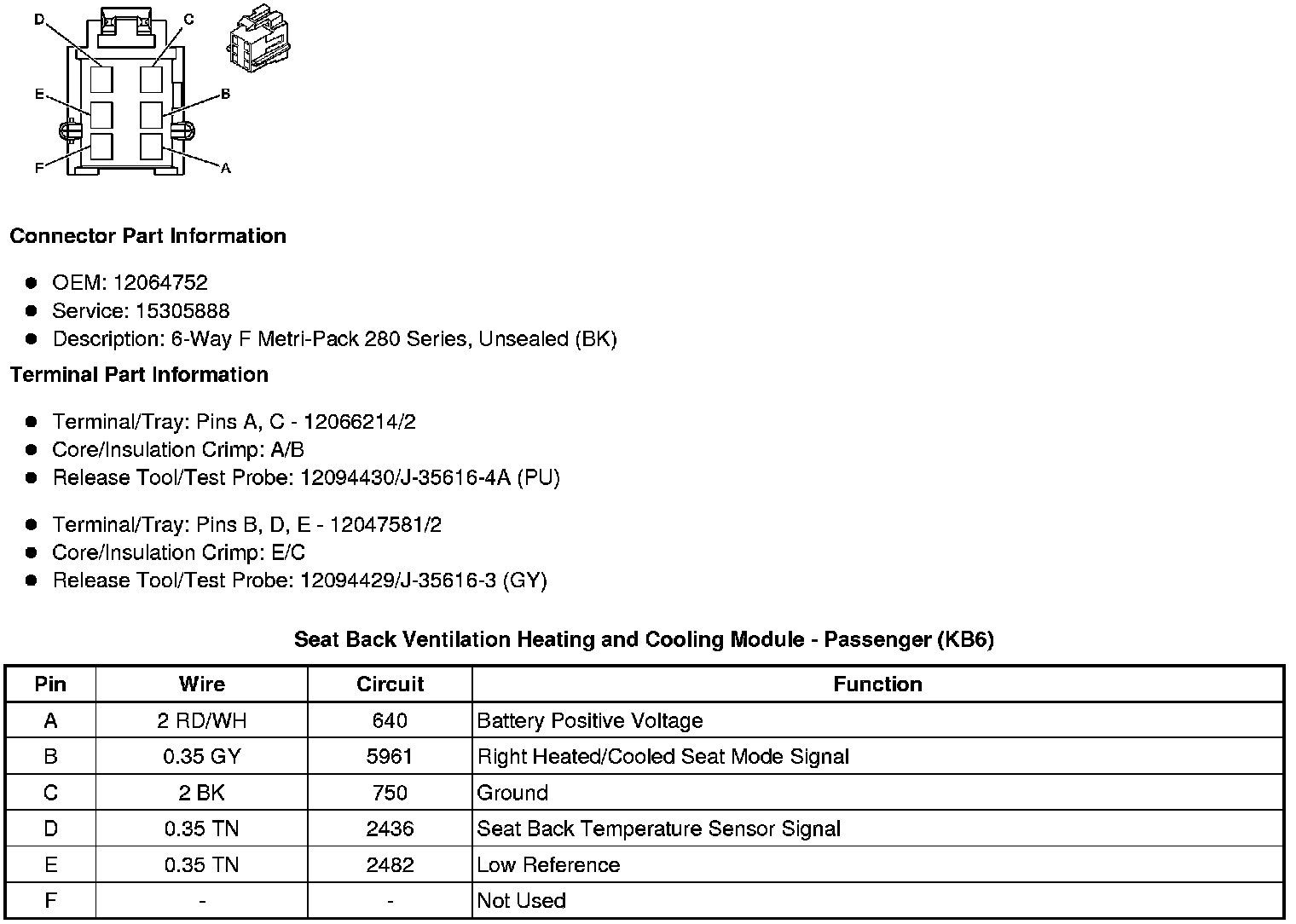

Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)
Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)
Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)
