Telescoping Wheel Motor




Component Connector End Views

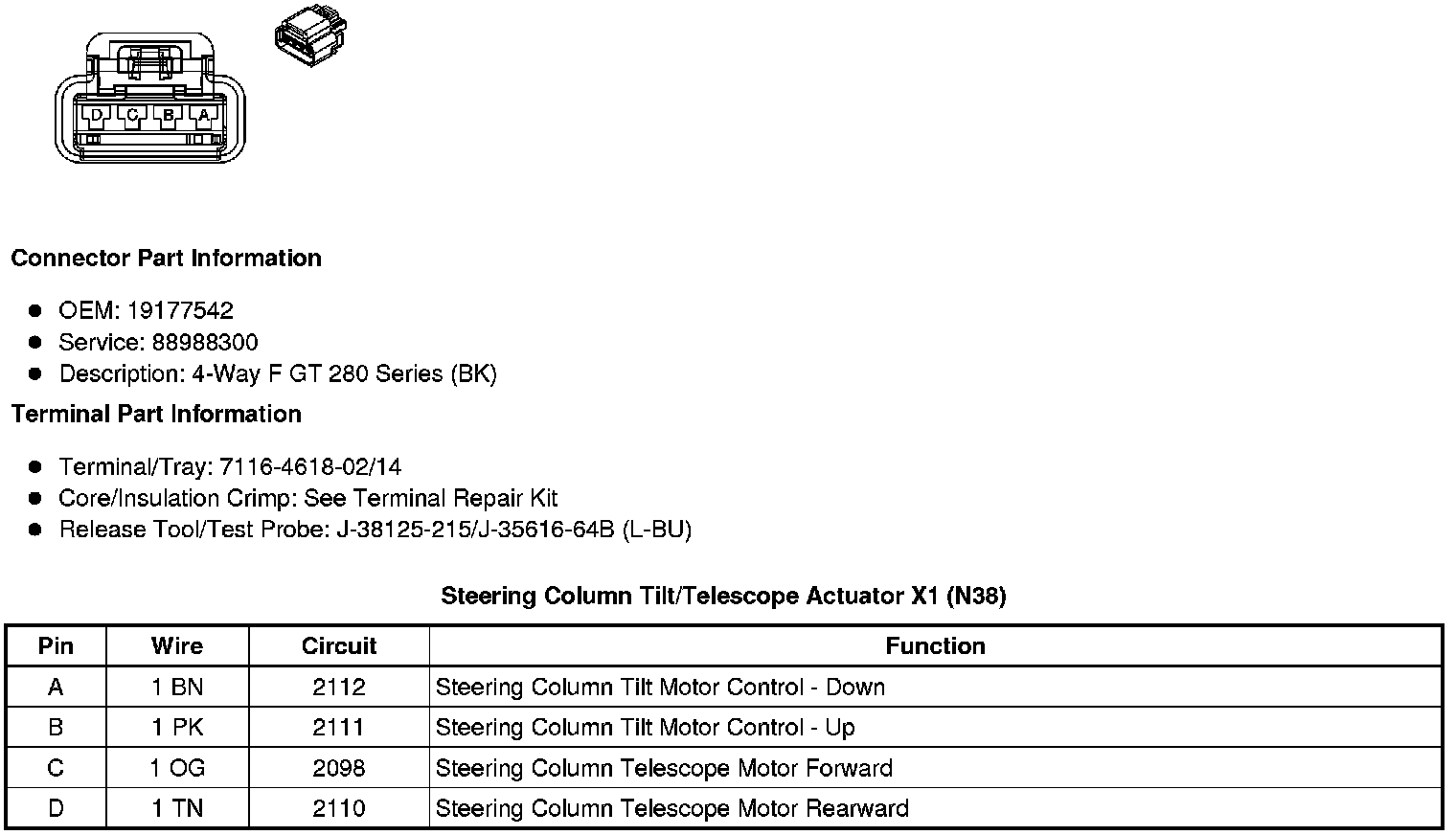

Steering Column Tilt/Telescope Actuator X1 (N38)

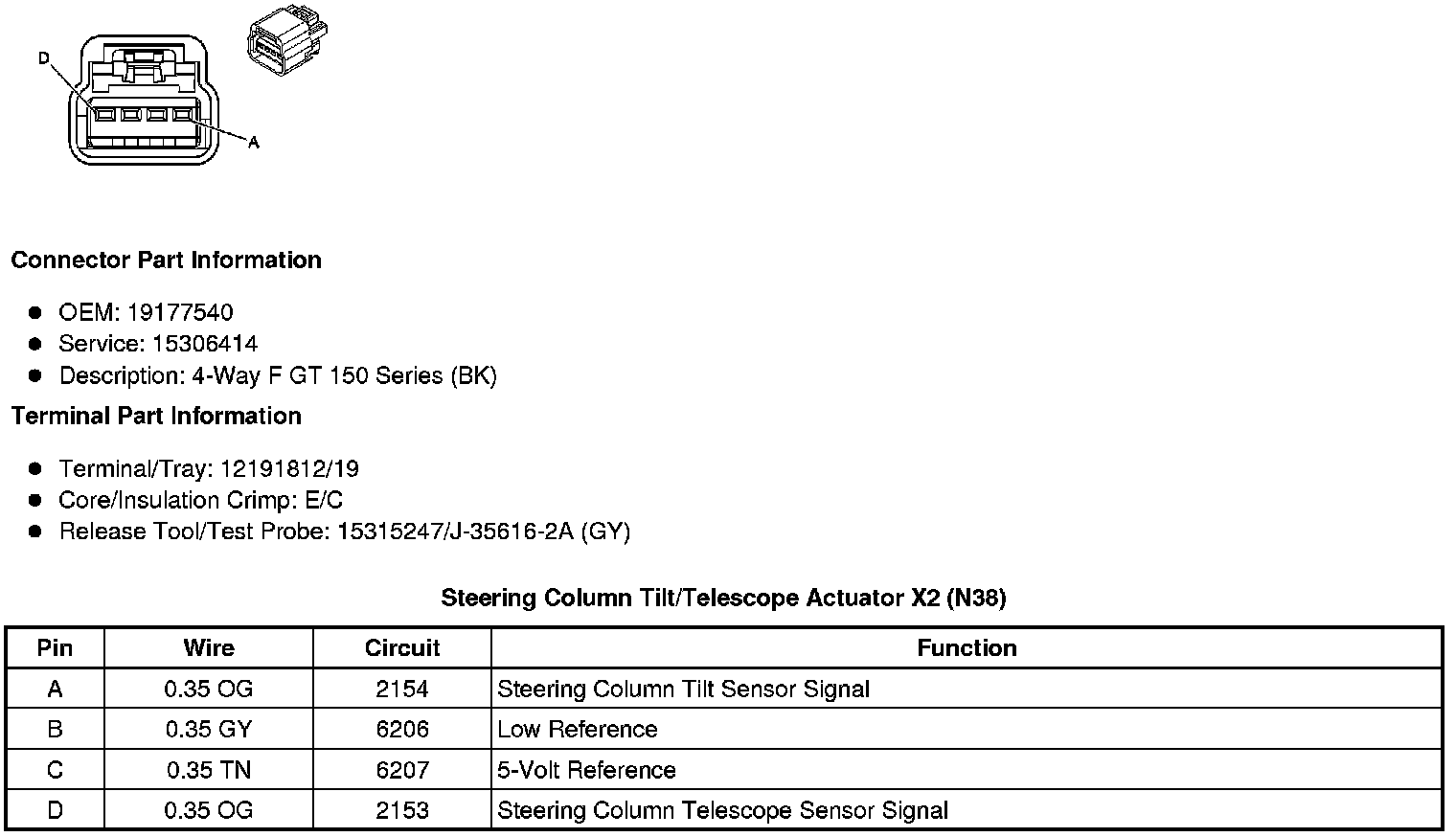

Steering Column Tilt/Telescope Actuator X2 (N38)
