Telescoping Wheel Switch

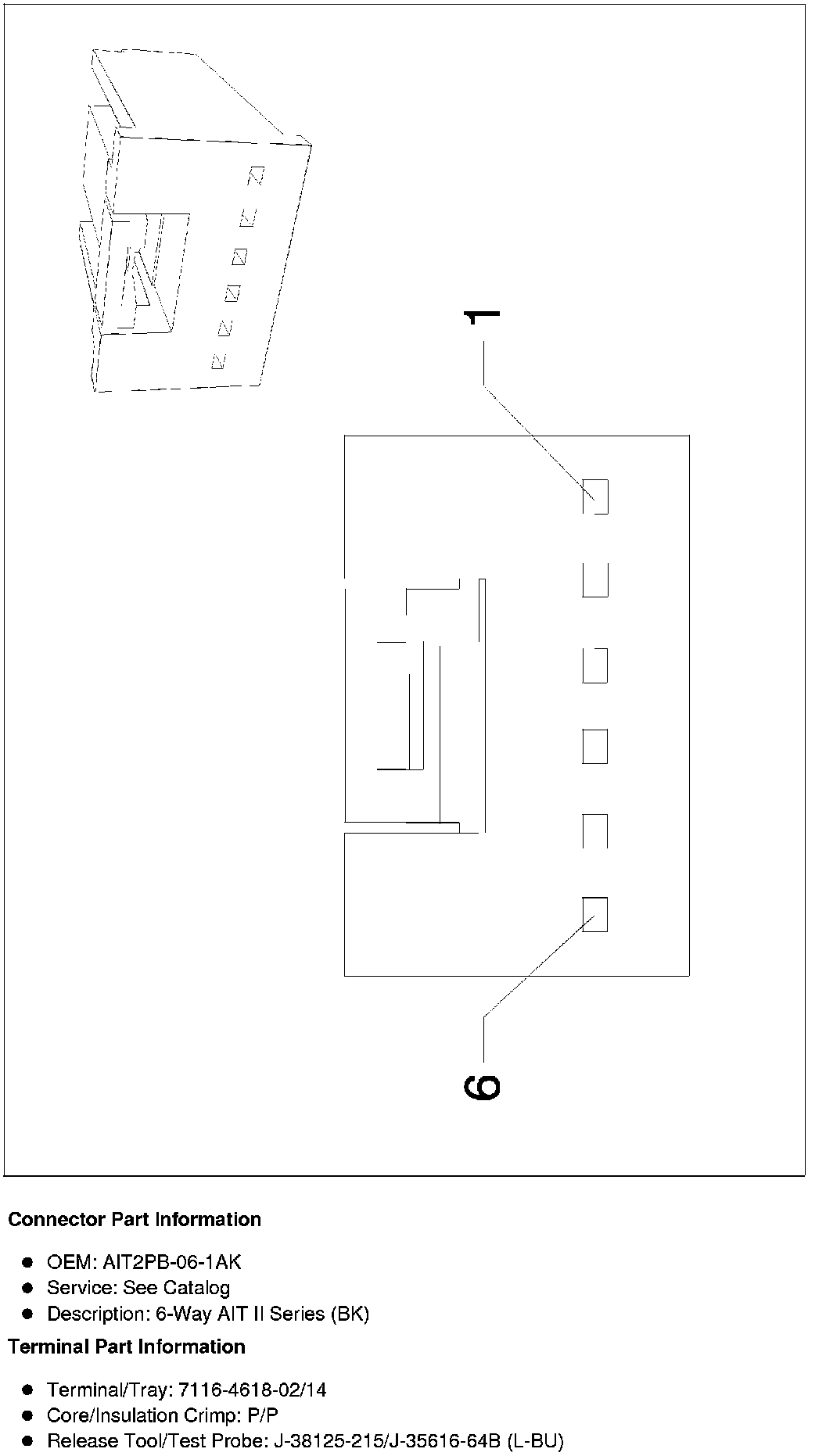

Component Connector End Views

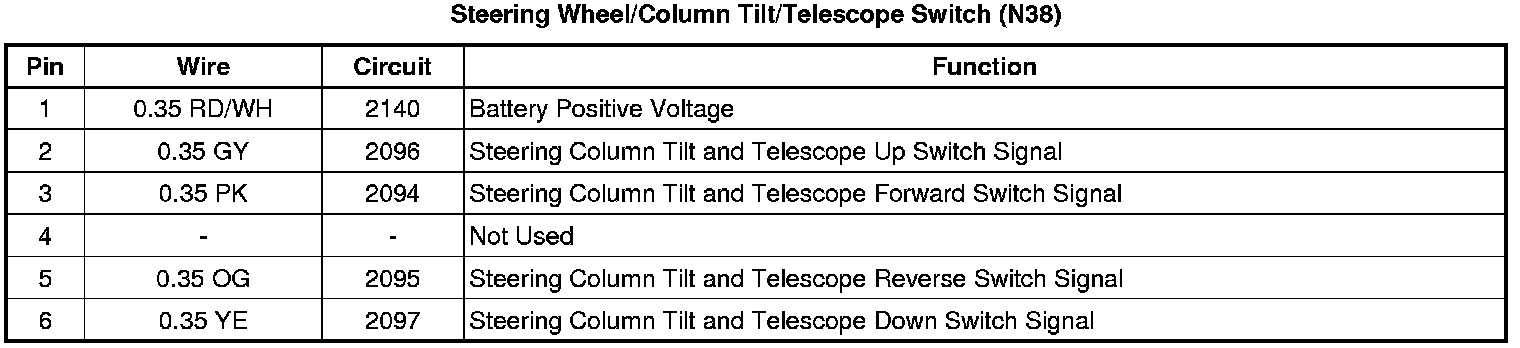

Steering Wheel/Column Tilt/Telescope Switch (N38)
