Body Control Systems




Body Control System Schematics

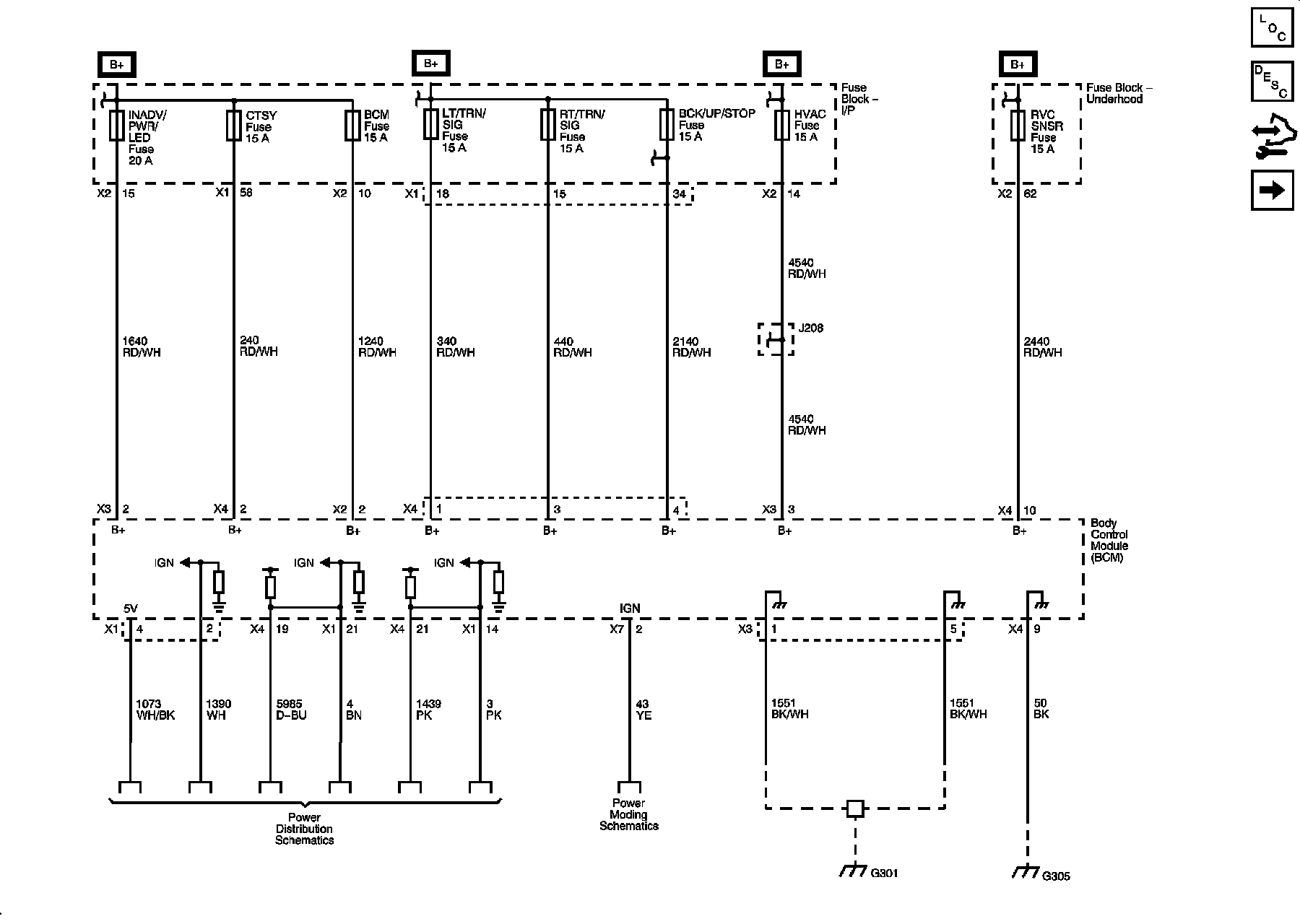

Module Power, Ground, and References to Power Distribution and Power Moding

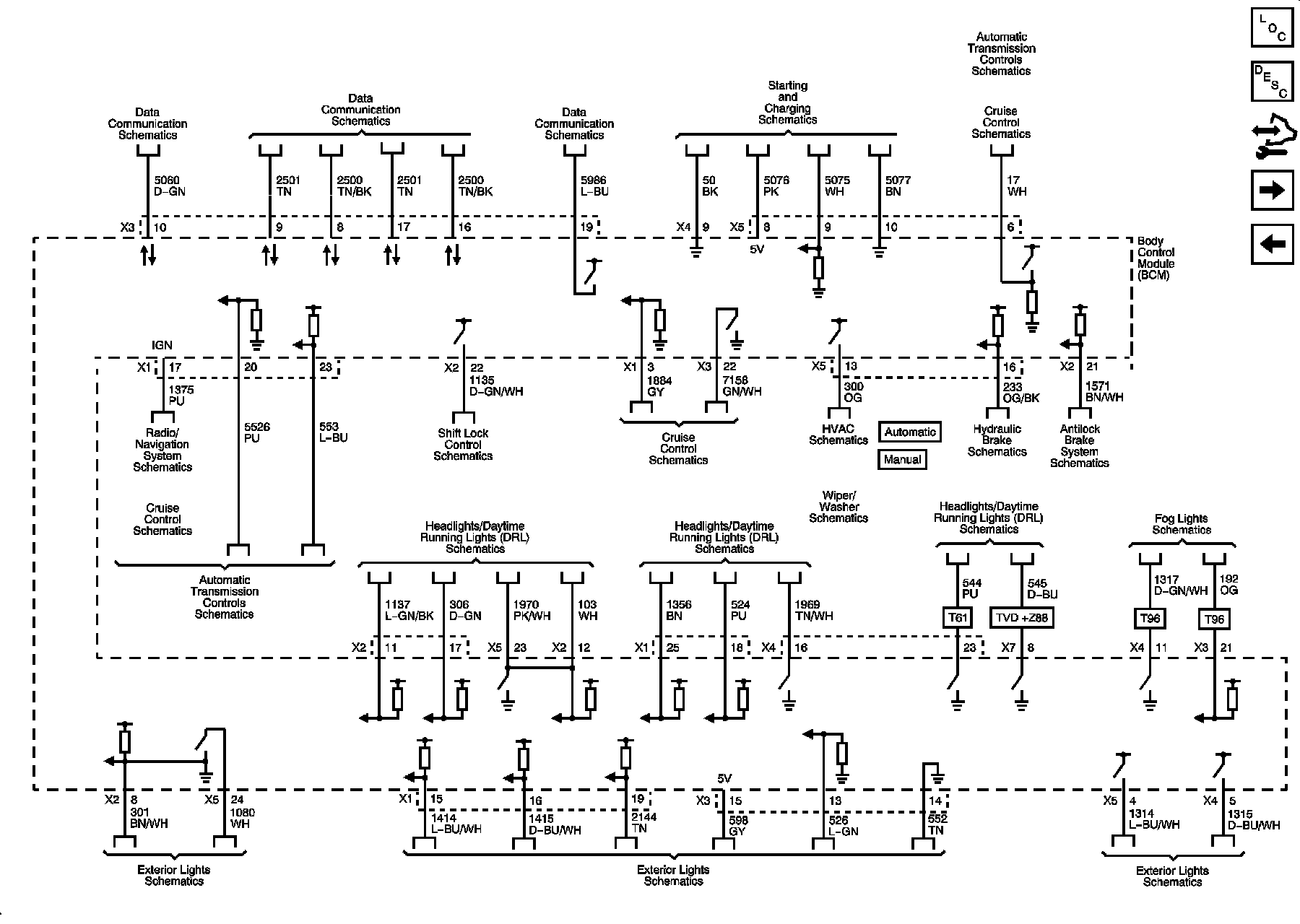

Subsystem References 1 of 3

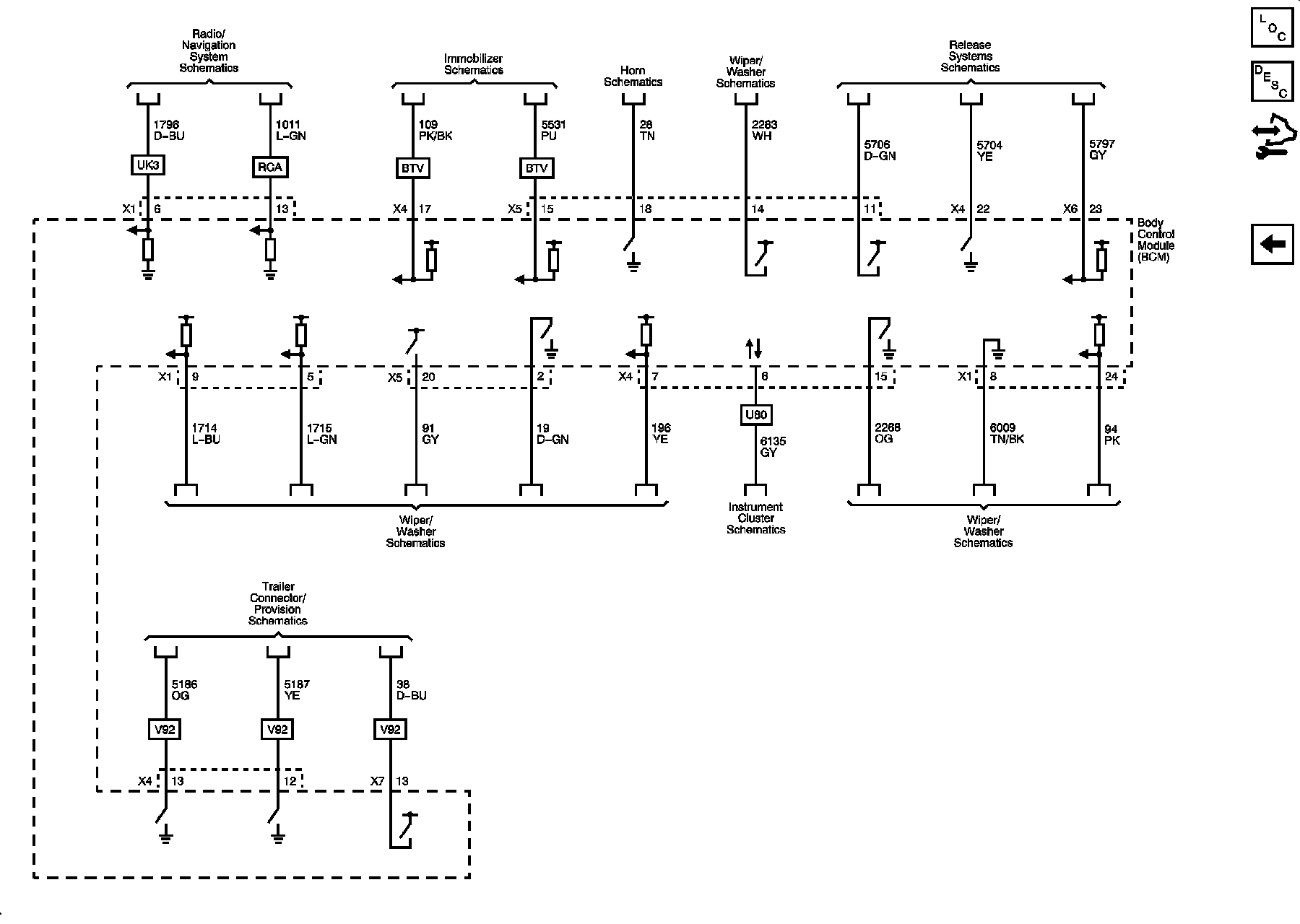

Subsystem References 2 of 3

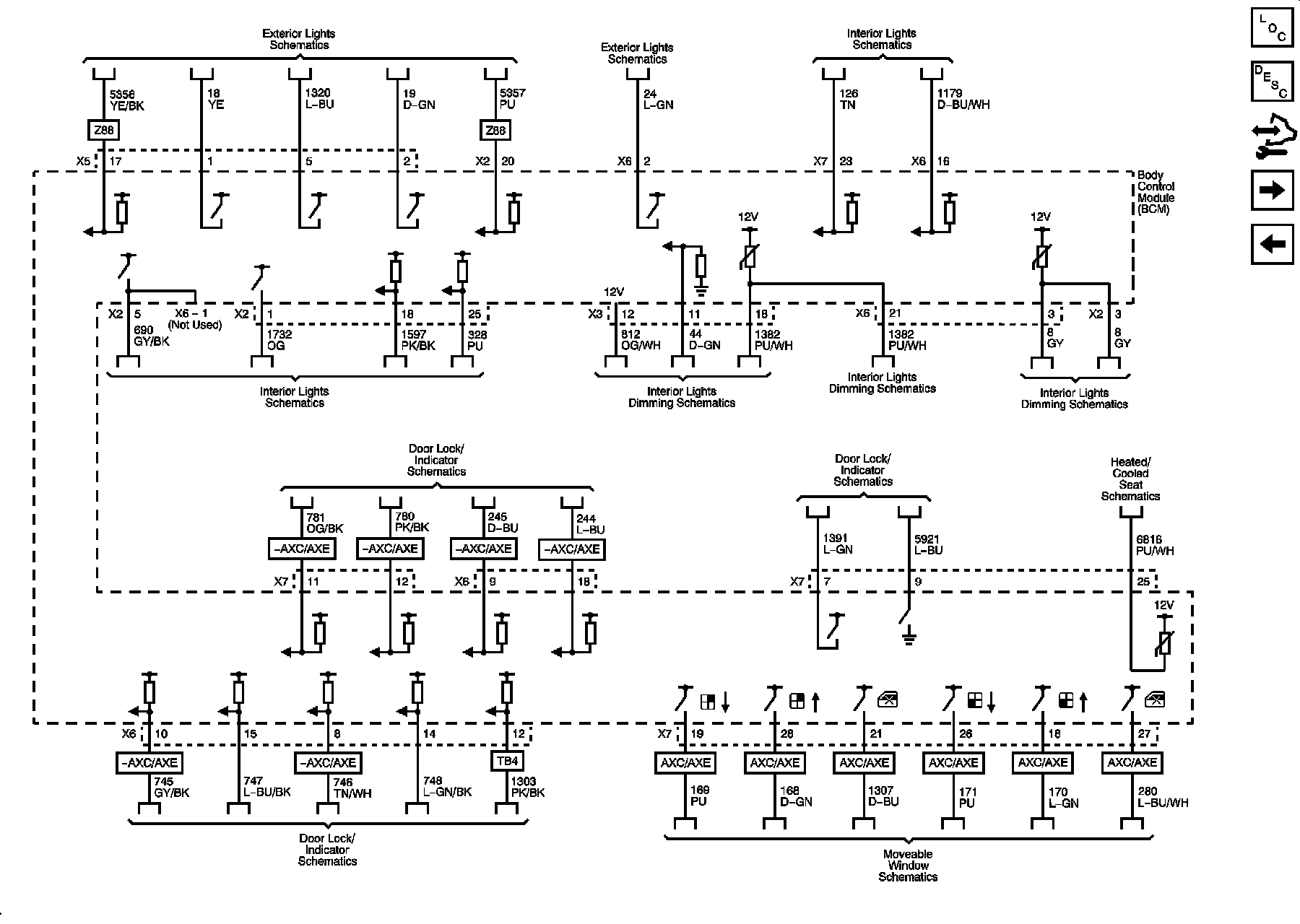

Subsystem References 3 of 3
