Home >> Chevrolet >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Liftgate Schematics
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Liftgate Schematics




Liftgate Schematics

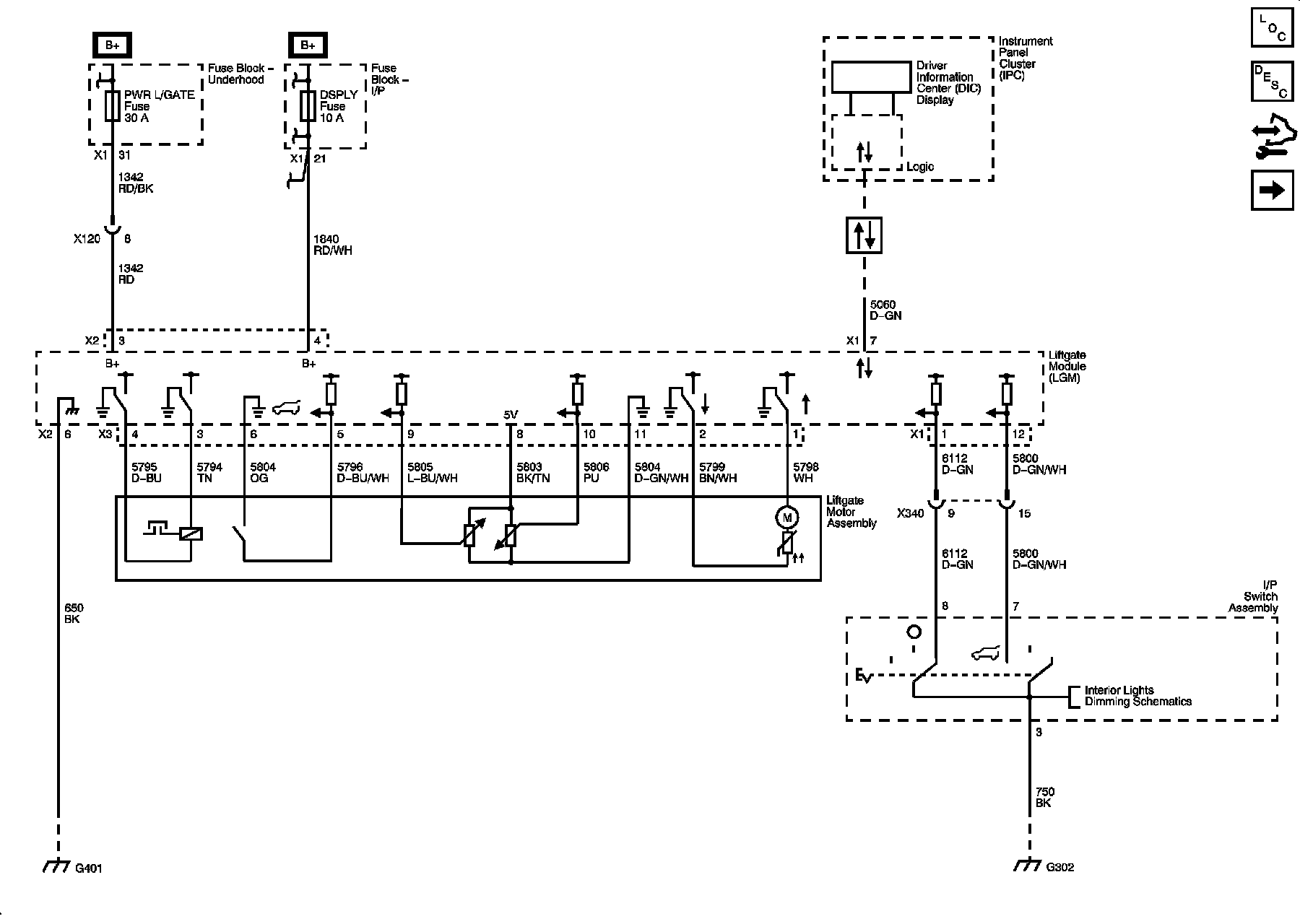

Module Power, Ground, Data Communication, Indicator, I/P Switch, and Liftgate Motor





Latch, Object Sensors, and Switches
