Transmission Control Systems

Automatic Transmission Controls Schematics

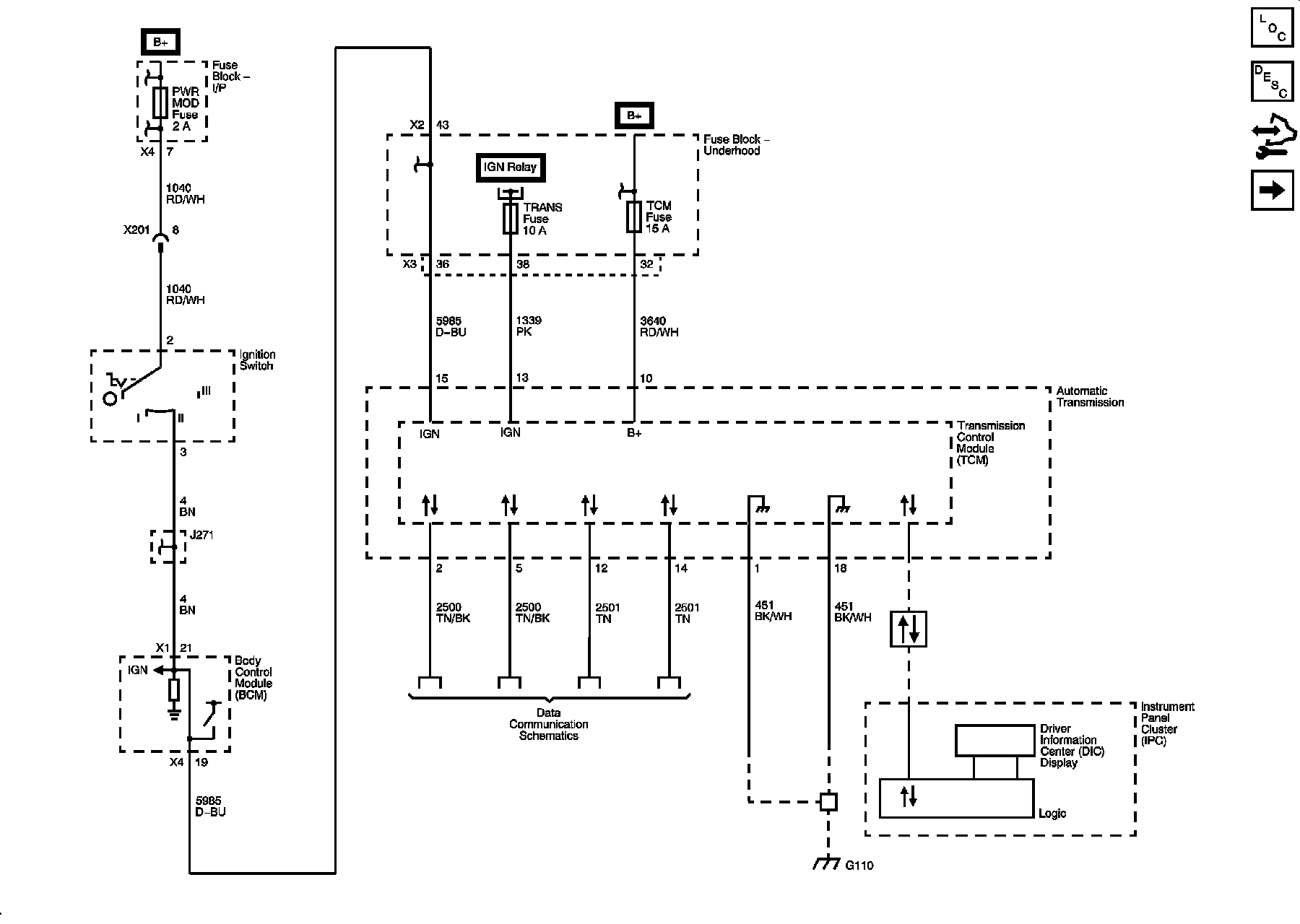

Module Power, Ground, Data Communication, and MIL

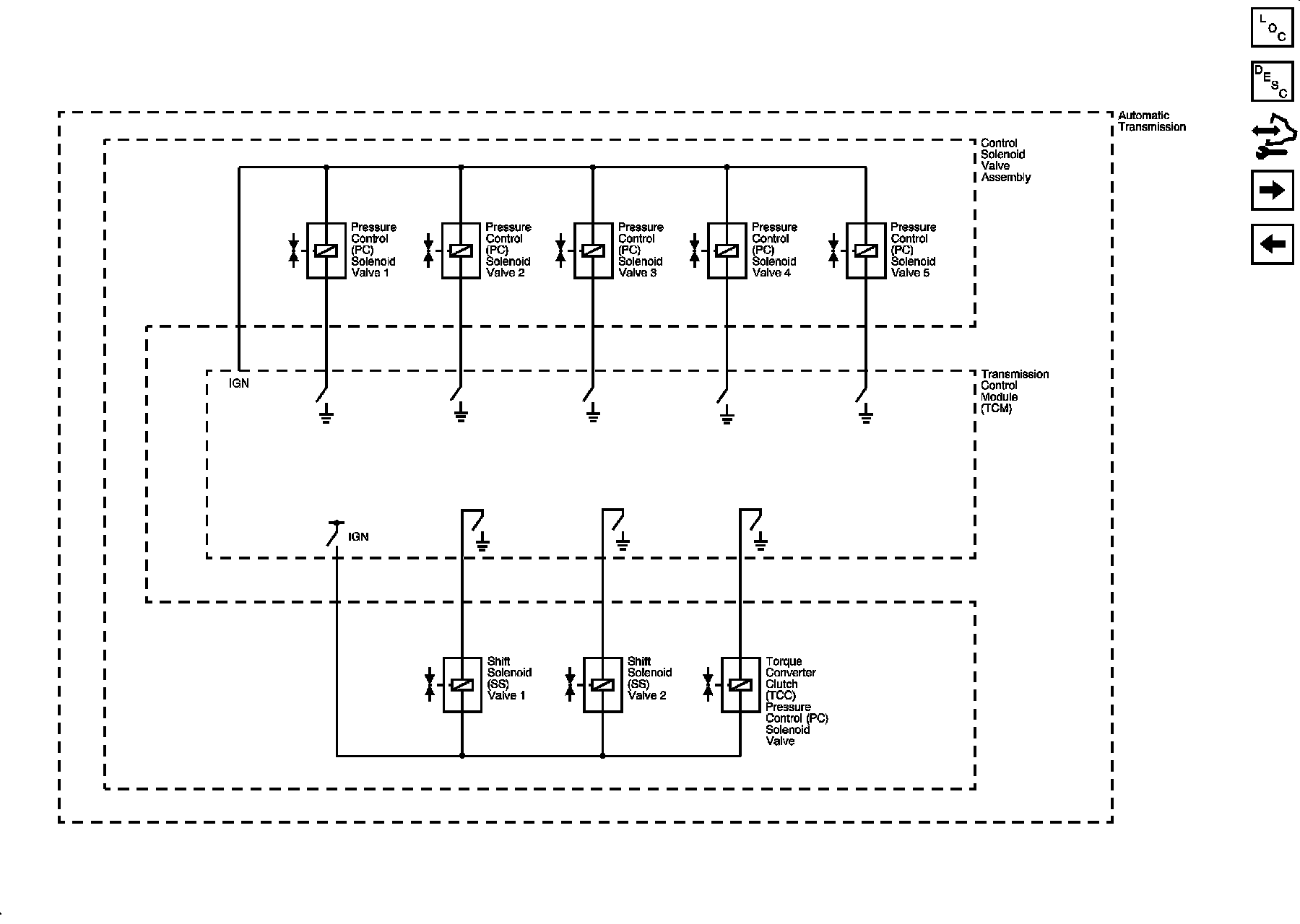

Pressure Controls and Shift Controls

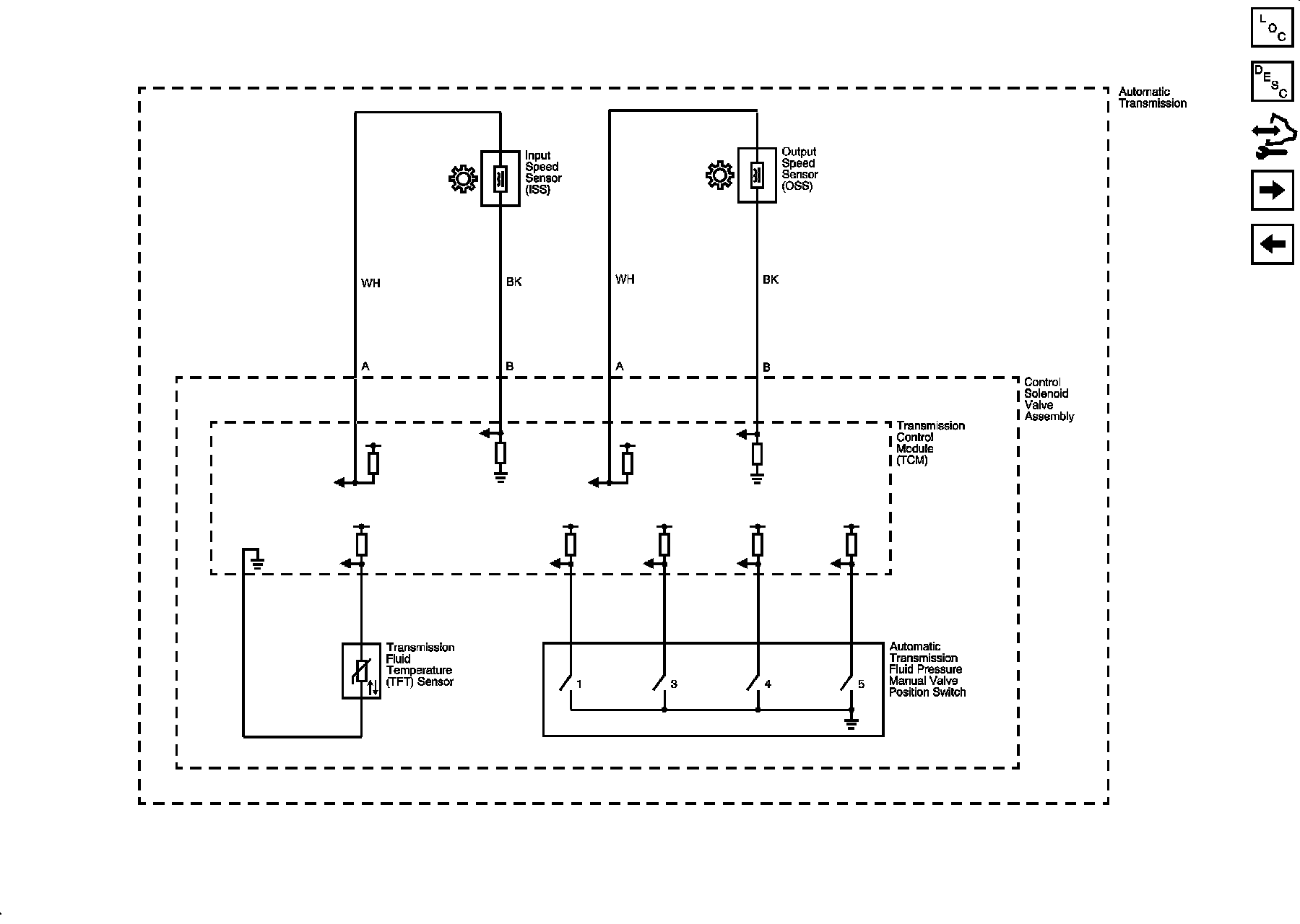

ISS, OSS, TFP, and TFT

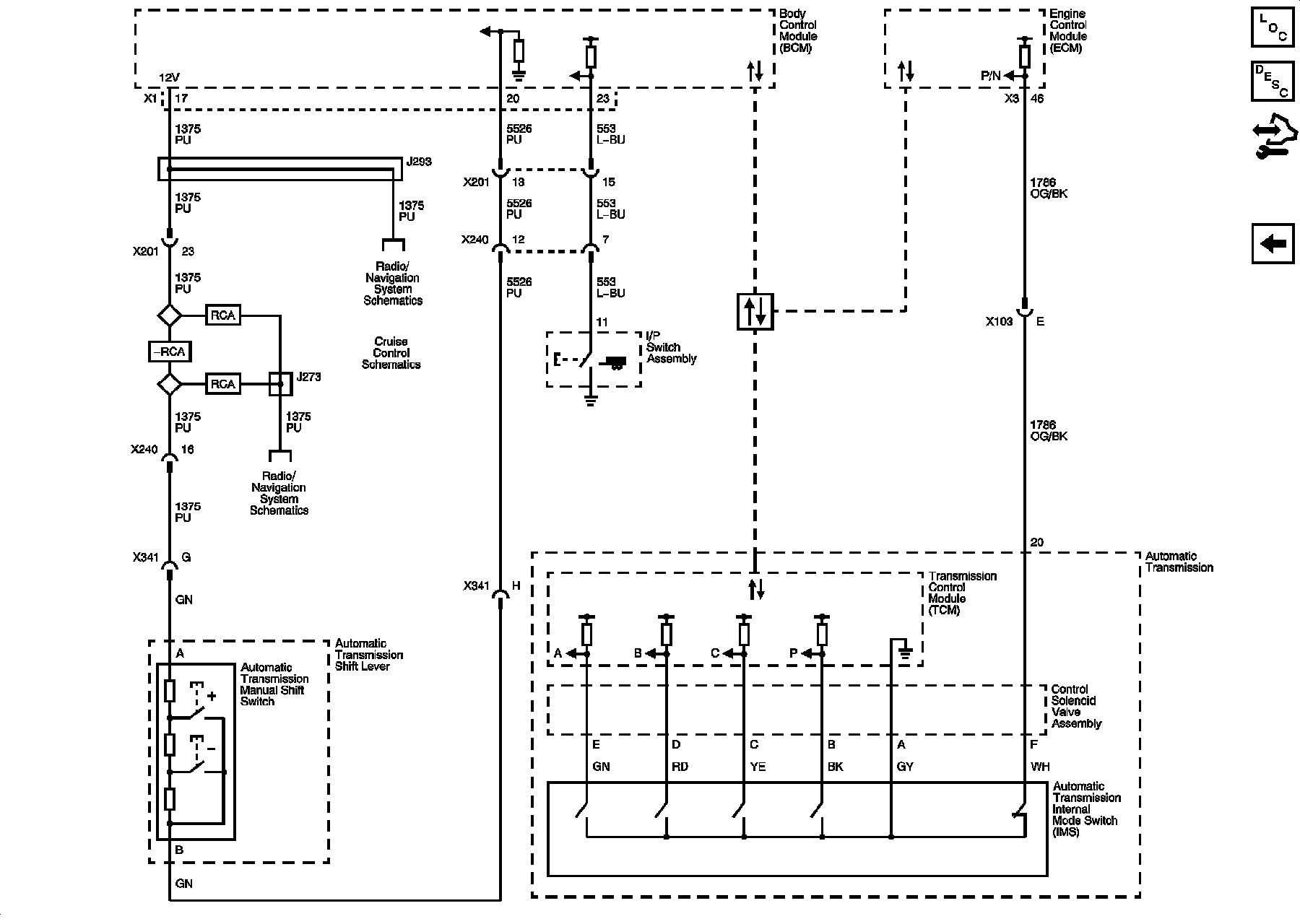

IMS and Tap Up/Tap Down
